- INSTALLATION MATERIALS INCLUDED: With every radiator you purchase from us, you will receive the wall-mounting materials needed to easily install the towel warmer.
- CLASSIC DESIGN: This radiator is a classic bathroom radiator designed to heat the room and warm towels – it stands out thanks to its high-quality workmanship and its wide range of uses.
- TOP-QUALITY WORKMANSHIP: Thanks to the quality of its workmanship, the radiator is not only easy to clean but also has a long service life. No compromises have been made when it comes to quality.
- TECHNICAL SPECIFICATIONS: Width (mm): 400, Height (mm): 800, Connections (mm): 355, Pipe diameter: O22, Profile: 30*40*1.5 D, Heat output (watts at 75/65/20°): 600, Water volume (L): 3.01, for pipe diameters 18 to 22 mm; for pipe spacing 18 to 22 mm; depth (wall to centre of pipe): 75 to 100 mm; depth, maximum operating pressure: 10 bar (1 MPa), test pressure: 12 bar (1.2 MPa), vertical D-profiles 30 x 40 x 1.5 mm, horizontal round tubes 22 x 1.2 mm, distance from the wall: approx. 6.5 cm
- VERSATILE: The radiator not only provides pleasant warmth and a cosy atmosphere, but also fulfils several functions at once. You can therefore also use the radiator as a towel rail or towel warmer.
00
h
:
00
m
:
00
s
Lieferumfang:
1 x Badheizkörper
Entlüftungsventil 1/2 Zoll
Blindstopfen 1/2 Zoll
Montageanleitung
Wandmontage-Set:
- 4 x Wandhalter
- 4 x Schrauben und Dübel
- 4 x Halterschraube
- 4 x Scheiben
1 x Badheizkörper
Entlüftungsventil 1/2 Zoll
Blindstopfen 1/2 Zoll
Montageanleitung
Wandmontage-Set:
- 4 x Wandhalter
- 4 x Schrauben und Dübel
- 4 x Halterschraube
- 4 x Scheiben

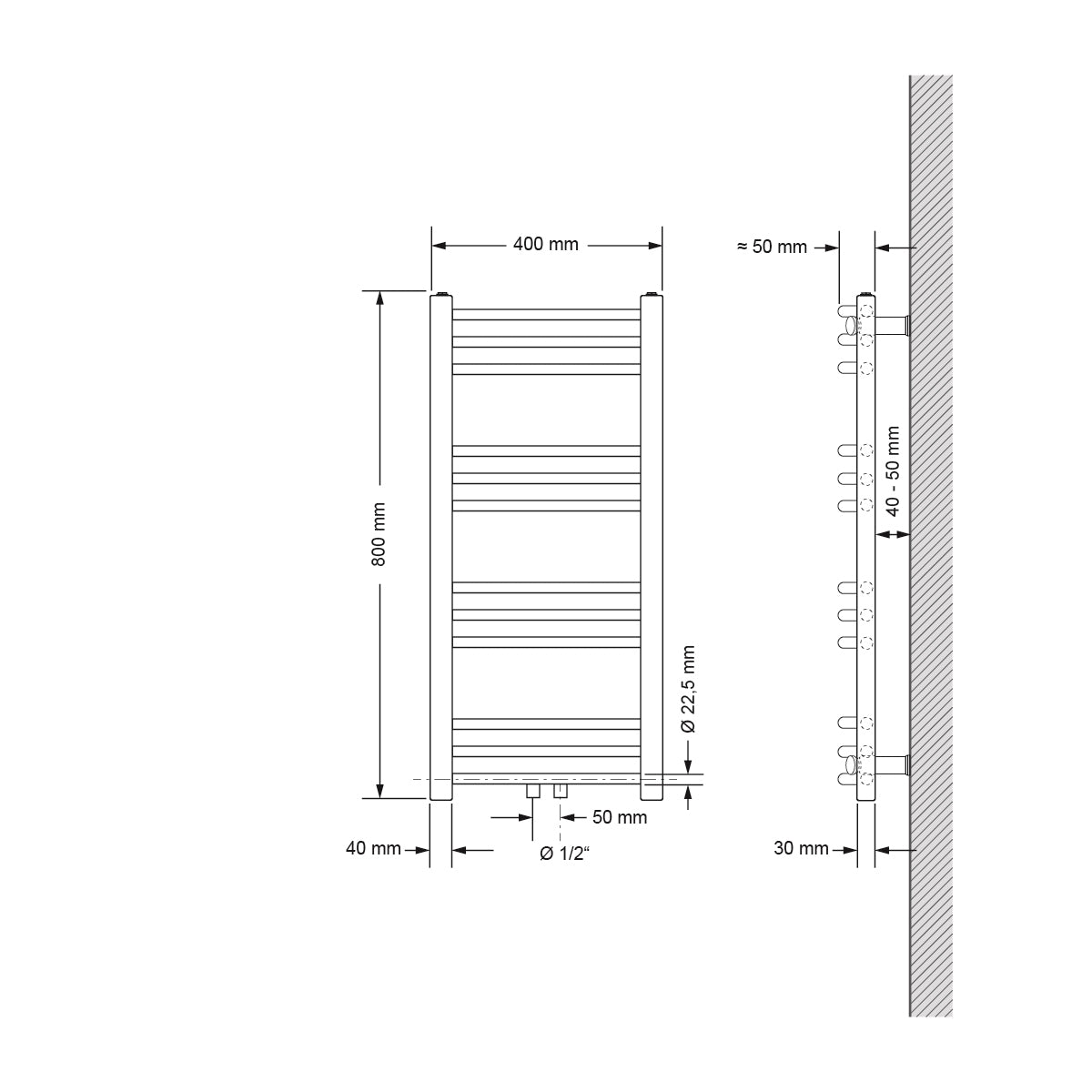

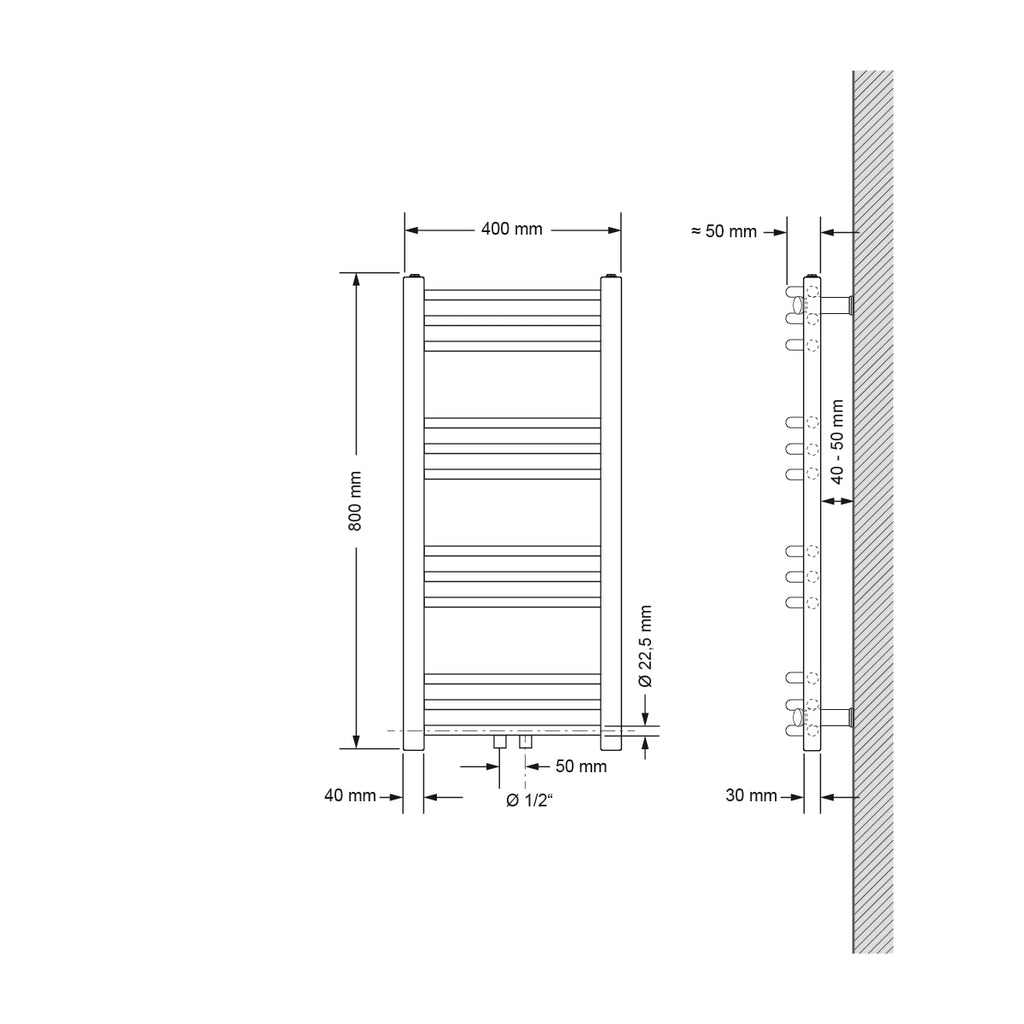

Technical information:
Colour: chrome
Shape: curved, with central connection
Width (mm): 400
Height (mm): 800
Tube diameter: Ø 22
Connections (mm): 355
Profile: 30 mm x 40 mm x 1.5 mm
Number of tubes: 12 (3+3+3+3)
Water capacity (L): 3.01
Weight (kg): 4.62
Heat output (watts at 85°/75°/20°C): 209
Energy type: Hot water
High thermal conductivity
Maximum operating pressure: 10 bar (test pressure: 12 bar)
Vertical D-profiles: 30 mm x 40 mm
Horizontal round tubes: Ø 22 mm
Weld seams are not visible
The item is new and in its original packaging
Heat output in accordance with DIN 442 European Standard 85°/75°/20°C
Manufactured in accordance with EN ISO 9001
In accordance with EN 442-1-2
Wall mounting kit:
High-quality mounting kit for bathroom radiators
High-strength plastic
Suitable for bathroom radiators with a height of 200 cm and a width of 75 cm
Quality retailer
Universally suitable for straight and curved bathroom
for pipe diameters of 18–22 mm
for pipe spacings of 18–22 mm
Depth (wall to centre pipe): 75 to 100 mm
The depth of the wall plugs is not suitable for installation in plasterboard walls
Colour: chrome
Shape: curved, with central connection
Width (mm): 400
Height (mm): 800
Tube diameter: Ø 22
Connections (mm): 355
Profile: 30 mm x 40 mm x 1.5 mm
Number of tubes: 12 (3+3+3+3)
Water capacity (L): 3.01
Weight (kg): 4.62
Heat output (watts at 85°/75°/20°C): 209
Energy type: Hot water
High thermal conductivity
Maximum operating pressure: 10 bar (test pressure: 12 bar)
Vertical D-profiles: 30 mm x 40 mm
Horizontal round tubes: Ø 22 mm
Weld seams are not visible
The item is new and in its original packaging
Heat output in accordance with DIN 442 European Standard 85°/75°/20°C
Manufactured in accordance with EN ISO 9001
In accordance with EN 442-1-2
Wall mounting kit:
High-quality mounting kit for bathroom radiators
High-strength plastic
Suitable for bathroom radiators with a height of 200 cm and a width of 75 cm
Quality retailer
Universally suitable for straight and curved bathroom
for pipe diameters of 18–22 mm
for pipe spacings of 18–22 mm
Depth (wall to centre pipe): 75 to 100 mm
The depth of the wall plugs is not suitable for installation in plasterboard walls
