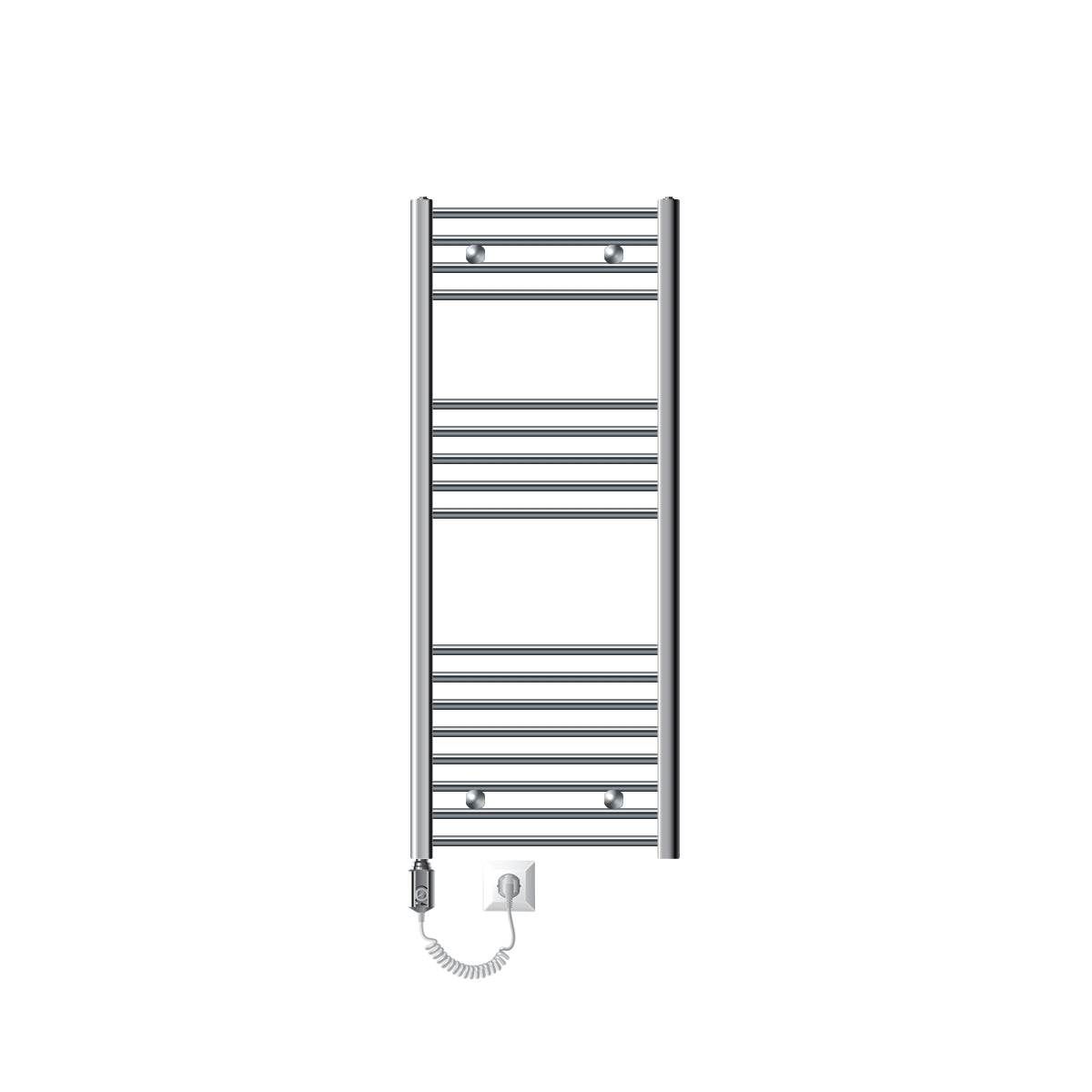

A vertical towel warmer with multiple heating rods.

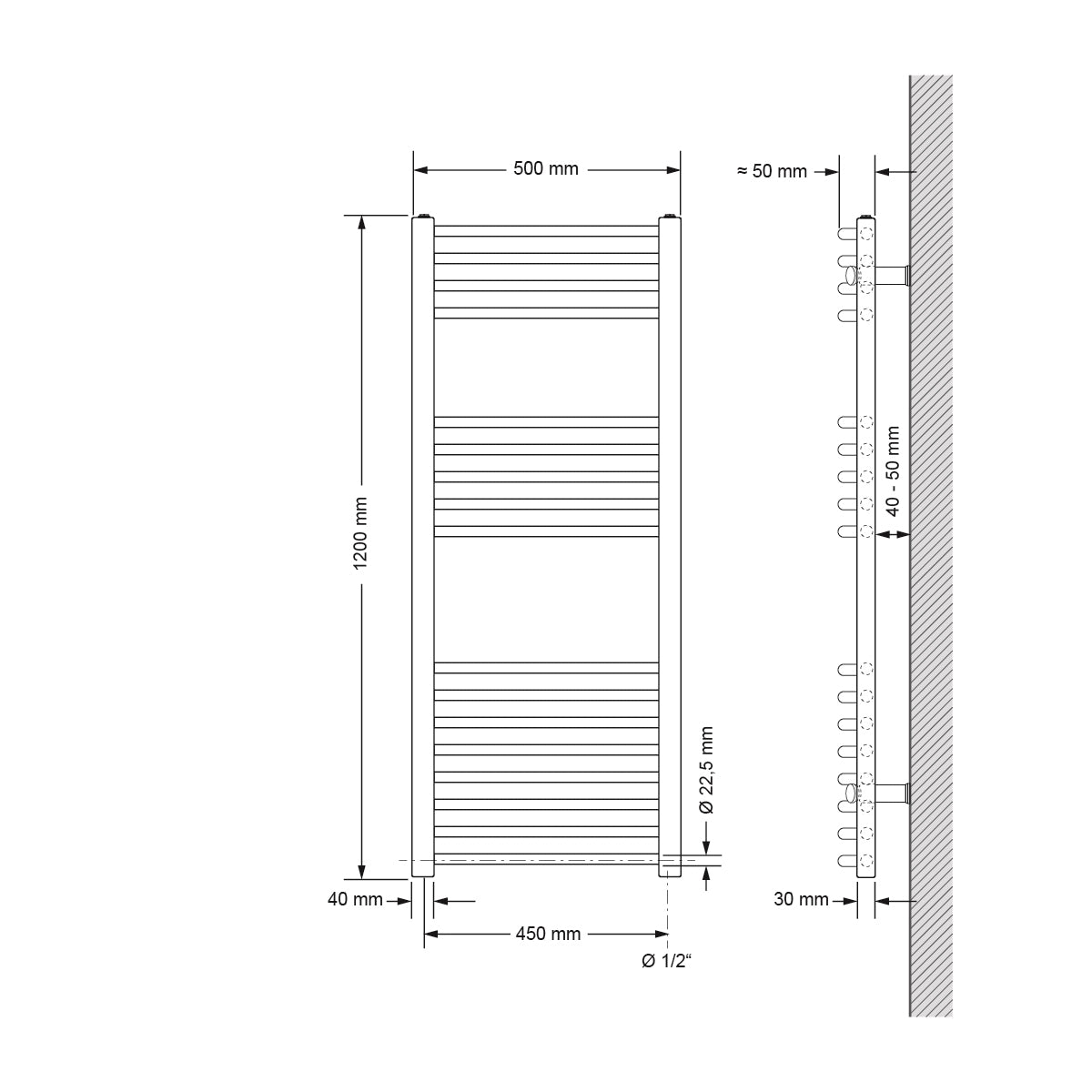

Technical drawing of a curved radiator with dimensions.

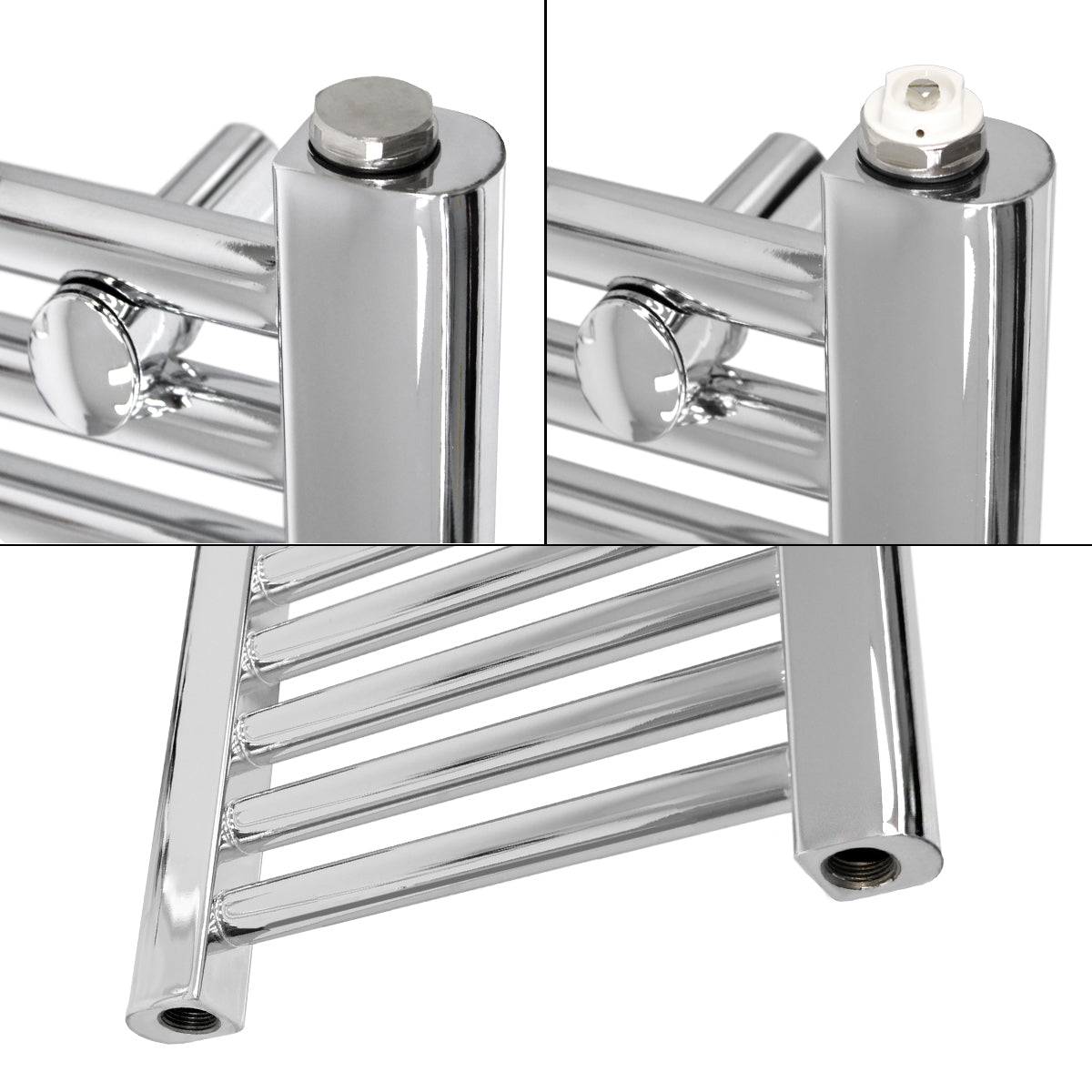

Three views of a chrome-colored radiator with connections.
Detail view of a chrome-colored mounting bracket.
Mounting set with chrome-plated brackets and accessories.

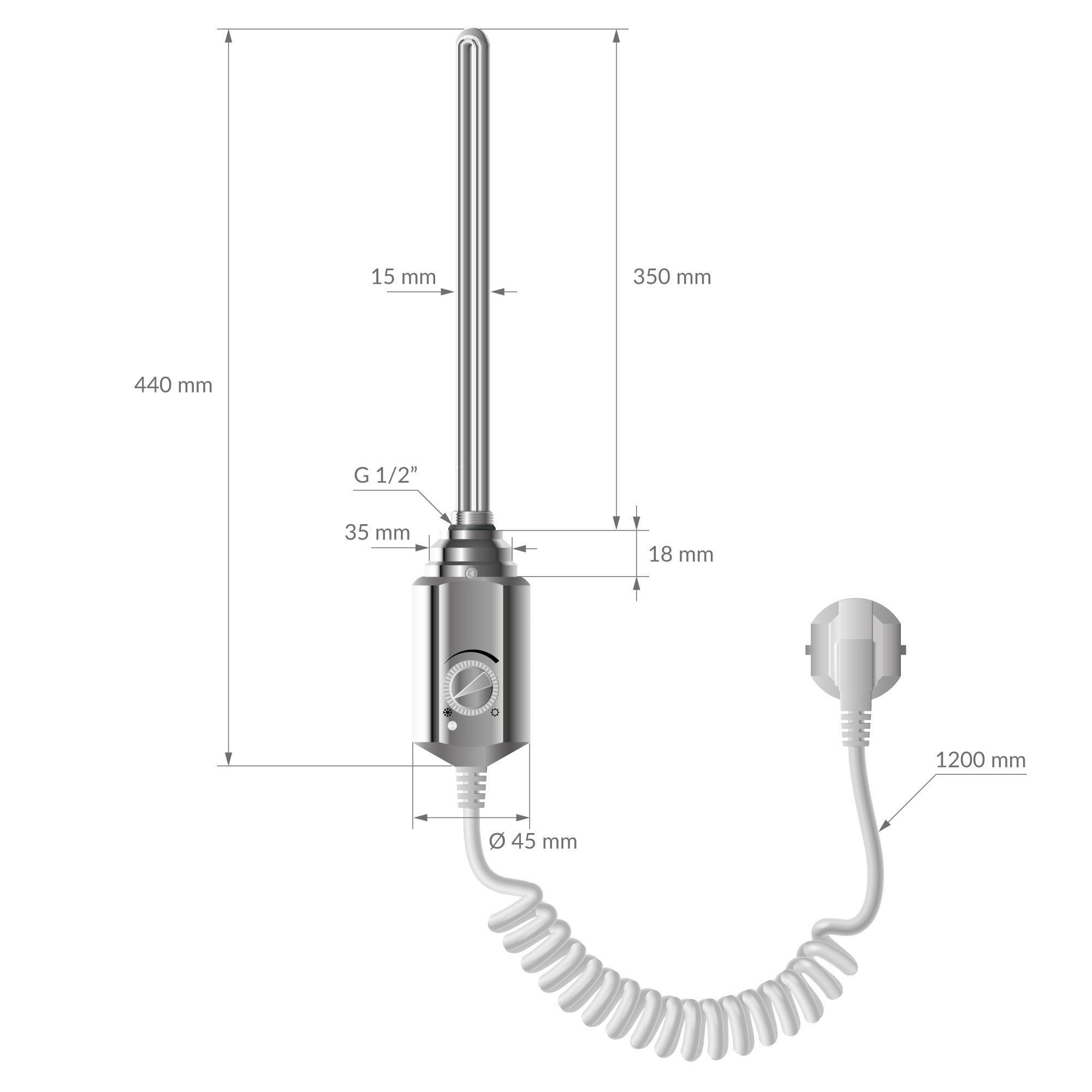

Technical drawing of a device with dimensions and cable, 440 mm high.
Hover over the image to enlarge Click on image to zoom
A vertical towel warmer with multiple heating rods.Technical drawing of a curved radiator with dimensions.Three views of a chrome-colored radiator with connections.Detail view of a chrome-colored mounting bracket.Mounting set with chrome-plated brackets and accessories.Technical drawing of a device with dimensions and cable, 440 mm high.

Luxe-194/BHK Sahara 500*1200 Chrome gebogen+900W

Save 25%
Article number:291005741
Save 25%
141,54 € 188,72 €
Save 25%

incl. VAT

In stock - Delivery time: 2-3 working days
American Express Apple Pay Bancontact EPS Google Pay iDEAL Wero Klarna Maestro Mastercard PayPal Shop Pay Union Pay Visa
  • Electric bathroom radiator
  • Including fitting materials
  • Quality from ECD Germany
  • Excellent workmanship
  • Versatile
  • 3-year warranty
Lieferumfang:

1 x Badheizkörper
Heizstab
Entlüftungsventil 1/2 Zoll
Blindstopfen 1/2 Zoll
Montageanleitung
Wandmontage-Set:
- 4 x Wandhalter
- 4 x Schrauben und Dübel
- 4 x Halterschraube
- 4 x Scheiben

Technical information:
Connection type: Side connection
Design: Curved
Colour: Chrome
Material: Steel
Width: 500 mm
Height: 1200 mm
Connection: 255 mm
Pipe diameter: Ø 22
Profile (mm): 30*40*1.5 D
Heat output: 330 W
Heat capacity: 1106 BTU
Water capacity: 5.17 L
Weight: 8.02 kg
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles: 30 x 40 x 1.5 mm
Horizontal round tubes: 22 x 1.2 mm
Distance from the wall: approx. 5 cm
For pipe diameters: 18 to 22 mm
For pipe spacing: 18 to 22 mm
Depth (wall to centre of pipe): 75 to 100 mm
Deep wall plugs are not suitable for installation in plasterboard walls!
Heat output in accordance with DIN 442 European Standard 85°/75°/20°C
Manufactured in accordance with EN ISO 9001
In accordance with EN 442-1-2

900 W heating element:
Material: steel, plastic
Colour: chrome
Power: 900 watts
Weight: 0.43 kg
Total length: 440 mm
Length of heating element only: 350 mm
Diameter: 45 mm
Cable length: 120 cm
Connection thread: G ½"
Adjustable temperature: 13–65°C (+ / - 3°C)
90°C thermal fuse
Protection rating: IP 44
Protection class: I

Wall mounting kit:
High-quality mounting kit for bathroom radiators
High-strength plastic
Suitable for bathroom radiators up to 200 cm in height and 75 cm in width
Quality retailer
Universally suitable for straight and curved bathroom radiators
For pipe diameters of 18–22 mm
For pipe spacing of 18–22 mm
Depth (wall to centre pipe): 75 to 100 mm
The depth of the wall plugs is not suitable for installation in plasterboard walls
