- Electric bathroom radiator
- Mounting materials included
- Quality from ECD Germany
- Top workmanship
- Versatile
00
h
:
00
m
:
00
s
Product description:
Are you currently fitting out your bathroom or replacing your equipment? For many people, bathroom radiators are an essential functional feature of the bathroom. They not only provide pleasant warmth, but also lovely warm, dry towels. This means that a bathroom radiator serves not only as a source of heat, but also as a towel warmer.
Our Sahara range offers a huge selection of excellent radiators with various connections, sizes, shapes and colours.
Shape matters: straight or curved?
Our Sahara models are available in straight and curved designs. The advantage of the curved shape is that towels are easier to drape over the towel radiator. Its curved shape provides a larger heating surface and therefore greater heating output. However, please note that the curved design sits further away from the wall and therefore takes up more space. It is also considerably more complex to manufacture, which affects the price.
Our Sahara radiators are available in two operating modes:
One option is electric operation. A heating element is inserted into one of the connections and must then be plugged into a socket. Depending on the model, our Sahara radiators may already be fitted with a heating element. This means you can also connect them as usual to the hot water supply of your heating system. This dual-fuel operation is a feature of modern towel radiators.
The advantage of electric operation:
You can enjoy a warm radiator and dry towels even in summer, when the heating system is normally switched off. The downside is the electricity cost incurred by the heating element.

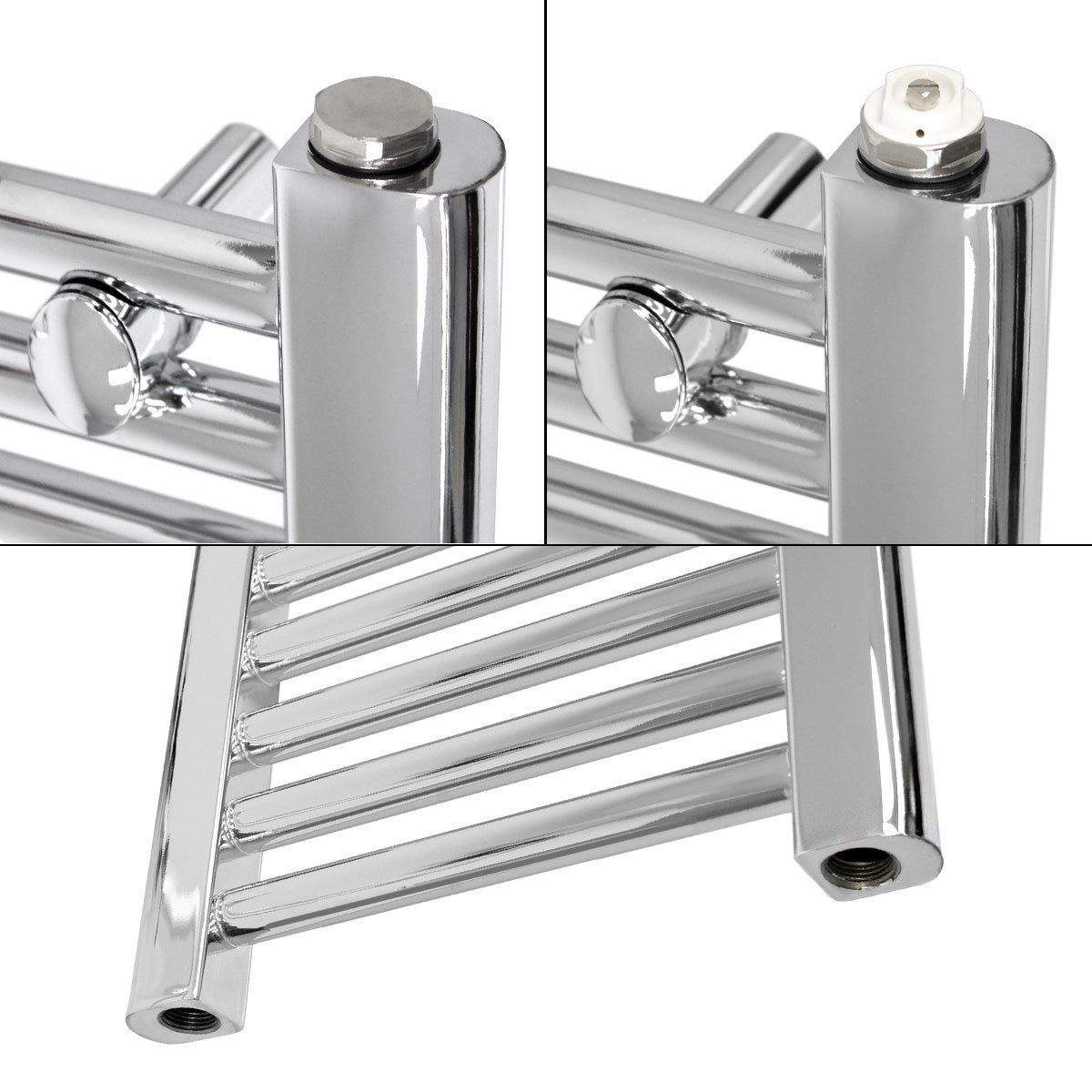

Central or side connection?
The hot water has to enter somewhere and then flow out again on one side. The connection you need depends on where your heating pipes run. If they have not yet been installed, we recommend a central connection. These are usually more discreet and elegant. Our Sahara models also give you a free choice. We offer models with both side and central connections.
All radiators in our shop come with standard installation kits. Your new radiator is waiting for you.
Scope of delivery:
1 x bathroom radiator
Heating element
1/2-inch air vent valve
1/2-inch blanking plug
Installation instructions
Wall mounting kit:
- 4 x wall brackets
- 4 x screws and wall plugs
- 4 x bracket screws
- 4 x washers

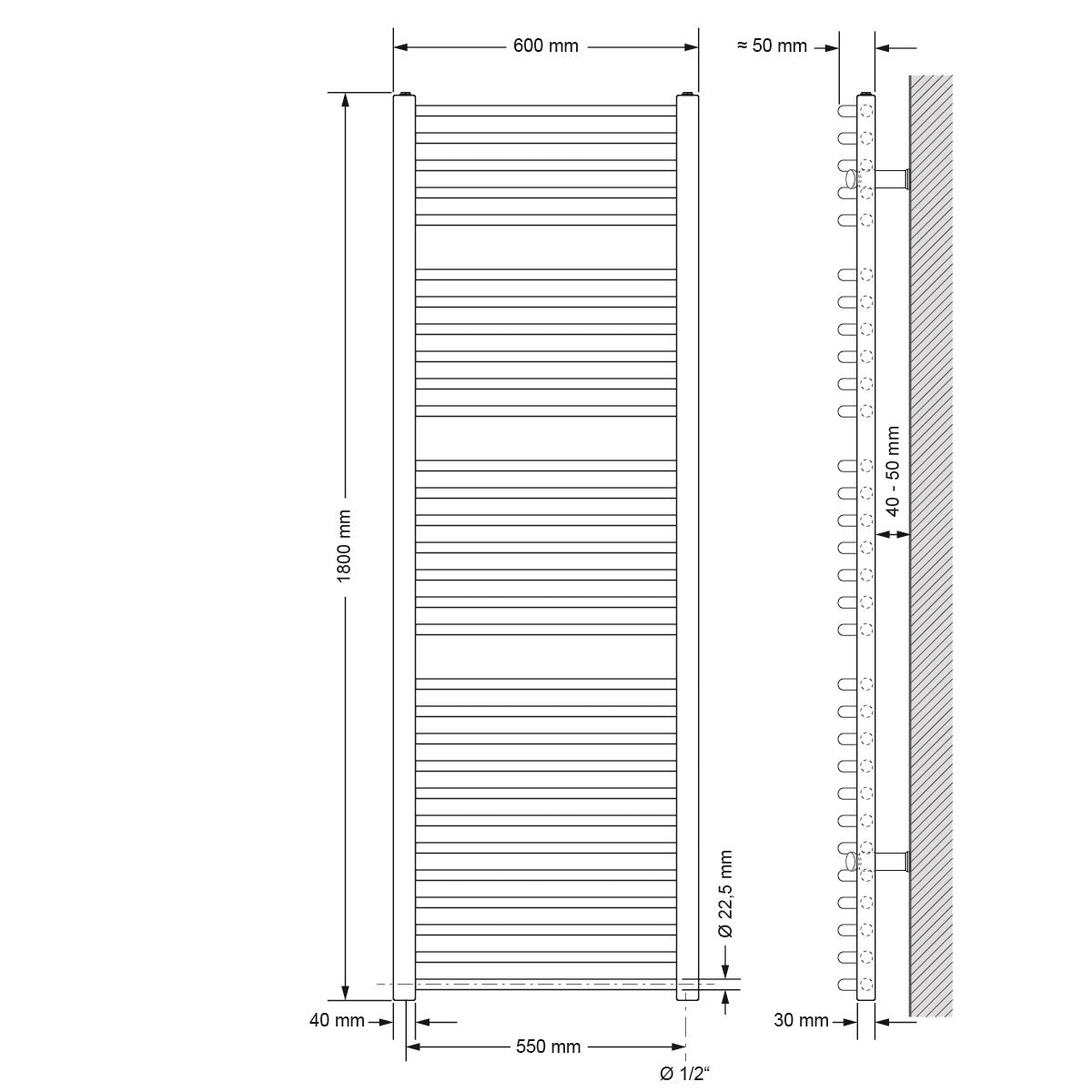

Technical information:
Colour: chrome
Shape: curved, with side connection
Width (mm): 600 mm
Height (mm): 1800 mm
Tube diameter: Ø 22
Connections (mm): 555
Profile: 30 mm x 40 mm x 1.5 mm
Number of tubes: 30 (5+6+7+12)
Heating element heat output: 900 W
Energy type: electric
High thermal conductivity
Maximum operating pressure: 10 bar (test pressure: 12 bar)
Vertical D-profiles: 30 mm x 40 mm
Horizontal round tubes: Ø 22 mm
Welds are not visible
The item is new and in its original packaging
Heat output according to DIN 442 Euronorm 85°/75°/20°C
Manufactured according to EN ISO 9001
According to EN 442-1-2

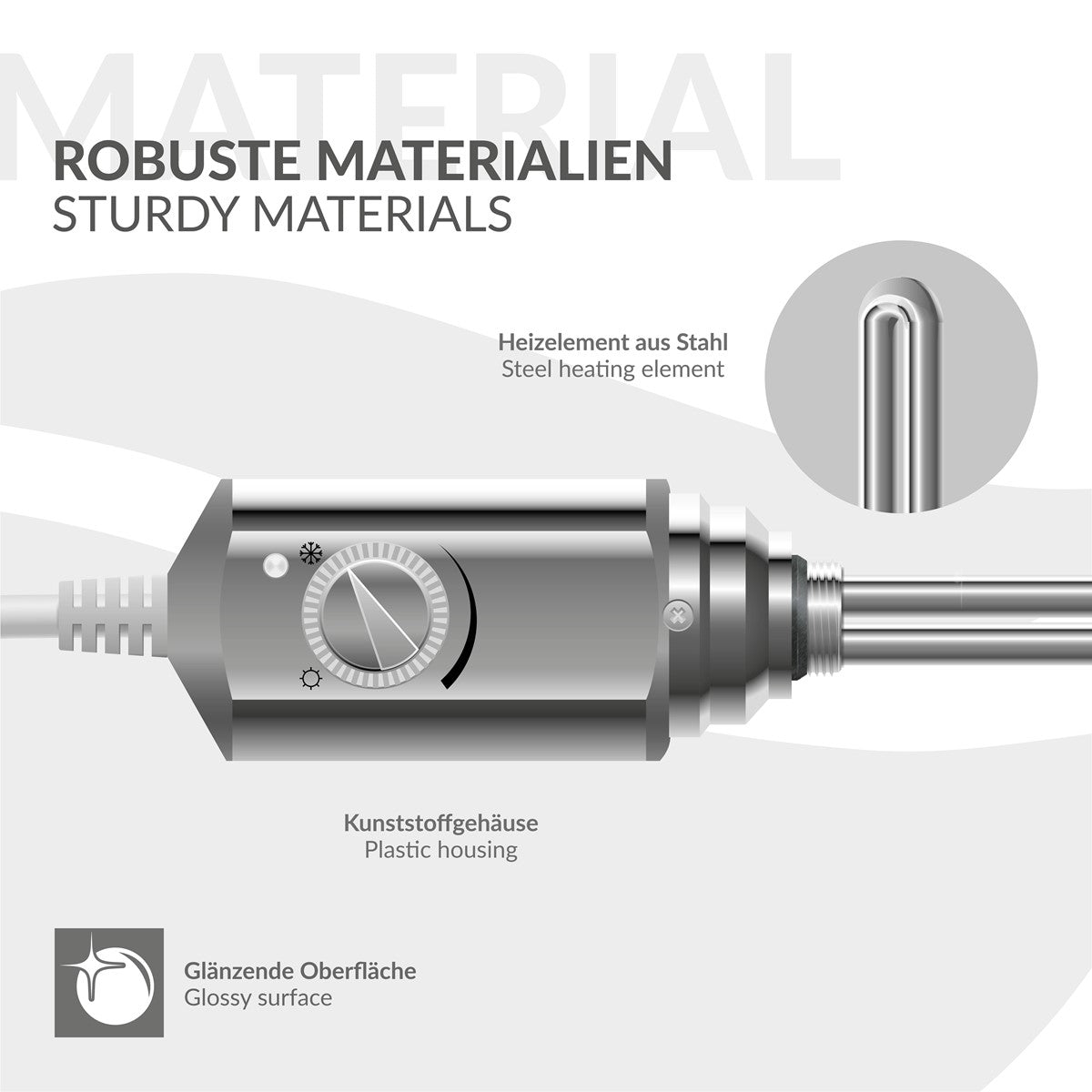

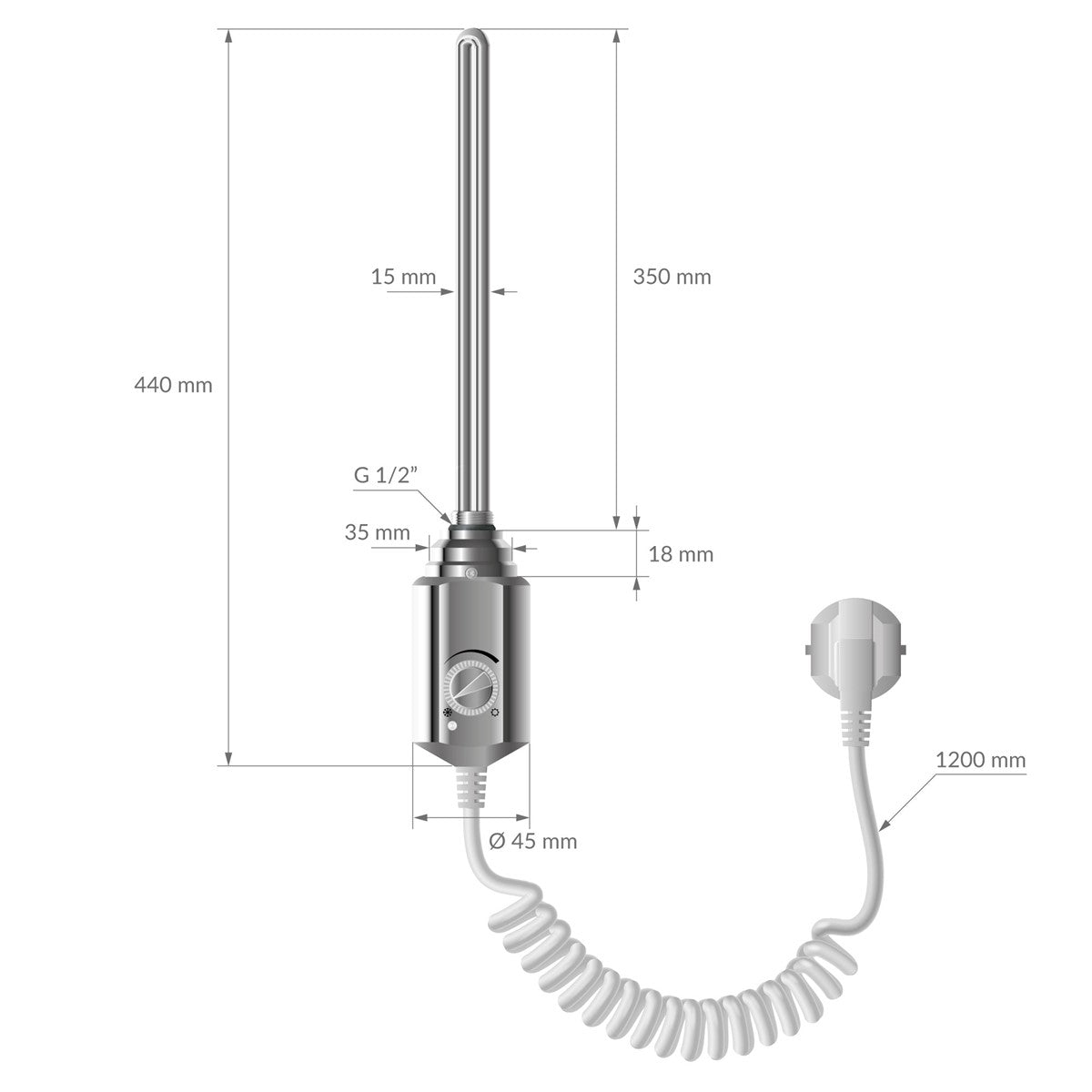

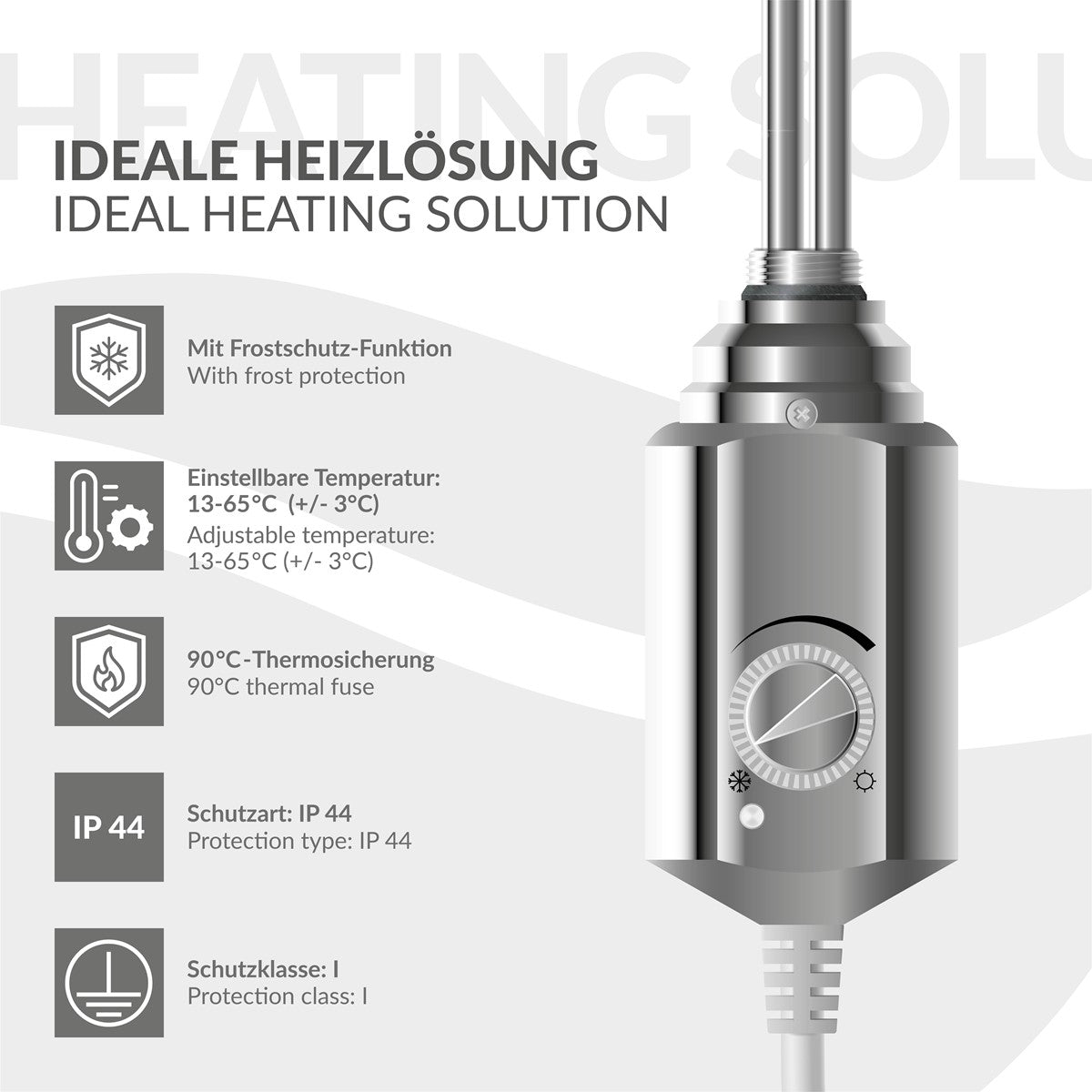

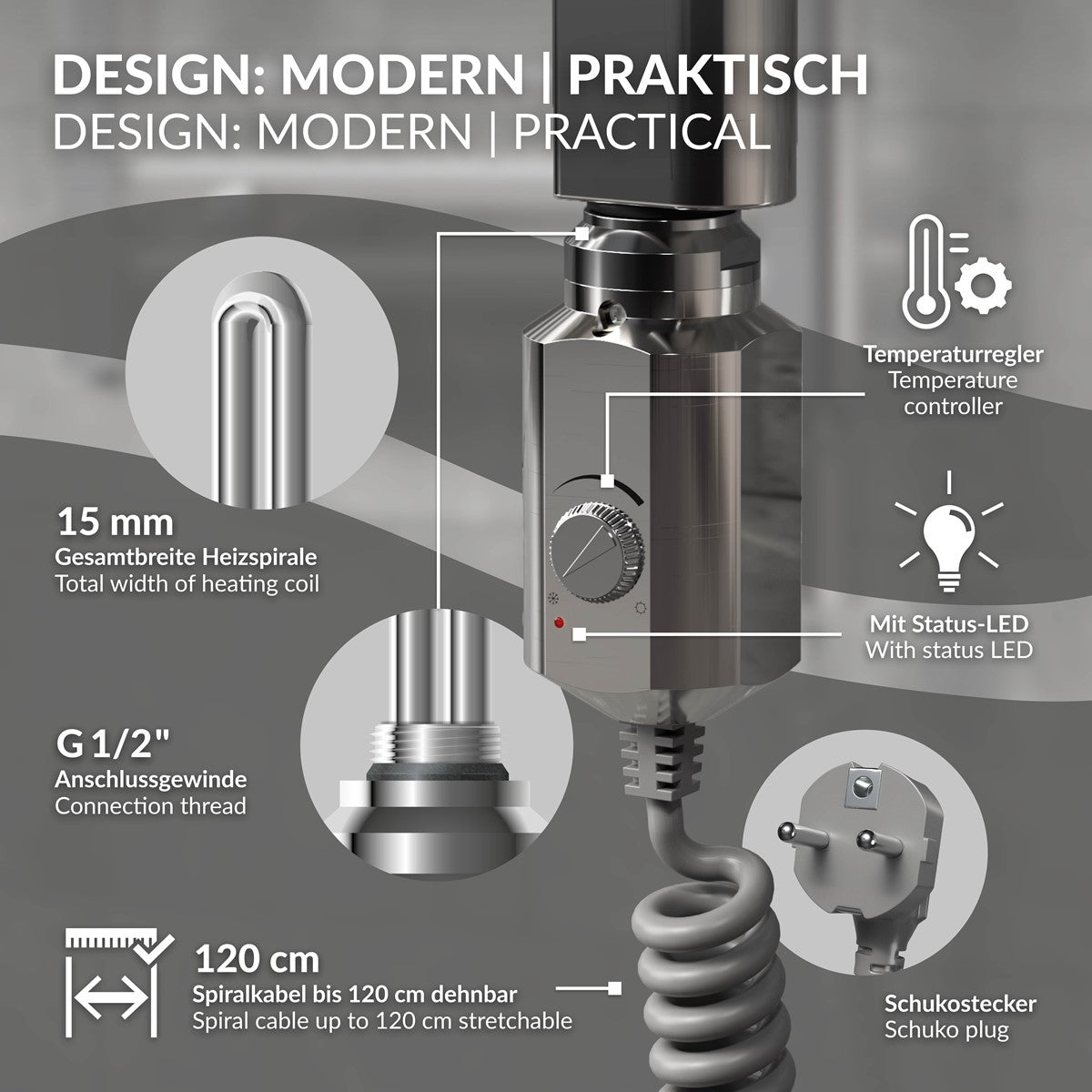

Heating element 900 W:
Heating output: 900 W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Connection size: 1/2 "
Weight (g): 410
Overall length (mm): 450
Heating element length L (mm): 370
Type: RD 10
Wall mounting set:
High-quality fastening set for bathroom radiators
High-strength plastic
Suitable for bathroom radiators up to 200 cm high and 75 cm wide
Quality retailer
Universally suitable for straight and curved bathroom radiators
for tube diameters of 18–22 mm
for tube spacing of 18–22 mm
Depth (wall to centre tube): 75 to 100 mm
The depth of the wall plugs is not suitable for installation in plasterboard walls
Colour: chrome
Shape: curved, with side connection
Width (mm): 600 mm
Height (mm): 1800 mm
Tube diameter: Ø 22
Connections (mm): 555
Profile: 30 mm x 40 mm x 1.5 mm
Number of tubes: 30 (5+6+7+12)
Heating element heat output: 900 W
Energy type: electric
High thermal conductivity
Maximum operating pressure: 10 bar (test pressure: 12 bar)
Vertical D-profiles: 30 mm x 40 mm
Horizontal round tubes: Ø 22 mm
Welds are not visible
The item is new and in its original packaging
Heat output according to DIN 442 Euronorm 85°/75°/20°C
Manufactured according to EN ISO 9001
According to EN 442-1-2
Heating element 900 W:
Heating output: 900 W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Connection size: 1/2 "
Weight (g): 410
Overall length (mm): 450
Heating element length L (mm): 370
Type: RD 10
Wall mounting set:
High-quality fastening set for bathroom radiators
High-strength plastic
Suitable for bathroom radiators up to 200 cm high and 75 cm wide
Quality retailer
Universally suitable for straight and curved bathroom radiators
for tube diameters of 18–22 mm
for tube spacing of 18–22 mm
Depth (wall to centre tube): 75 to 100 mm
The depth of the wall plugs is not suitable for installation in plasterboard walls
