• LuxeBath electric bathroom heater
• Modern and timeless design

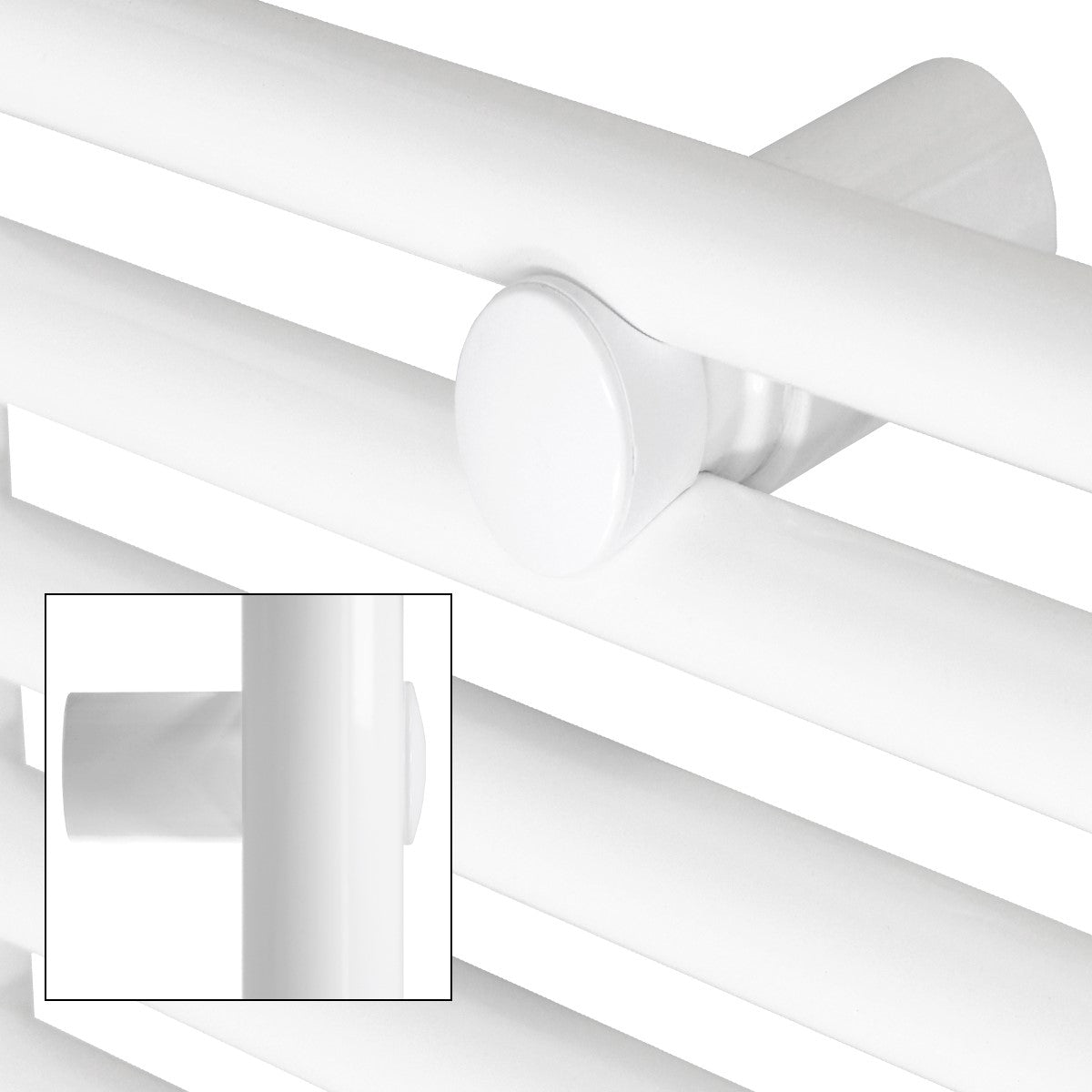

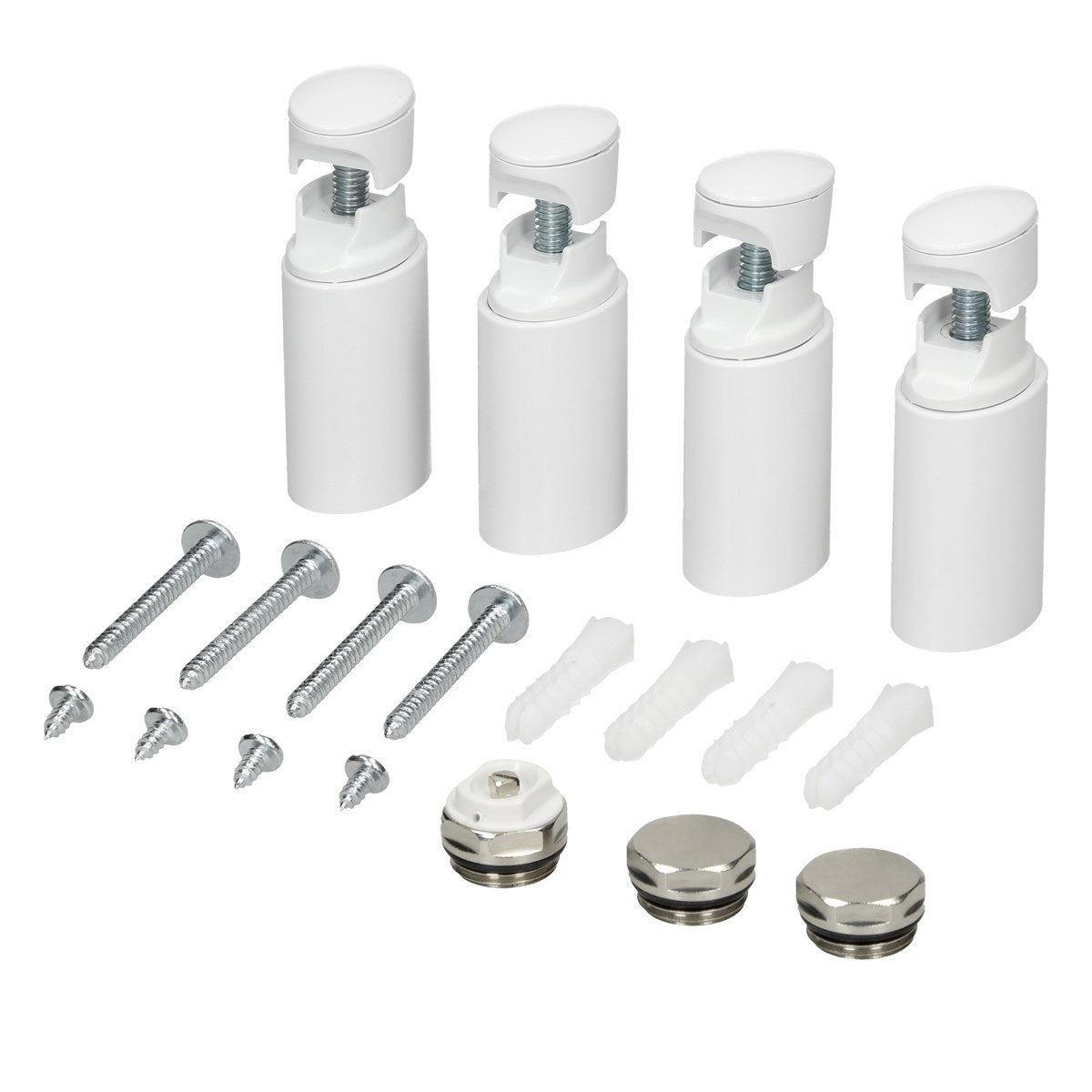

• Mounting material included
• High quality materials
• Simple installation
• Top processing
• 3 years warranty

Technical information:

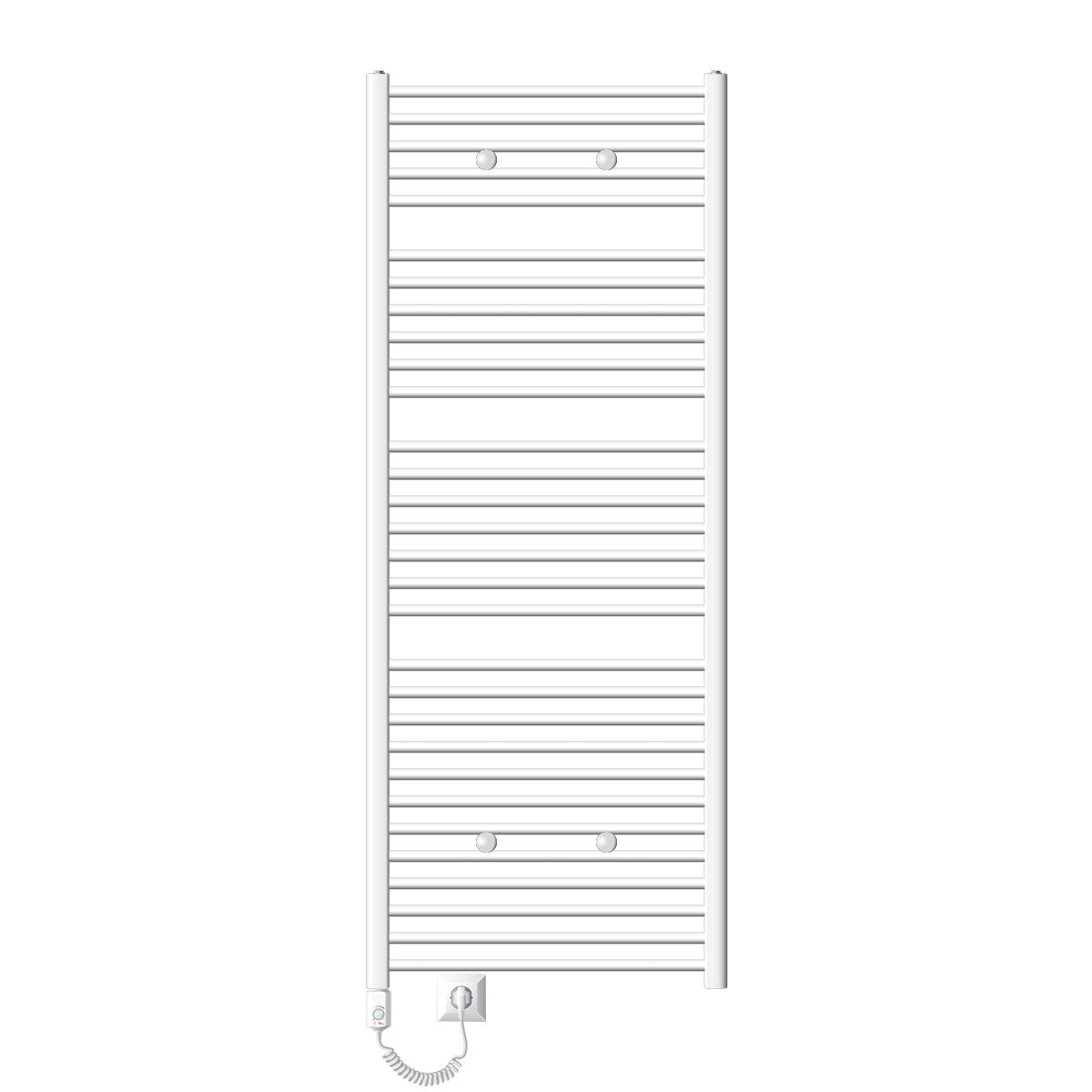

Bathroom radiator

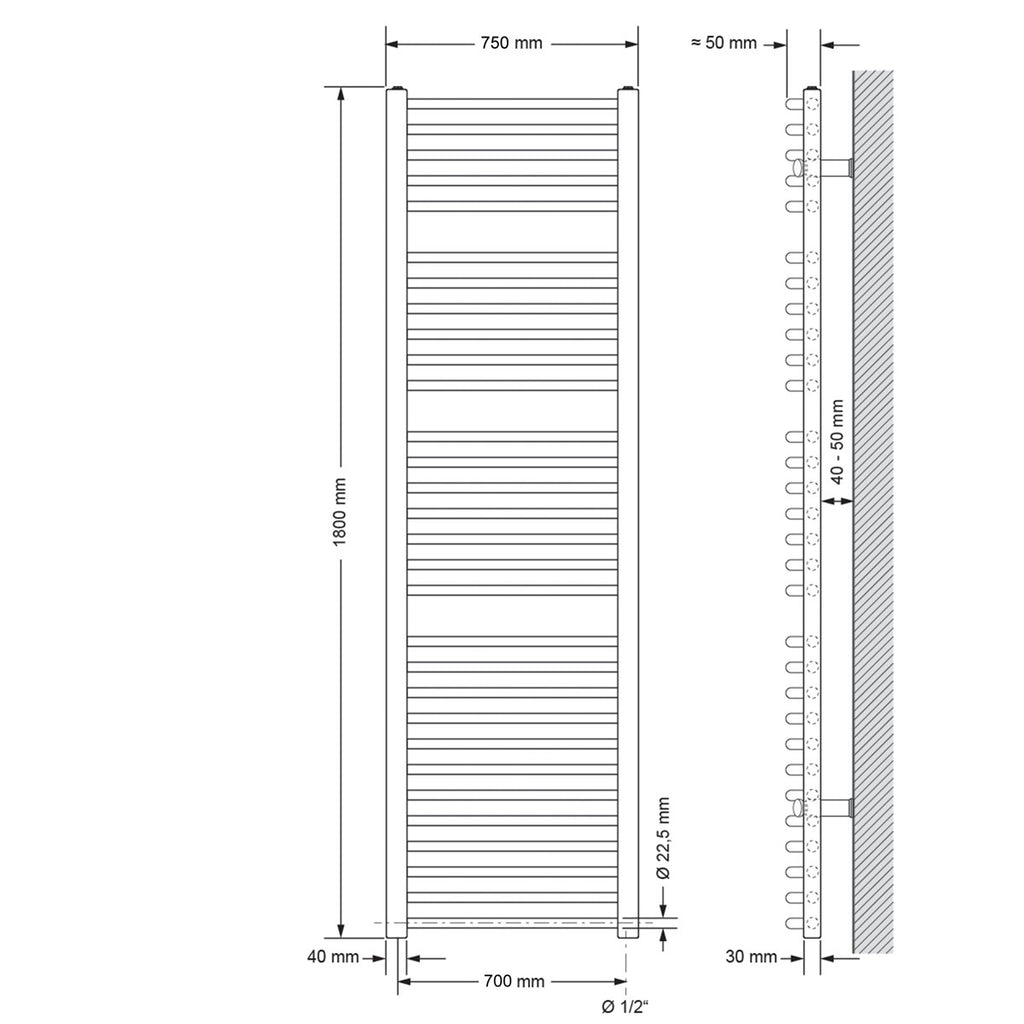

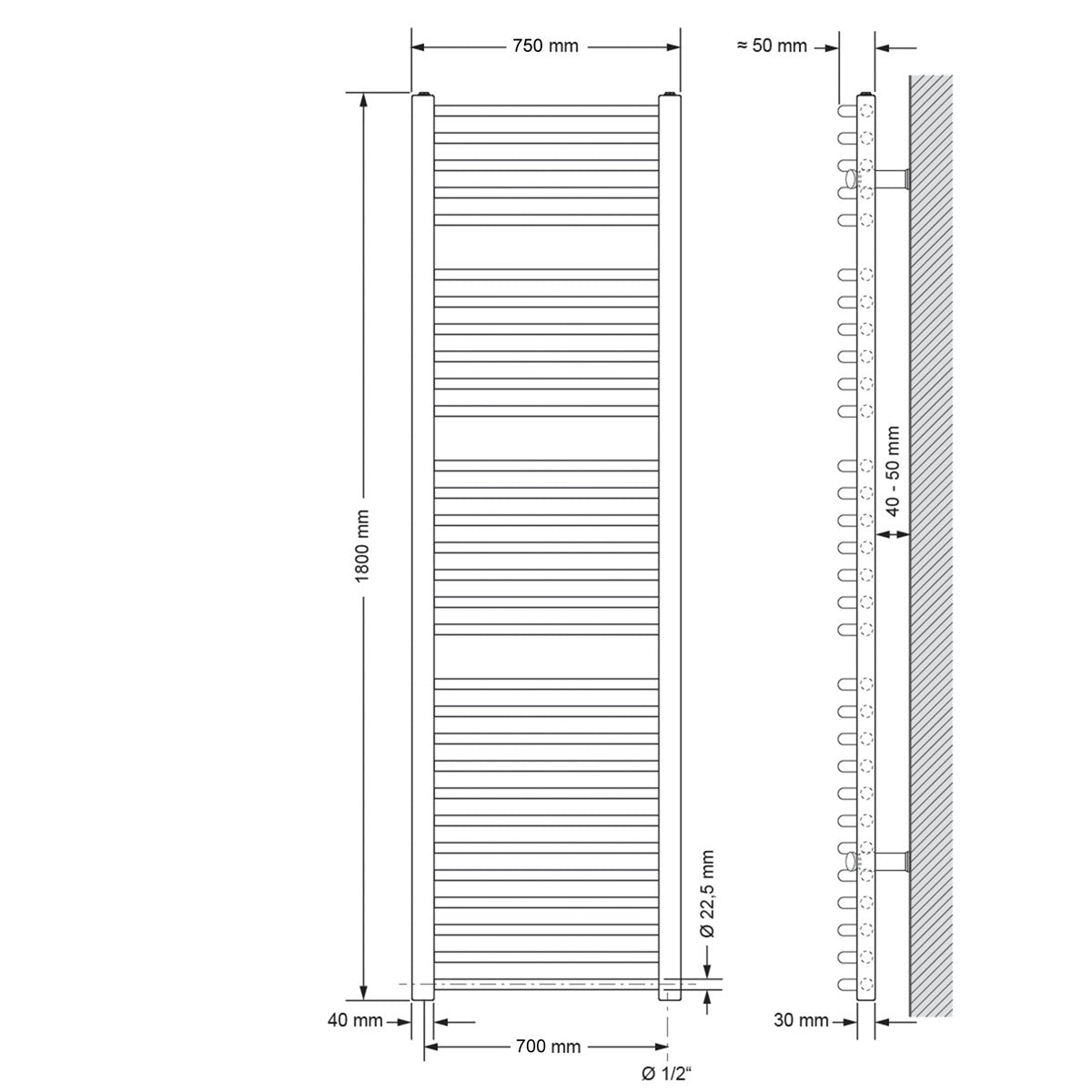

Width (mm): 750
Height (mm): 1800

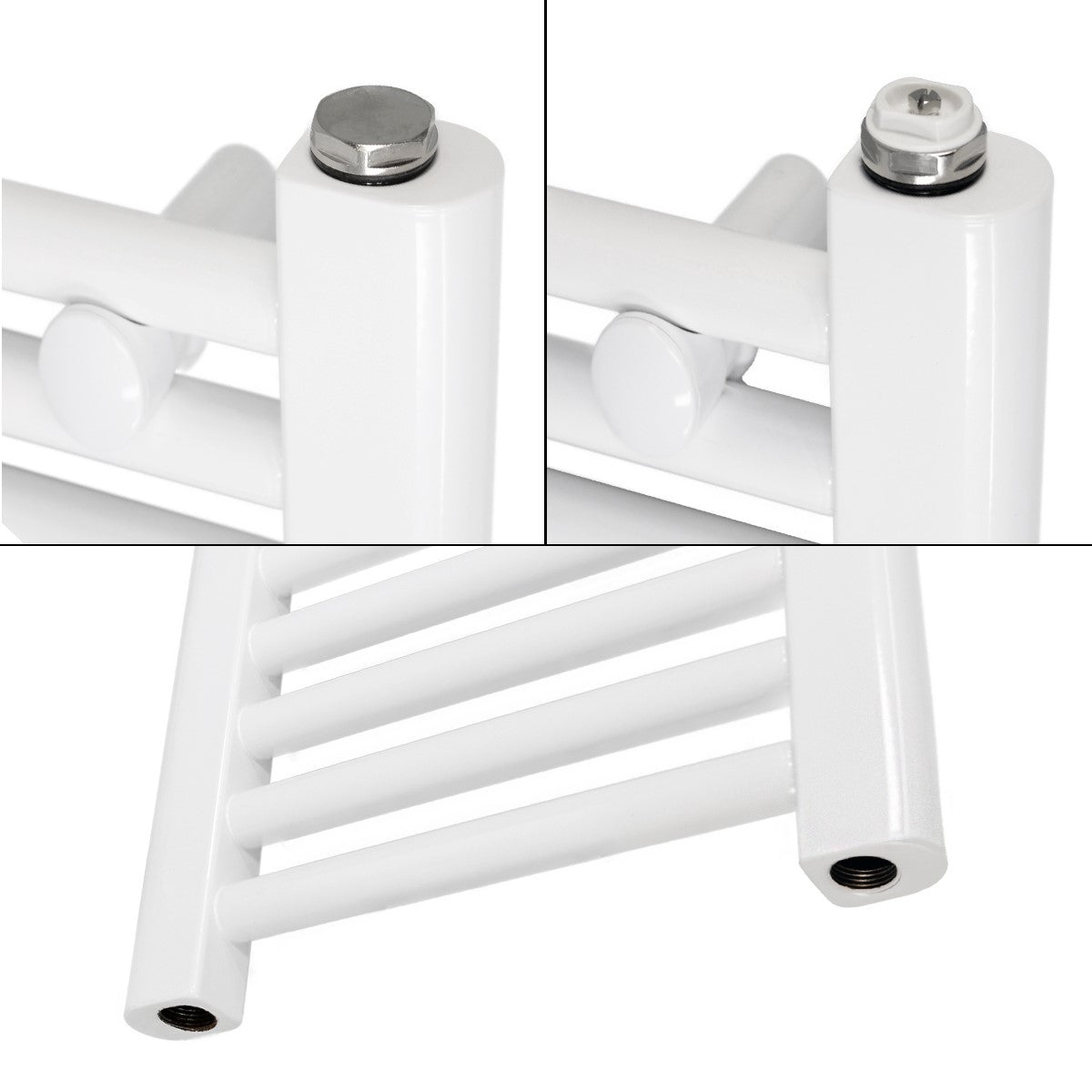

Connections (mm): 705
Pipe diameter: Ø22
Profile: 30*40*1.5 D
Heat output 900W
Water volume (L): 10.18
Weight (kg): 15.21
Color: White
for pipe diameter 18 to 22 mm;
for pipe spacing 18 to 22 mm;
Depth (wall to center of pipe): 75 to 100 mm;
Deep plugs are not suitable for installation in drywall
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles 30 x 40 x 1.5 mm
Horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm
High-quality bathroom radiator from specialist dealer
Thick base material
robust cardboard packaging

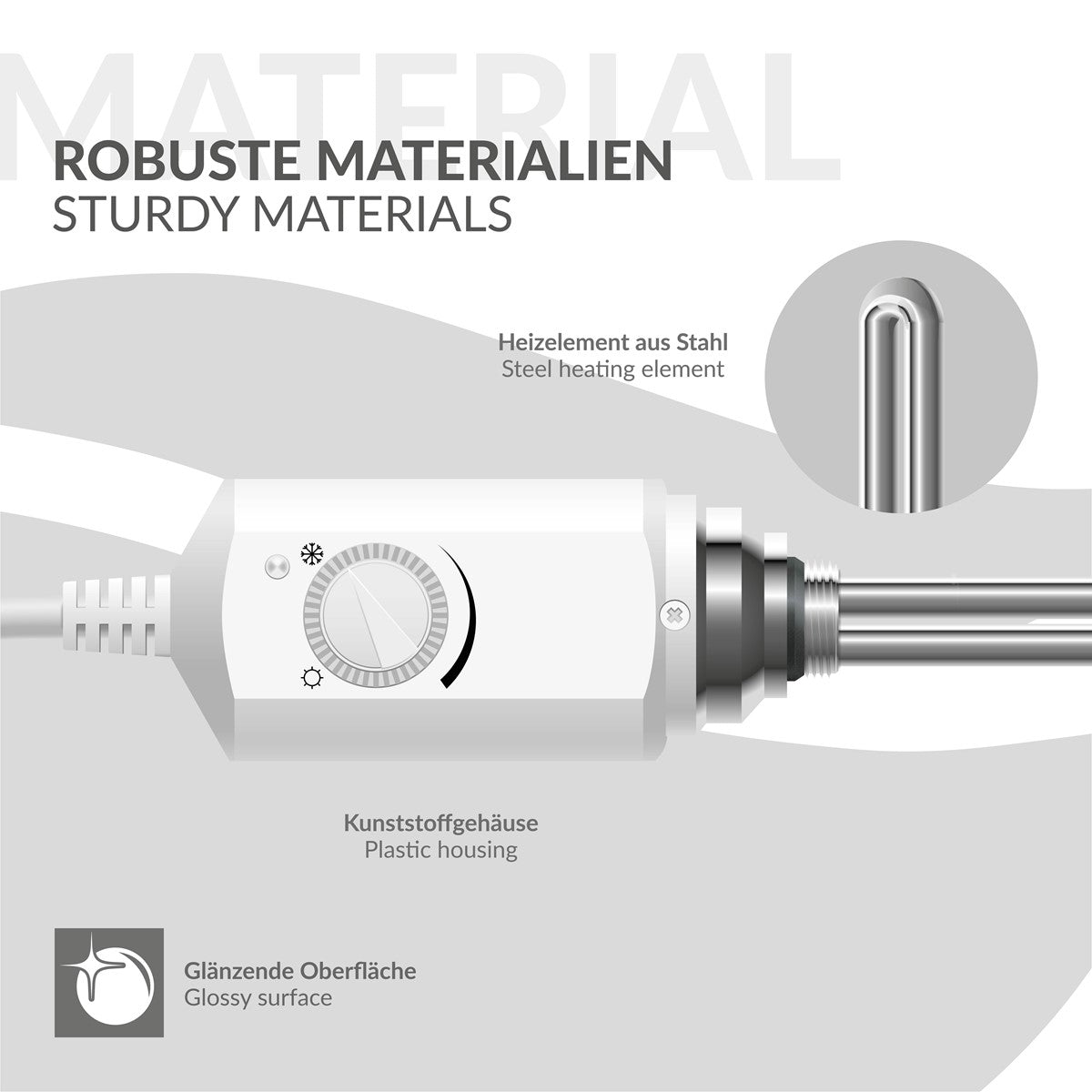

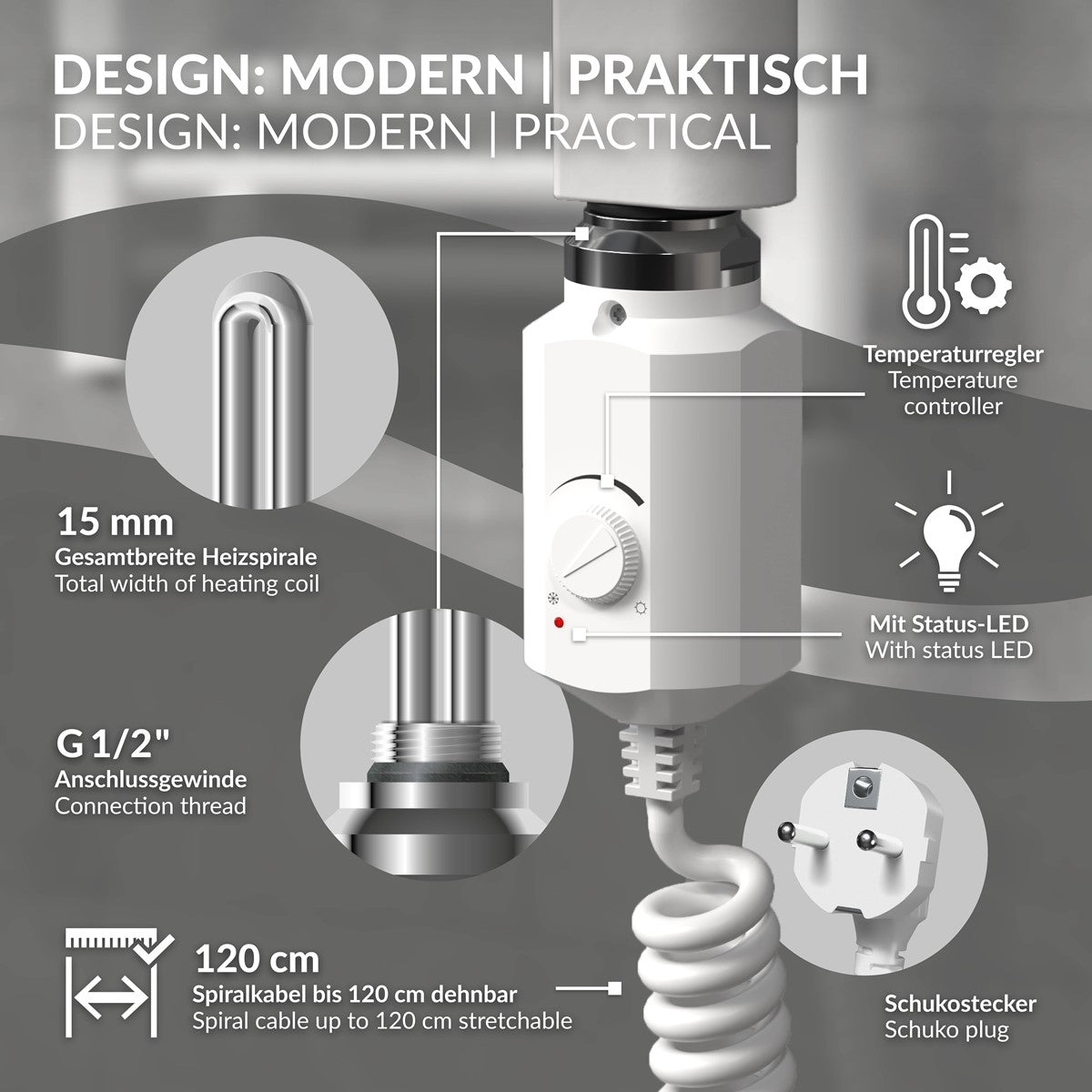

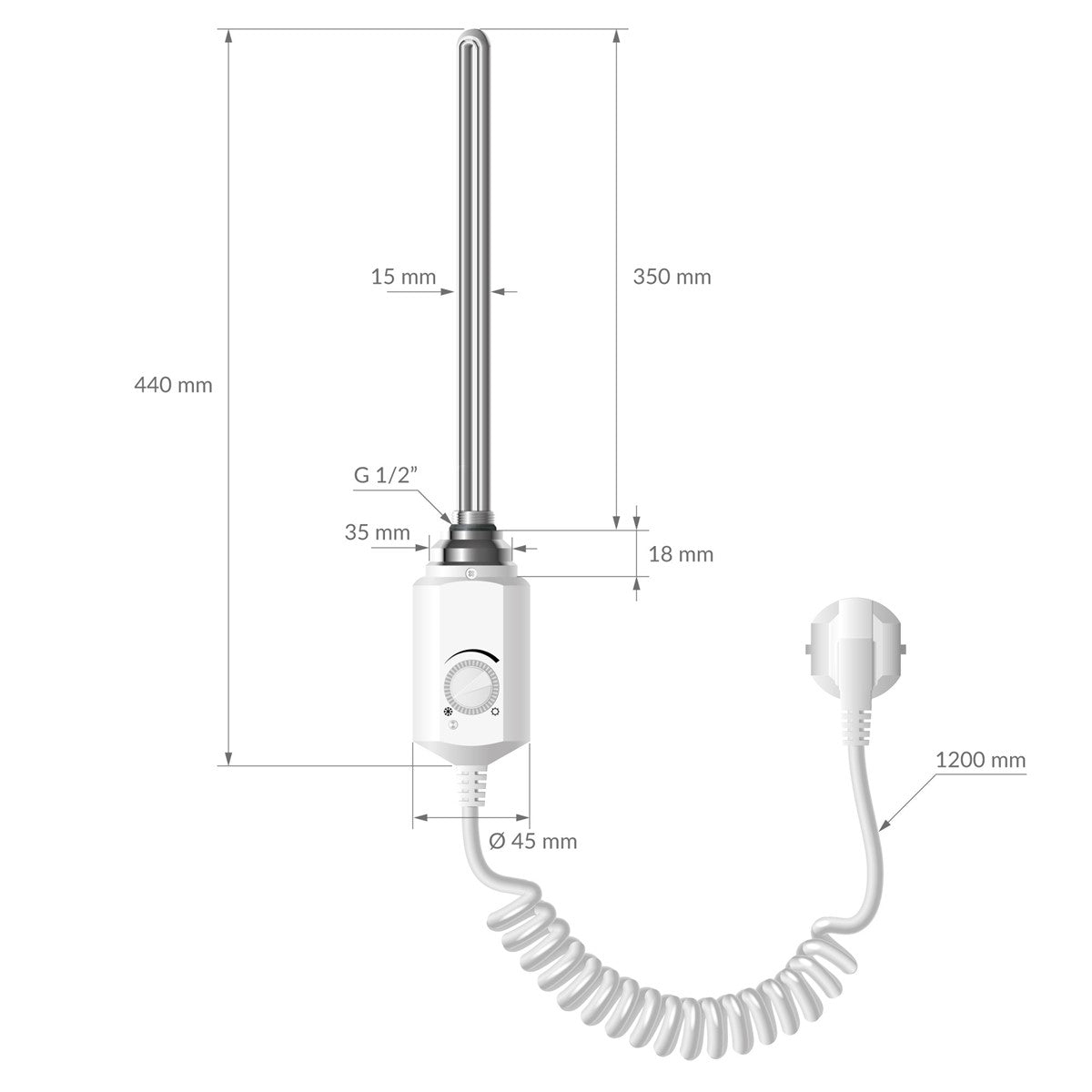

heating element
Heat output: 900W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Color: white
Connection size: 1/2 "
Weight: 410 (g)
Total length: 450 (mm)
Heating element length L: 370 (mm)
Type: RD 10

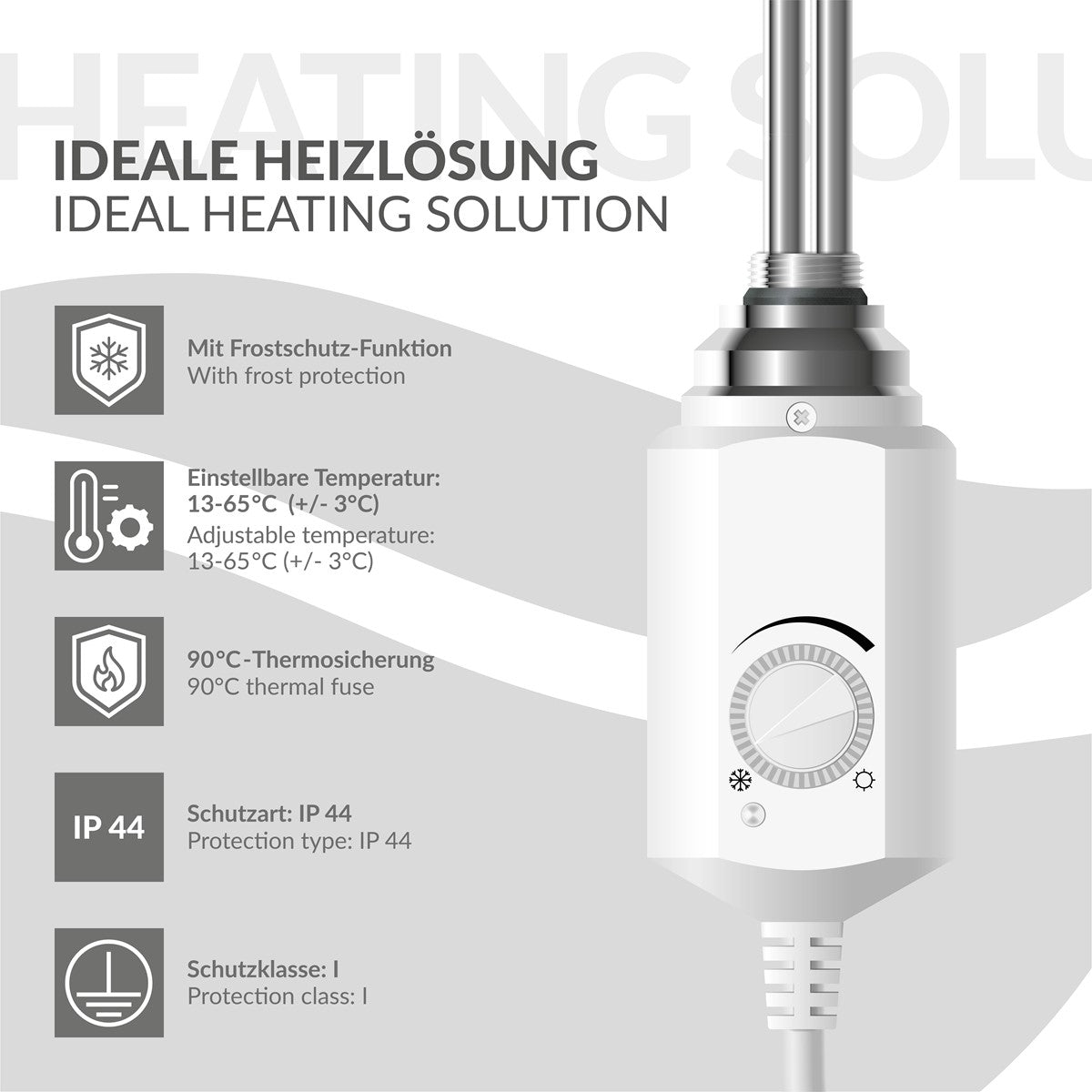

This electronic temperature controller enables precise temperature control of the heater (adjustable temperature of at least 10 °C to prevent the water in the system from freezing).
The heating cartridge has a thermal fuse; the power supply is interrupted if the temperature is exceeded.
