- Electric bathroom radiator
- Mounting hardware included
- Quality of ECD Germany
- Top workmanship
- Versatile
00
h
:
00
m
:
00
s
Scope of delivery:
1 x bathroom radiator
Heating element
1/2-inch air vent valve
1/2-inch blanking plug
Installation instructions
Wall mounting set:
- 4 x wall brackets
- 4 x screws and wall plugs
- 4 x bracket screws
- 4 x washers
1 x bathroom radiator
Heating element
1/2-inch air vent valve
1/2-inch blanking plug
Installation instructions
Wall mounting set:
- 4 x wall brackets
- 4 x screws and wall plugs
- 4 x bracket screws
- 4 x washers

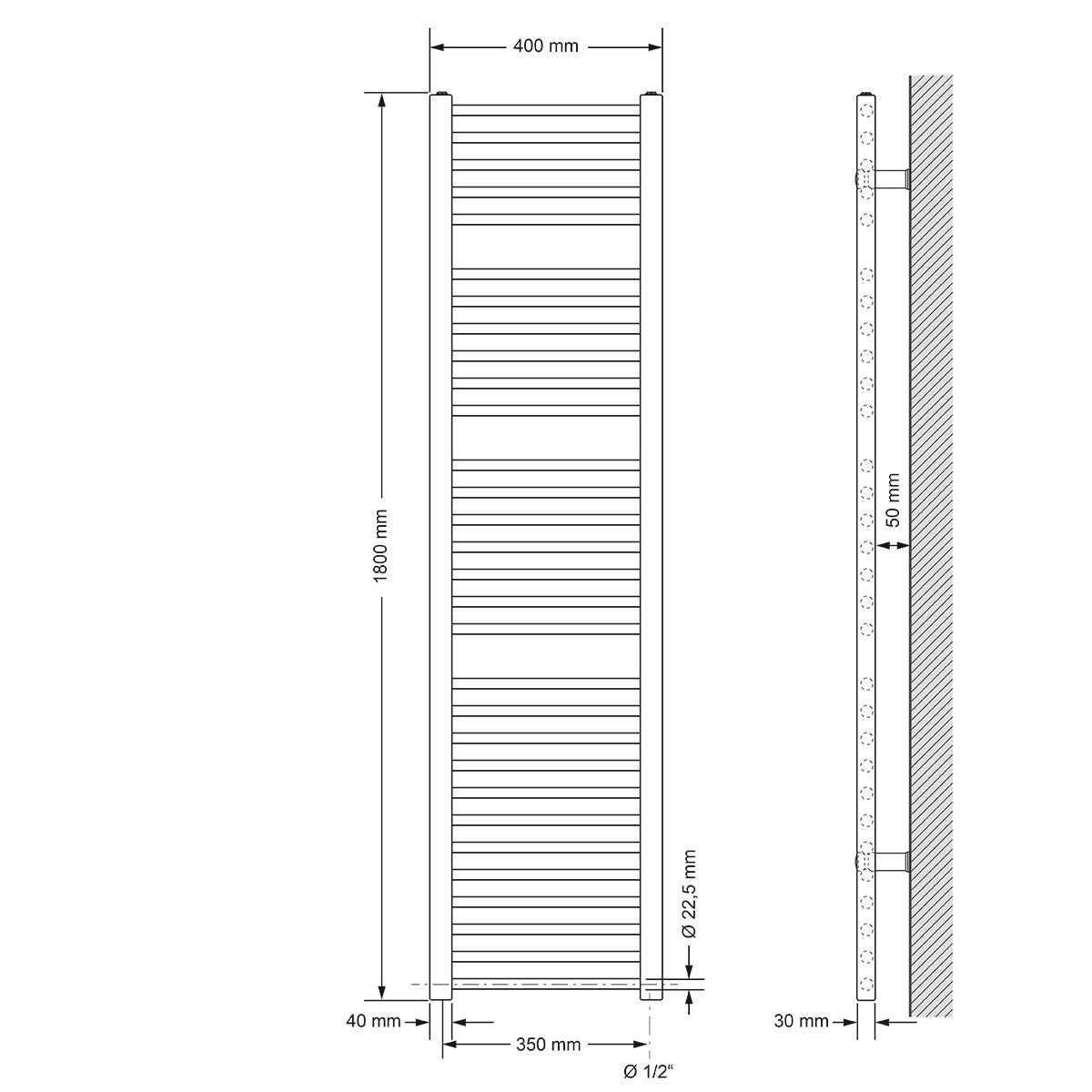

Technical information:
Colour: chrome
Shape: straight, with side connection
Width (mm): 400 mm
Height (mm): 1800 mm
Tube diameter: Ø 22
Connections (mm): 355
Profile: 30 mm x 40 mm x 1.5 mm
Number of tubes: 30 (5+6+7+12)
Heating element heat output: 1200 W
Energy type: electric
High thermal conductivity
Maximum operating pressure: 10 bar (test pressure: 12 bar)
Vertical D-profiles: 30 mm x 40 mm
Horizontal round tubes: Ø 22 mm
Weld seams are not visible
The item is new and in its original packaging
Heat output according to DIN 442 Euronorm 85°/75°/20°C
Manufactured according to EN ISO 9001
According to EN 442-1-2

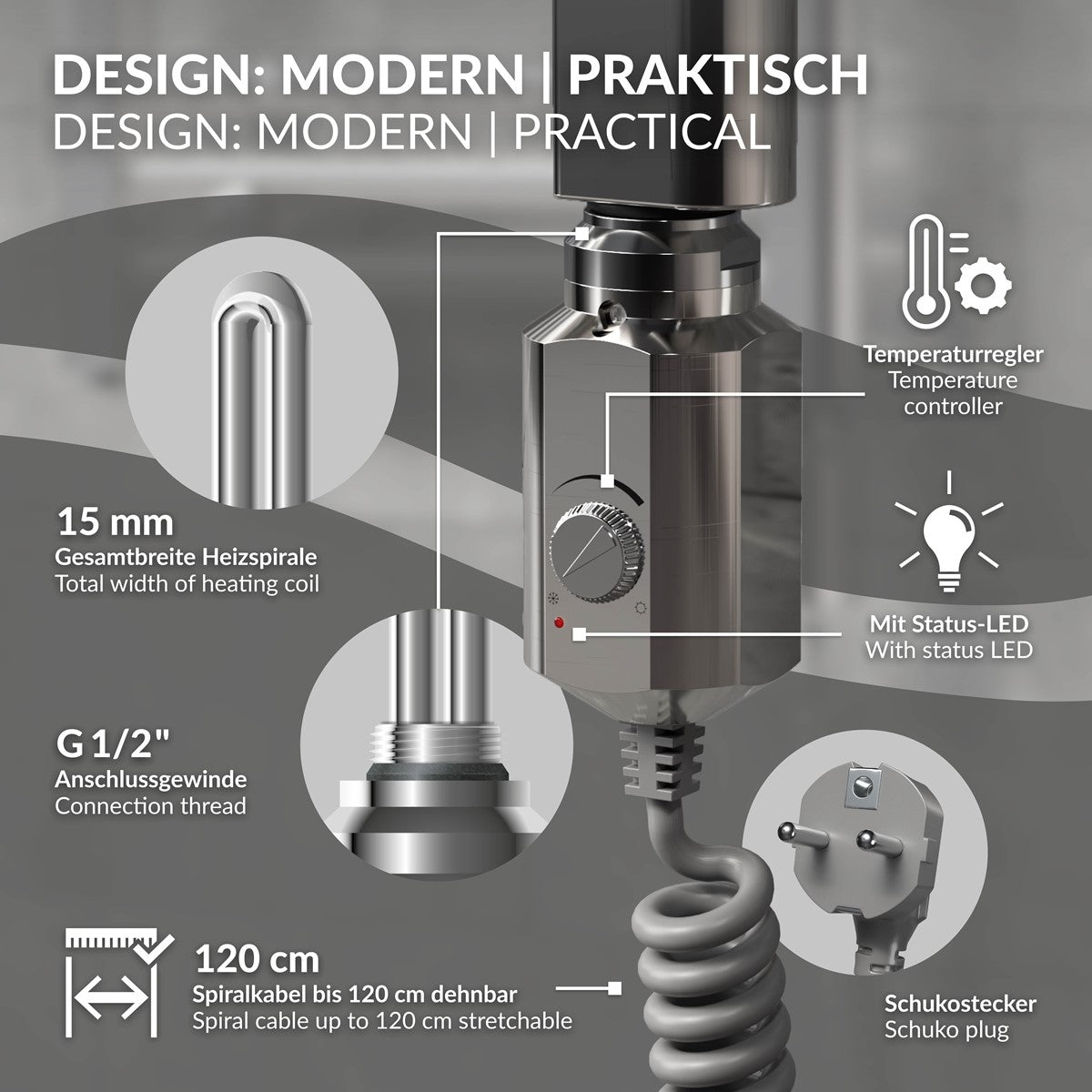

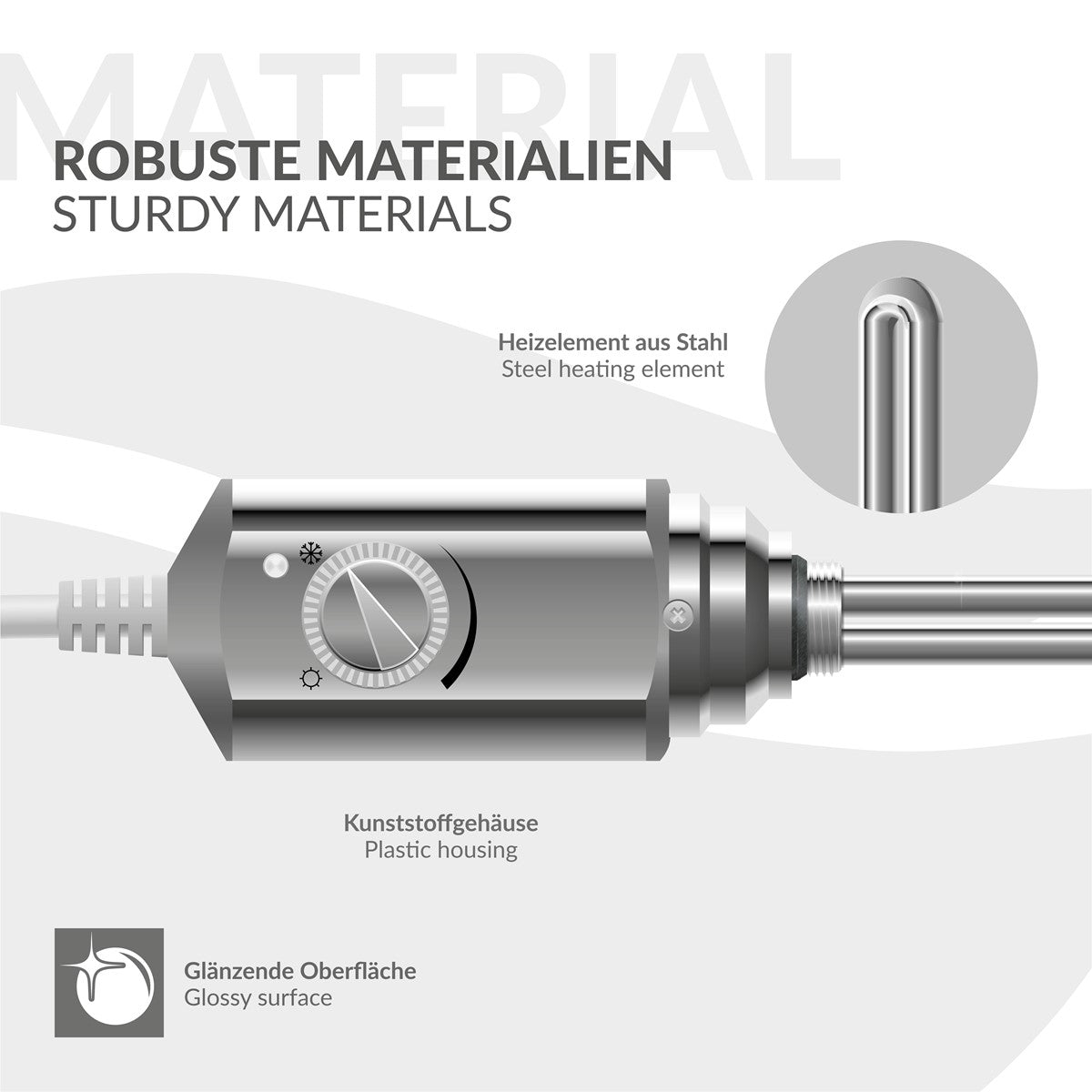

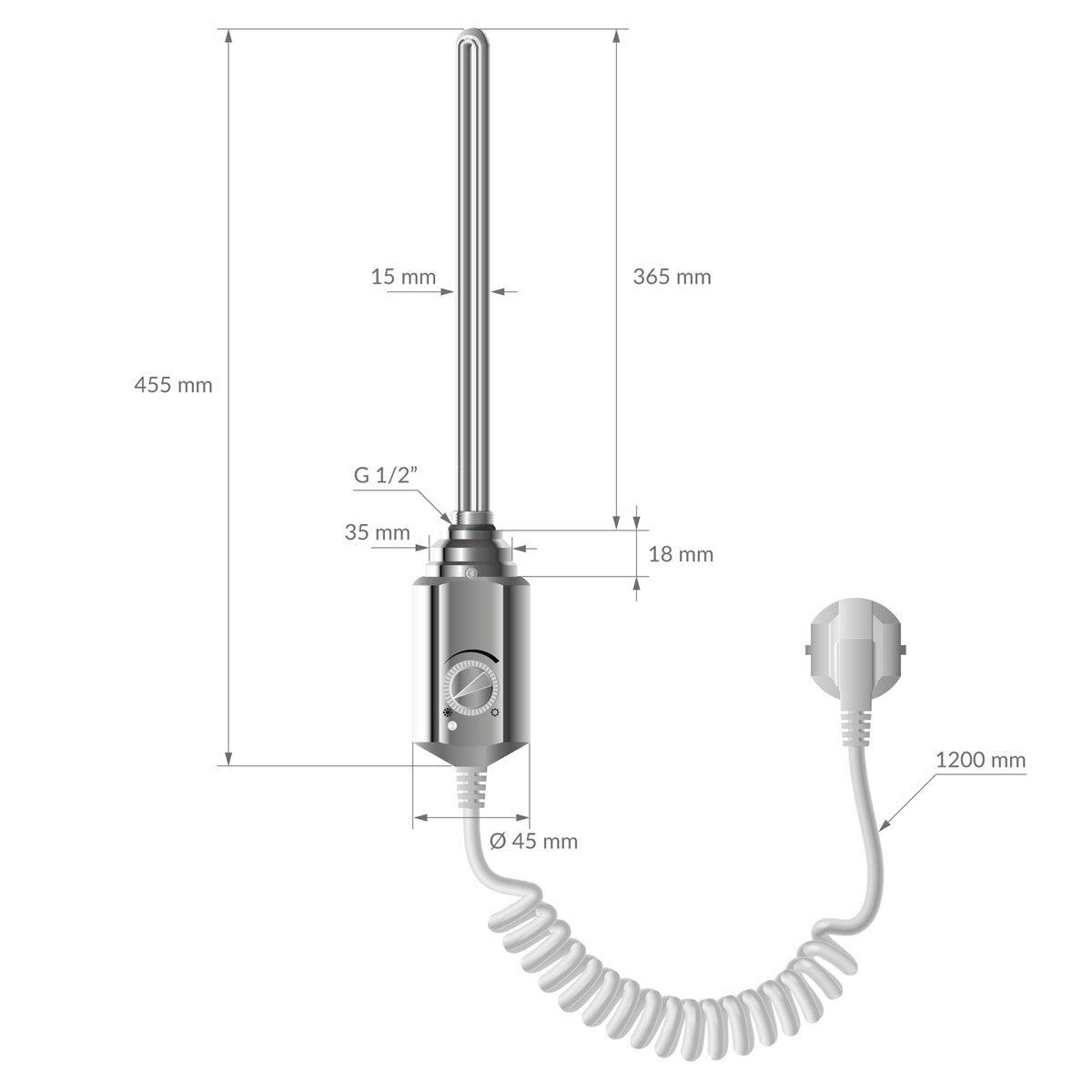

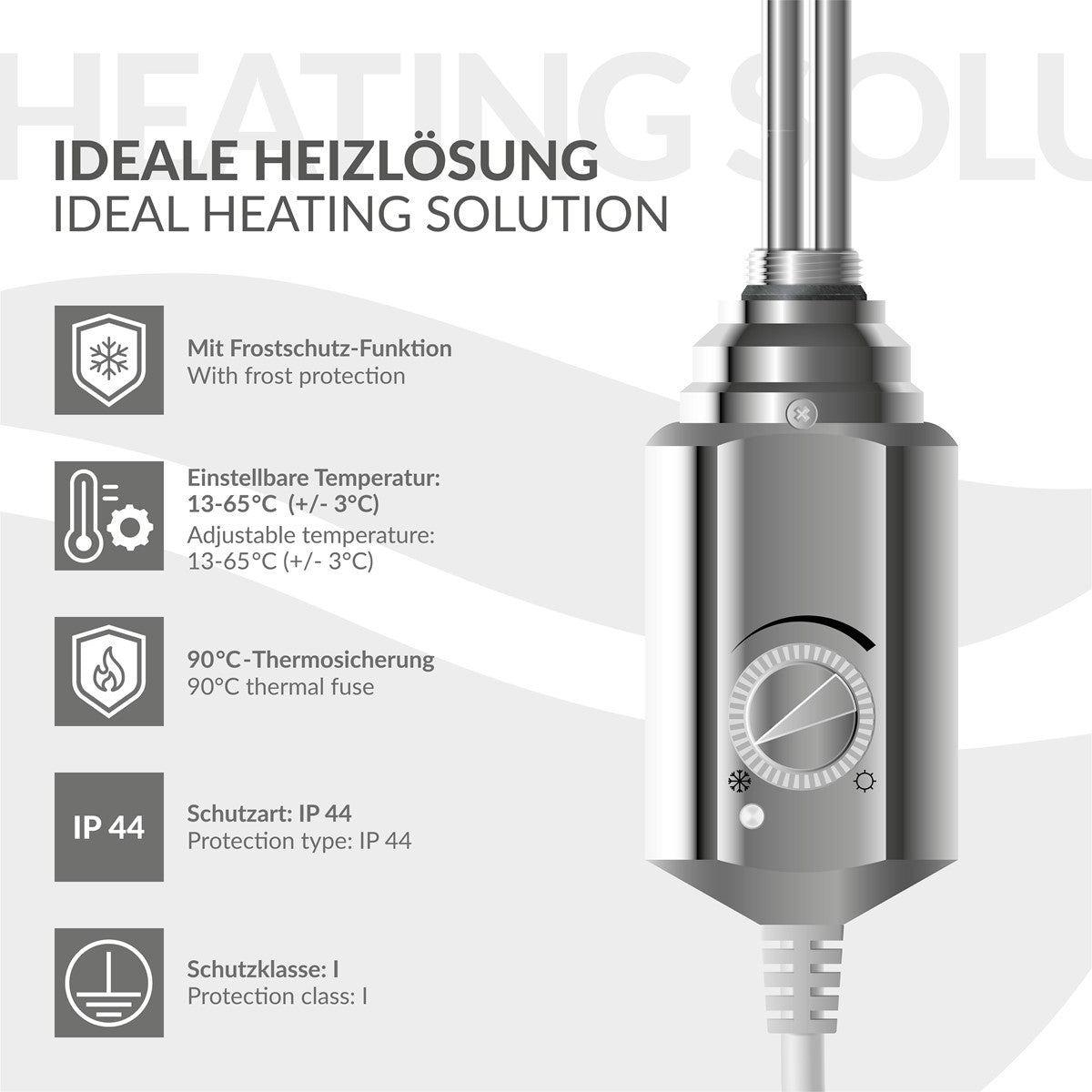

Heating element 1200 W:
Heating output: 1200 W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Connection size: 1/2 "
Weight (g): 430
Total length (mm): 490
Heating element length L (mm): 410
Type: RD 10

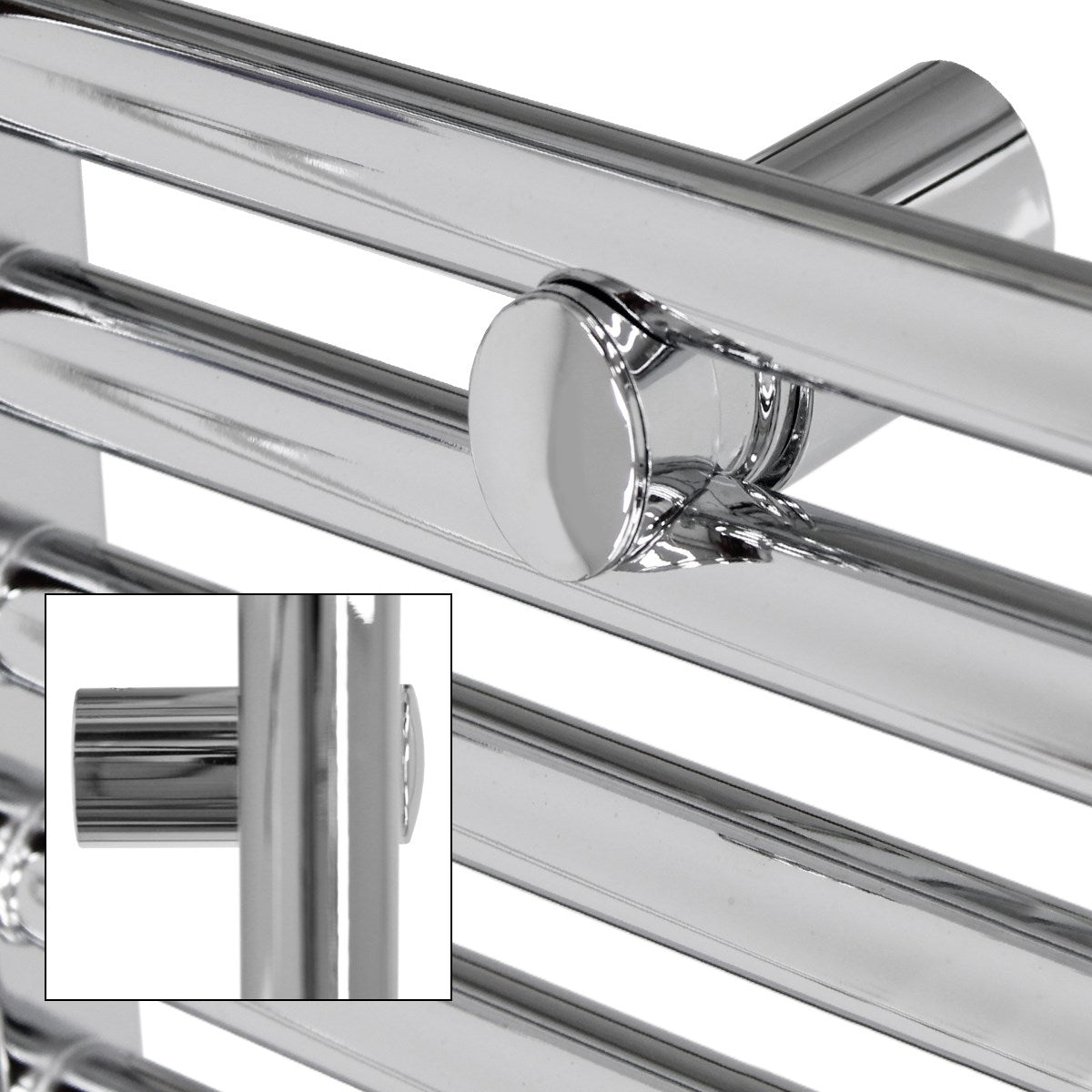

Wall mounting set:
High-quality fastening set for bathroom radiators
High-strength plastic
Suitable for bathroom radiators up to 200 cm high and up to 75 cm wide
Quality retailer
Universally suitable for straight and curved bathroom radiators
for tube diameters of 18 - 22 mm
for tube spacings of 18 - 22 mm
Depth (wall to centre tube): 75 pana la 100 mm
The depth of the plugs is not suitable for installation in plasterboard walls
Colour: chrome
Shape: straight, with side connection
Width (mm): 400 mm
Height (mm): 1800 mm
Tube diameter: Ø 22
Connections (mm): 355
Profile: 30 mm x 40 mm x 1.5 mm
Number of tubes: 30 (5+6+7+12)
Heating element heat output: 1200 W
Energy type: electric
High thermal conductivity
Maximum operating pressure: 10 bar (test pressure: 12 bar)
Vertical D-profiles: 30 mm x 40 mm
Horizontal round tubes: Ø 22 mm
Weld seams are not visible
The item is new and in its original packaging
Heat output according to DIN 442 Euronorm 85°/75°/20°C
Manufactured according to EN ISO 9001
According to EN 442-1-2
Heating element 1200 W:
Heating output: 1200 W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Connection size: 1/2 "
Weight (g): 430
Total length (mm): 490
Heating element length L (mm): 410
Type: RD 10
Wall mounting set:
High-quality fastening set for bathroom radiators
High-strength plastic
Suitable for bathroom radiators up to 200 cm high and up to 75 cm wide
Quality retailer
Universally suitable for straight and curved bathroom radiators
for tube diameters of 18 - 22 mm
for tube spacings of 18 - 22 mm
Depth (wall to centre tube): 75 pana la 100 mm
The depth of the plugs is not suitable for installation in plasterboard walls
