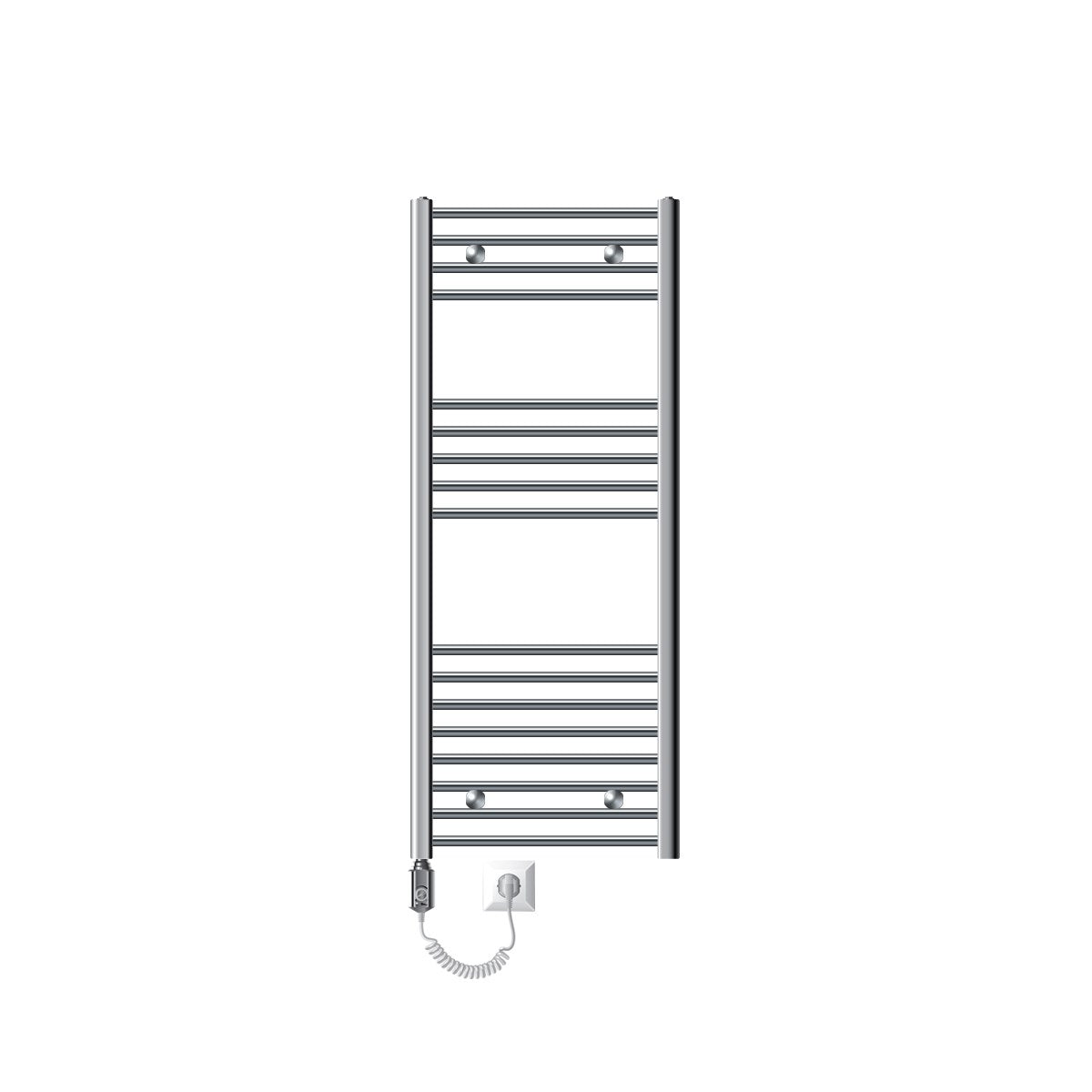

- High-quality bathroom radiator
- Including fitting materials
- Quality from ECD Germany
- Excellent workmanship
- Versatile
- 3-year warranty
00
h
:
00
m
:
00
s
Lieferumfang:
1 x Badheizkörper
Heizstab
Entlüftungsventil 1/2 Zoll
Blindstopfen 1/2 Zoll
Montageanleitung
Wandmontage-Set:
- 4 x Wandhalter
- 4 x Schrauben und Dübel
- 4 x Halterschraube
- 4 x Scheiben
1 x Badheizkörper
Heizstab
Entlüftungsventil 1/2 Zoll
Blindstopfen 1/2 Zoll
Montageanleitung
Wandmontage-Set:
- 4 x Wandhalter
- 4 x Schrauben und Dübel
- 4 x Halterschraube
- 4 x Scheiben
Technical information:

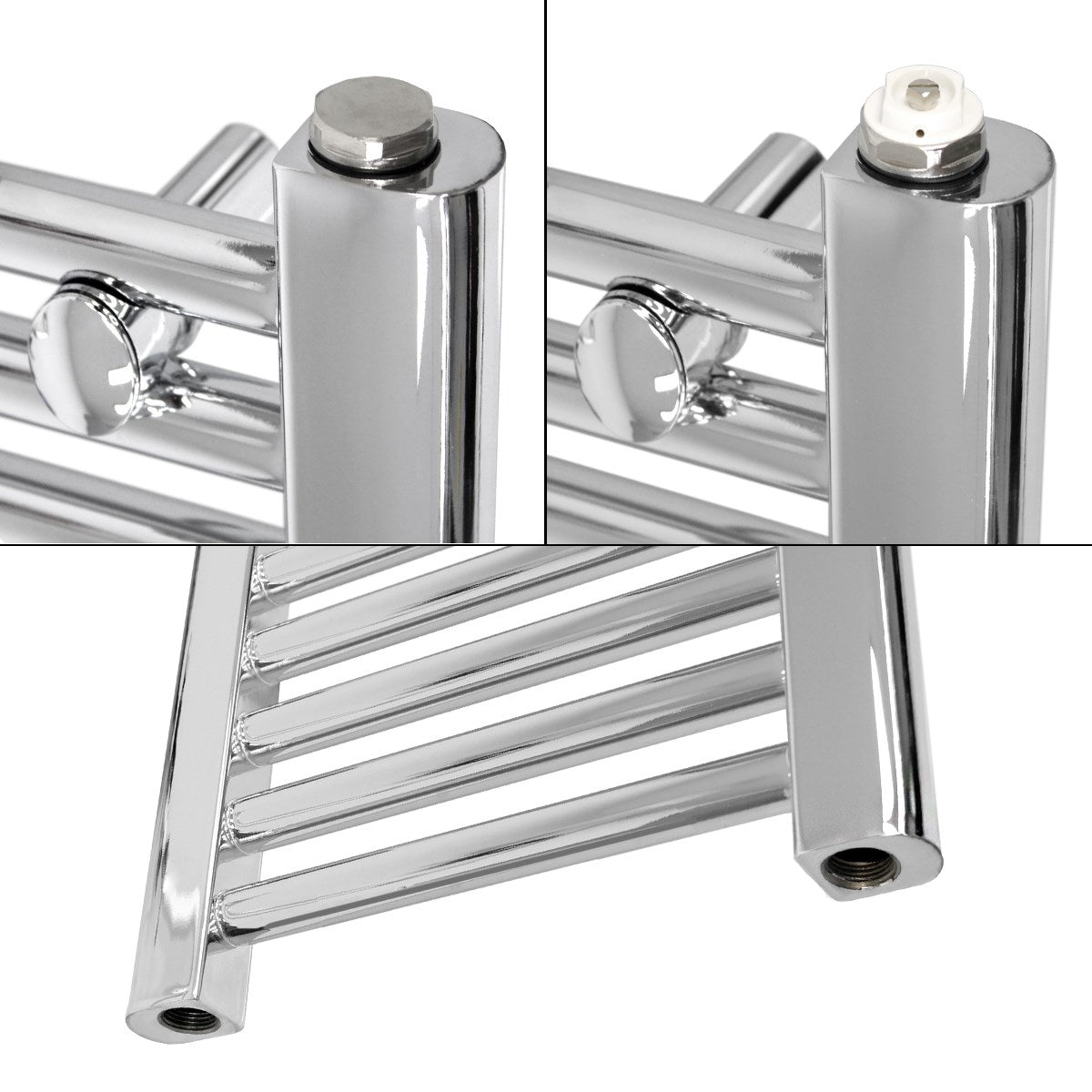

Connection type: Side connection
Design: Curved
Colour: Chrome
Material: Steel

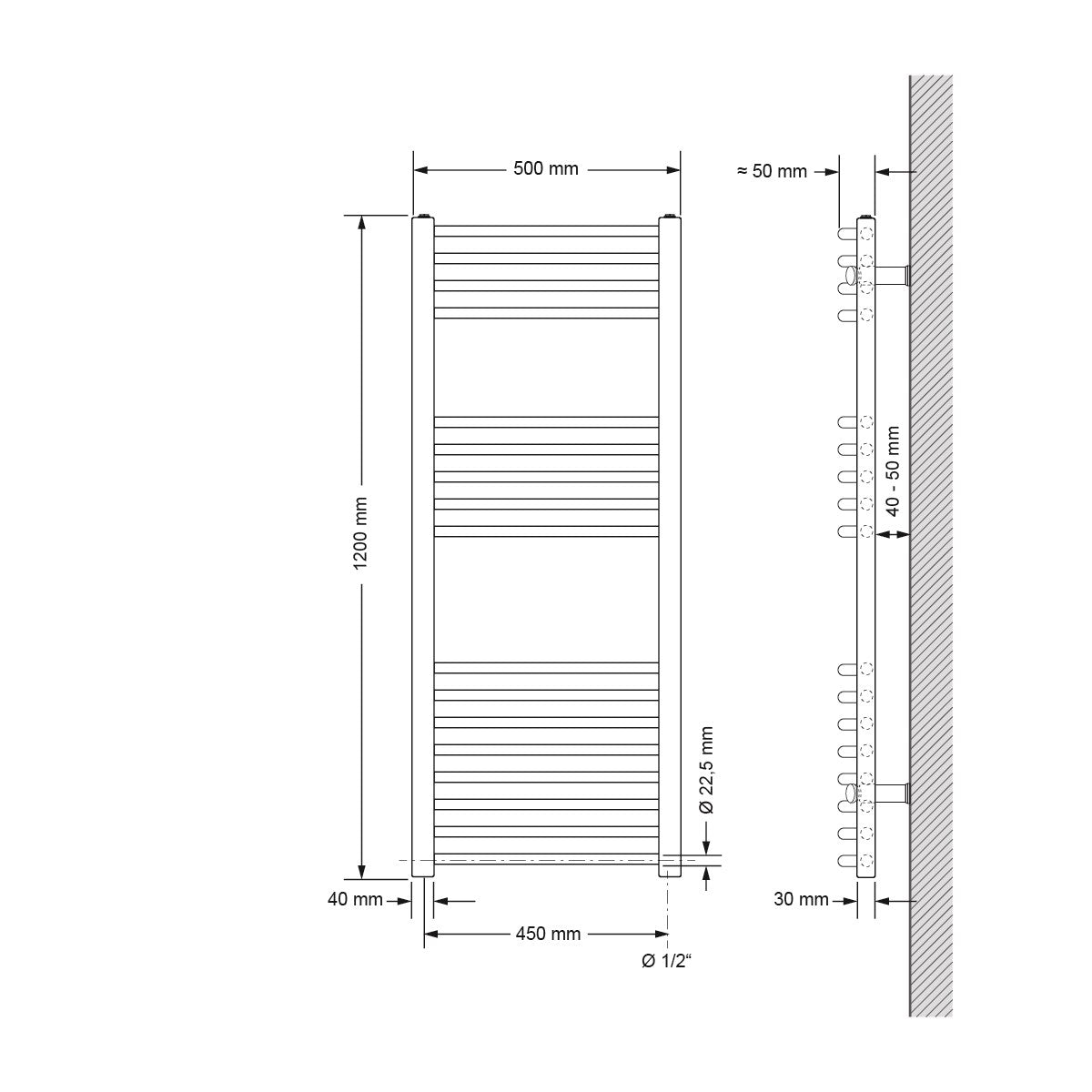

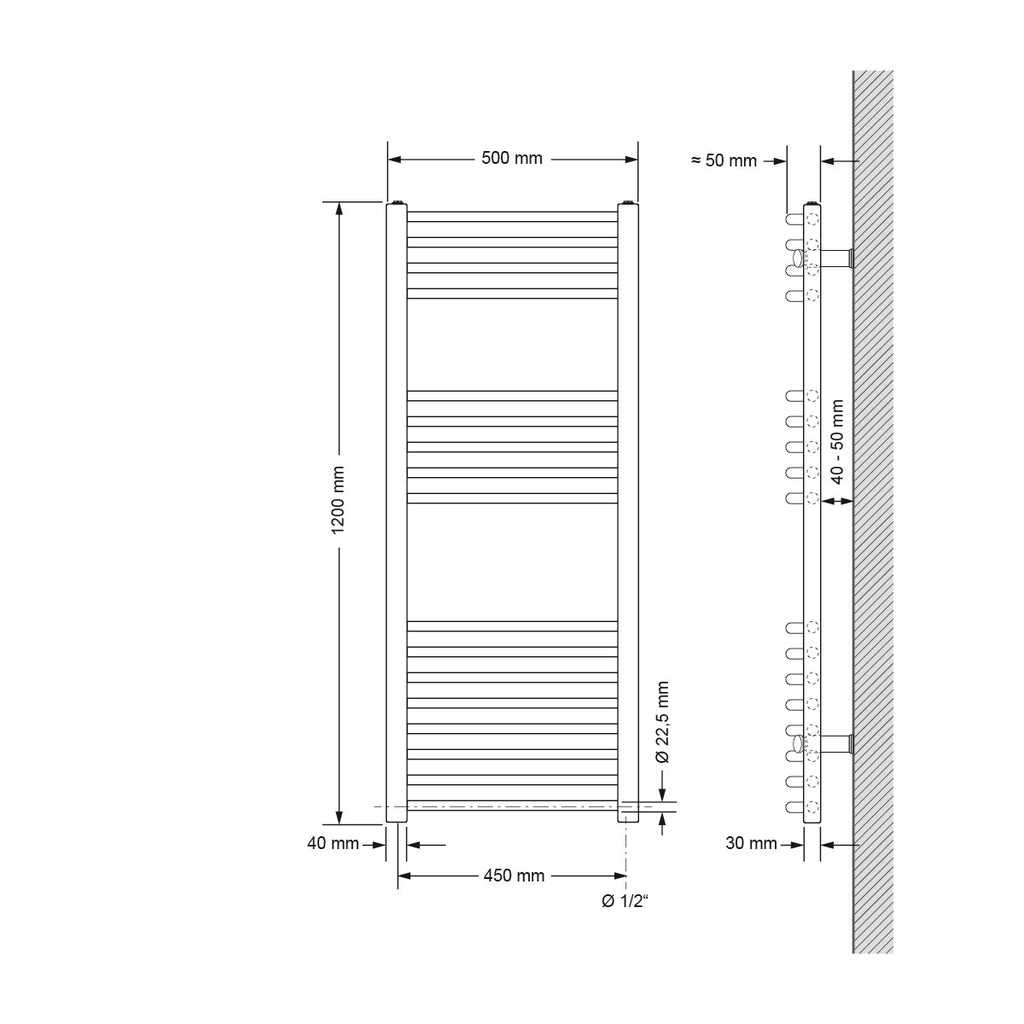

Width: 500 mm
Height: 1200 mm
Connections: 255 mm
Pipe diameter: Ø 22
Number of pipes: 17
Profile (mm): 30*40*1.5 D
Heat output: 330 W
Heat capacity: 1106 BTU
Water capacity: 5.17 L
Weight: 8.02 kg
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles: 30 x 40 x 1.5 mm
Horizontal round tubes: 22 x 1.2 mm
Distance from the wall: approx. 5 cm
For pipe diameters: 18 to 22 mm
For pipe spacing: 18 to 22 mm
Depth (from wall to centre of tube): 75 to 100 mm
Deep wall plugs are not suitable for installation in plasterboard walls!
Technical information on the heating element:

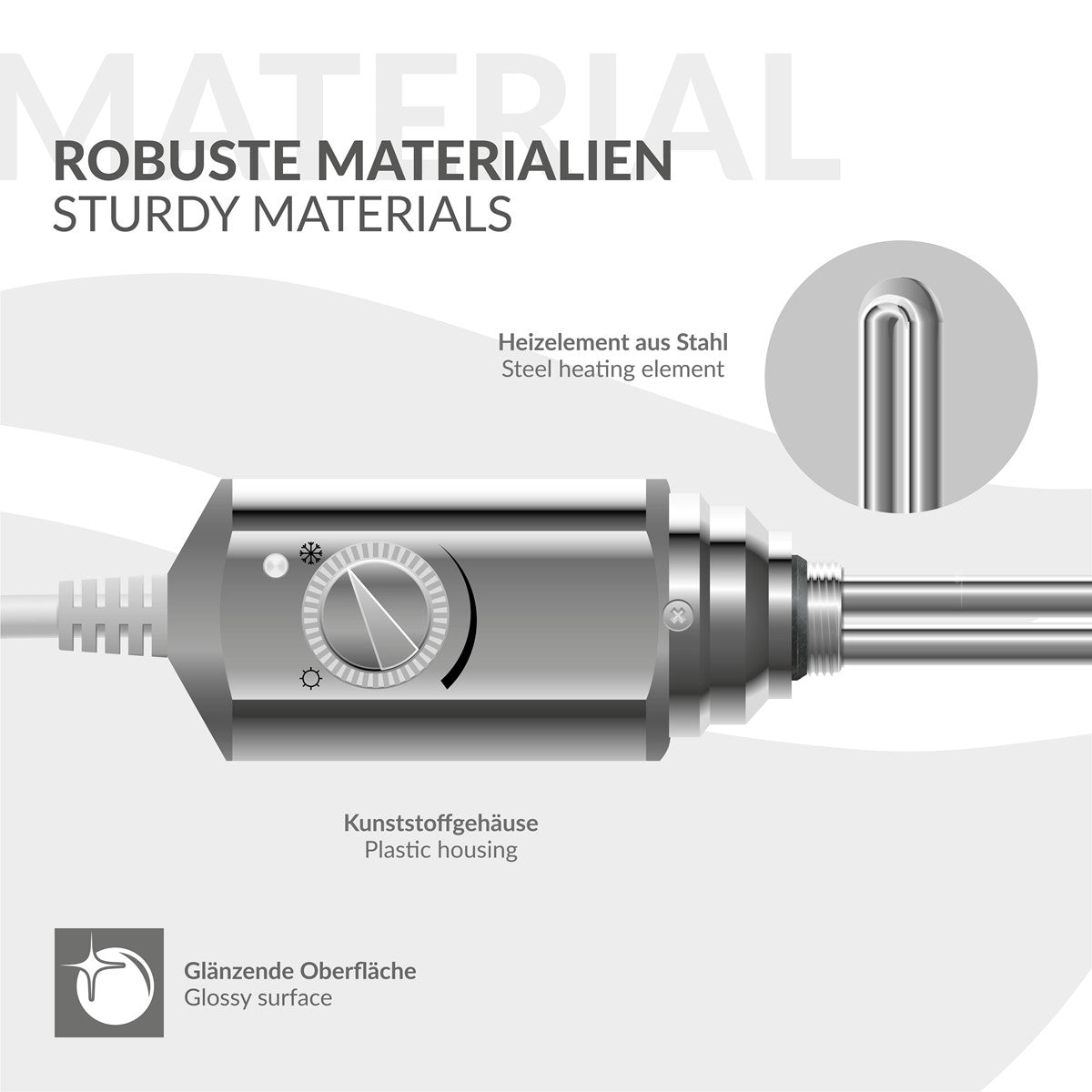

Material: steel, plastic
Colour: chrome
Power: 1200 watts
Weight: 0.44 kg

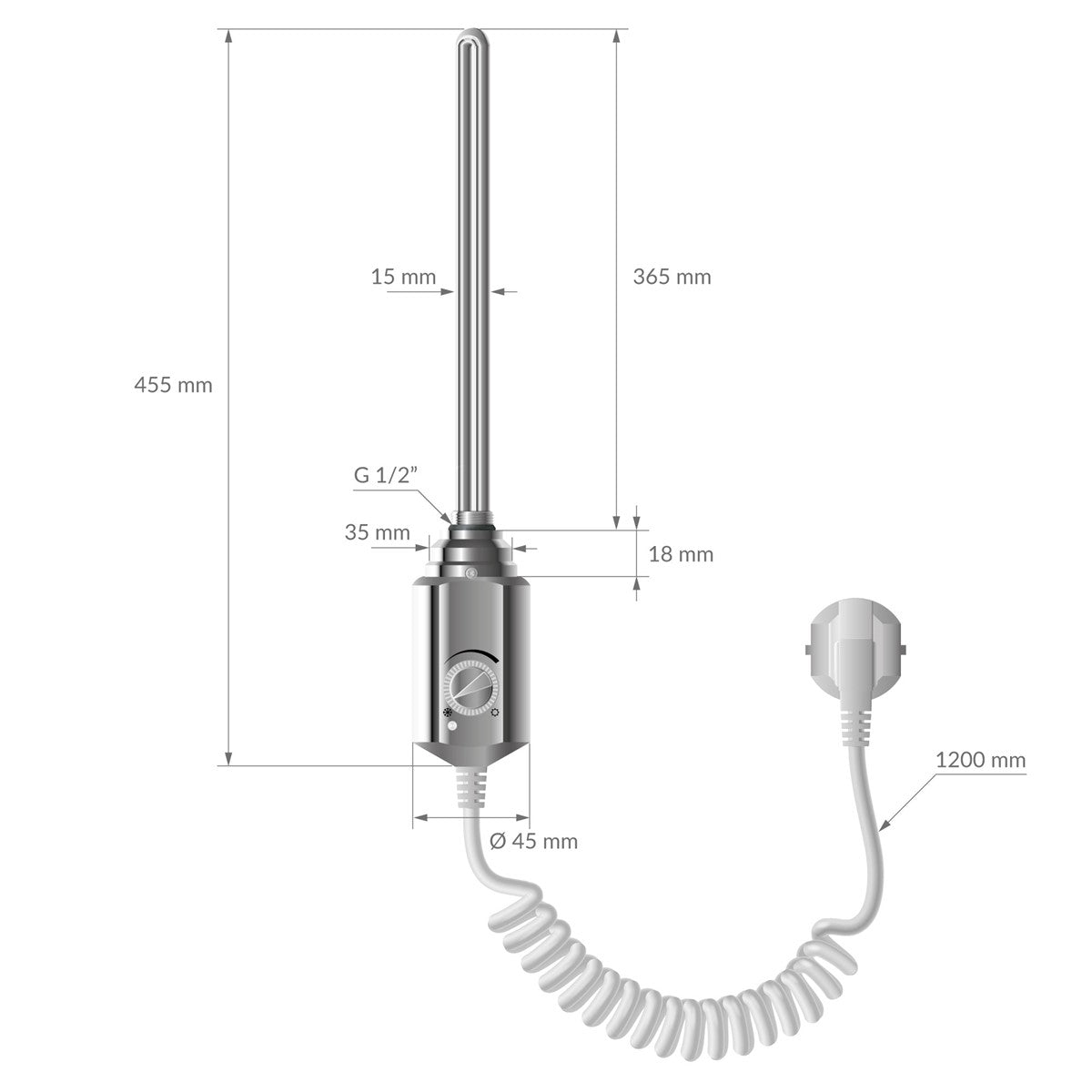

Total length: 455 mm
Length of heating element only: 365 mm
Diameter: 45 mm

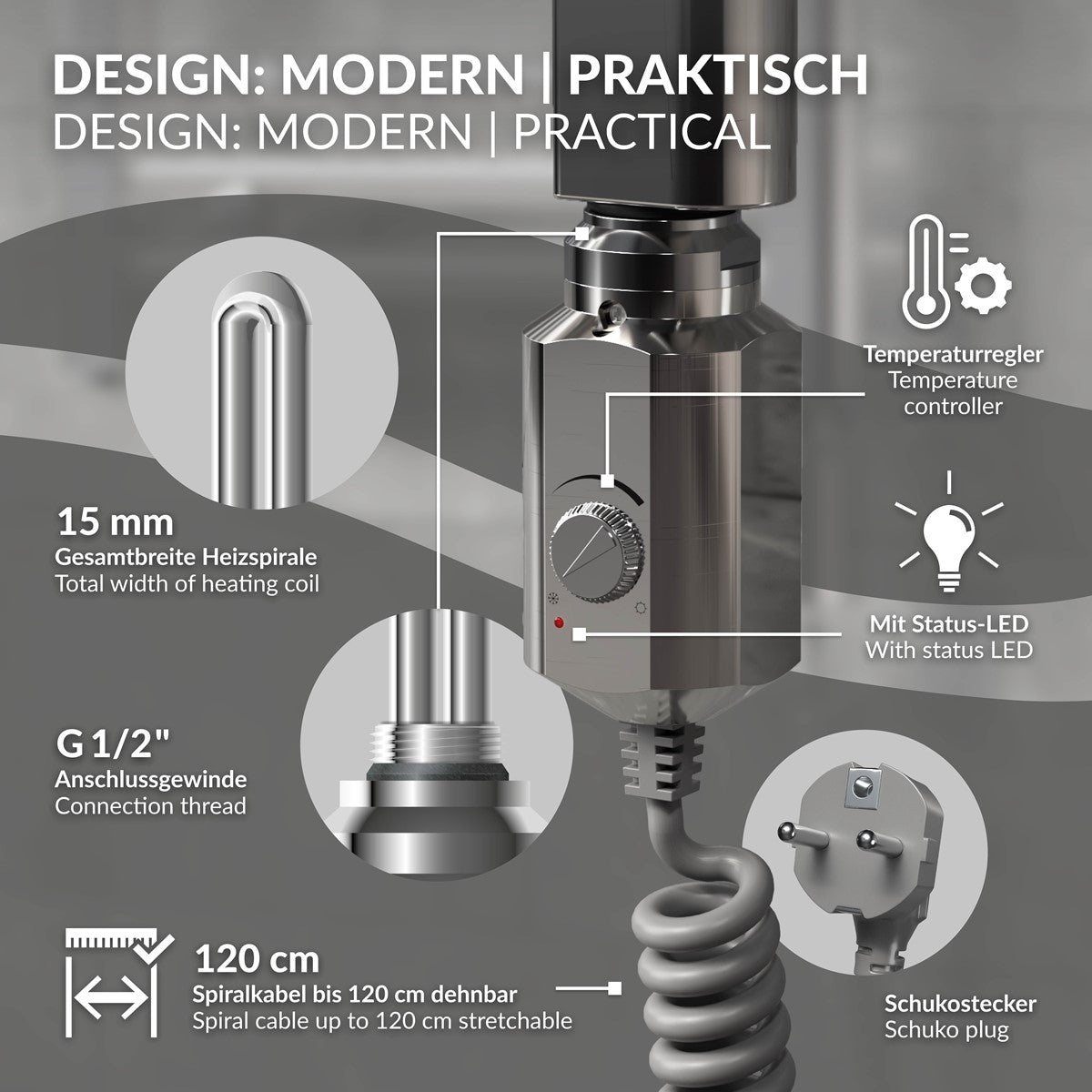

Cable length: 120 cm
Connection thread: G ½"
Voltage: 230 V / 50 Hz

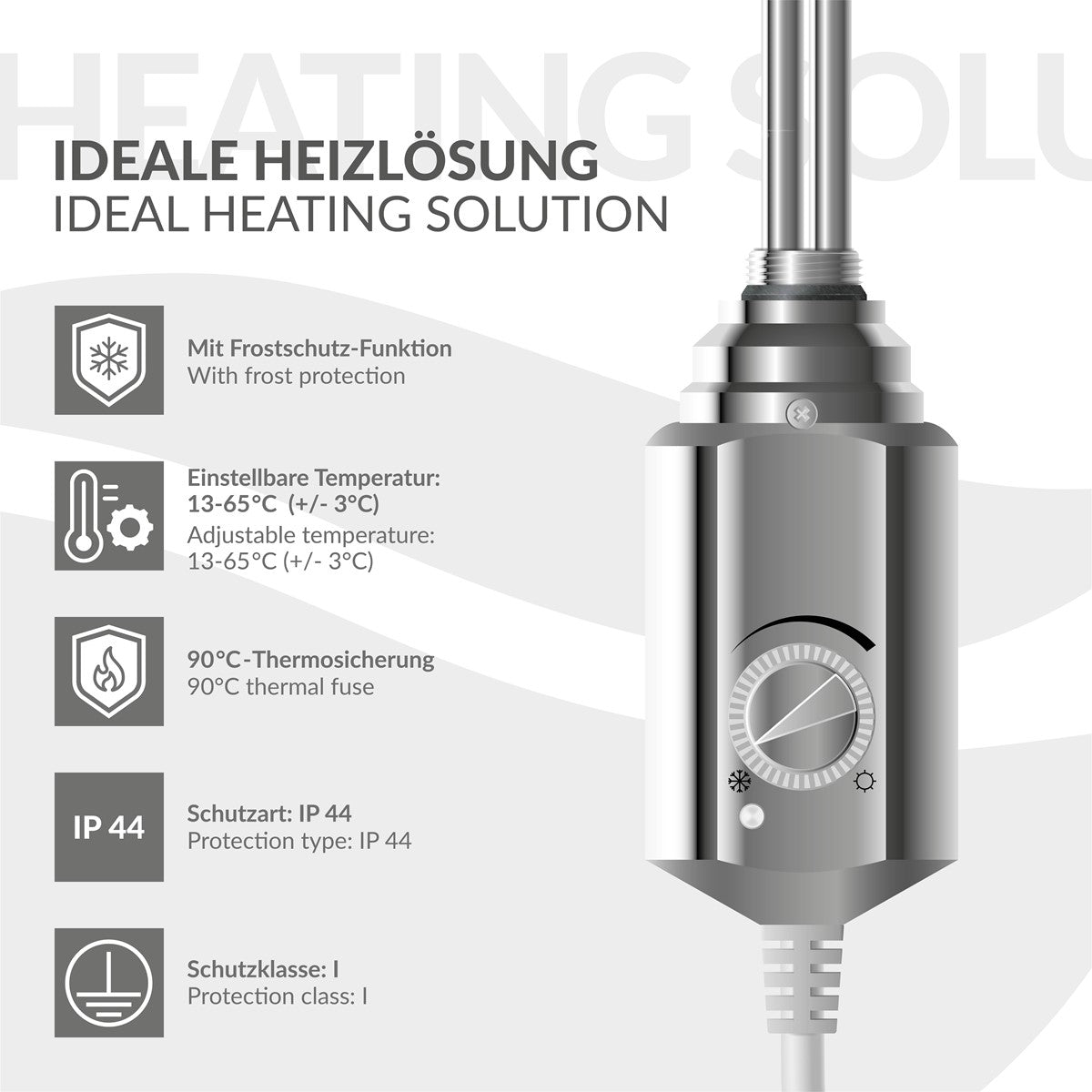

Adjustable temperature: 13–65°C (+/- 3°C)
90°C thermal fuse
Protection rating: IP 44
Protection class: I
Connection type: Side connection
Design: Curved
Colour: Chrome
Material: Steel
Width: 500 mm
Height: 1200 mm
Connections: 255 mm
Pipe diameter: Ø 22
Number of pipes: 17
Profile (mm): 30*40*1.5 D
Heat output: 330 W
Heat capacity: 1106 BTU
Water capacity: 5.17 L
Weight: 8.02 kg
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles: 30 x 40 x 1.5 mm
Horizontal round tubes: 22 x 1.2 mm
Distance from the wall: approx. 5 cm
For pipe diameters: 18 to 22 mm
For pipe spacing: 18 to 22 mm
Depth (from wall to centre of tube): 75 to 100 mm
Deep wall plugs are not suitable for installation in plasterboard walls!
Technical information on the heating element:
Material: steel, plastic
Colour: chrome
Power: 1200 watts
Weight: 0.44 kg
Total length: 455 mm
Length of heating element only: 365 mm
Diameter: 45 mm
Cable length: 120 cm
Connection thread: G ½"
Voltage: 230 V / 50 Hz
Adjustable temperature: 13–65°C (+/- 3°C)
90°C thermal fuse
Protection rating: IP 44
Protection class: I
