Product description:
Are you furnishing your bathroom or updating your fittings? For many people, bathroom radiators are an essential functional feature of the bathroom. They provide not only pleasant warmth, but also wonderfully warm, dry towels. So a bathroom radiator is no longer just a heat source; it also serves as a towel warmer.
Our Sahara range offers a huge selection of excellent radiators in different connection types, sizes, shapes and colours.
Shape matters: straight or curved?
Our Sahara models are available in straight and curved versions. The advantages of the curved design are that towels are easier to hang over the towel radiator, and the curved shape provides a larger heating surface and therefore greater heat output. However, bear in mind that the curved design sits further from the wall and takes up more space. It is also considerably more complicated to manufacture, which affects the price.
Our Sahara radiators are available in two operating modes:
One option is electric operation. In this case, an electric heating element is fitted into one of the connections and must be plugged into a socket. Depending on the model, our Sahara radiators already come with a heating element. This means you can also connect them as normal to the hot water connection of your heating system. This dual-fuel operation is a feature of modern towel radiators.
The advantage of electric operation:
You can enjoy a warm radiator and dry towels even in summer, when the heating system is usually switched off. The downside is the electricity cost incurred by the heating element.

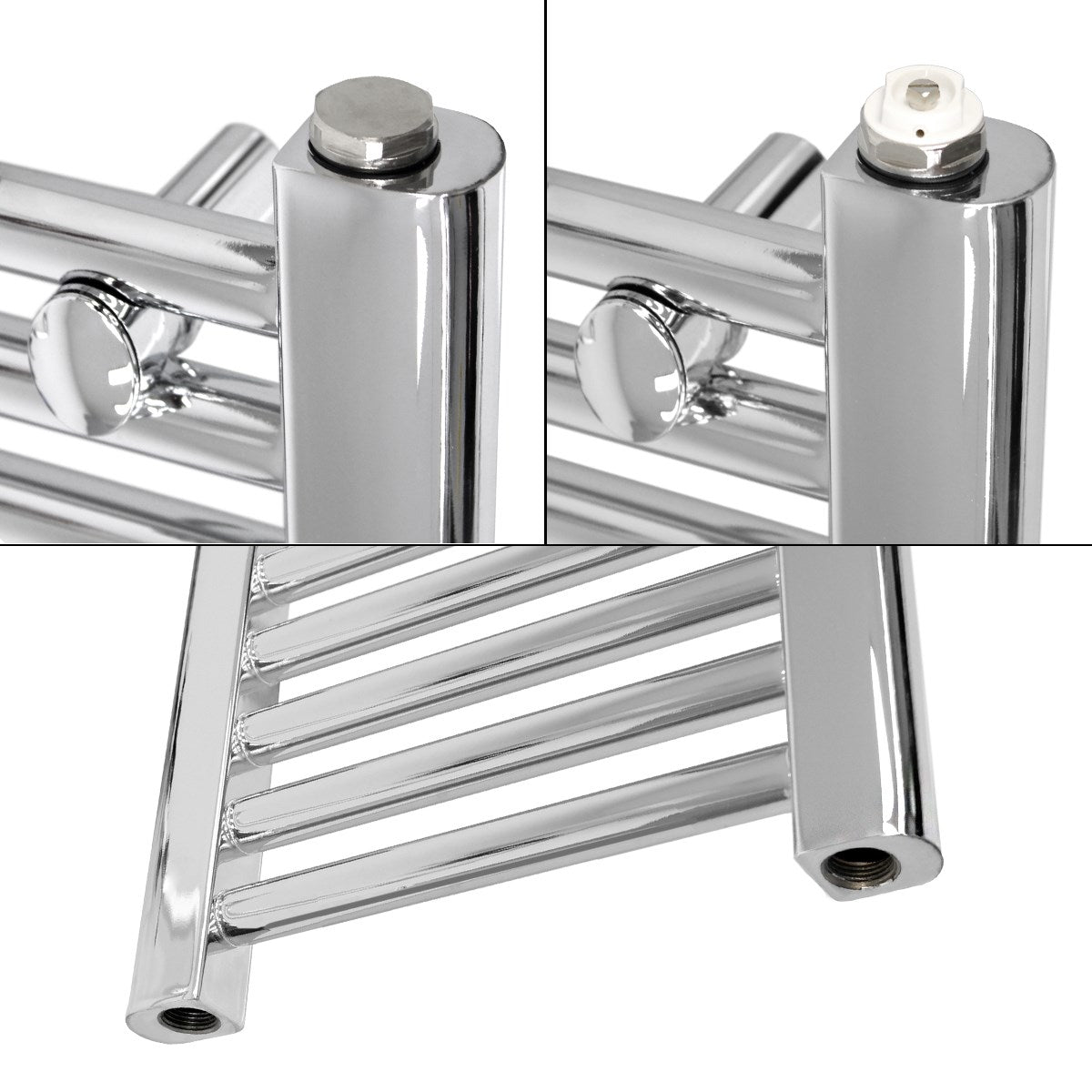

Centre or side connection?
The hot water has to flow in somewhere and then flow out again on one side. The connection you need depends on where your heating pipes run. If they have not yet been installed, we recommend a centre connection. These are generally more discreet and attractive. Our Sahara models also give you free choice. We offer models with both side and centre connections.
All radiators in our shop come with standard mounting kits. Your new radiator is waiting for you.
Scope of delivery:
Bathroom radiator
1/2-inch air vent valve
1/2-inch blanking plug
Installation instructions
Wall-mounting kit:
- 4 x wall brackets
- 4 x screws and wall plugs
- 4 x bracket screws
- 4 x washers

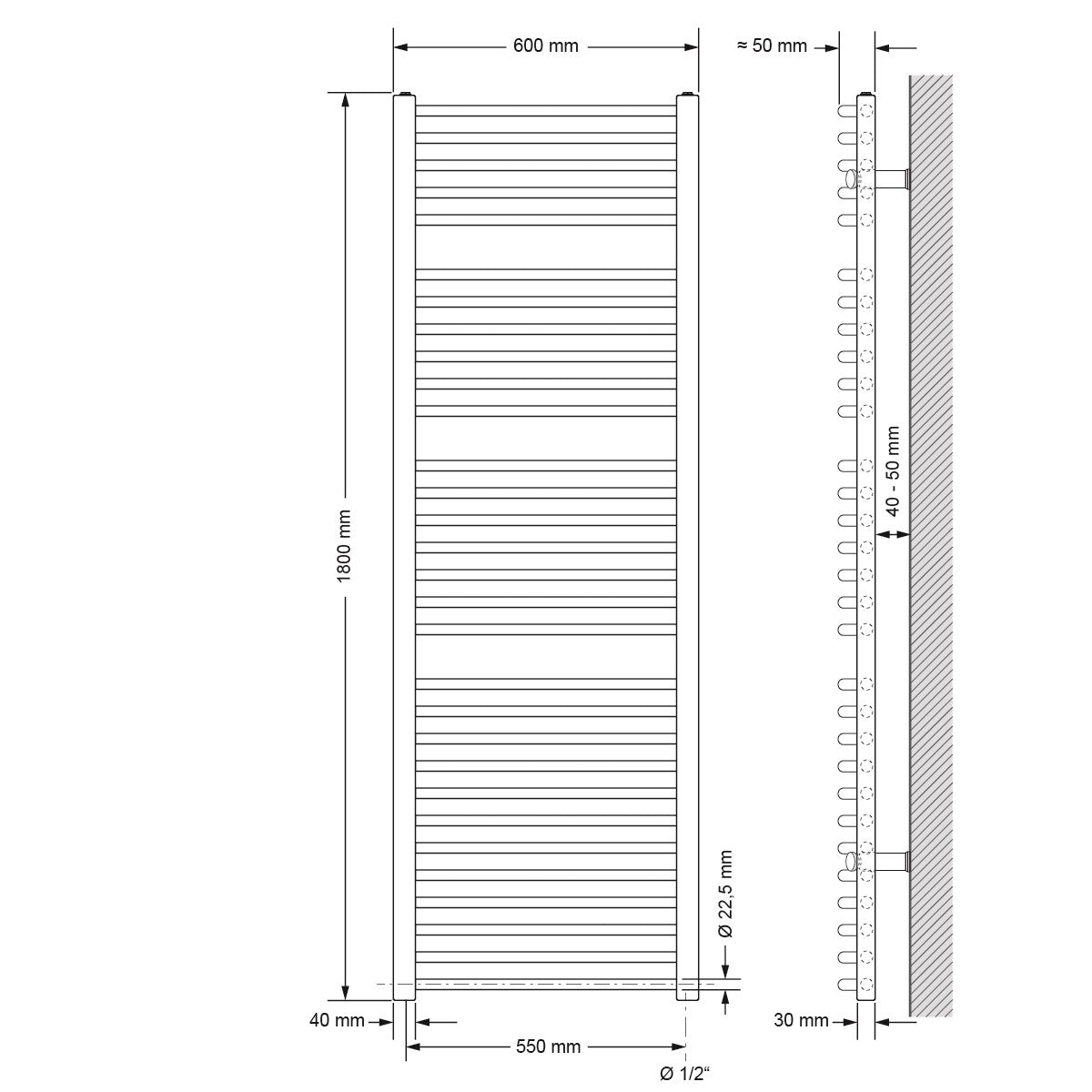

Technical information:
Width (mm): 600
Height (mm): 1800
Connections (mm): 555
Tube diameter: Ø22
Profile: 30*40*1,5 D
Colour: chrome
for tube diameter 18 to 22 mm;
for tube spacing 18 to 22 mm;
Depth (wall to centre of tube): 75 to 100 mm;
Depth plugs are not suitable for installation in drywall walls.
Heating element heat output: 1200W
maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1,2 MPa)
vertical D-profiles 30 x 40 x 1,5 mm
horizontal round tubes 22 x 1,2 mm
Distance from wall: approx. 6,5cm

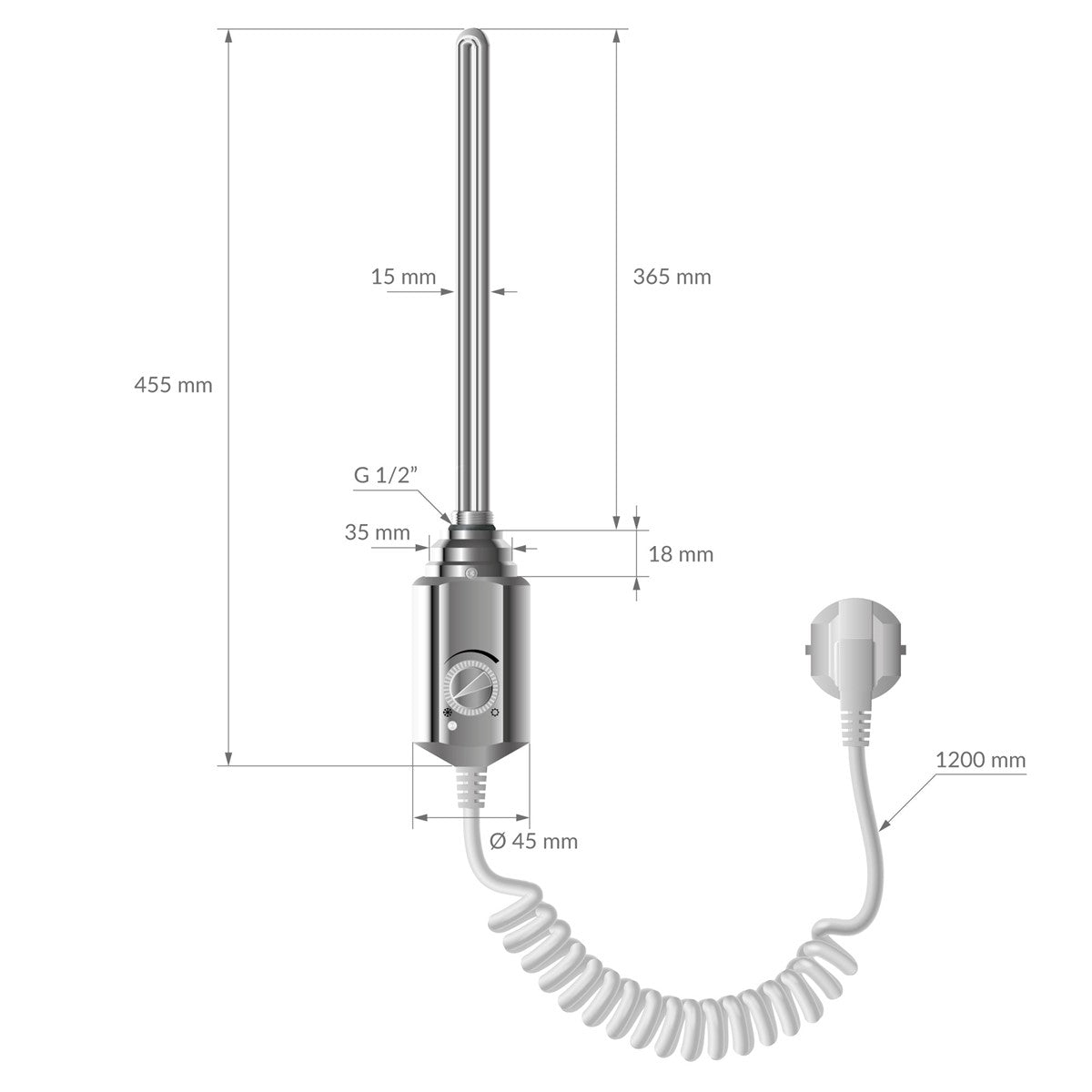

Technical information for heating element:
Heating output: 1200W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1,5 m / 3 x 0,75
Colour: chrome
Connection size: 1/2 "
Weight: 430 (g)
Overall length: 490 (mm)
Heating element length L: 410 (mm)
Type: RD 10
Width (mm): 600
Height (mm): 1800
Connections (mm): 555
Tube diameter: Ø22
Profile: 30*40*1,5 D
Colour: chrome
for tube diameter 18 to 22 mm;
for tube spacing 18 to 22 mm;
Depth (wall to centre of tube): 75 to 100 mm;
Depth plugs are not suitable for installation in drywall walls.
Heating element heat output: 1200W
maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1,2 MPa)
vertical D-profiles 30 x 40 x 1,5 mm
horizontal round tubes 22 x 1,2 mm
Distance from wall: approx. 6,5cm
Technical information for heating element:
Heating output: 1200W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1,5 m / 3 x 0,75
Colour: chrome
Connection size: 1/2 "
Weight: 430 (g)
Overall length: 490 (mm)
Heating element length L: 410 (mm)
Type: RD 10
