- LuxeBath electric bathroom heater
- Modern and timeless design
- Mounting material included
- High quality materials
- High heat emission
- Top processing
- 3 years warranty
00
h
:
00
m
:
00
s
Scope of delivery:

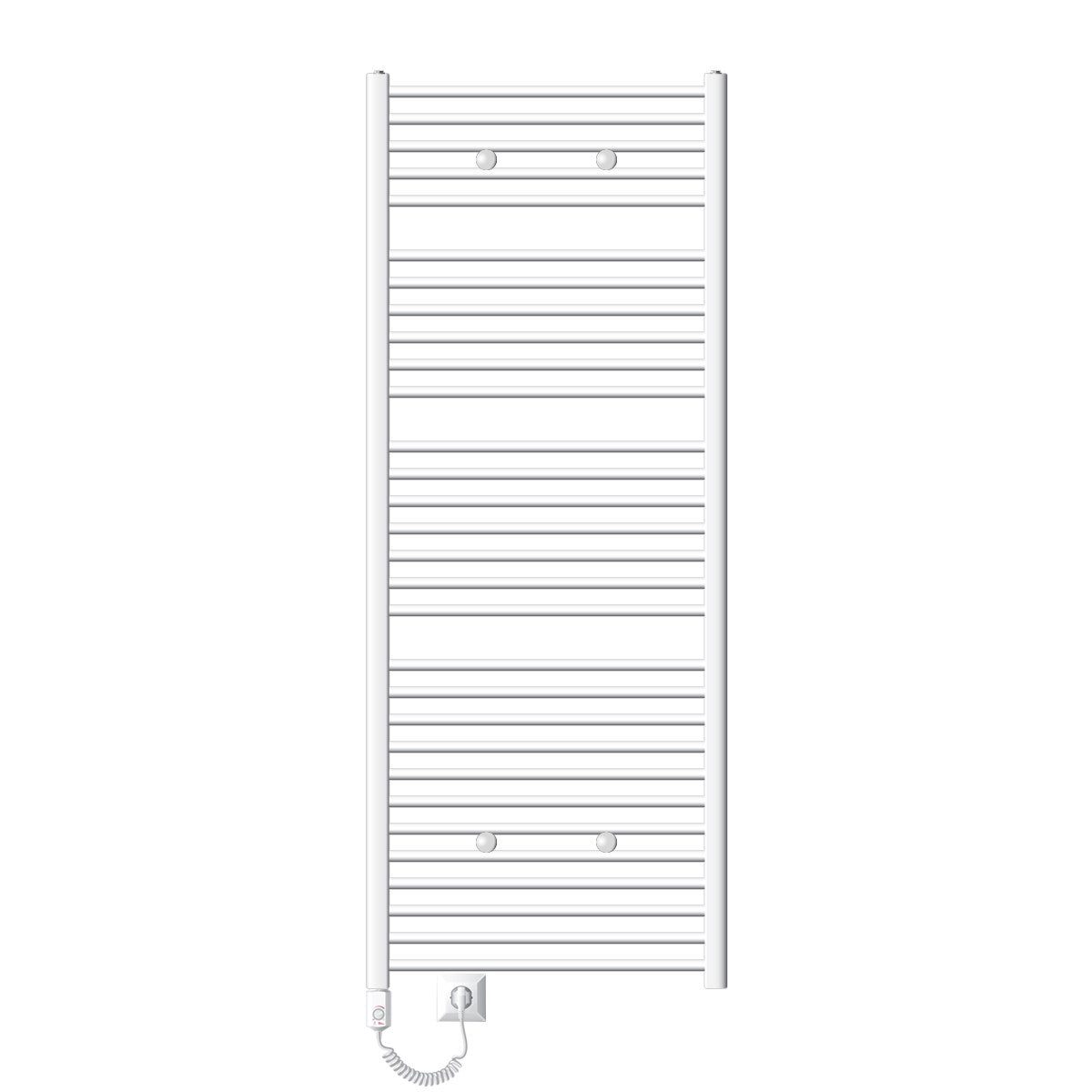

Bathroom radiator
Heating element 1200W

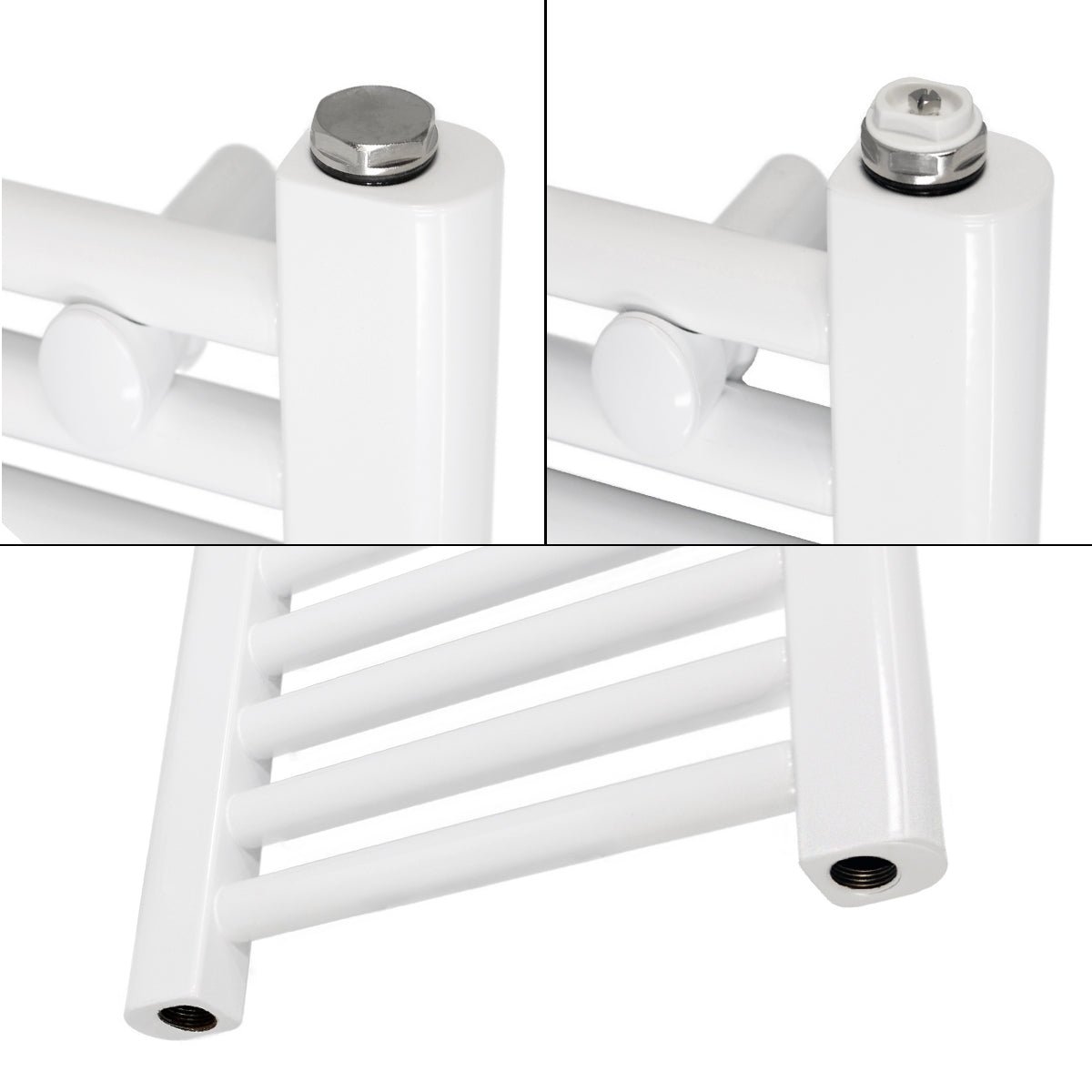

Vent valve 1/2 inch
Blanking plug 1/2 inch
Installation instructions

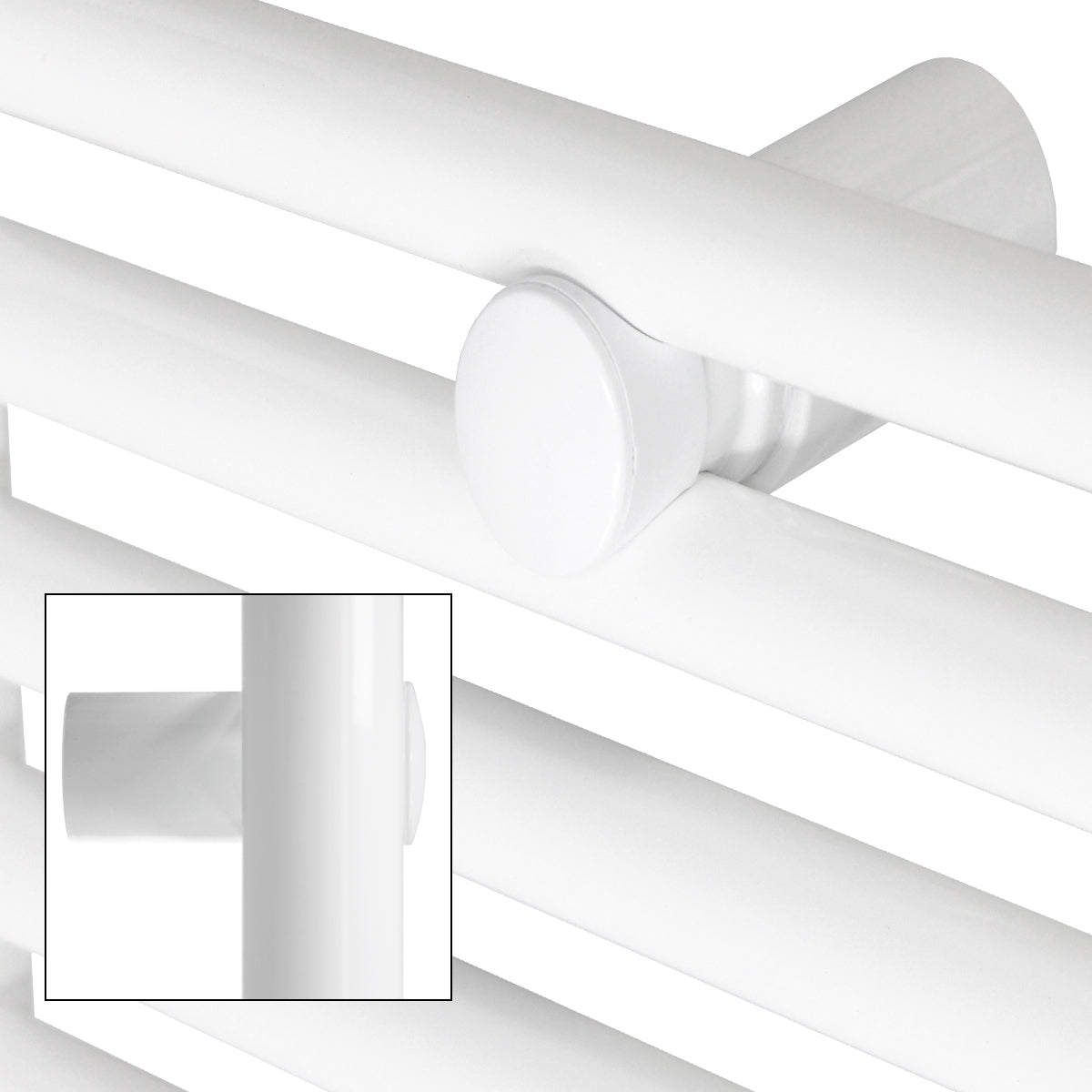

Wall mounting set:
4 x wall brackets
4 x screws and wall plugs
4 x retaining screw
4 x washers
Bathroom radiator
Heating element 1200W
Vent valve 1/2 inch
Blanking plug 1/2 inch
Installation instructions
Wall mounting set:
4 x wall brackets
4 x screws and wall plugs
4 x retaining screw
4 x washers
Technical information:
Bathroom radiator
Width (mm): 750
Height (mm): 1500
Connections (mm): 705
Pipe diameter: Ø22
Profile: 30*40*1.5 D
Heat output of heating element: 1200W
Water volume (L): 10,18
Weight (kg): 15.21
Color: white
for pipe diameter 18 to 22 mm;
for pipe spacing 18 to 22 mm;
Depth (wall to center of pipe): 75 to 100 mm;
Deep plugs are not suitable for installation in drywall.
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles 30 x 40 x 1.5 mm
Horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm

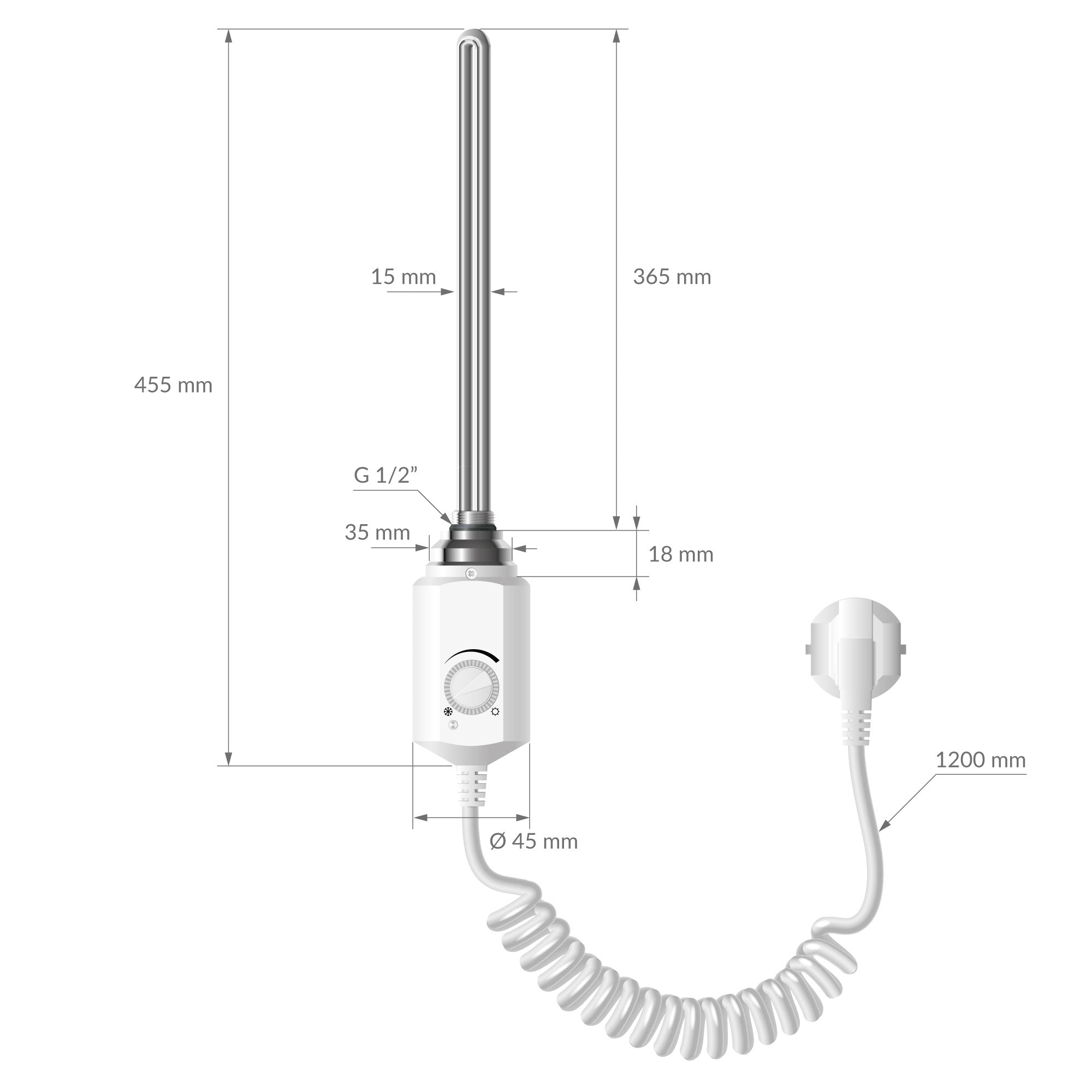

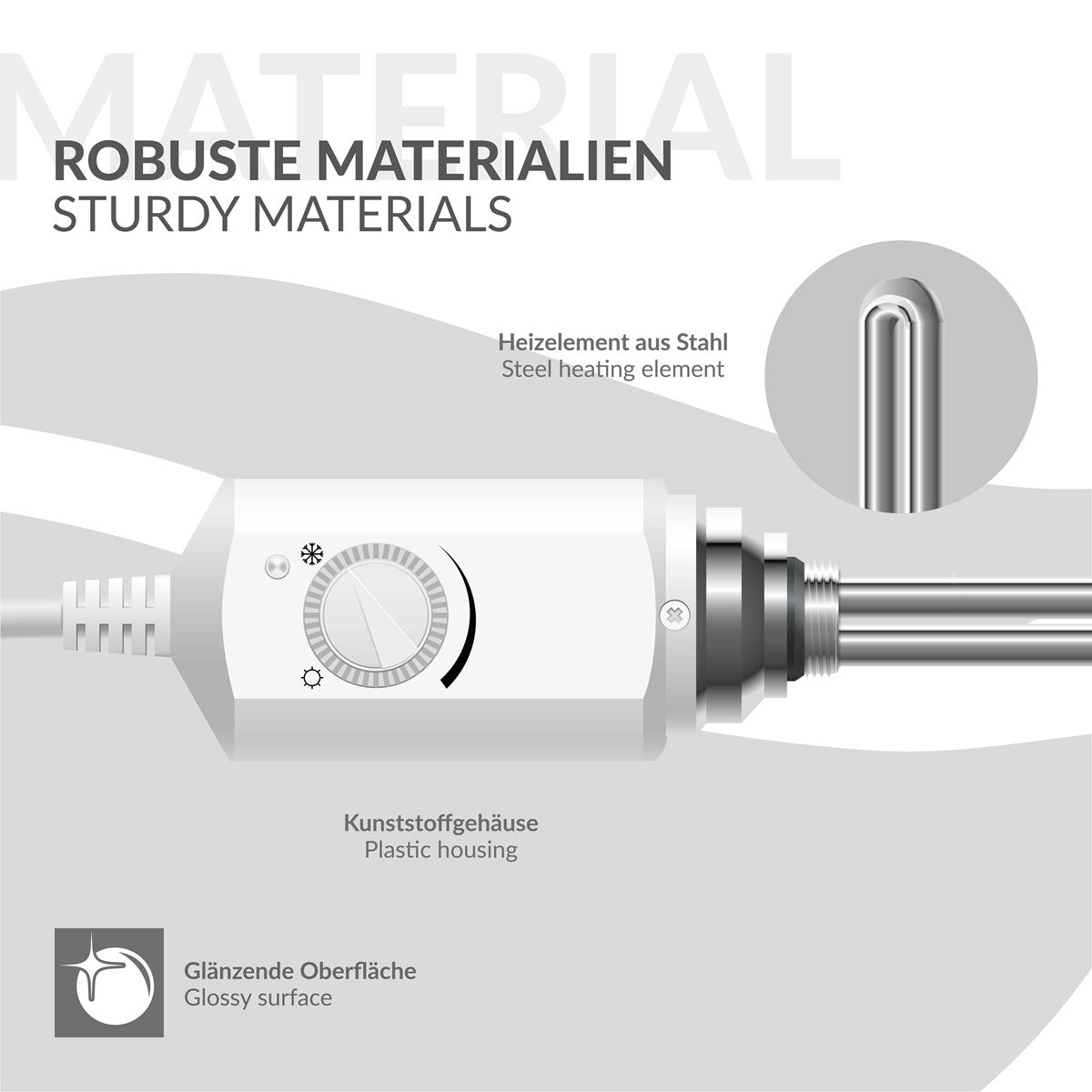

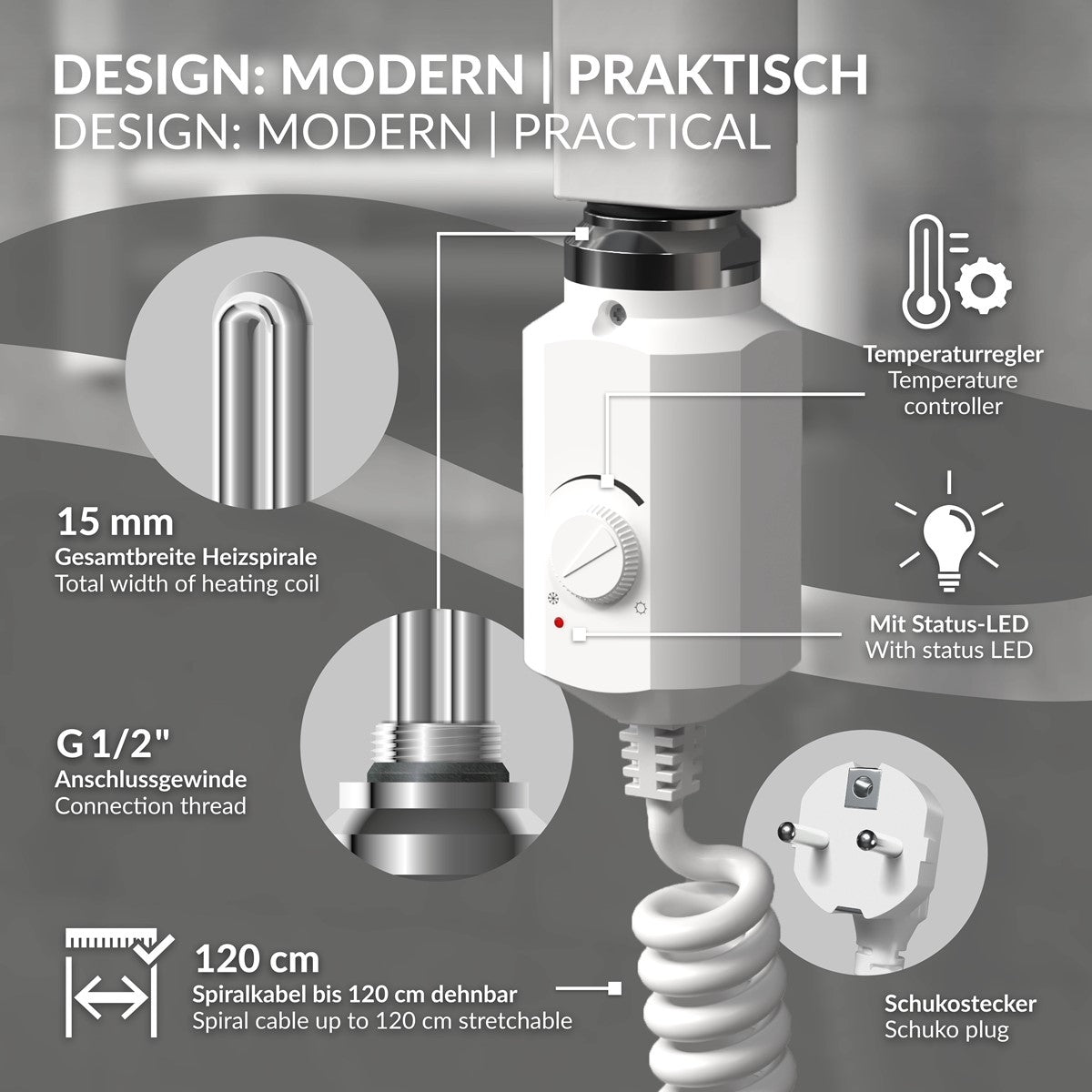

Heating element
Heating power: 1200W 230 V / 50 Hz

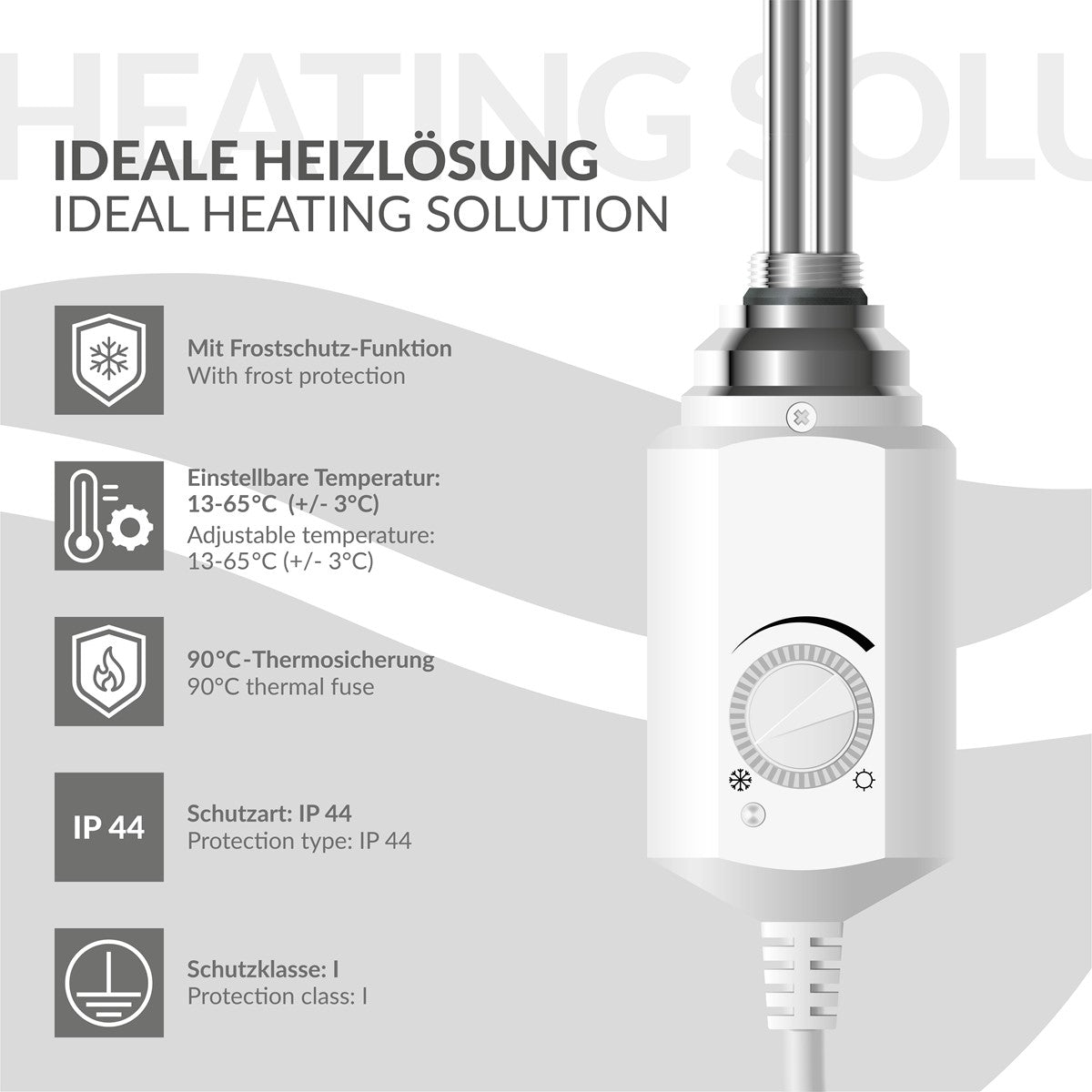

Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Color: white
Connection size: 1/2 "
Weight: 430 (g)
Total length: 490 (mm)
Heating element length L: 410 (mm)
Type: RD 10
Bathroom radiator
Width (mm): 750
Height (mm): 1500
Connections (mm): 705
Pipe diameter: Ø22
Profile: 30*40*1.5 D
Heat output of heating element: 1200W
Water volume (L): 10,18
Weight (kg): 15.21
Color: white
for pipe diameter 18 to 22 mm;
for pipe spacing 18 to 22 mm;
Depth (wall to center of pipe): 75 to 100 mm;
Deep plugs are not suitable for installation in drywall.
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles 30 x 40 x 1.5 mm
Horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm
Heating element
Heating power: 1200W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Color: white
Connection size: 1/2 "
Weight: 430 (g)
Total length: 490 (mm)
Heating element length L: 410 (mm)
Type: RD 10
