- High-quality bathroom radiator from LuxeBath
- Excellent workmanship with the latest welding technology
- Including mounting material for wall mounting
- Heat-resistant powder coating
- High and efficient heat output
- With universal connection set
00
h
:
00
m
:
00
s

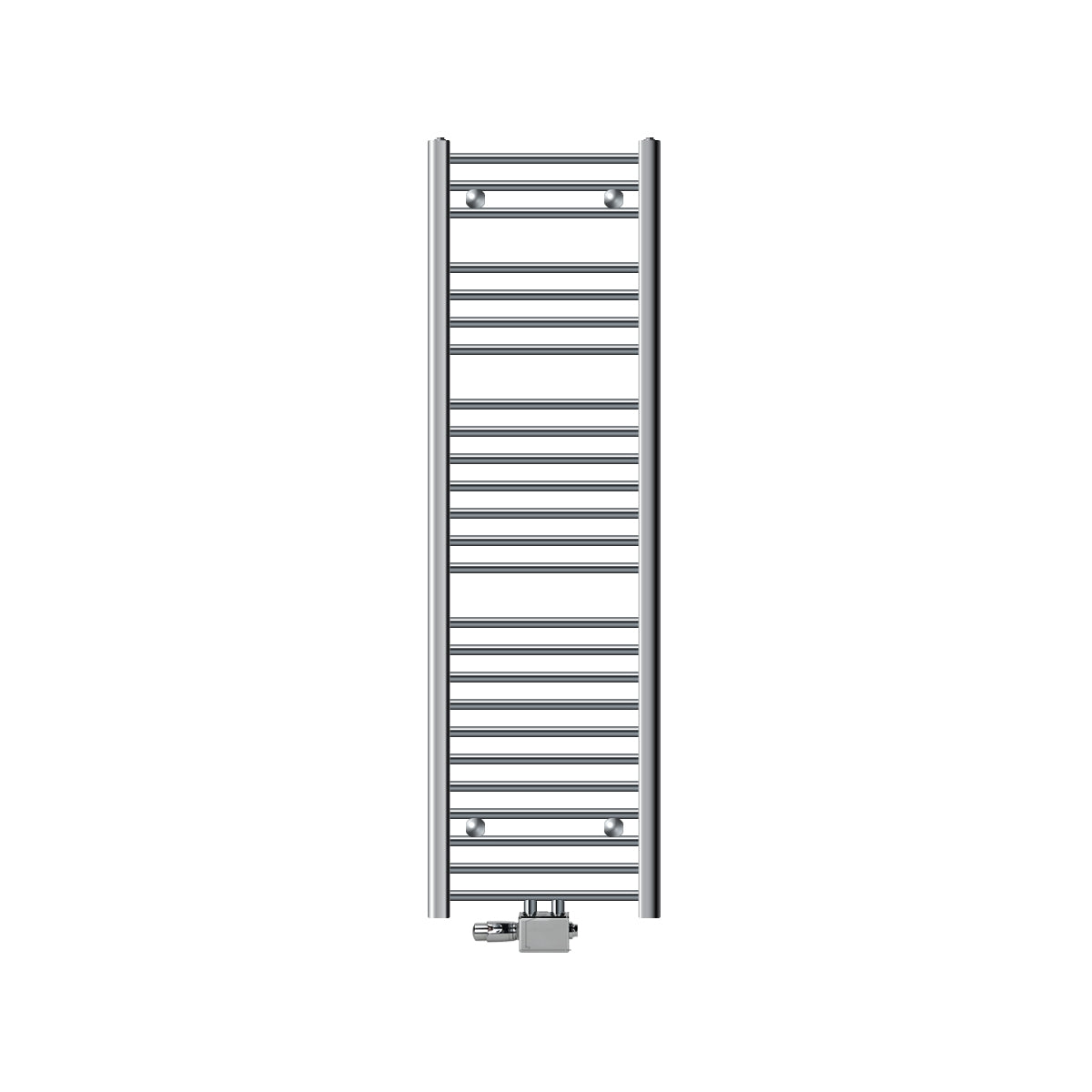

The Sahara range combines modern design with high functionality. With straight pipes and a central connection, this model series is perfect for a wide range of installations while ensuring efficient heat dissipation.
Information: Our range also includes curved models.
Main features:

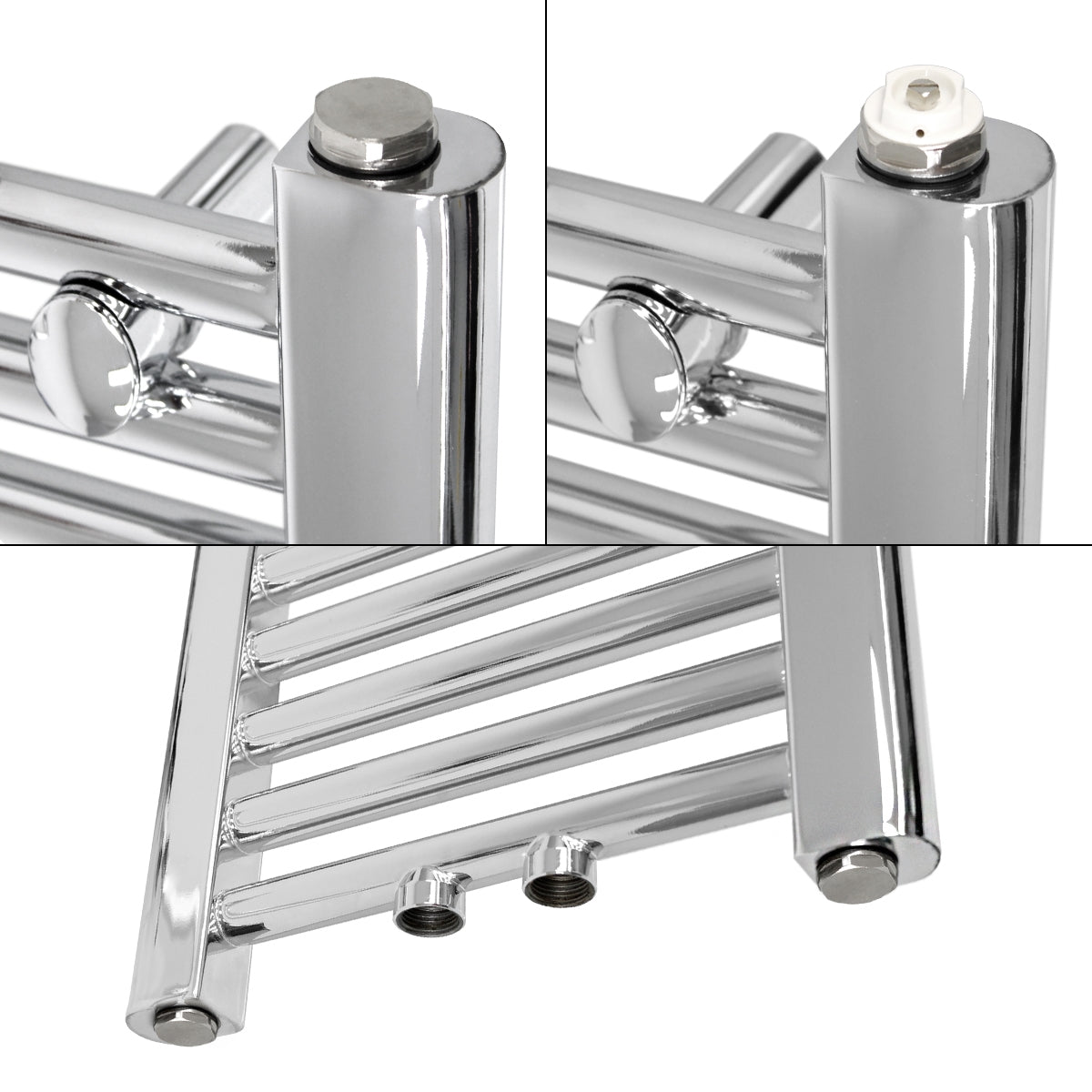

Central connection: The connection for the connection set is located in the middle of the radiator, which enables a clean and central installation. It is a standard ½" threaded connection.
Versatile application: Thanks to the offset pipes, you can use the radiator not only for heating, but also for drying or warming towels.
Robust finish: The heat-resistant powder coating ensures a long service life and protects the radiator from wear and external influences.

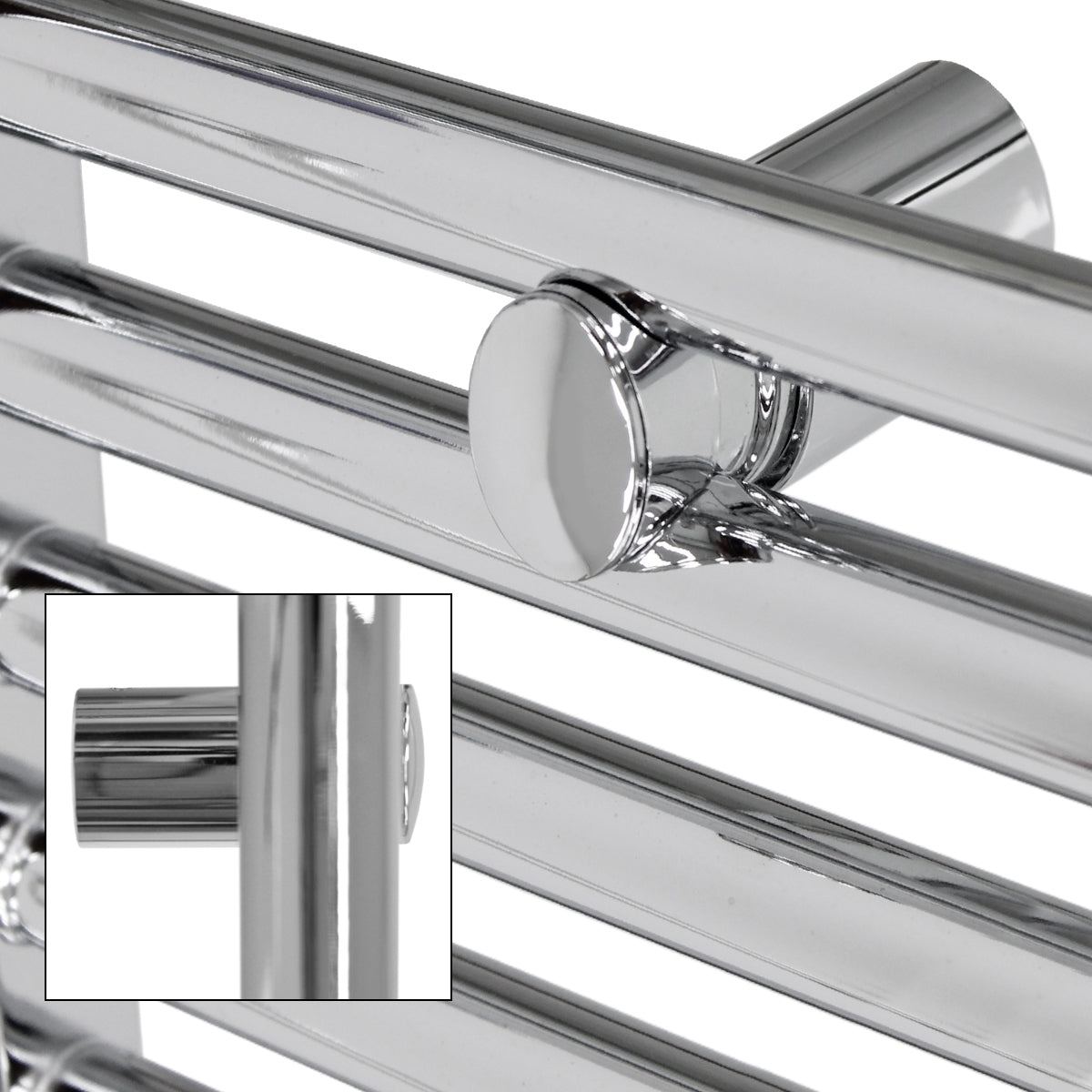

Simple wall mounting: wall plugs, screws and wall brackets are included. The distance from the wall for installation is around 50 mm.
Timeless design: The straight pipes give the Sahara radiator a minimalist and elegant look that blends into any room style.
Scope of delivery:
Bathroom radiator from LuxeBath
Vent valve 1/2 inch
Blanking plug 1/2 inch
Installation instructions
Wall mounting set:
4 x wall brackets
4 x screws and wall plugs
4 x retaining screw
4 x washers
Valve fitting set Multiblock Universal incl. thermostatic head
Information: Our range also includes curved models.
Main features:
Central connection: The connection for the connection set is located in the middle of the radiator, which enables a clean and central installation. It is a standard ½" threaded connection.
Versatile application: Thanks to the offset pipes, you can use the radiator not only for heating, but also for drying or warming towels.
Robust finish: The heat-resistant powder coating ensures a long service life and protects the radiator from wear and external influences.
Simple wall mounting: wall plugs, screws and wall brackets are included. The distance from the wall for installation is around 50 mm.
Timeless design: The straight pipes give the Sahara radiator a minimalist and elegant look that blends into any room style.
Scope of delivery:
Bathroom radiator from LuxeBath
Vent valve 1/2 inch
Blanking plug 1/2 inch
Installation instructions
Wall mounting set:
4 x wall brackets
4 x screws and wall plugs
4 x retaining screw
4 x washers
Valve fitting set Multiblock Universal incl. thermostatic head
Bathroom radiator:
Connection type: center connection
Version: straight
Color: Chrome
Material: steel

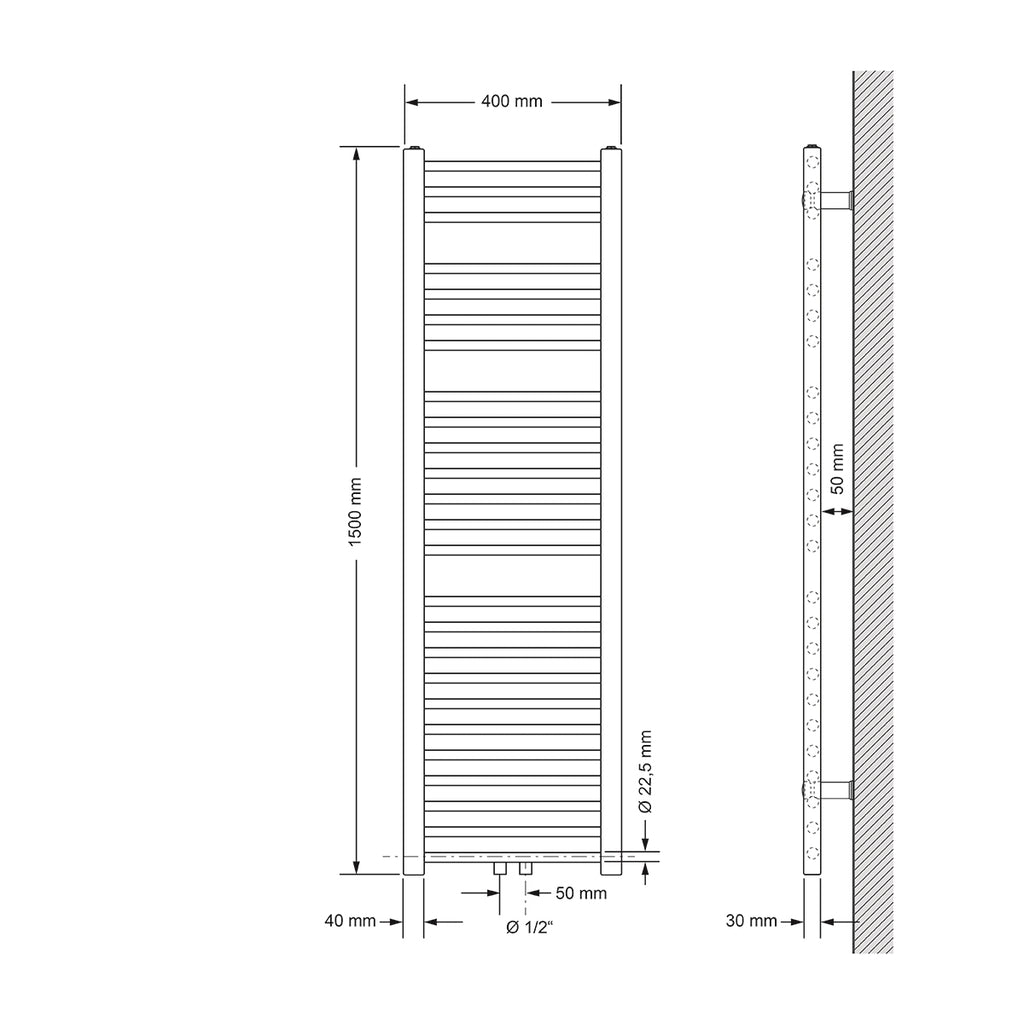

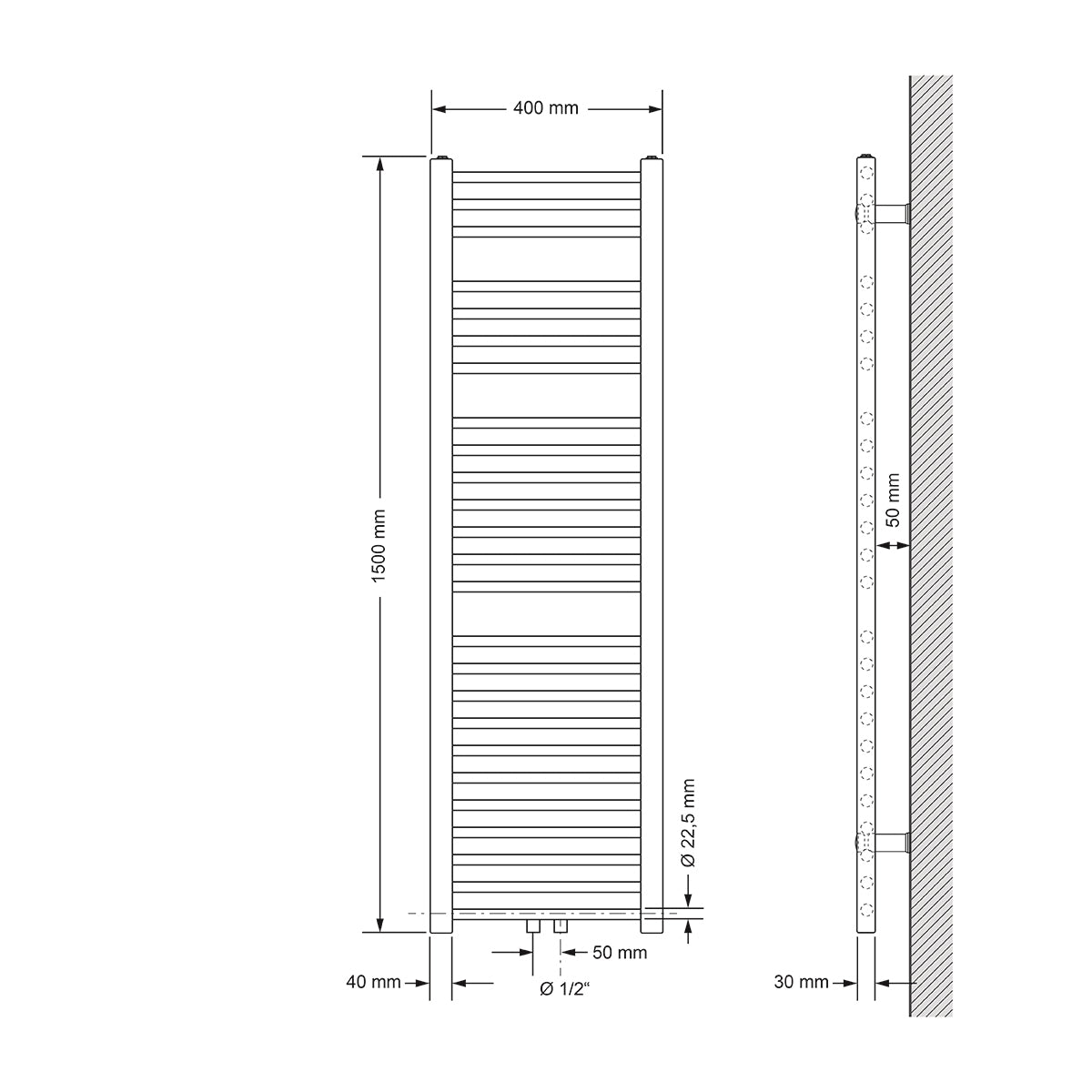

Width: 400 mm
Height: 1500 mm
Connections: 255 mm
Tube diameter: Ø 22
Profile (mm): 30*40*1.5 D
Heat output: 380 W
Heat capacity: 1286 BTU
Water volume: 5.42 L
Weight: 8.23 kg
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles: 30 x 40 x 1.5 mm
Horizontal round tubes: 22 x 1.2 mm
Distance to wall: approx. 5 cm

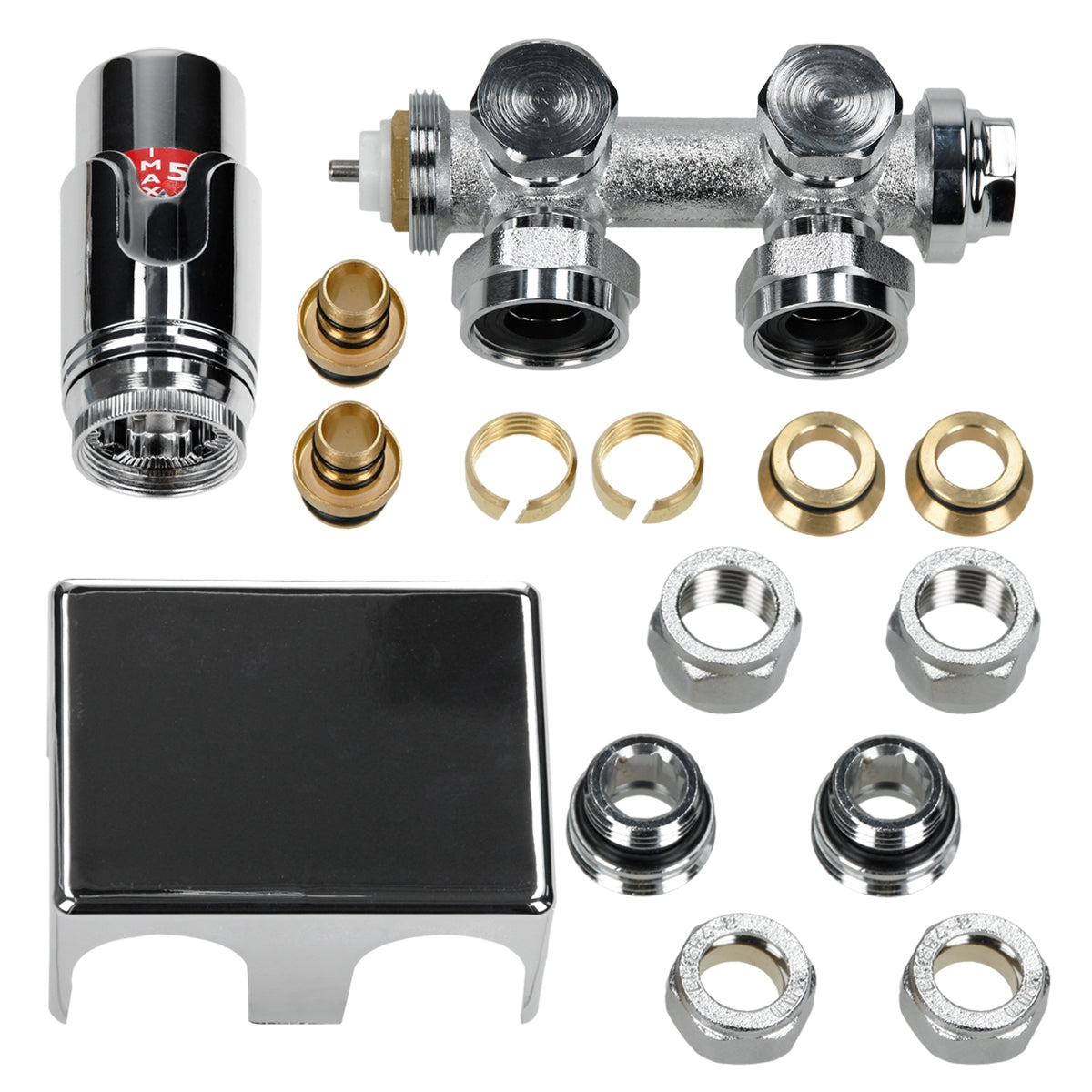

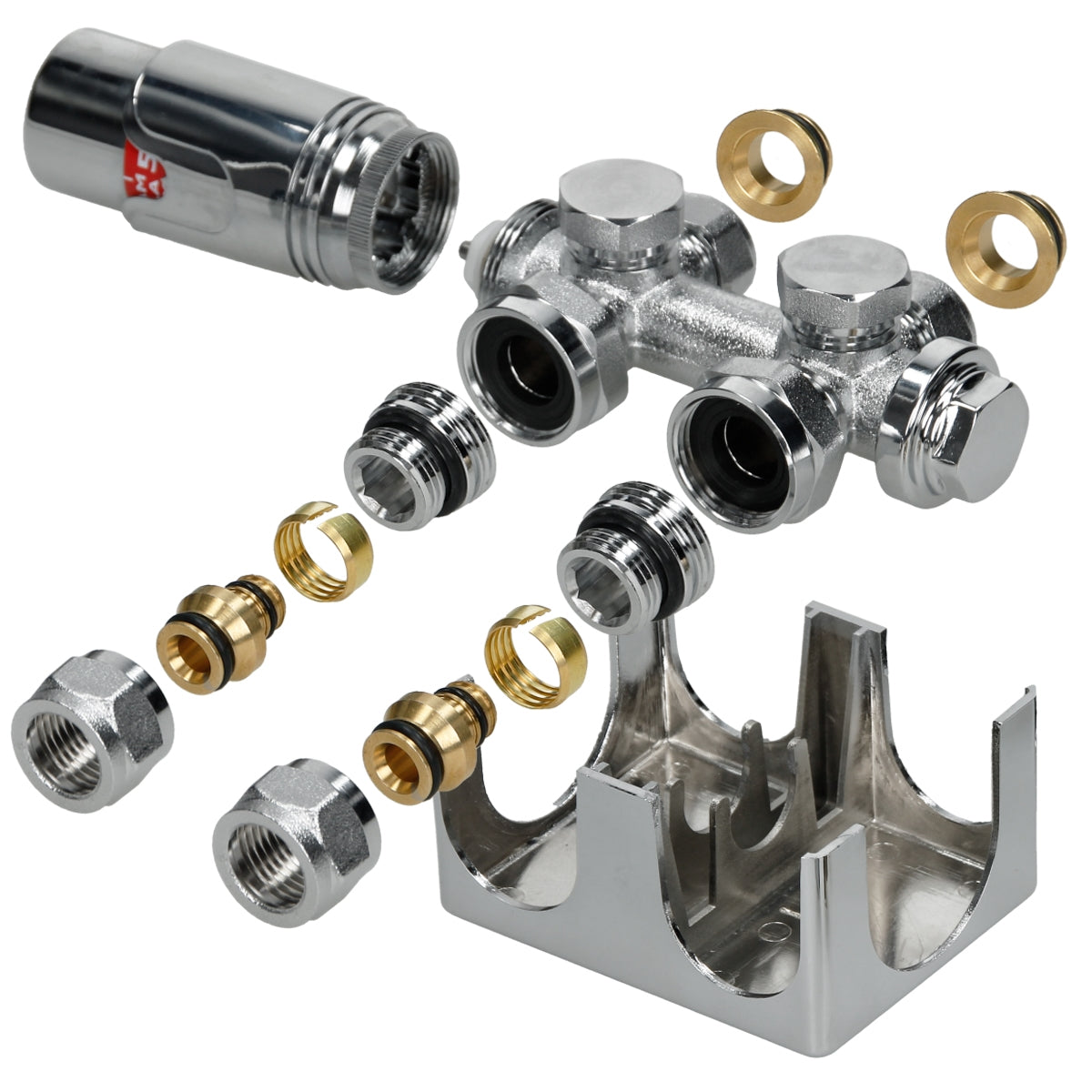

Connection set:
Color: Chrome
for pipe spacing 50 mm center connection

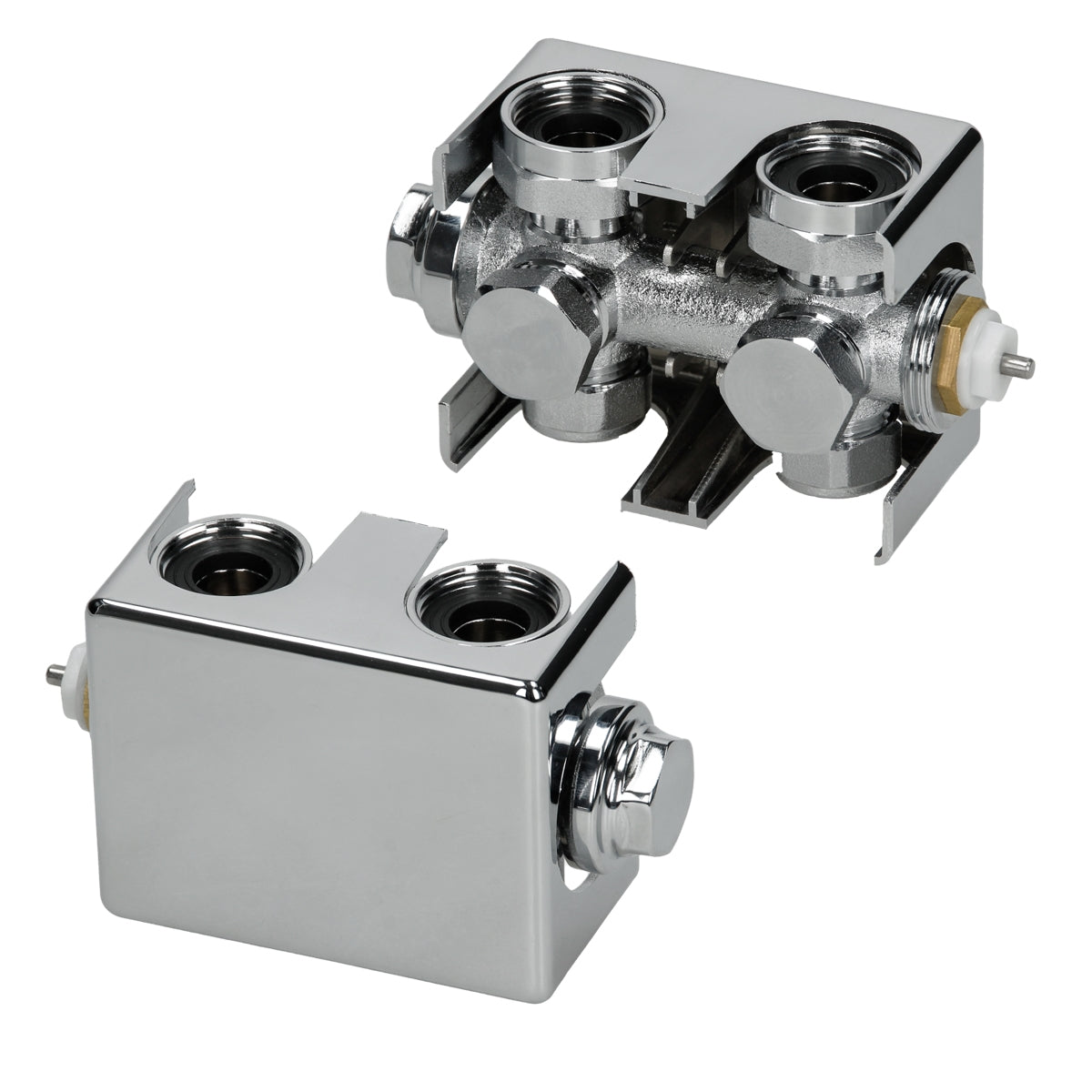

Multiblock two-pipe fitting
Can be used for straight and angled fittings
max. operating pressure 10 bar
max. operating temperature 110°C
Pre-adjustable valve insert incl. key
5 levels adjustable
for two-pipe heating system
Connection thread for radiator 1/2" with freely rotating nut
Pipe connection with external thread G 3/4'' with cone for clamp set connection
Adjustable for hydraulic balancing
with liquid sensor (hydrosensor)

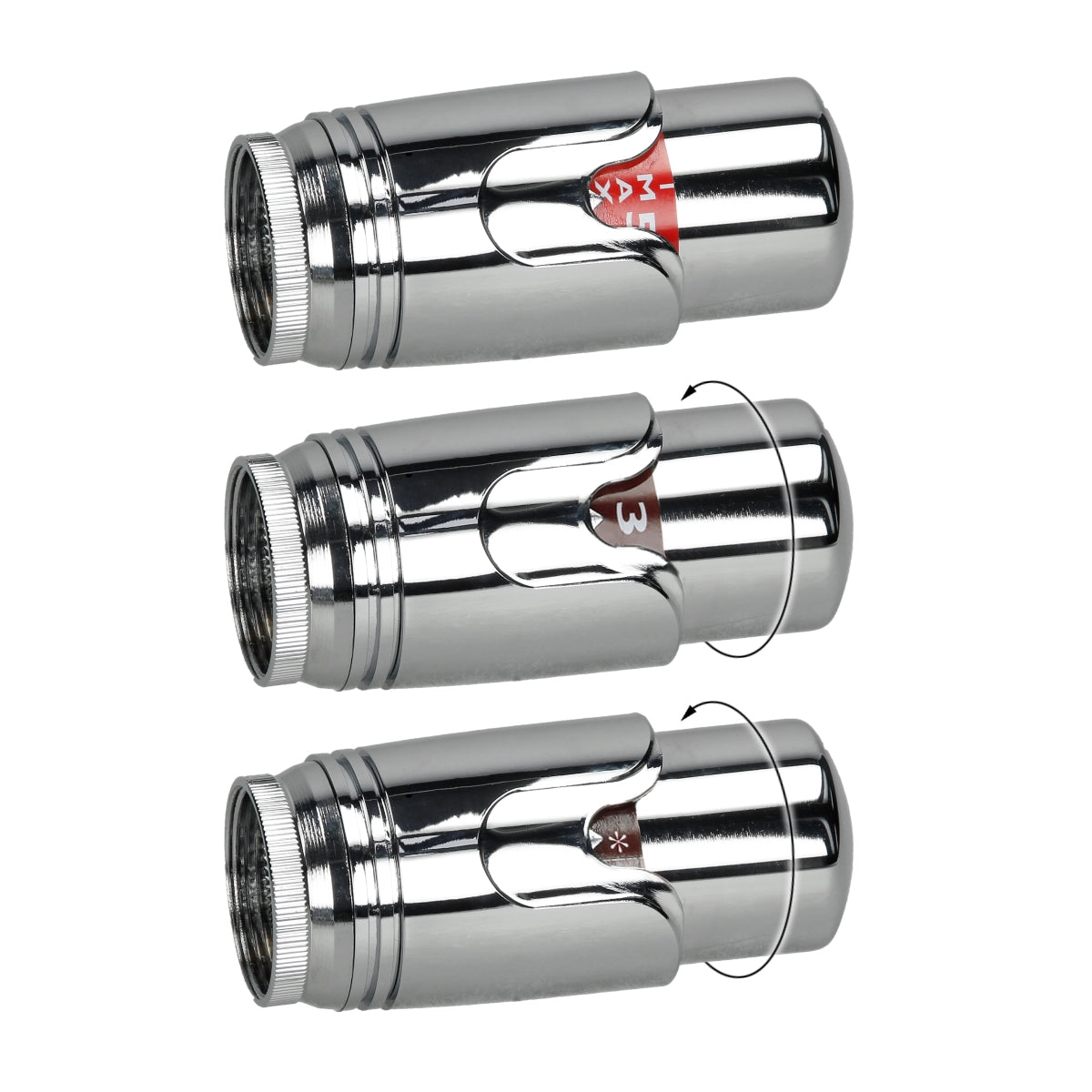

Setpoint range: 0-30 °C
with "0" position and frost protection
Frost protection adjustable at 6 °C
For radiators with flow and return
Universal - can be used for straight and corner radiators (incl. cover)
Thermostat convertible right or left
Connection type: center connection
Version: straight
Color: Chrome
Material: steel
Width: 400 mm
Height: 1500 mm
Connections: 255 mm
Tube diameter: Ø 22
Profile (mm): 30*40*1.5 D
Heat output: 380 W
Heat capacity: 1286 BTU
Water volume: 5.42 L
Weight: 8.23 kg
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles: 30 x 40 x 1.5 mm
Horizontal round tubes: 22 x 1.2 mm
Distance to wall: approx. 5 cm
Connection set:
Color: Chrome
for pipe spacing 50 mm center connection
Multiblock two-pipe fitting
Can be used for straight and angled fittings
max. operating pressure 10 bar
max. operating temperature 110°C
Pre-adjustable valve insert incl. key
5 levels adjustable
for two-pipe heating system
Connection thread for radiator 1/2" with freely rotating nut
Pipe connection with external thread G 3/4'' with cone for clamp set connection
Adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
Setpoint range: 0-30 °C
with "0" position and frost protection
Frost protection adjustable at 6 °C
For radiators with flow and return
Universal - can be used for straight and corner radiators (incl. cover)
Thermostat convertible right or left
