- High-quality bathroom radiator from LuxeBath
- Modern and timeless design
- Mounting material included
- High quality materials
- Top processing
- 3 years warranty
00
h
:
00
m
:
00
s
Scope of delivery:

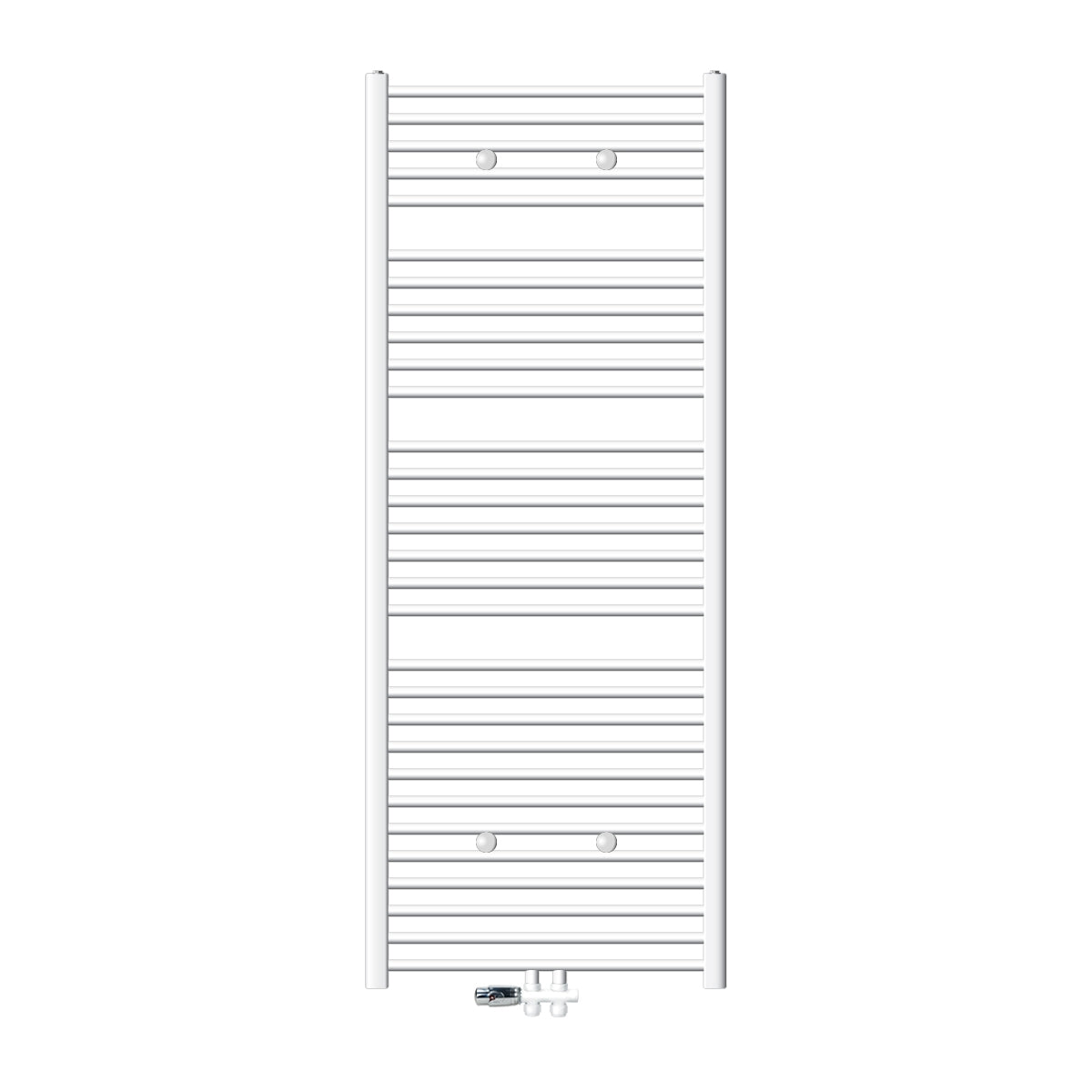

Bathroom radiator 750 x 1800 mm White Curved

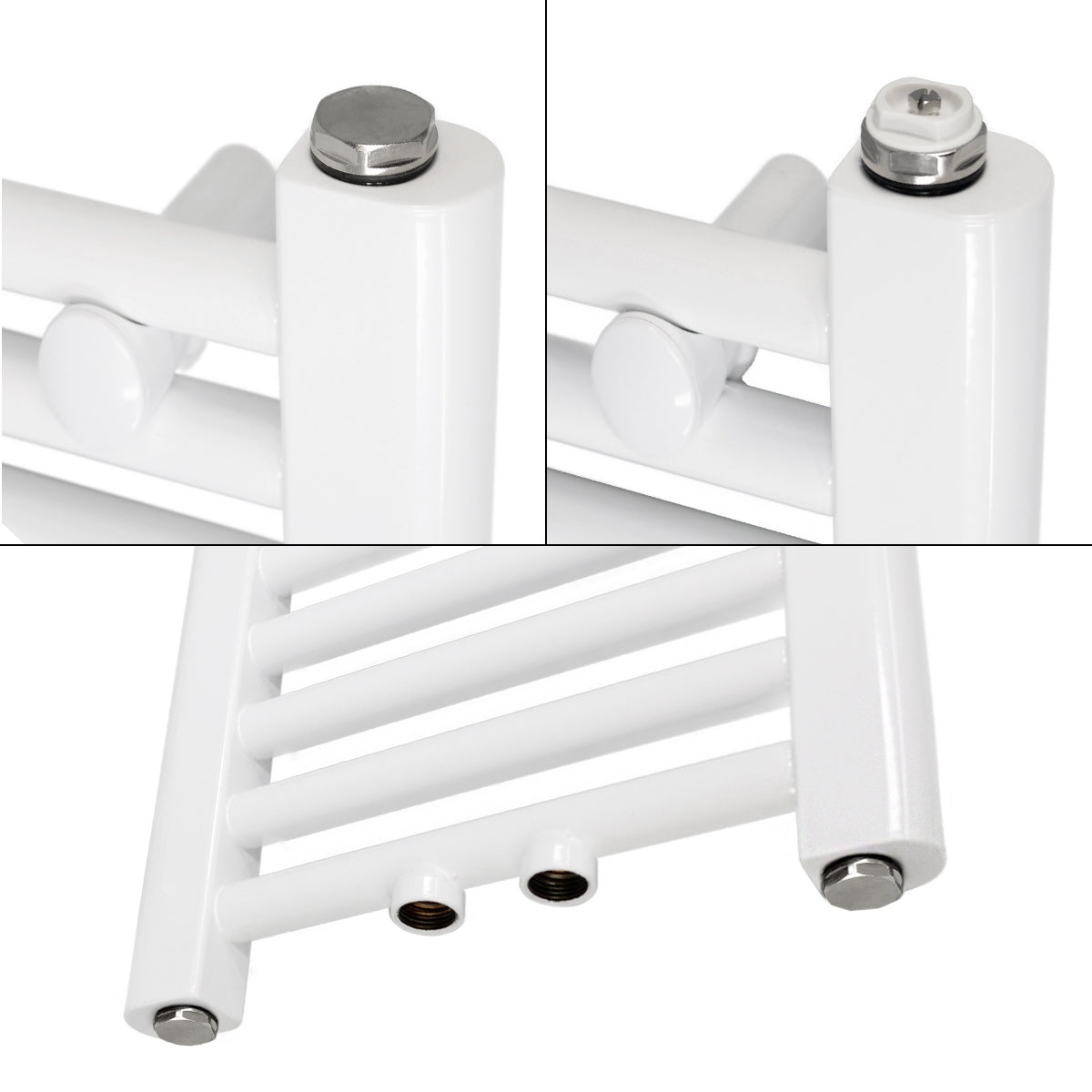

Vent valve 1/2 inch
Blanking plug 1/2 inch
Thermostat with center connection set (floor connection / (straight-through version) - if the pipes come out of the floor)

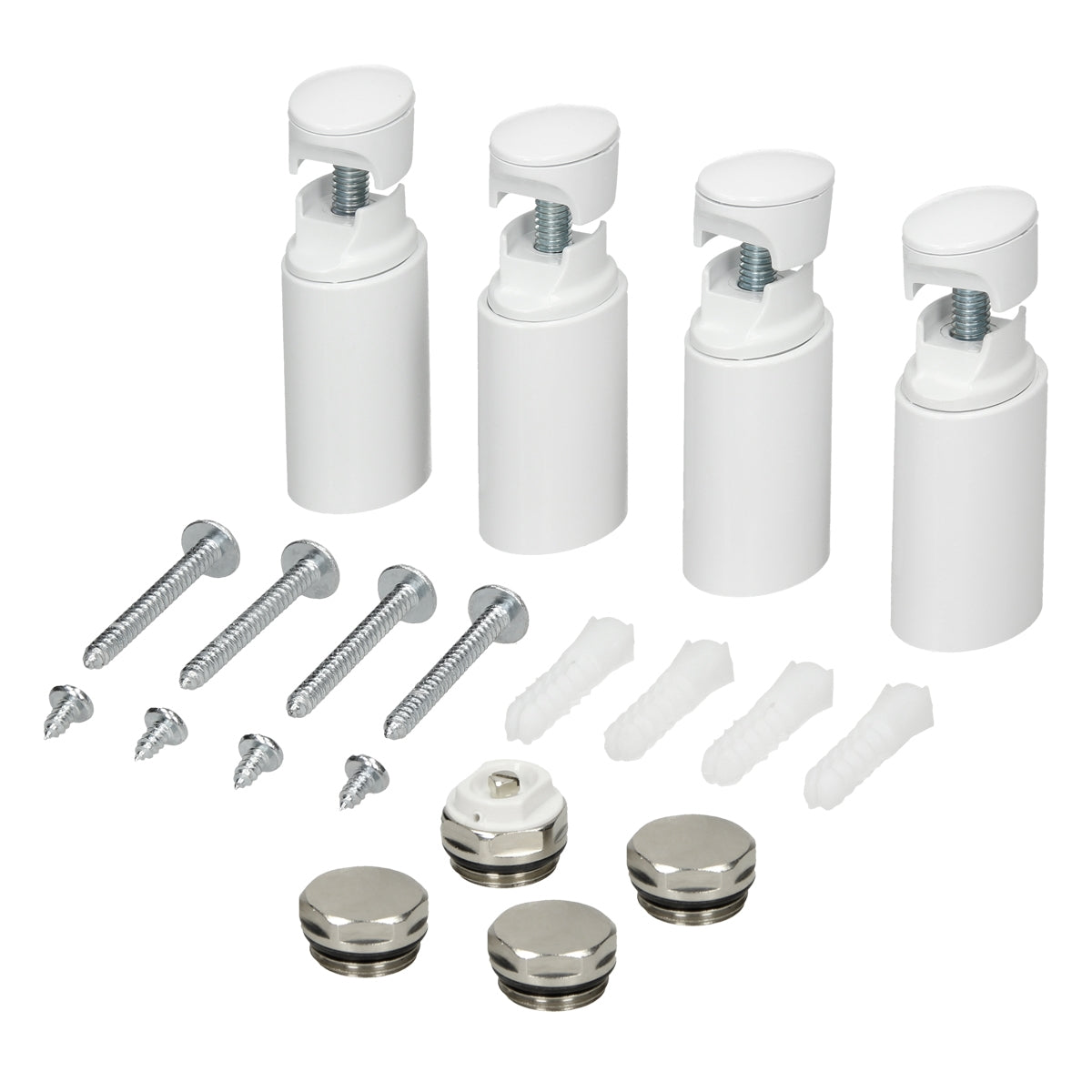

Wall mounting set:
4 x wall brackets
4 x screws and wall plugs
4 x retaining screw
4 x washers
Bathroom radiator 750 x 1800 mm White Curved
Vent valve 1/2 inch
Blanking plug 1/2 inch
Thermostat with center connection set (floor connection / (straight-through version) - if the pipes come out of the floor)
Wall mounting set:
4 x wall brackets
4 x screws and wall plugs
4 x retaining screw
4 x washers

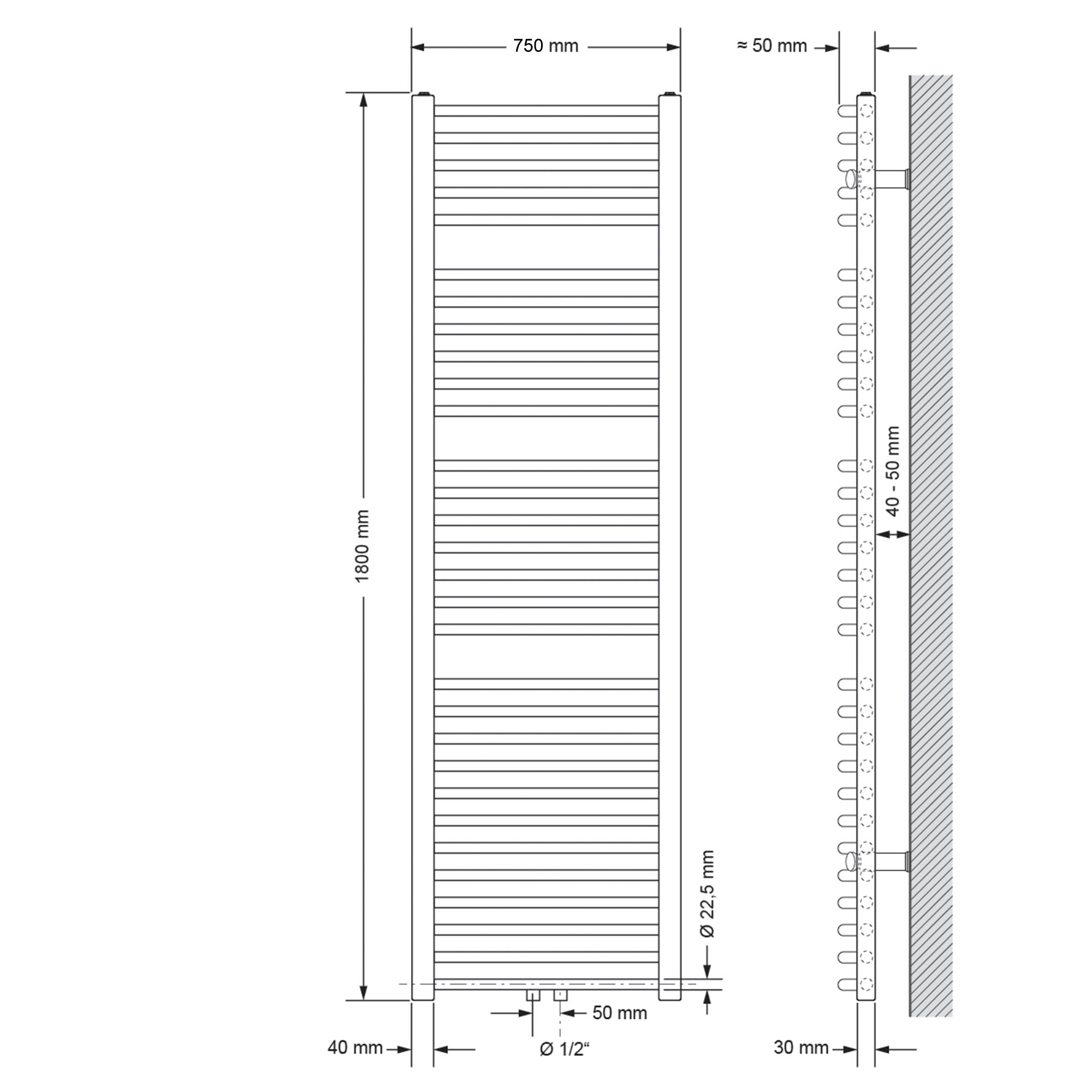

Technical information:
Bathroom radiator
Width (mm): 750
Height (mm): 1800
Connections (mm): 705
Pipe diameter: Ø22
Profile (mm): 30*40*1.5 D
Heat output (watts at 75/65/20°) DT50: 1150
Water volume (L) : 10.18
Weight (kg) : 15,21
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
vertical D-profiles 30 x 40 x 1.5 mm
horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm
High-quality bathroom radiator from specialist dealer
Thick base material
robust cardboard packaging

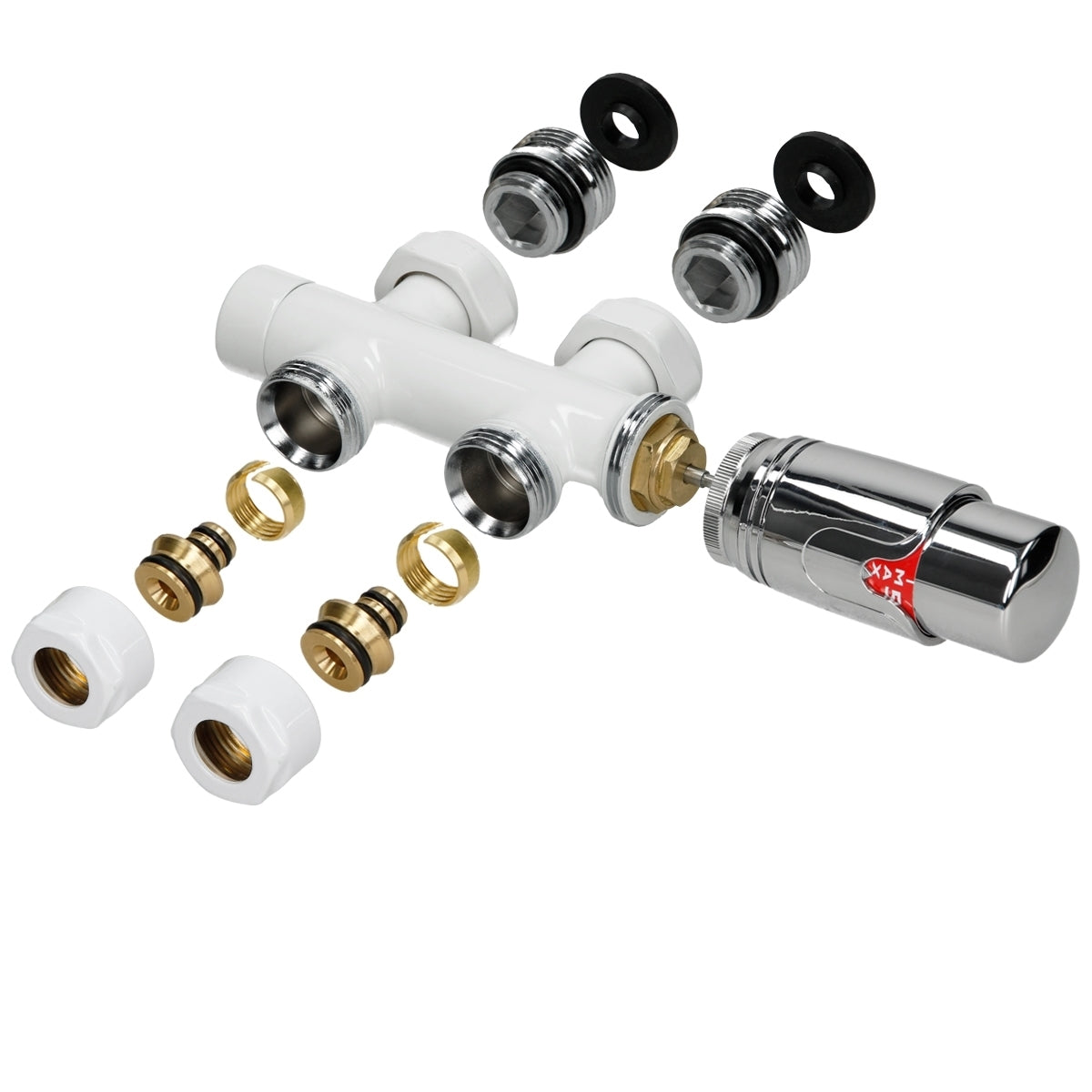

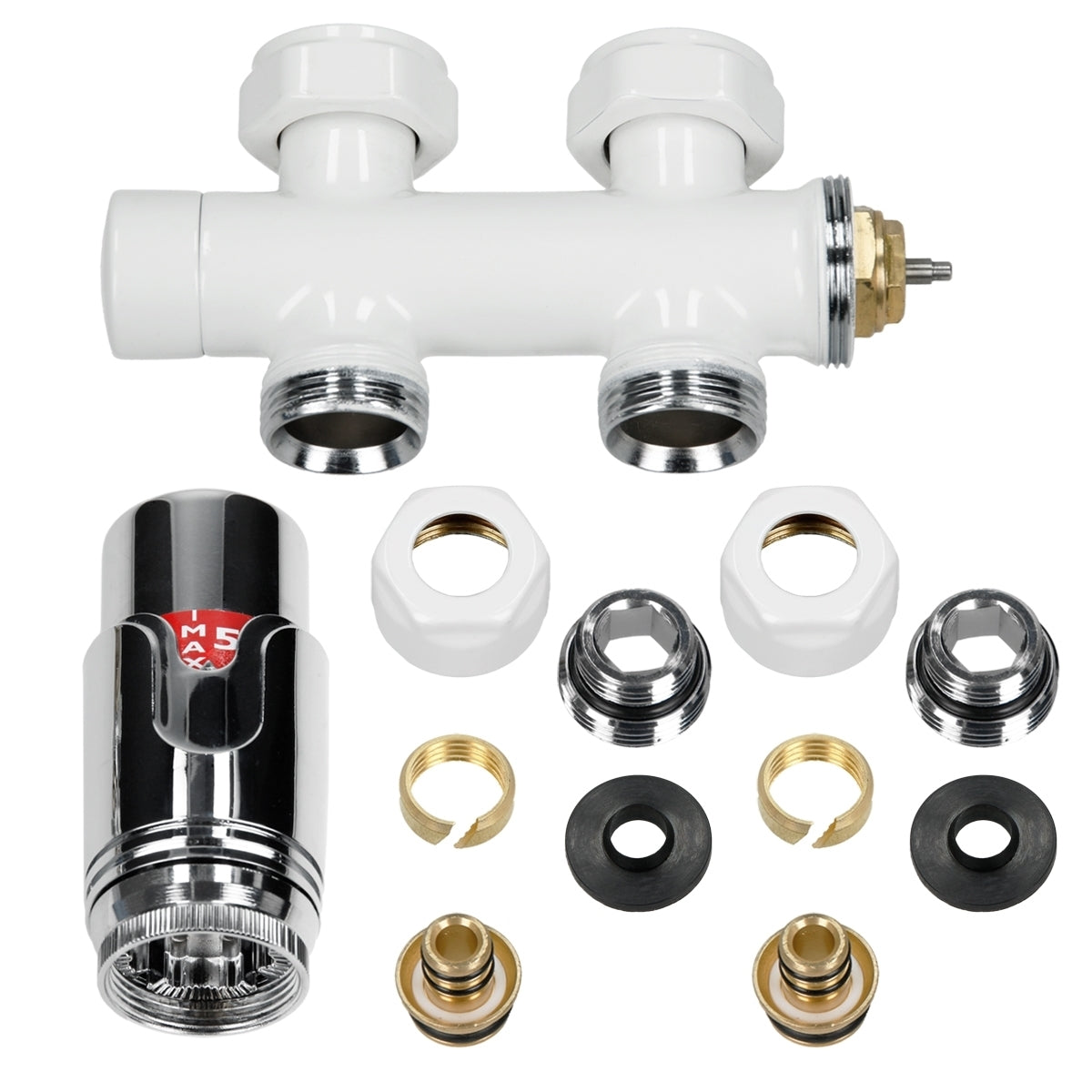

Connection set
for pipe spacing 50mm center connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
for straight through
Pre-adjustable valve insert incl. key
color: white
with frost protection position

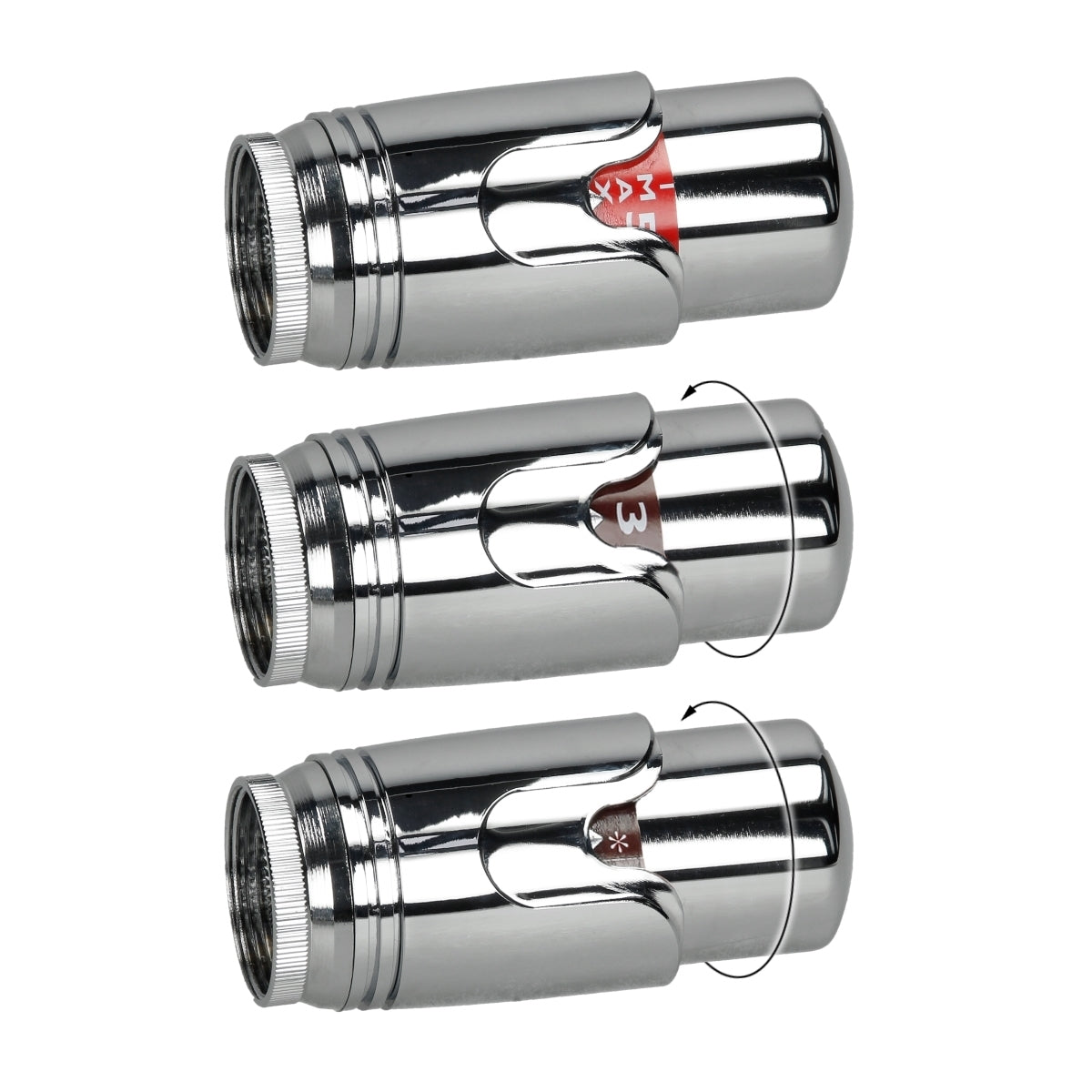

5 levels adjustable
for two-pipe heating system
Connection thread for radiator 1/2" with freely rotating nut
Pipe connection with external thread G 3/4'' with cone for clamp set connection
Adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
Setpoint range: 0-30 °C
with "0" position and frost protection
Frost protection adjustable at 6 °C
For radiators with flow and return
Bathroom radiator
Width (mm): 750
Height (mm): 1800
Connections (mm): 705
Pipe diameter: Ø22
Profile (mm): 30*40*1.5 D
Heat output (watts at 75/65/20°) DT50: 1150
Water volume (L) : 10.18
Weight (kg) : 15,21
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
vertical D-profiles 30 x 40 x 1.5 mm
horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm
High-quality bathroom radiator from specialist dealer
Thick base material
robust cardboard packaging
Connection set
for pipe spacing 50mm center connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
for straight through
Pre-adjustable valve insert incl. key
color: white
with frost protection position
5 levels adjustable
for two-pipe heating system
Connection thread for radiator 1/2" with freely rotating nut
Pipe connection with external thread G 3/4'' with cone for clamp set connection
Adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
Setpoint range: 0-30 °C
with "0" position and frost protection
Frost protection adjustable at 6 °C
For radiators with flow and return
