Scope of delivery:
Design radiator
Vent valve
Dummy plug
Wall mounting set
Mounting instructions
Thermostat + middle connection set passage
Design radiator
Vent valve
Dummy plug
Wall mounting set
Mounting instructions
Thermostat + middle connection set passage
Technical information:

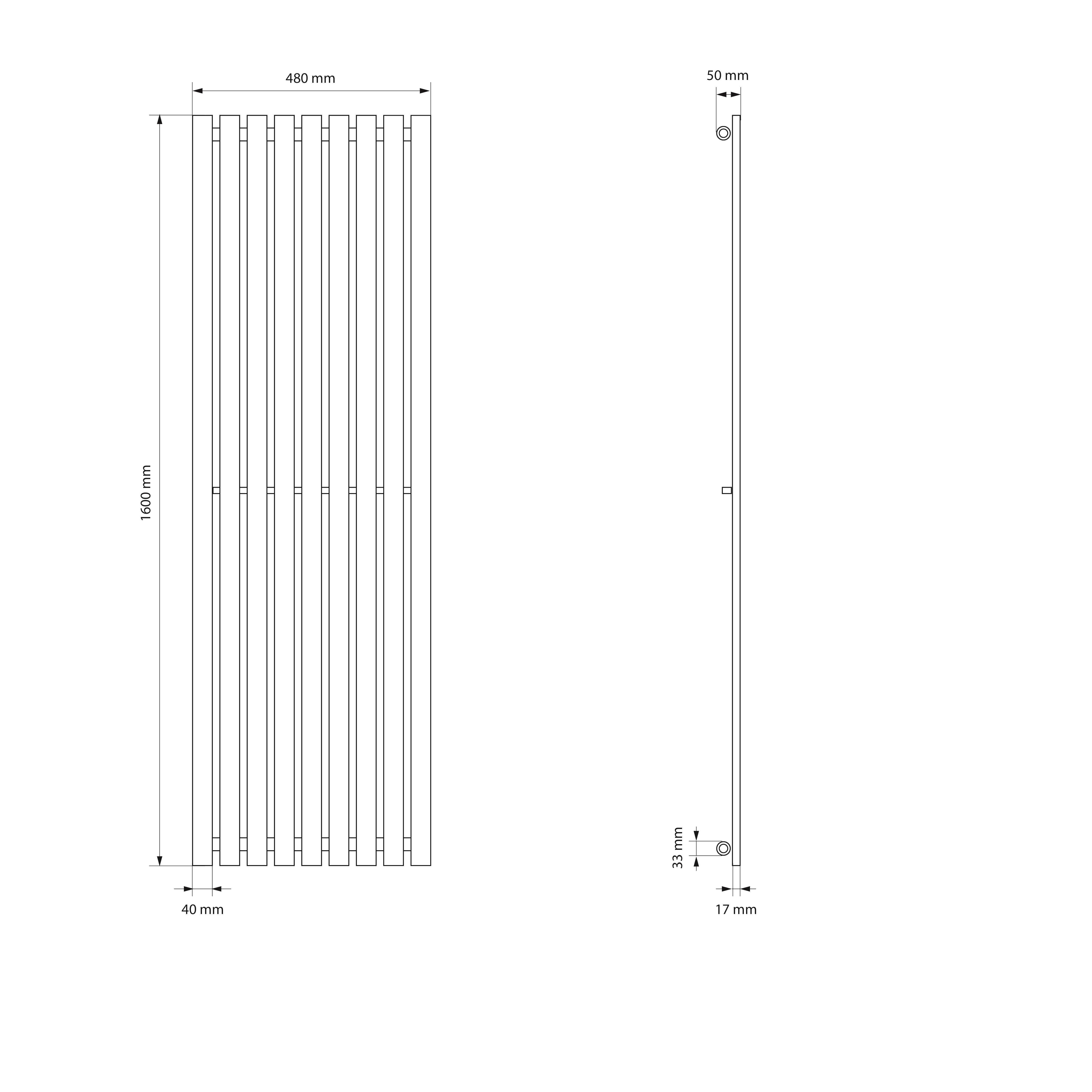

Radiator
width (mm): 480
Height (mm): 1600
Number of pipes: 9
connections (mm): 480 / 50
Dimension of pipes: 40*18*1.2
Profile: 32*1.5
Wattage: 880
Vertical square profiles 70 x 11 mm
Horizontal manifolds 28 mm
Specialized goods
Original packed
Connection thread: G1/2
Connection dimension: 50 mm
Maximum operating pressure: 5 bar
Test pressure: 6,5 bar
Color: chrome
distance to the wall: approx. 6,5cm

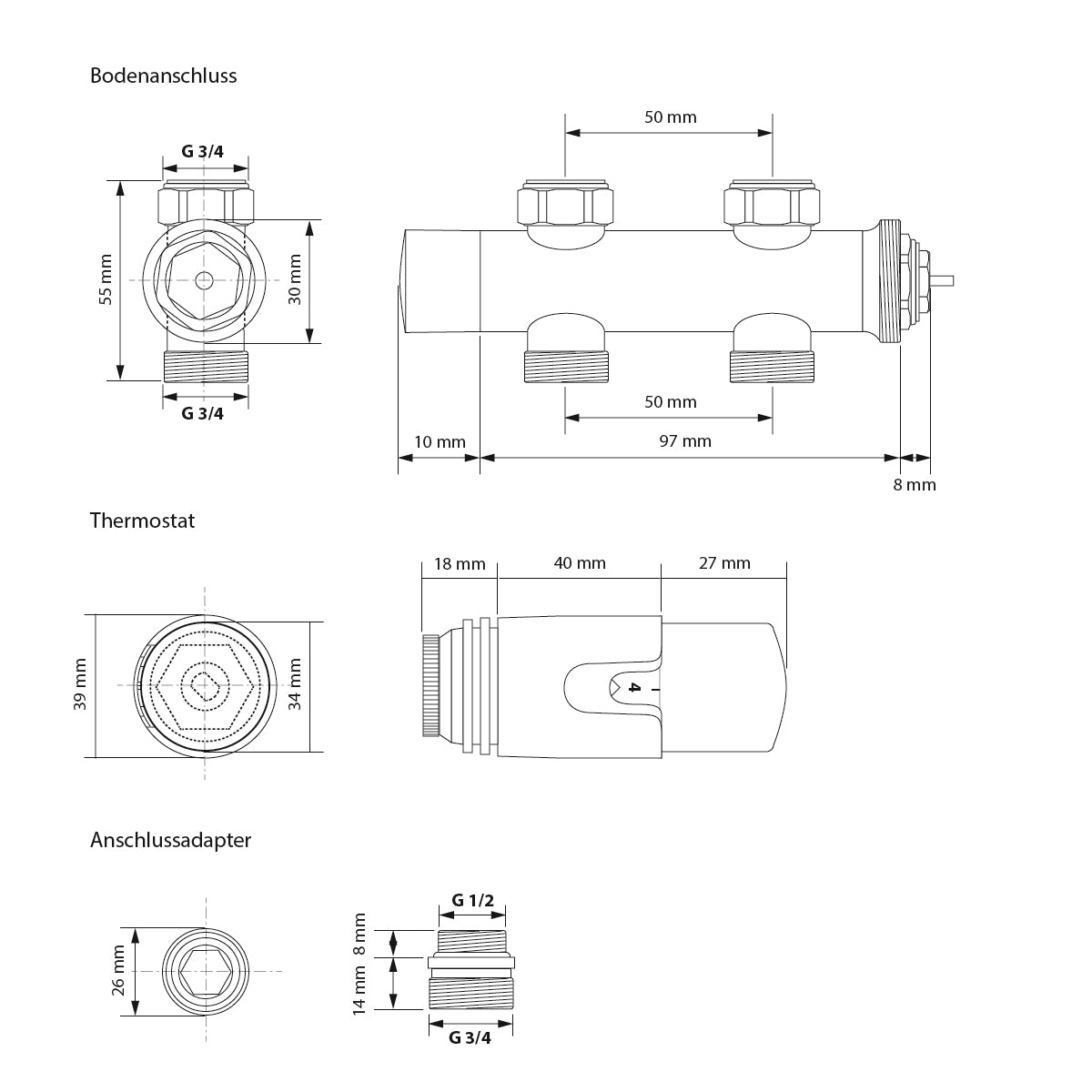

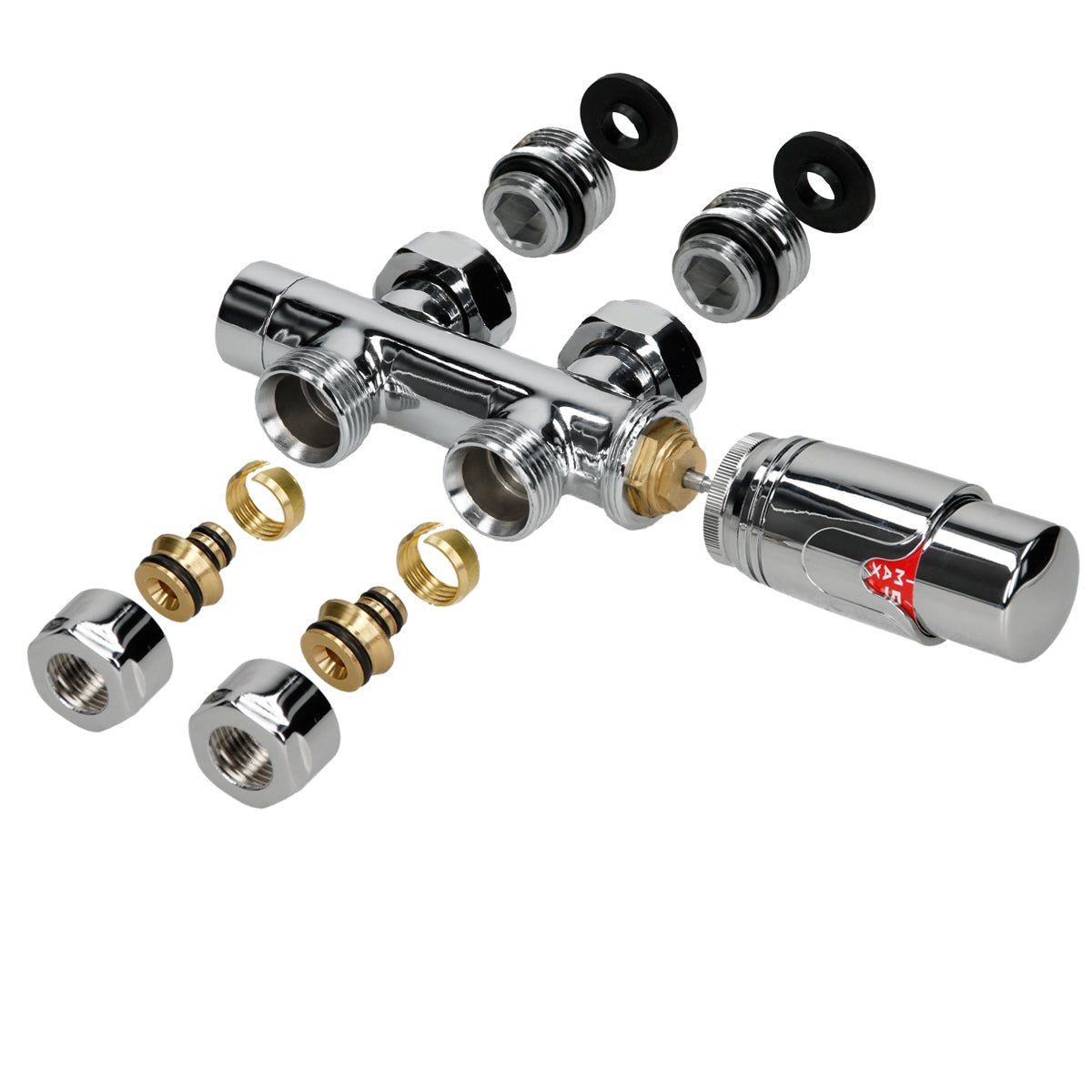

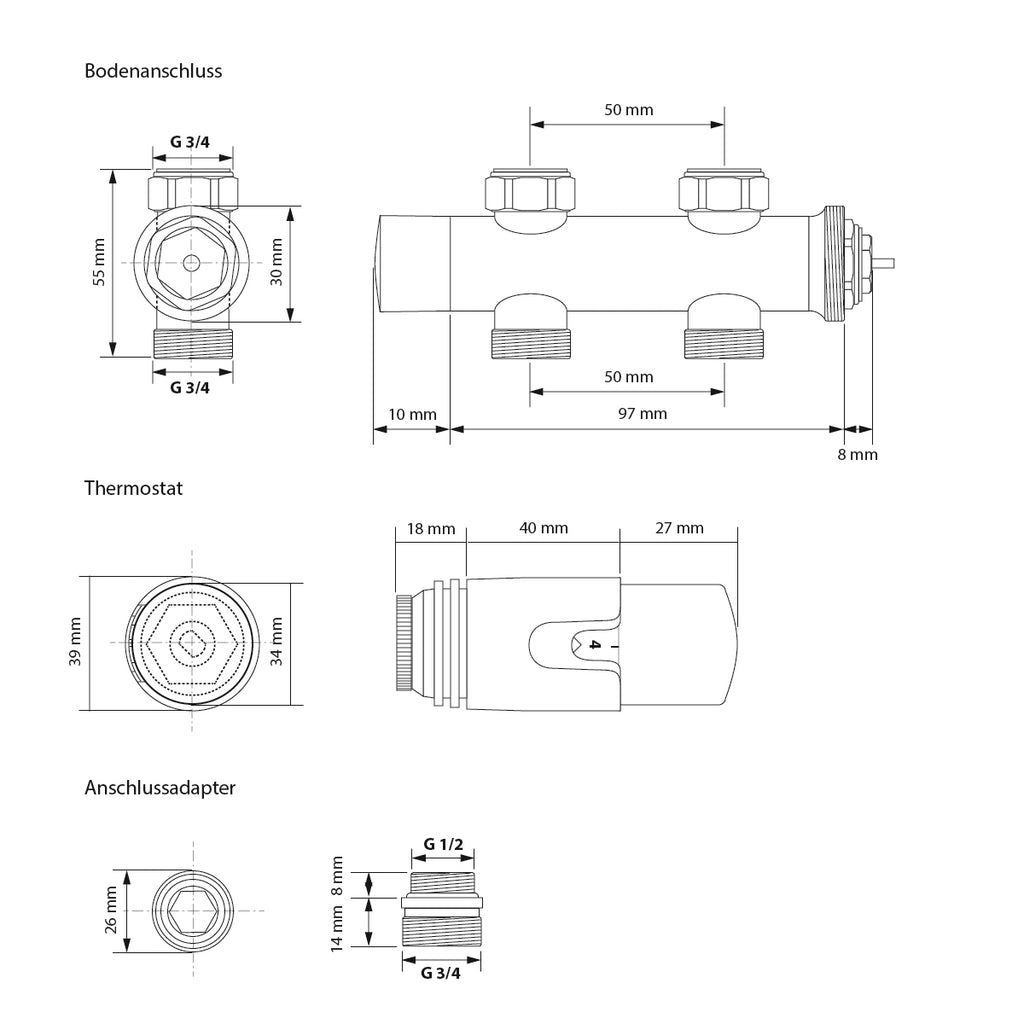

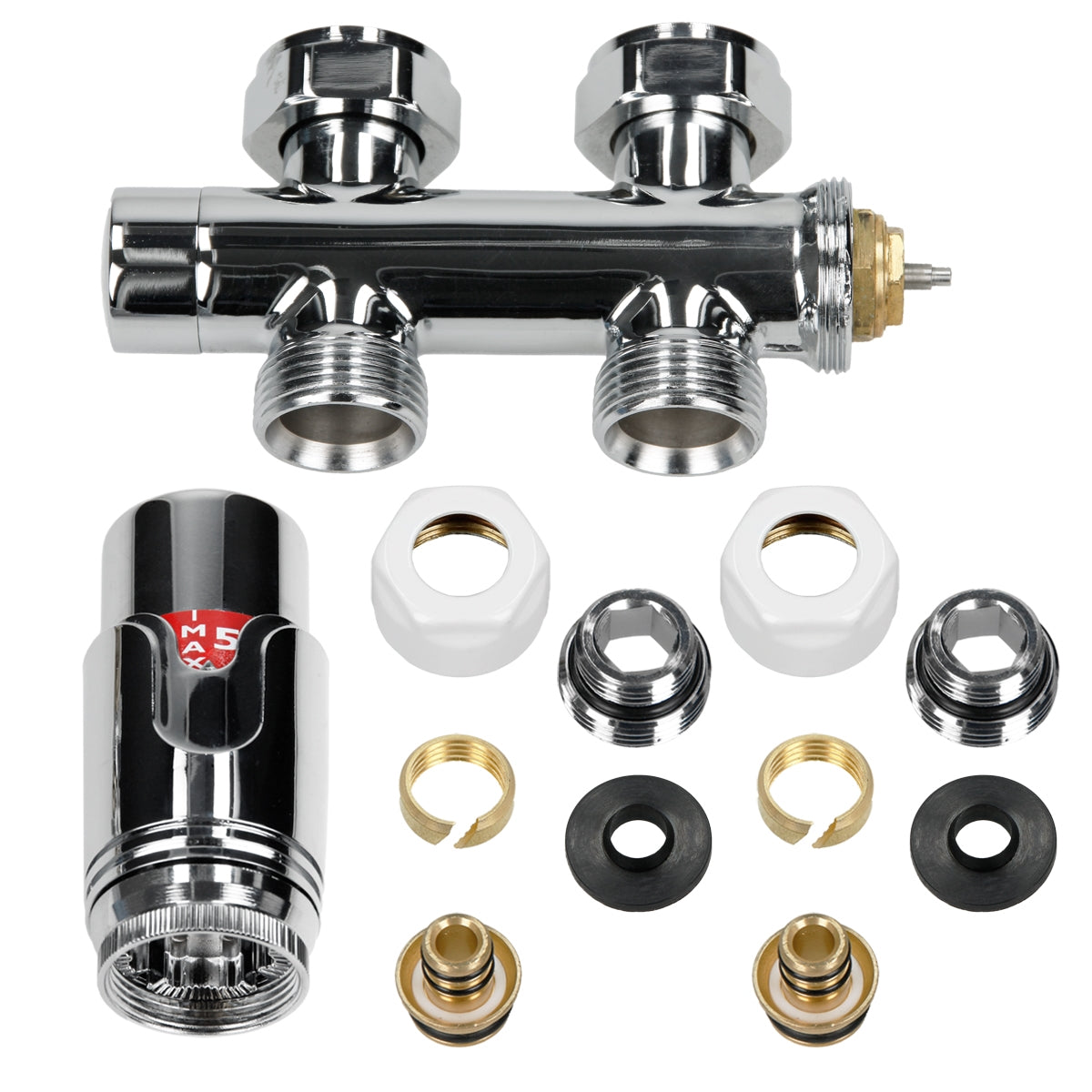

Connection set
Connection set for pipe distance 50mm middle connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
for straight through

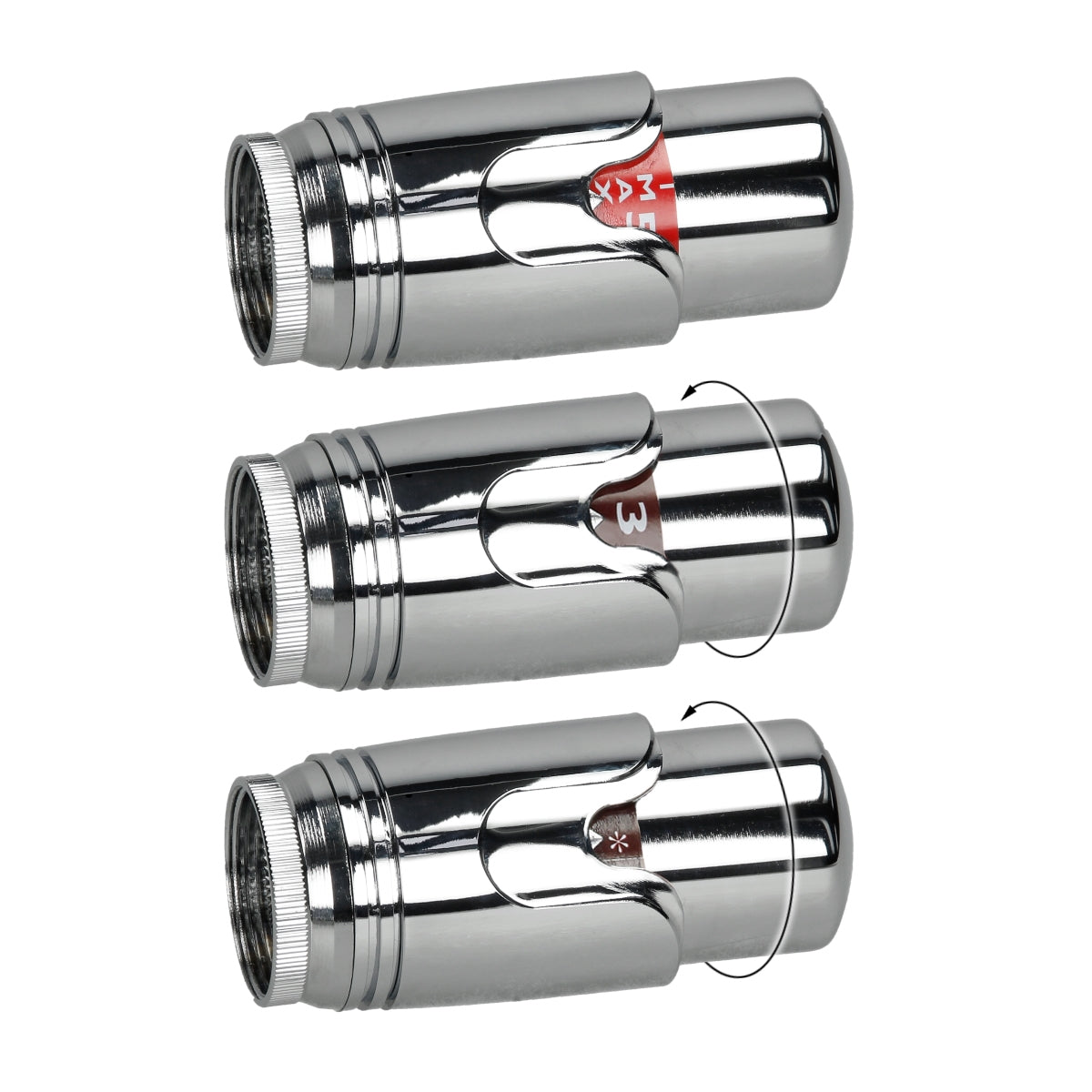

presettable valve insert incl. key
color : chrome
with frost protection position
5 levels adjustable
for two-pipe heating system
connection thread for radiator 1/2" with free turning nut
pipe connection with external thread G 3/4'' with cone for clamp set connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
set point range: 0-30 °C
with "0" position and frost protection
frost protection adjustable at 6 °C
for radiators with flow and return
Radiator
width (mm): 480
Height (mm): 1600
Number of pipes: 9
connections (mm): 480 / 50
Dimension of pipes: 40*18*1.2
Profile: 32*1.5
Wattage: 880
Vertical square profiles 70 x 11 mm
Horizontal manifolds 28 mm
Specialized goods
Original packed
Connection thread: G1/2
Connection dimension: 50 mm
Maximum operating pressure: 5 bar
Test pressure: 6,5 bar
Color: chrome
distance to the wall: approx. 6,5cm
Connection set
Connection set for pipe distance 50mm middle connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
for straight through
presettable valve insert incl. key
color : chrome
with frost protection position
5 levels adjustable
for two-pipe heating system
connection thread for radiator 1/2" with free turning nut
pipe connection with external thread G 3/4'' with cone for clamp set connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
set point range: 0-30 °C
with "0" position and frost protection
frost protection adjustable at 6 °C
for radiators with flow and return
