Description:

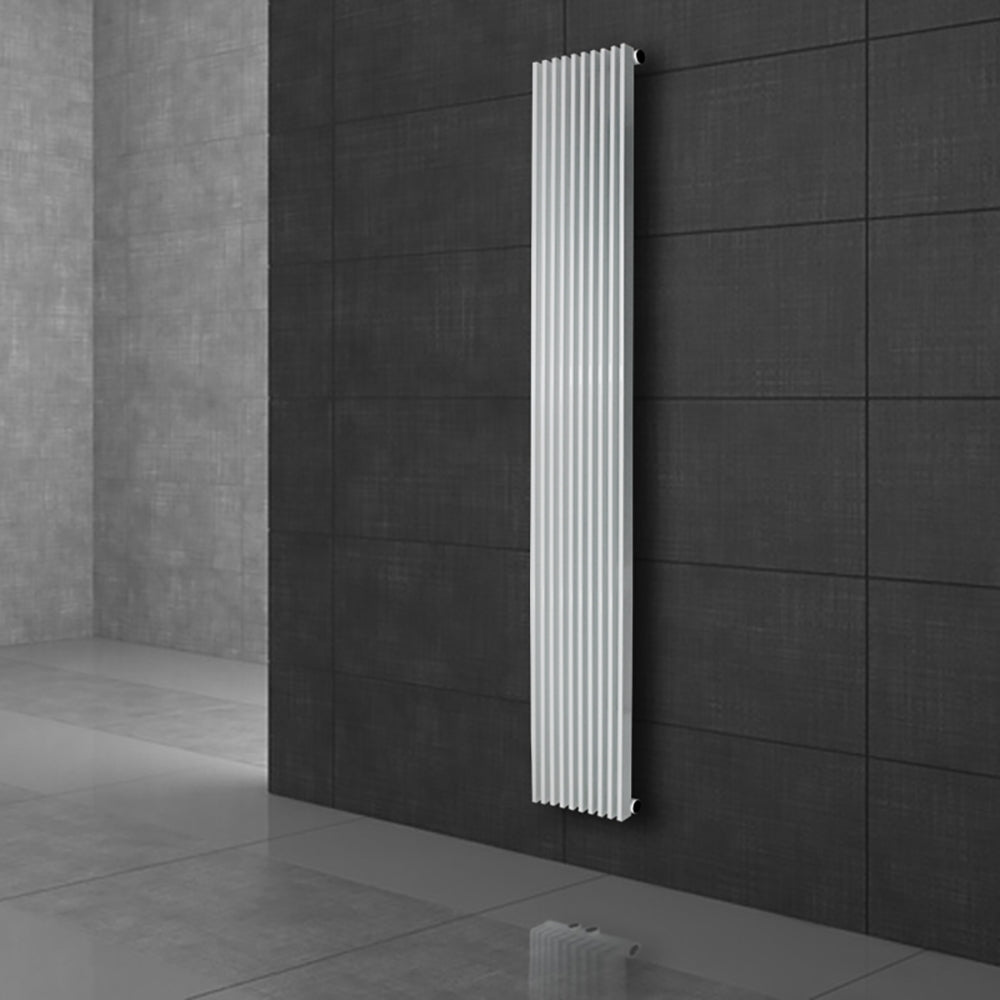

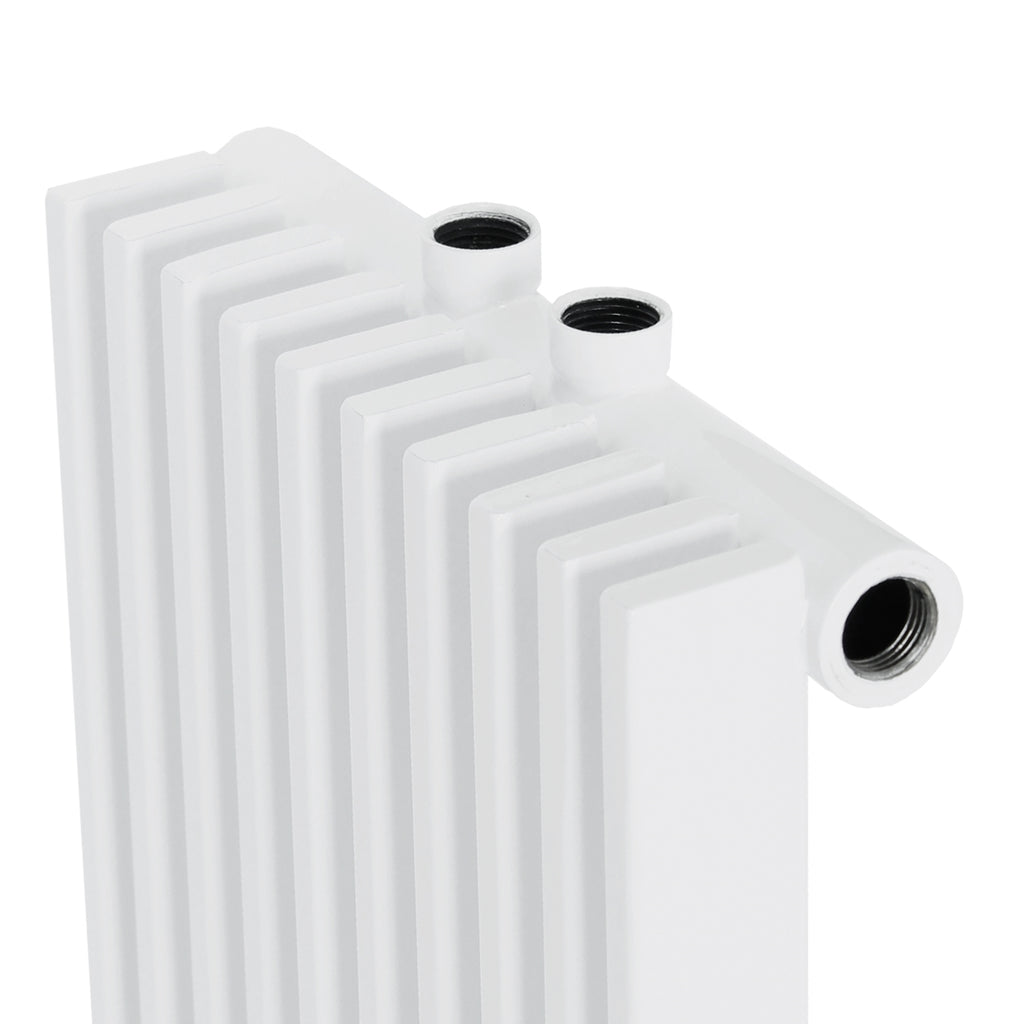

Tilbrook design radiator brings modern elegance to your home. He impresses not only with its clean lines but also combines modernity and functionality with each other.
Thus, they not only provide pleasantly cozy warmth, but also dry your towels at the same time.
A particular advantage of this radiator is its flat design, which is why it takes up very little space. Therefore, it is suitable for almost all premises without being obtrusive. Due to the particularly smooth surface, the radiator can be cleaned easily and is therefore less susceptible to dirt and dust than other radiators.
You are sure to find a design radiator in our store that will meet your wishes and ideas for room redecoration or remodeling!
Connection set:
High quality and innovative products with beautiful design for bathrooms, saunas, kitchens and living rooms.
Suitable for use within a central heating system
Tested materials, processed with the most modern production methods
Coloring by means of environmentally friendly electrostatic powder coating
Pressure testing of each radiator by means of 1.5 times the operating pressure
High quality at affordable prices
Maintenance-free
Freeze protection
Elegant design
Specialized trade quality
Color: White
High quality connection set for radiators with middle connection
Scope of delivery:
Design radiator
Vent valve
Dummy plug

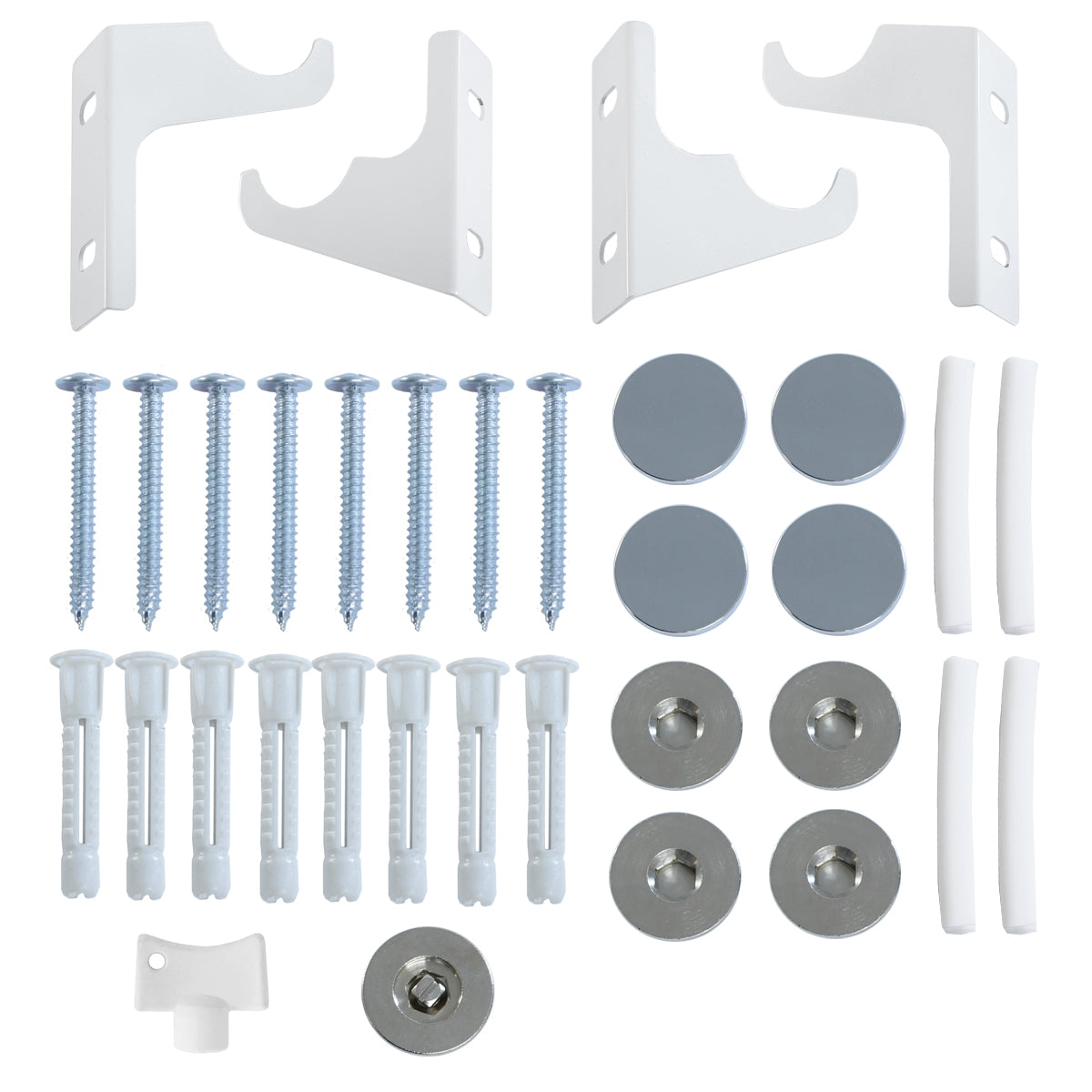

Wall mounting set
Mounting instructions
Thermostat + middle connection set
Tilbrook design radiator brings modern elegance to your home. He impresses not only with its clean lines but also combines modernity and functionality with each other.
Thus, they not only provide pleasantly cozy warmth, but also dry your towels at the same time.
A particular advantage of this radiator is its flat design, which is why it takes up very little space. Therefore, it is suitable for almost all premises without being obtrusive. Due to the particularly smooth surface, the radiator can be cleaned easily and is therefore less susceptible to dirt and dust than other radiators.
You are sure to find a design radiator in our store that will meet your wishes and ideas for room redecoration or remodeling!
Connection set:
High quality and innovative products with beautiful design for bathrooms, saunas, kitchens and living rooms.
Suitable for use within a central heating system
Tested materials, processed with the most modern production methods
Coloring by means of environmentally friendly electrostatic powder coating
Pressure testing of each radiator by means of 1.5 times the operating pressure
High quality at affordable prices
Maintenance-free
Freeze protection
Elegant design
Specialized trade quality
Color: White
High quality connection set for radiators with middle connection
Scope of delivery:
Design radiator
Vent valve
Dummy plug
Wall mounting set
Mounting instructions
Thermostat + middle connection set

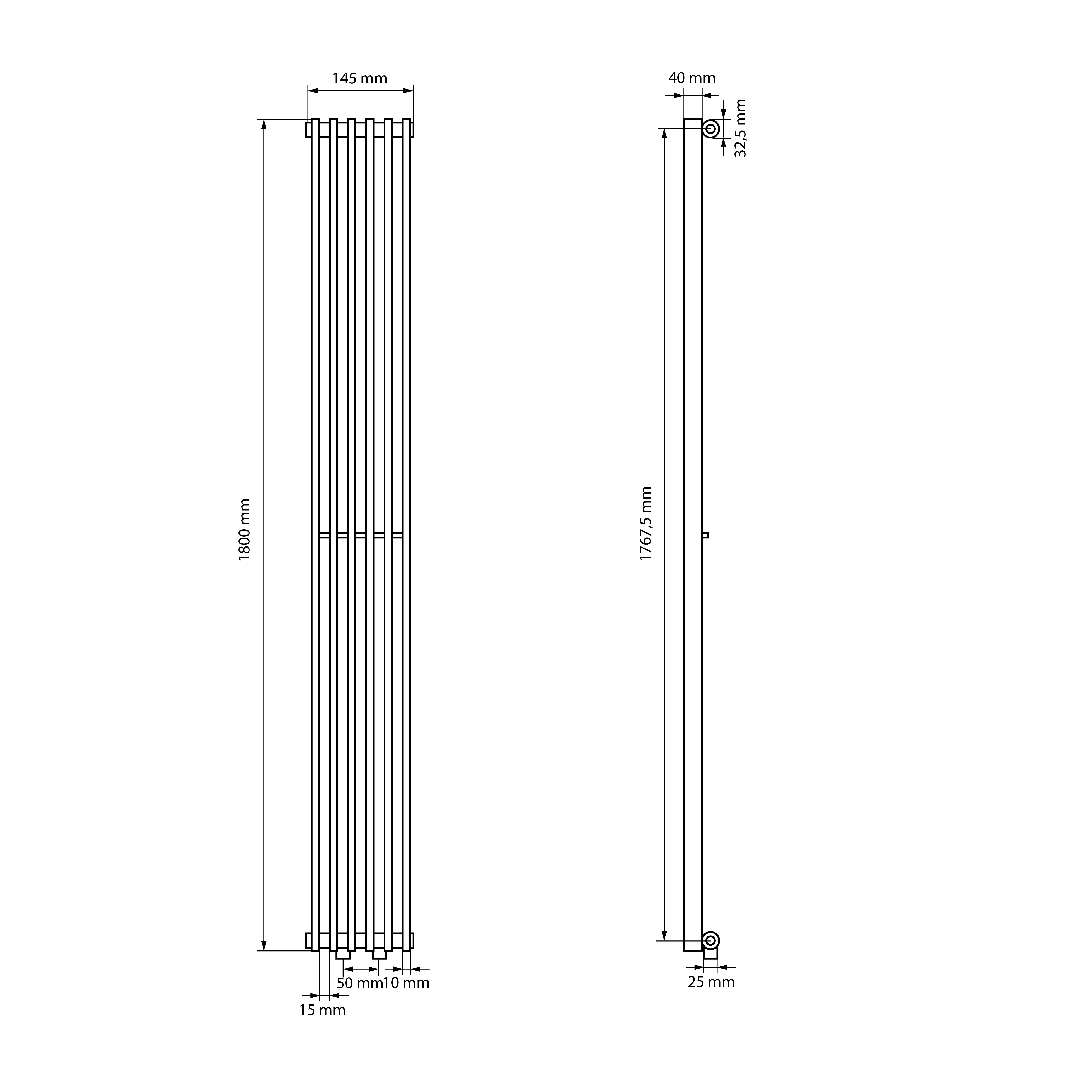

Technical data:
Specialized trade goods
Original packed
Connection thread: G1/2
Maximum operating pressure: 5 bar
Test pressure: 6,5 bar
Color: white (RAL 9016)
Distance to the wall: approx. 5,5cm
Maximum operating temperature: 95°C
Width (mm): 95
Height (mm): 1800

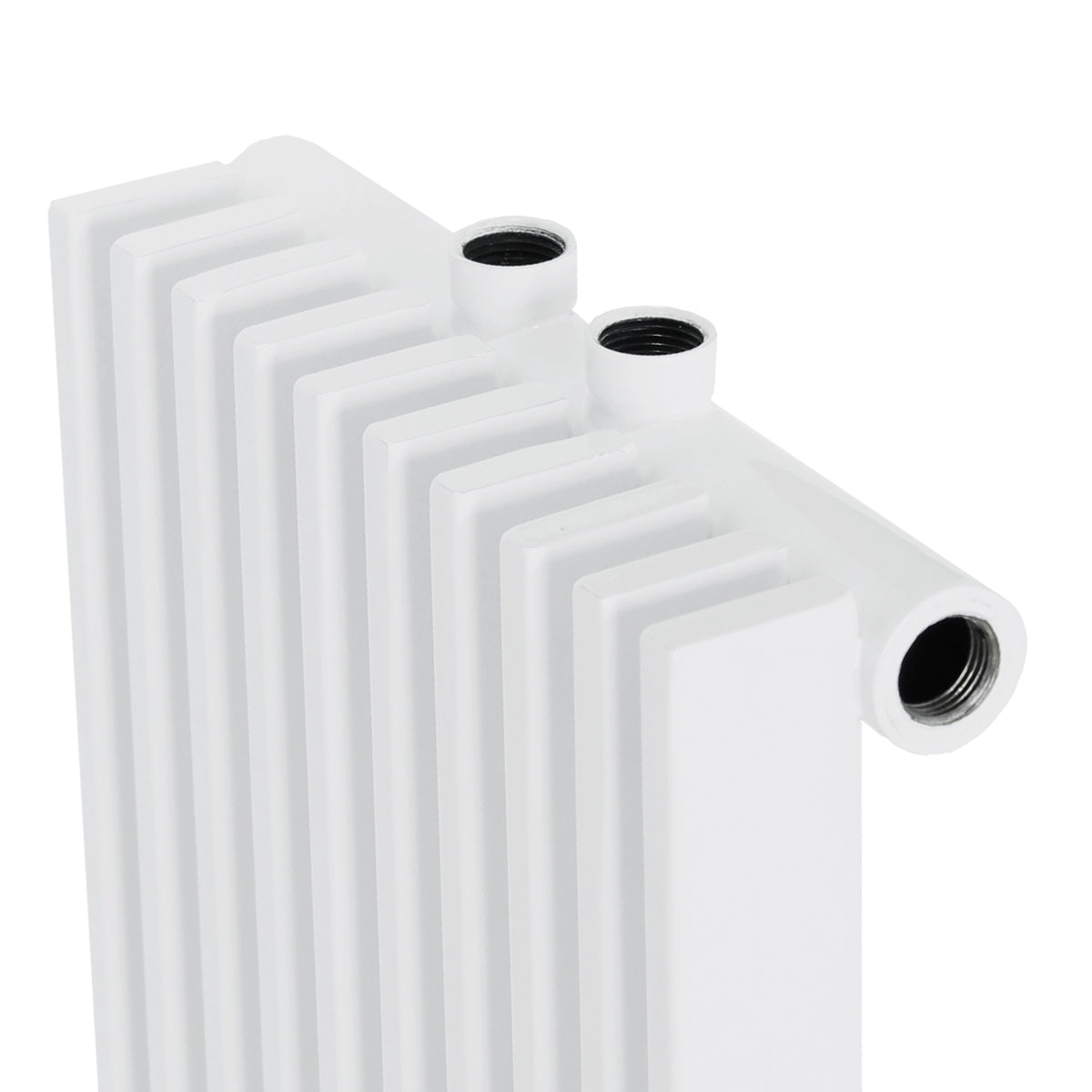

Connections (mm): 50
Number of tubes: 4
Dimension of profile: 40*10
White wattage: 536 W

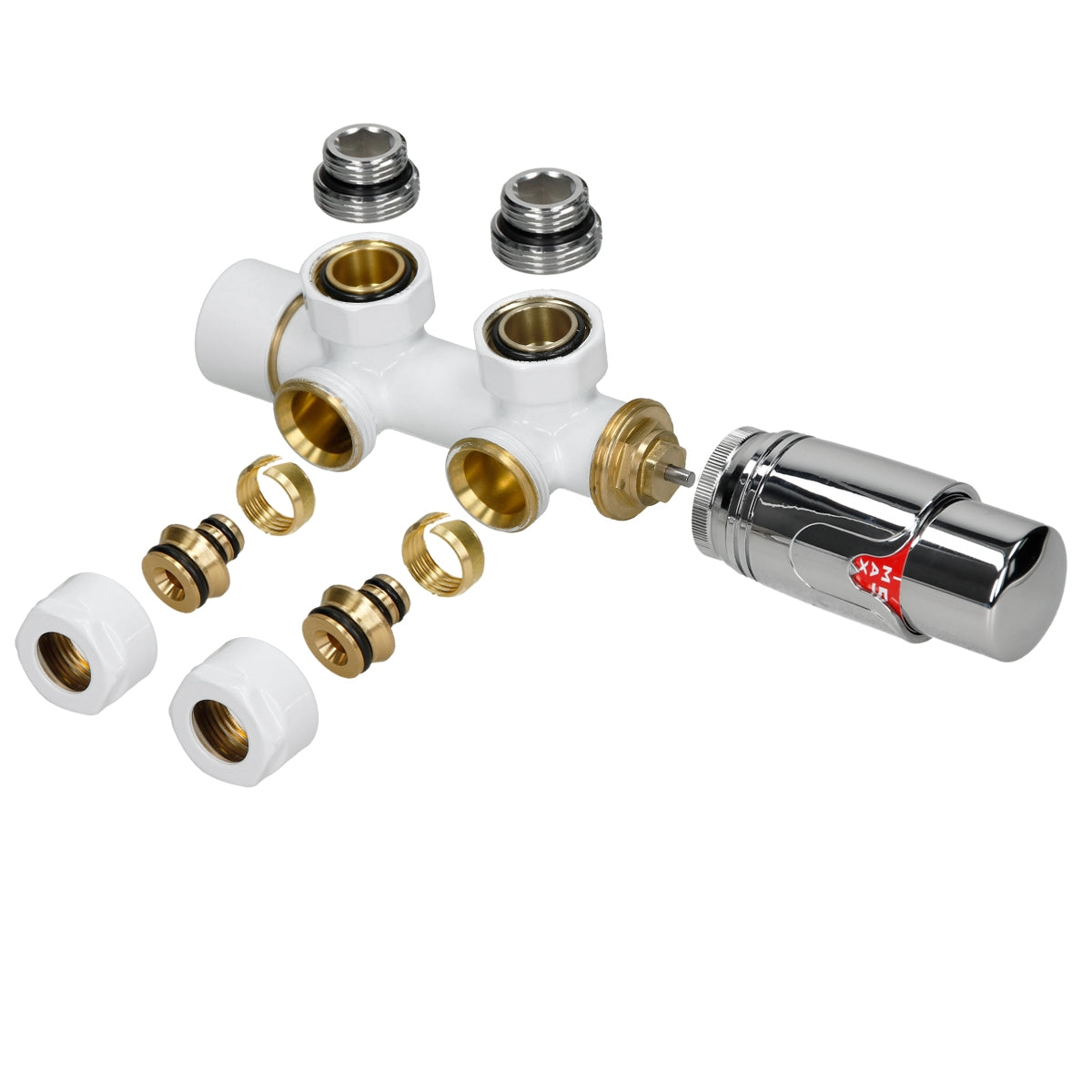

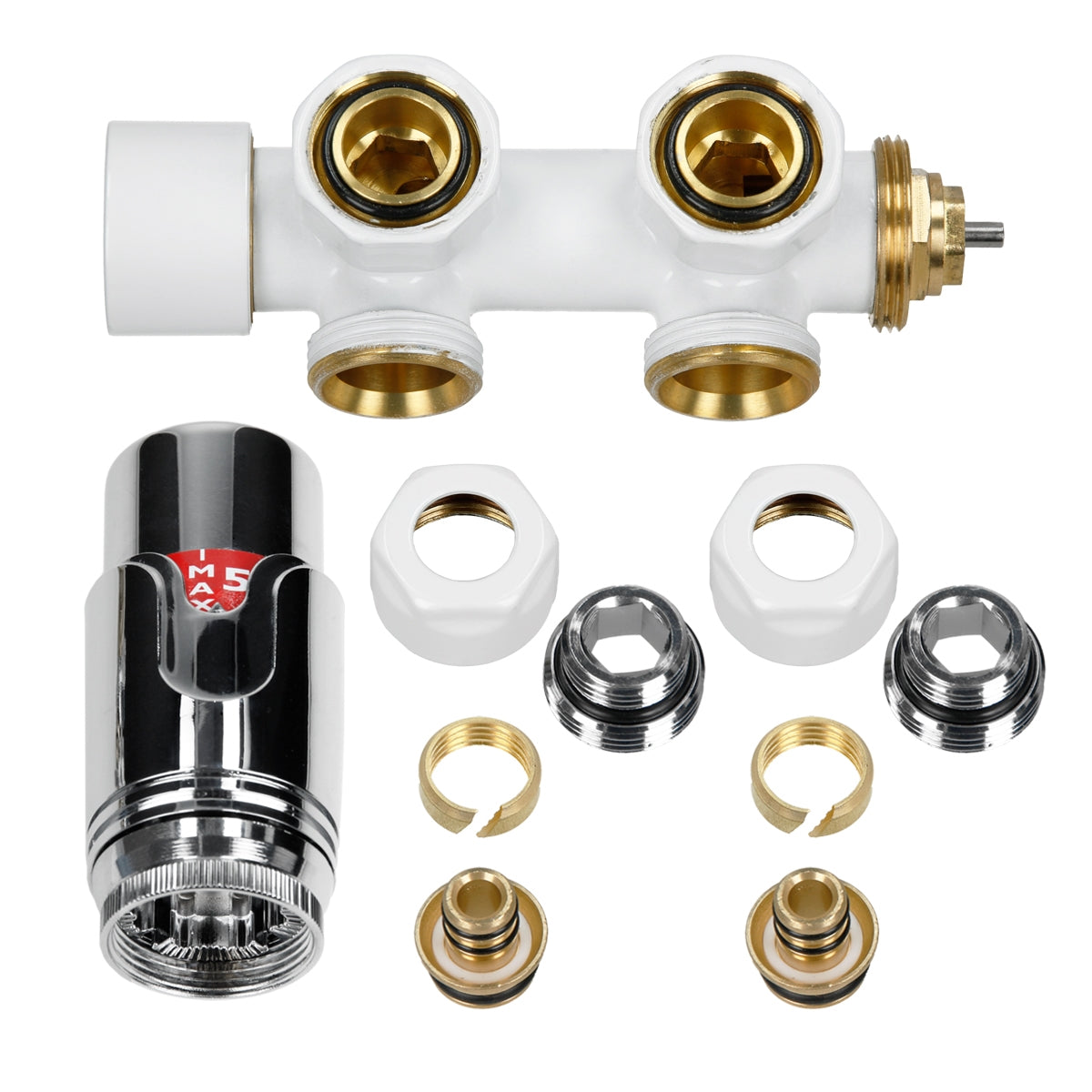

Connection set:

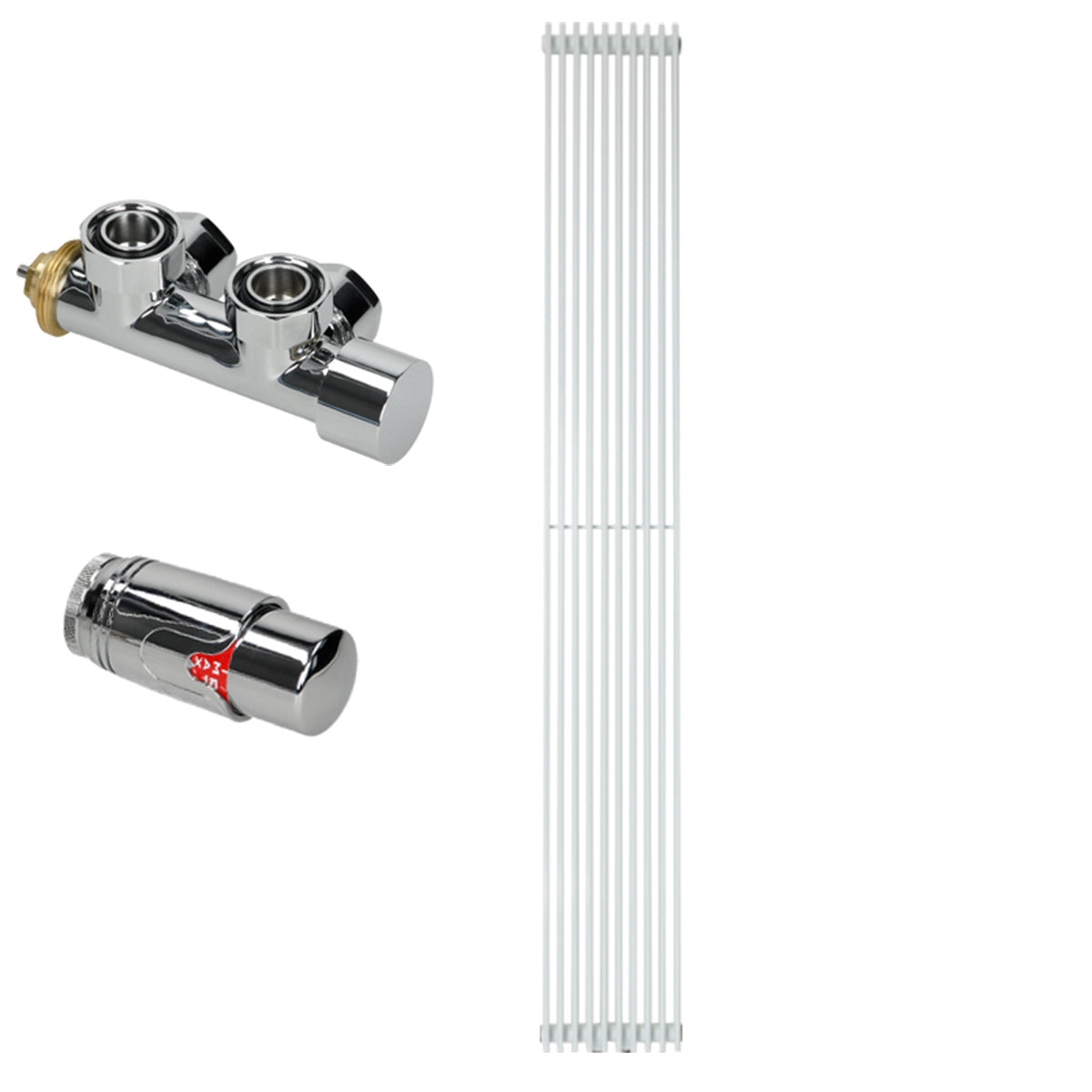

Connection set for pipe spacing 50mm center connection.
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
usable for straight and angle form
presettable valve insert incl. key
color white
with frost protection position
5 levels adjustable
for two-pipe heating system
connection thread for radiator 1/2" with free turning nut
pipe connection with external thread G 3/4'' with cone for clamp set connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)

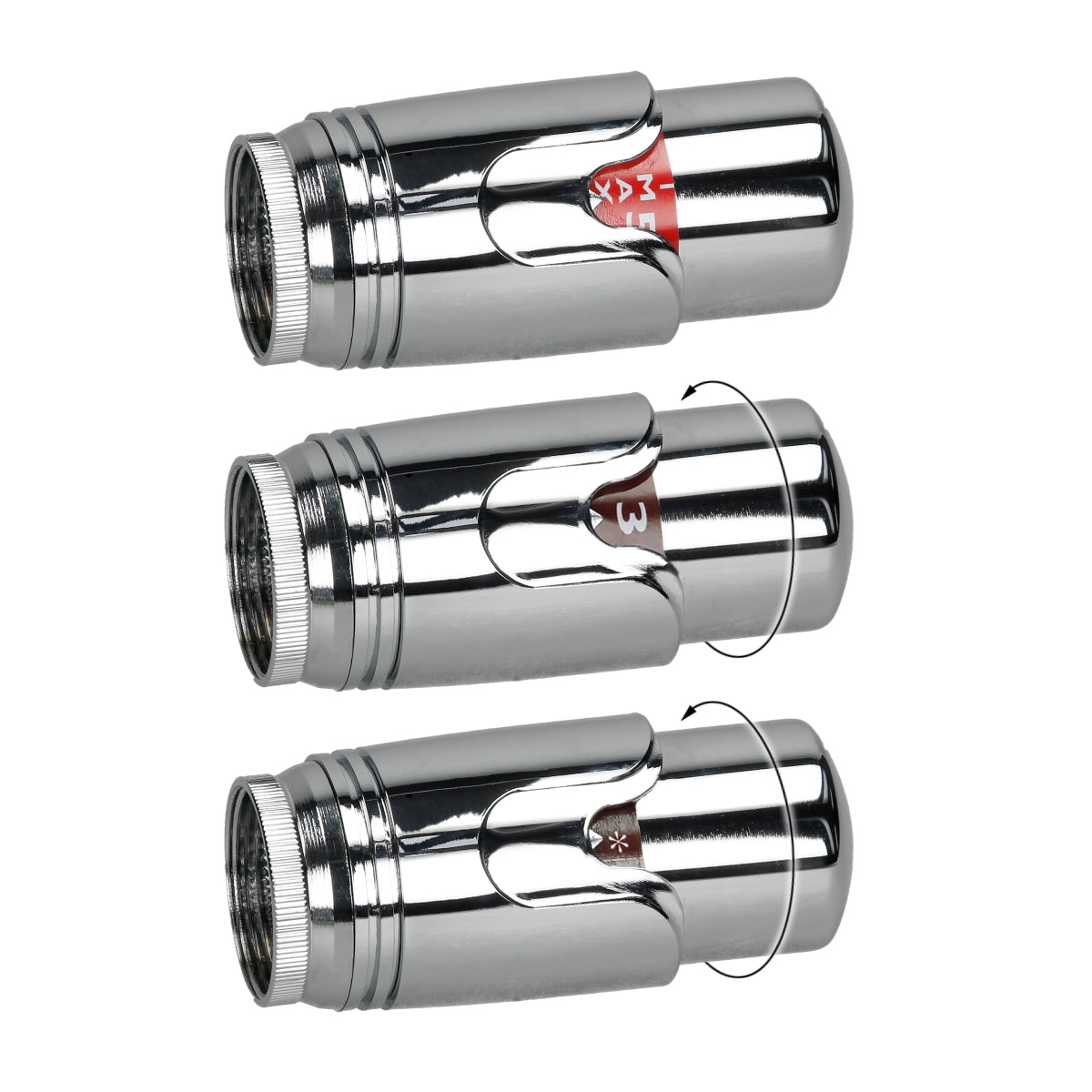

set point range: 0-30 °C
with "0" position and frost protection
frost protection adjustable at 6 °C
for radiators with flow and return
Wall connection / (corner form)
