- Electric bathroom radiator
- Mounting material included
- Quality from ECD Germany
- Top processing
- Versatile
- 3 years warranty
00
h
:
00
m
:
00
s
Scope of delivery:
1 x bathroom radiator
Vent valve 1/2 inch
Blanking plug 1/2 inch
Installation instructions
Wall mounting set:
- 4 x wall brackets
- 4 x screws and wall plugs
- 4 x retaining screw
- 4 x washers
1 x 900W chrome heating rod
1 x bathroom radiator
Vent valve 1/2 inch
Blanking plug 1/2 inch
Installation instructions
Wall mounting set:
- 4 x wall brackets
- 4 x screws and wall plugs
- 4 x retaining screw
- 4 x washers
1 x 900W chrome heating rod
Technical information:

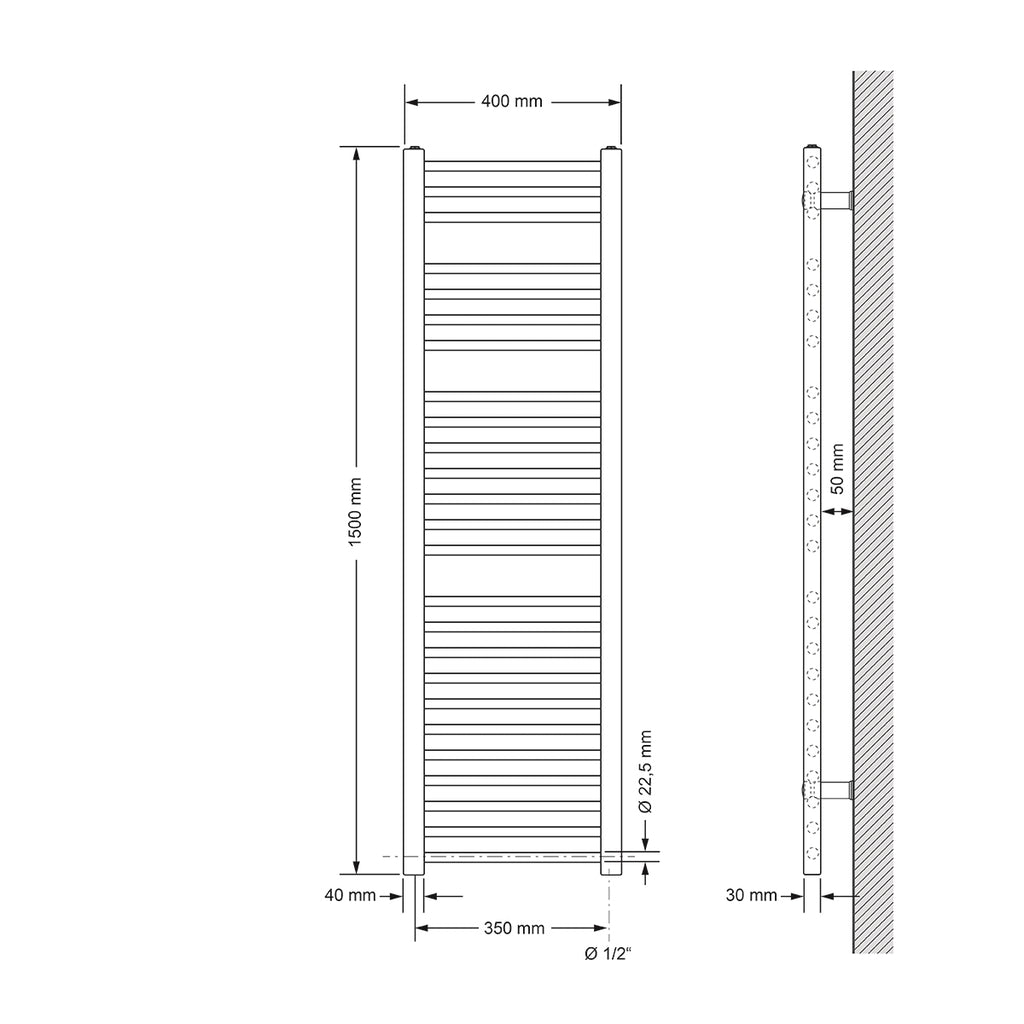

Radiator:
Width (mm): 400;
Height (mm): 1500;
Connections (mm): 355;
Pipe diameter: Ø22;
Profile: 30*40*1.5 D;
Heat output (watts at 75/65/20°): 565;
Water volume (L): 5.42;
Weight (kg): 8.23;
Color: anthracite;
for pipe diameter 18 to 22 mm;
for pipe spacing 18 to 22 mm;
Depth (wall to center of pipe): 75 to 100 mm;
Deep plugs are not suitable for installation in drywall.
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles 30 x 40 x 1.5 mm
Horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm

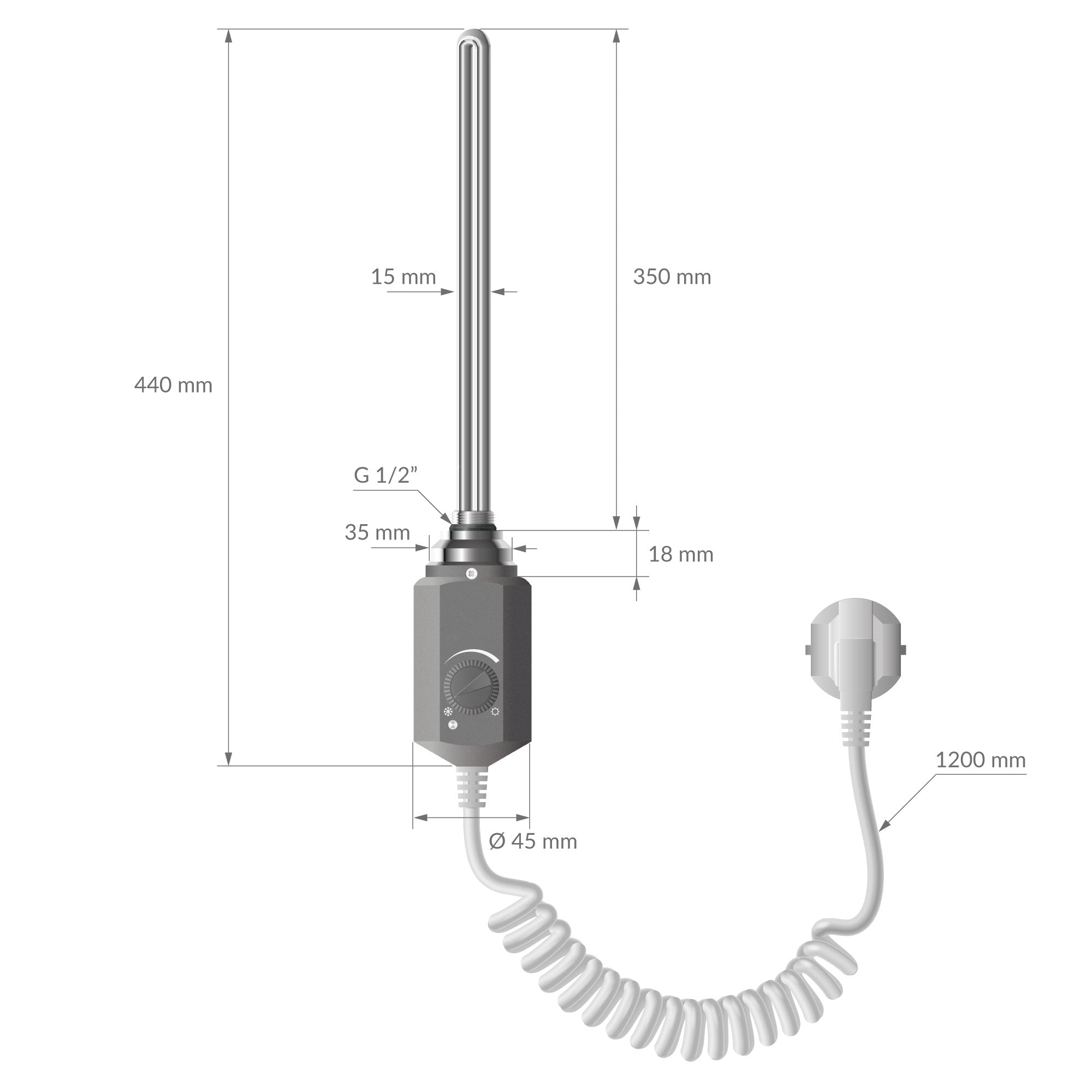

Heating element:
Heating power: 900W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Color: anthracite
Connection size: 1/2 "
Weight: 410 (g)
Total length: 450 (mm)
Heating element length L: 370 (mm)
Type: RD 10
Radiator:
Width (mm): 400;
Height (mm): 1500;
Connections (mm): 355;
Pipe diameter: Ø22;
Profile: 30*40*1.5 D;
Heat output (watts at 75/65/20°): 565;
Water volume (L): 5.42;
Weight (kg): 8.23;
Color: anthracite;
for pipe diameter 18 to 22 mm;
for pipe spacing 18 to 22 mm;
Depth (wall to center of pipe): 75 to 100 mm;
Deep plugs are not suitable for installation in drywall.
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles 30 x 40 x 1.5 mm
Horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm
Heating element:
Heating power: 900W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.5 m / 3 x 0.75
Color: anthracite
Connection size: 1/2 "
Weight: 410 (g)
Total length: 450 (mm)
Heating element length L: 370 (mm)
Type: RD 10
