- High quality bathroom radiator
- Mounting material included
- Quality from ECD Germany
- Top processing
- Versatile
- 3 years warranty
00
h
:
00
m
:
00
s
Scope of delivery:
1 x Bathroom radiator

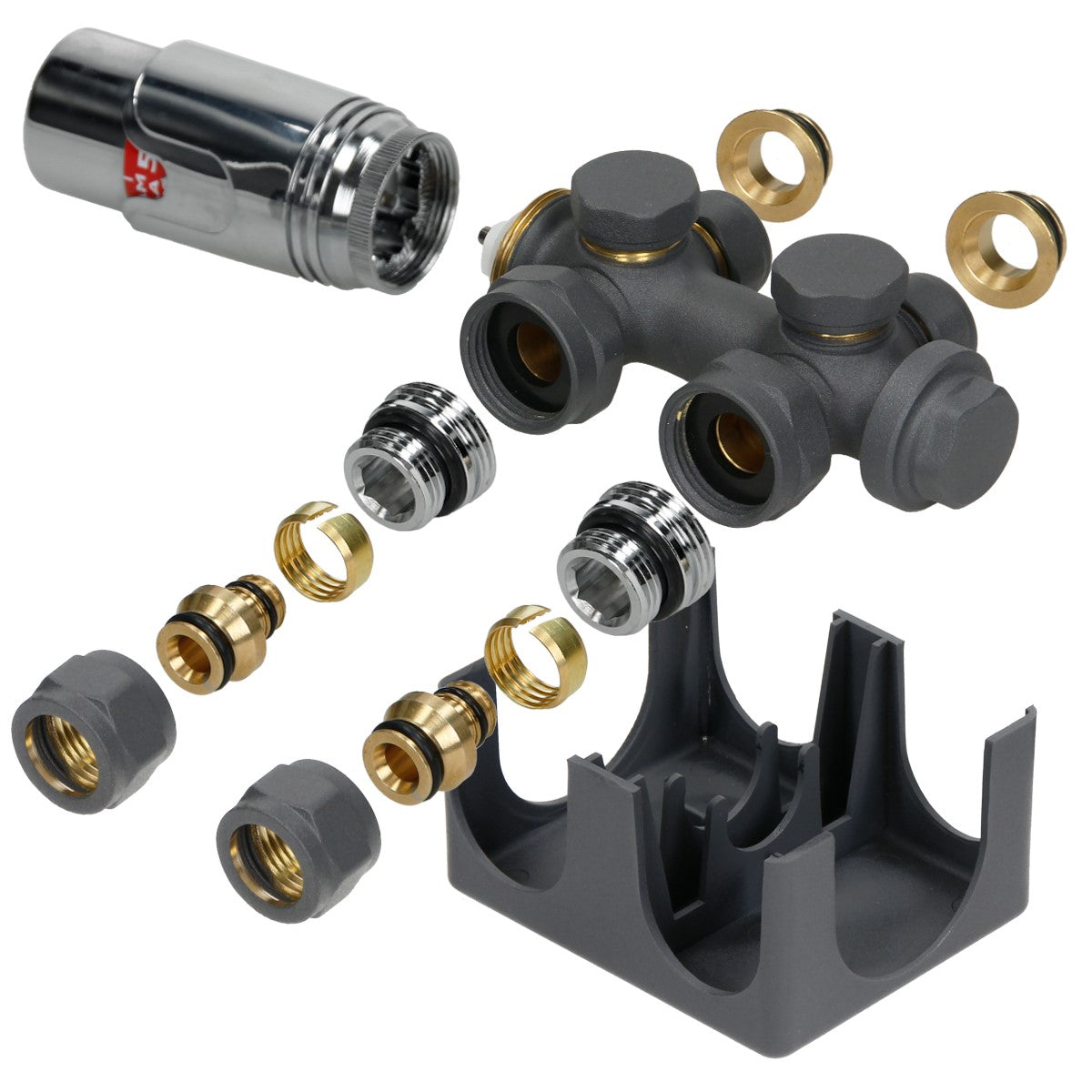

universal connection Connection set incl. thermostat 1/2 inch air bleed valve 1/2 inch Blanking plug 1/2 inch Assembly instructions Wall mounting set: - 4 x wall bracket -
4 x screws and dowels -
4 x holder screw -
4 x discs
1 x Bathroom radiator
universal connection Connection set incl. thermostat 1/2 inch air bleed valve 1/2 inch Blanking plug 1/2 inch Assembly instructions Wall mounting set: - 4 x wall bracket -
4 x screws and dowels -
4 x holder screw -
4 x discs

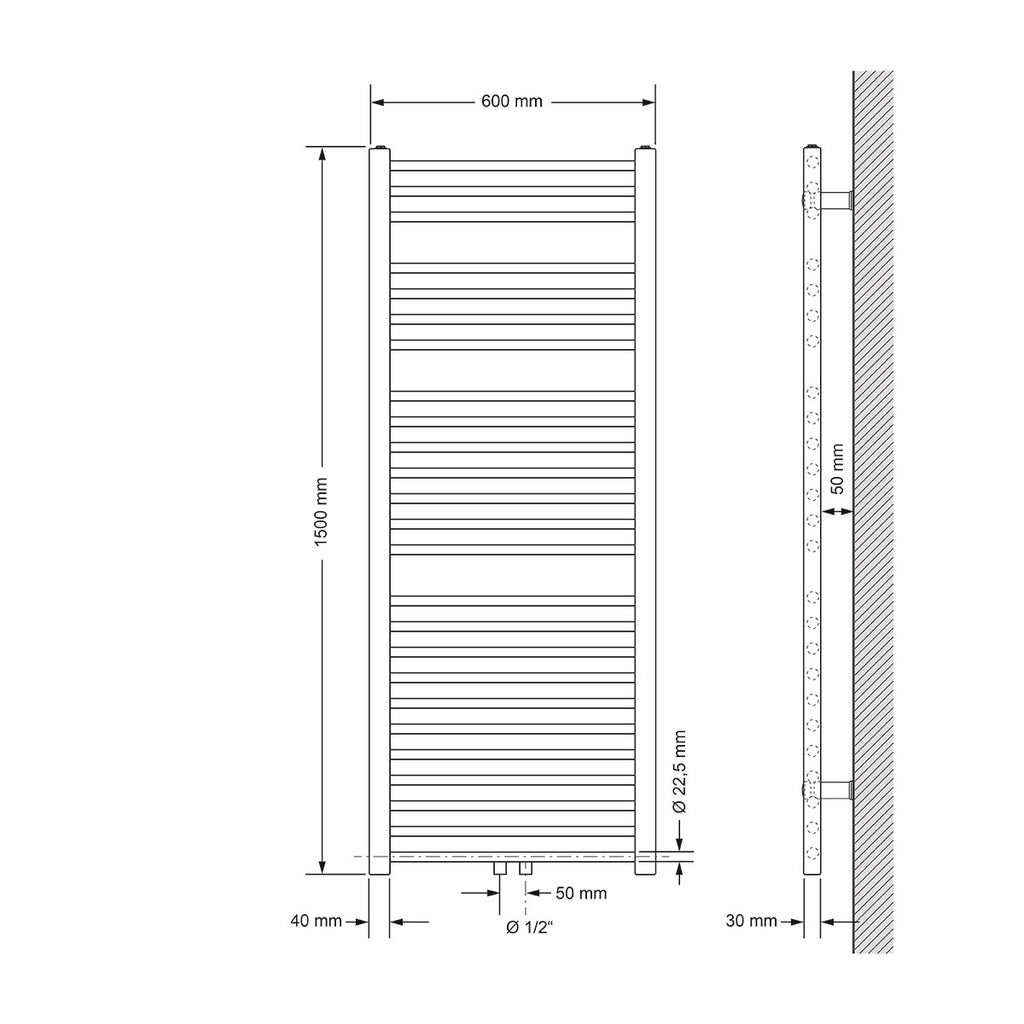

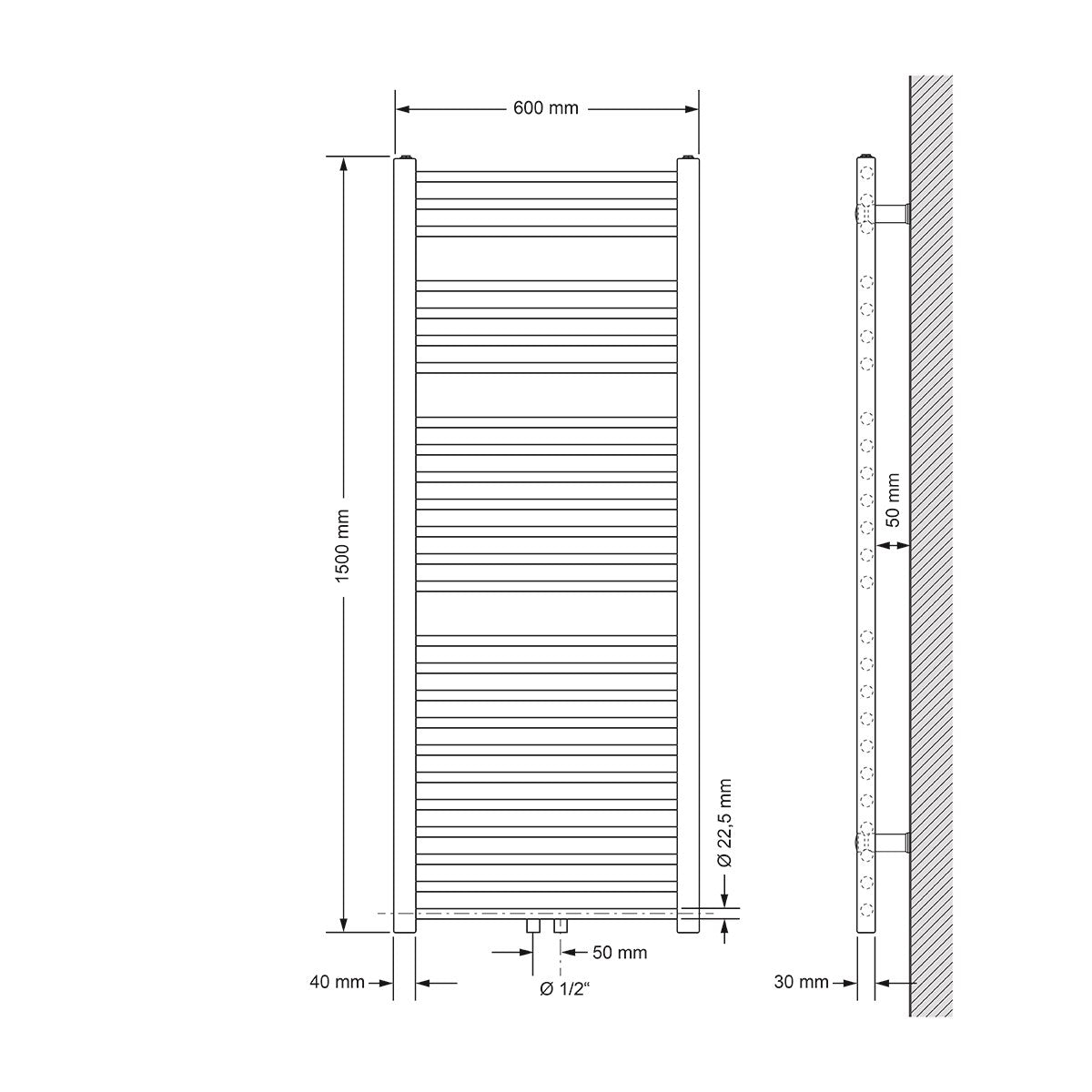

Technical information:
Colour: anthracite
Shape: straight, with centre connection
Width (mm): 600
Height (mm): 1500
Pipe diameter: Ø 22
Connections (mm): 555
Profile: 30 mm x 40 mm x 1.5 mm
Number of pipes: 25 (3+4+7+11)
Water capacity (L): 7.09
Weight (kg): 10.66
Heat output (W at 85°/75°/20°C): 779
Energy type: Hot water
High thermal conductivity
Maximum operating pressure: 10 bar (test pressure: 12 bar)
Vertical D-profiles: 30 mm x 40 mm
Horizontal round tubes: Ø 22 mm
Weld seams are not visible
The item is new and in its original packaging
Heat output in accordance with DIN 442 European Standard 85°/75°/20°C
Manufactured in accordance with EN ISO 9001
In accordance with EN 442-1-2

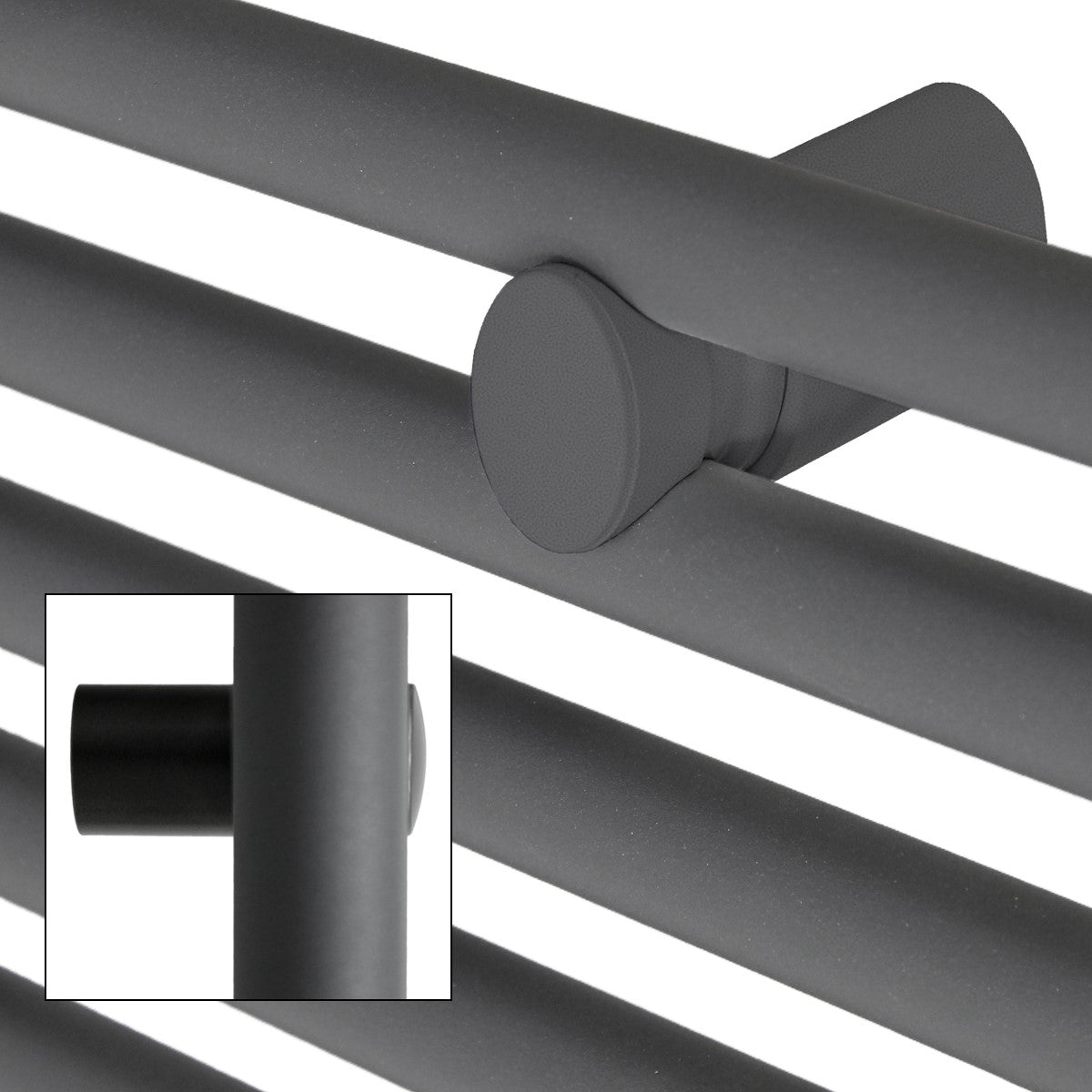

Wall mounting kit:
High-quality mounting kit for bathroom radiators
High-strength plastic
Suitable for bathroom radiators up to 200 cm in height and 75 cm in width
Quality retailer
Universally suitable for straight and curved bathroom radiators
For pipe diameters 18–22 mm
For pipe spacings of 18–22 mm
Depth (wall to centre pipe): 75 to 100 mm
The depth of the plugs is not suitable for installation in plasterboard walls
Colour: anthracite
Shape: straight, with centre connection
Width (mm): 600
Height (mm): 1500
Pipe diameter: Ø 22
Connections (mm): 555
Profile: 30 mm x 40 mm x 1.5 mm
Number of pipes: 25 (3+4+7+11)
Water capacity (L): 7.09
Weight (kg): 10.66
Heat output (W at 85°/75°/20°C): 779
Energy type: Hot water
High thermal conductivity
Maximum operating pressure: 10 bar (test pressure: 12 bar)
Vertical D-profiles: 30 mm x 40 mm
Horizontal round tubes: Ø 22 mm
Weld seams are not visible
The item is new and in its original packaging
Heat output in accordance with DIN 442 European Standard 85°/75°/20°C
Manufactured in accordance with EN ISO 9001
In accordance with EN 442-1-2
Wall mounting kit:
High-quality mounting kit for bathroom radiators
High-strength plastic
Suitable for bathroom radiators up to 200 cm in height and 75 cm in width
Quality retailer
Universally suitable for straight and curved bathroom radiators
For pipe diameters 18–22 mm
For pipe spacings of 18–22 mm
Depth (wall to centre pipe): 75 to 100 mm
The depth of the plugs is not suitable for installation in plasterboard walls
