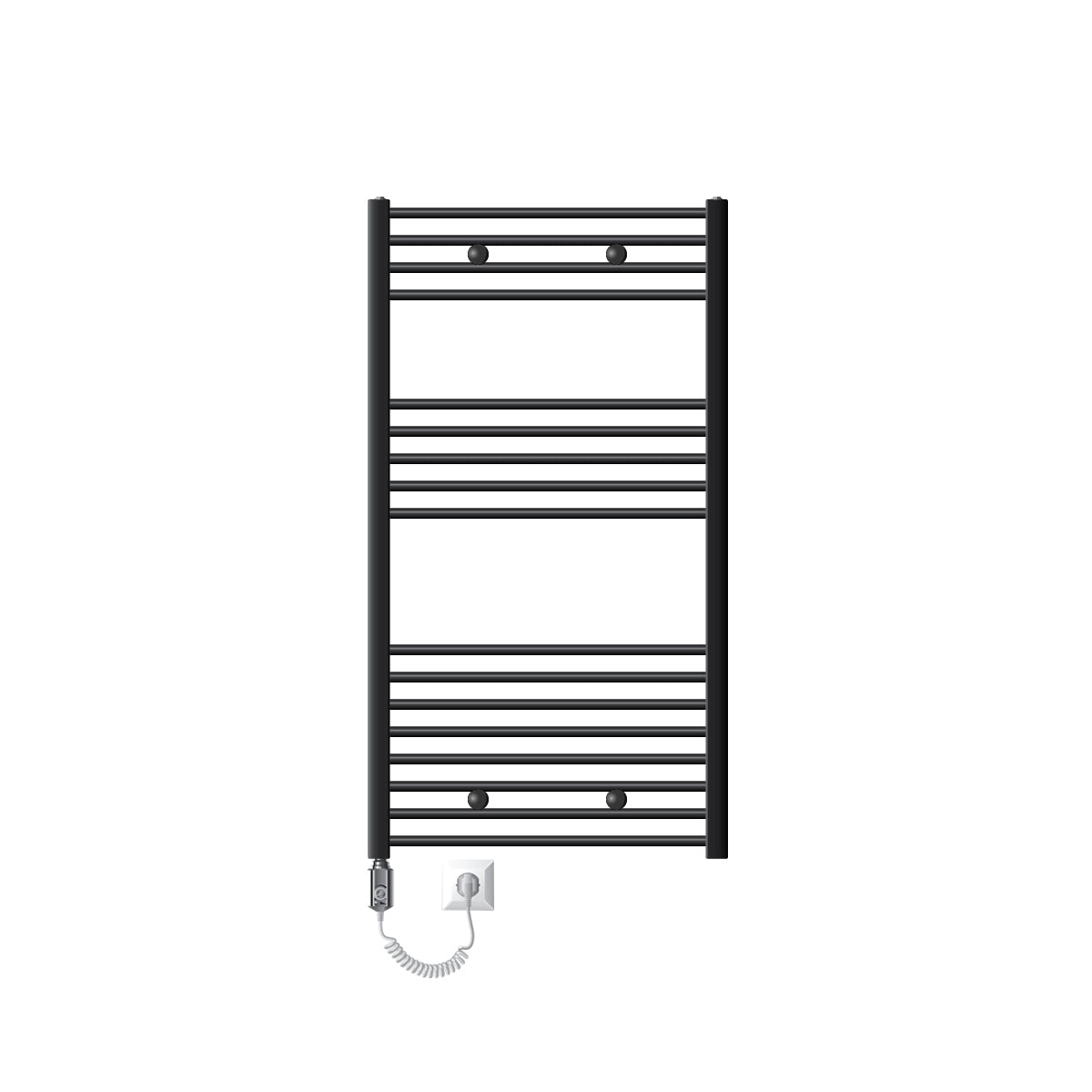

- LuxeBath electric bathroom heater
- Modern and timeless design
- Mounting material included
- High quality materials
- High heat emission
- Top processing
- 3 years warranty
00
h
:
00
m
:
00
s
Product description:
The radiators impress with their long service life thanks to the extra-thick base material and a 2-layer coating on lacquered products.
Not only provide pleasant, cozy warmth in your bathroom, but also dry your towels at the same time.
You are sure to find a radiator from us that meets your wishes and ideas for a new or redesigned room!
With this electronic temperature controller, precise temperature control of the heating (adjustable temperature of at least 10 ° C to prevent water from freezing in the system) is possible.
The heating cartridge has a thermal fuse; the power supply is interrupted if the temperature is exceeded.
The LED lights up when the heater is in use.
The device is easy to install.
Scope of delivery:
Bathroom radiator
Heating element
Vent valve 1/2 inch
Blanking plug 1/2 inch
Installation instructions

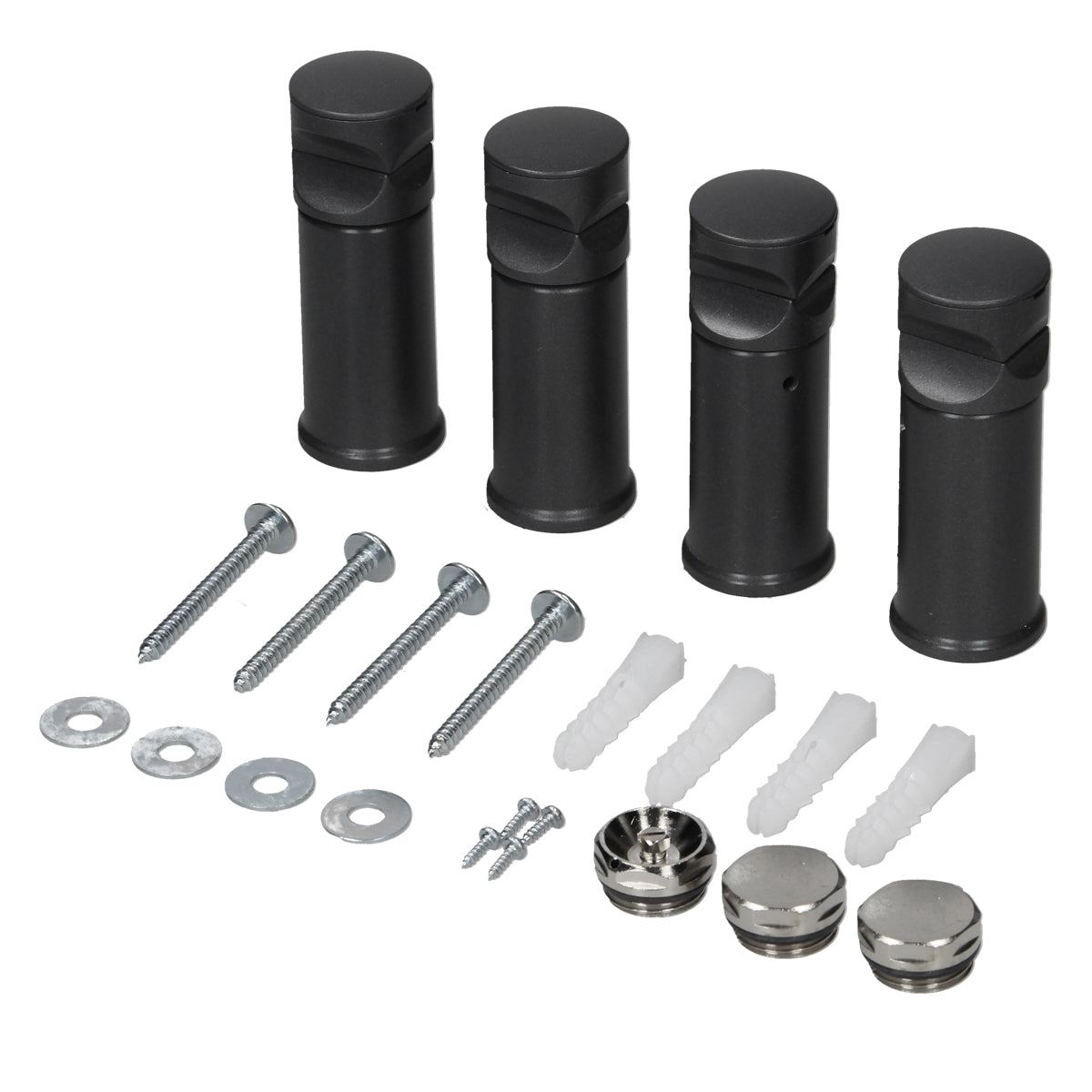

Wall mounting set:
- 4 x wall brackets
- 4 x screws and wall plugs
- 4 x retaining screw
- 4 x washers
The radiators impress with their long service life thanks to the extra-thick base material and a 2-layer coating on lacquered products.
Not only provide pleasant, cozy warmth in your bathroom, but also dry your towels at the same time.
You are sure to find a radiator from us that meets your wishes and ideas for a new or redesigned room!
With this electronic temperature controller, precise temperature control of the heating (adjustable temperature of at least 10 ° C to prevent water from freezing in the system) is possible.
The heating cartridge has a thermal fuse; the power supply is interrupted if the temperature is exceeded.
The LED lights up when the heater is in use.
The device is easy to install.
Scope of delivery:
Bathroom radiator
Heating element
Vent valve 1/2 inch
Blanking plug 1/2 inch
Installation instructions
Wall mounting set:
- 4 x wall brackets
- 4 x screws and wall plugs
- 4 x retaining screw
- 4 x washers

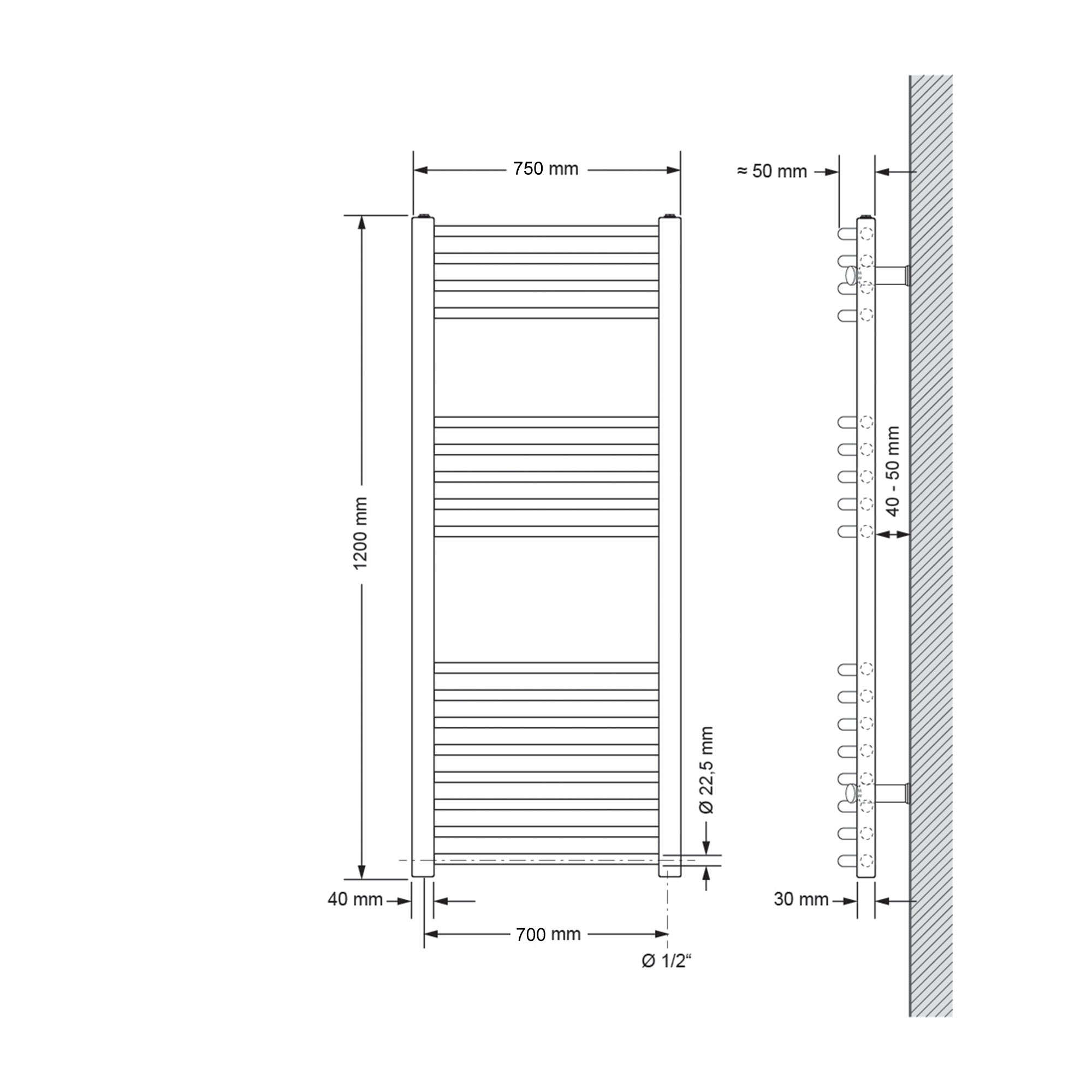

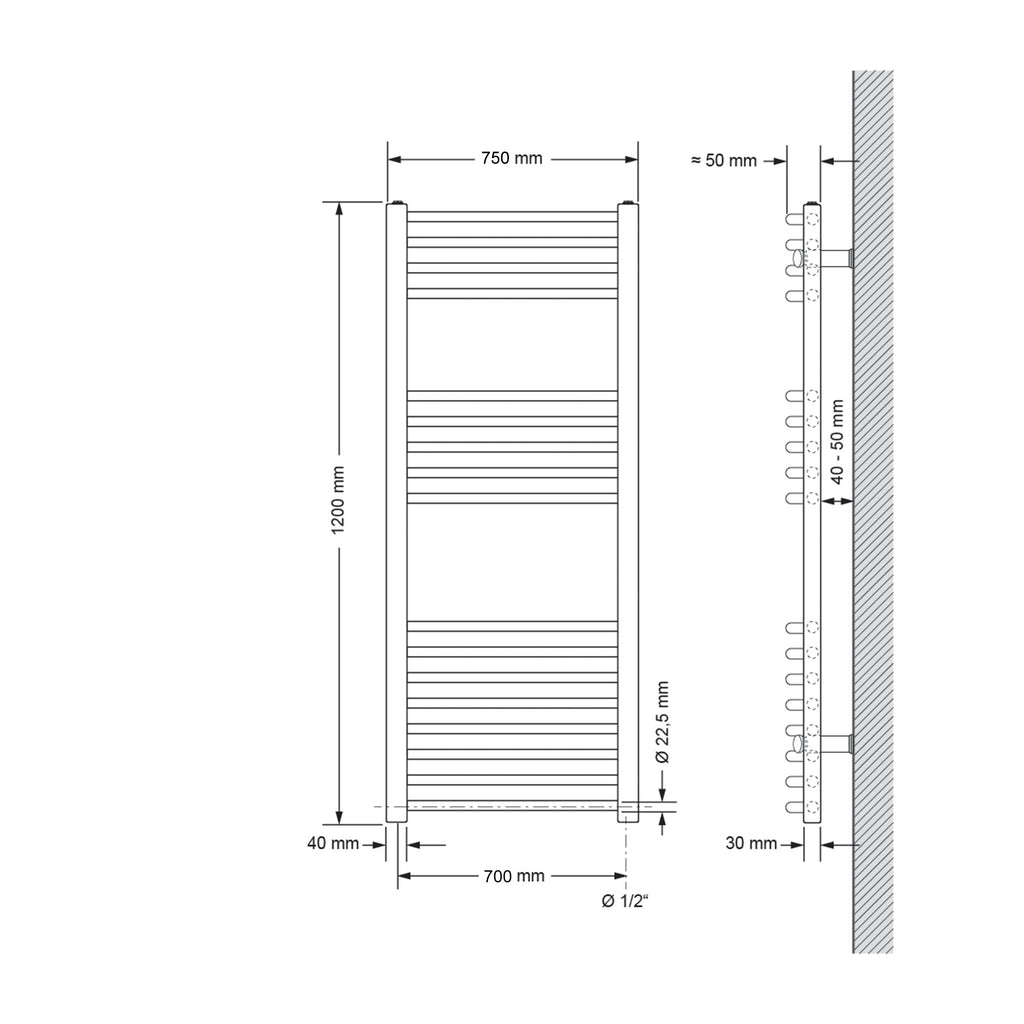

Technical information:
Bathroom radiator
Shape: Curved
Width (mm): 750;
Height (mm): 1200;
Connections (mm): 255;
Tube diameter: Ø22;
Profile: 30*40*1.5 D;
Color: Anthracite;
Heat output DT50 (Watt): 600
Heat capacity (BTU): 1917
Water volume (L): 6.93
Weight (kg): 10.93
for pipe diameter 18 to 22 mm;
for pipe spacing 18 to 22 mm;
Depth (wall to center of pipe): 75 to 100 mm;
Deep plugs are not suitable for installation in drywall.
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles 30 x 40 x 1.5 mm
Horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm

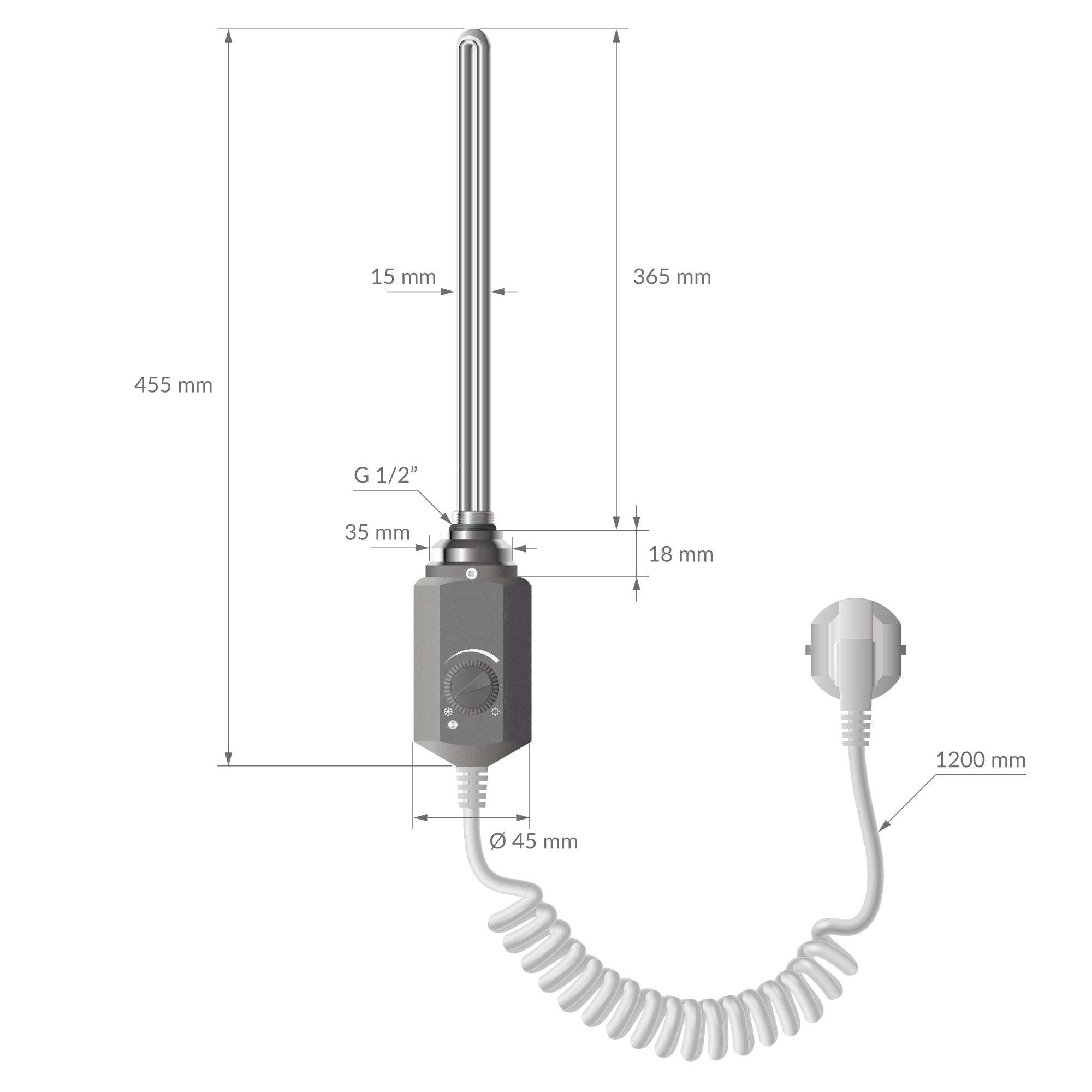

Heating element
Heating power: 1200W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.2 m / 3 x 0.75
Color: chrome
Connection size: 1/2 "
Weight: 430 g
Total length: 455 mm
Heating element length: 365 mm
Type: RD 10
Bathroom radiator
Shape: Curved
Width (mm): 750;
Height (mm): 1200;
Connections (mm): 255;
Tube diameter: Ø22;
Profile: 30*40*1.5 D;
Color: Anthracite;
Heat output DT50 (Watt): 600
Heat capacity (BTU): 1917
Water volume (L): 6.93
Weight (kg): 10.93
for pipe diameter 18 to 22 mm;
for pipe spacing 18 to 22 mm;
Depth (wall to center of pipe): 75 to 100 mm;
Deep plugs are not suitable for installation in drywall.
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles 30 x 40 x 1.5 mm
Horizontal round tubes 22 x 1.2 mm
Distance to the wall: approx. 6.5 cm
Heating element
Heating power: 1200W 230 V / 50 Hz
Temperature: 10 ° C - 65 ° C + / - 2 ° C
Connection cable: 1.2 m / 3 x 0.75
Color: chrome
Connection size: 1/2 "
Weight: 430 g
Total length: 455 mm
Heating element length: 365 mm
Type: RD 10
