Description:
High quality design radiator
Modern design combined with pleasant warmth and comfort
Seamless integration without disturbing optics and less space requirement
In your bathroom, not only provide a pleasant, cosy warmth, but also dry your towels at the same time.
You are sure to find a radiator in our shop that meets your wishes and ideas for a new room or a redesign!
Properties:
Quality steel with high thermal conductivity
Design: Single layer
Maximum operating pressure: 5 bar
Vertical design profiles: 70 x 11 mm
Connection thread: G1/2''
Heat output according to EN442 Euronorm
Scope of delivery

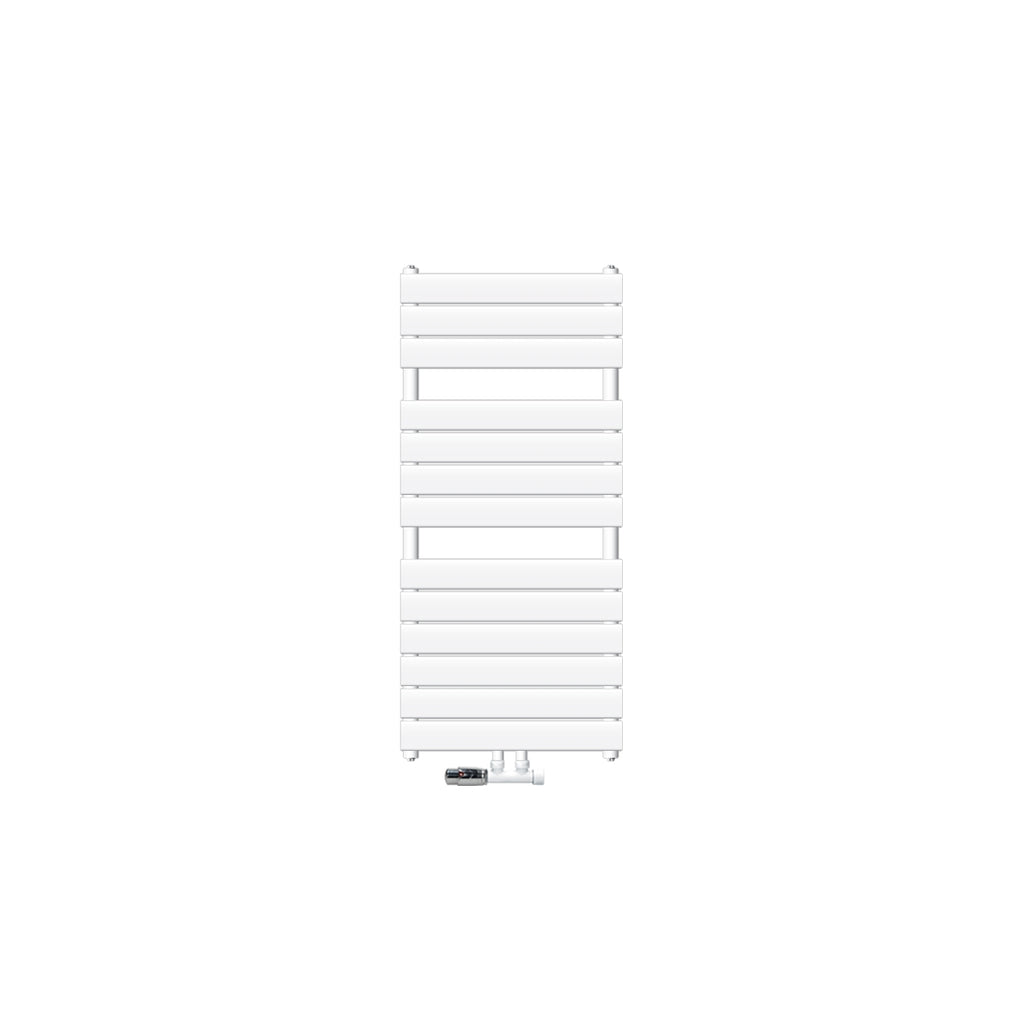

Bathroom radiator 500 x 991 mm White
Valve fittings set Multiblock white corner form incl. thermostatic head

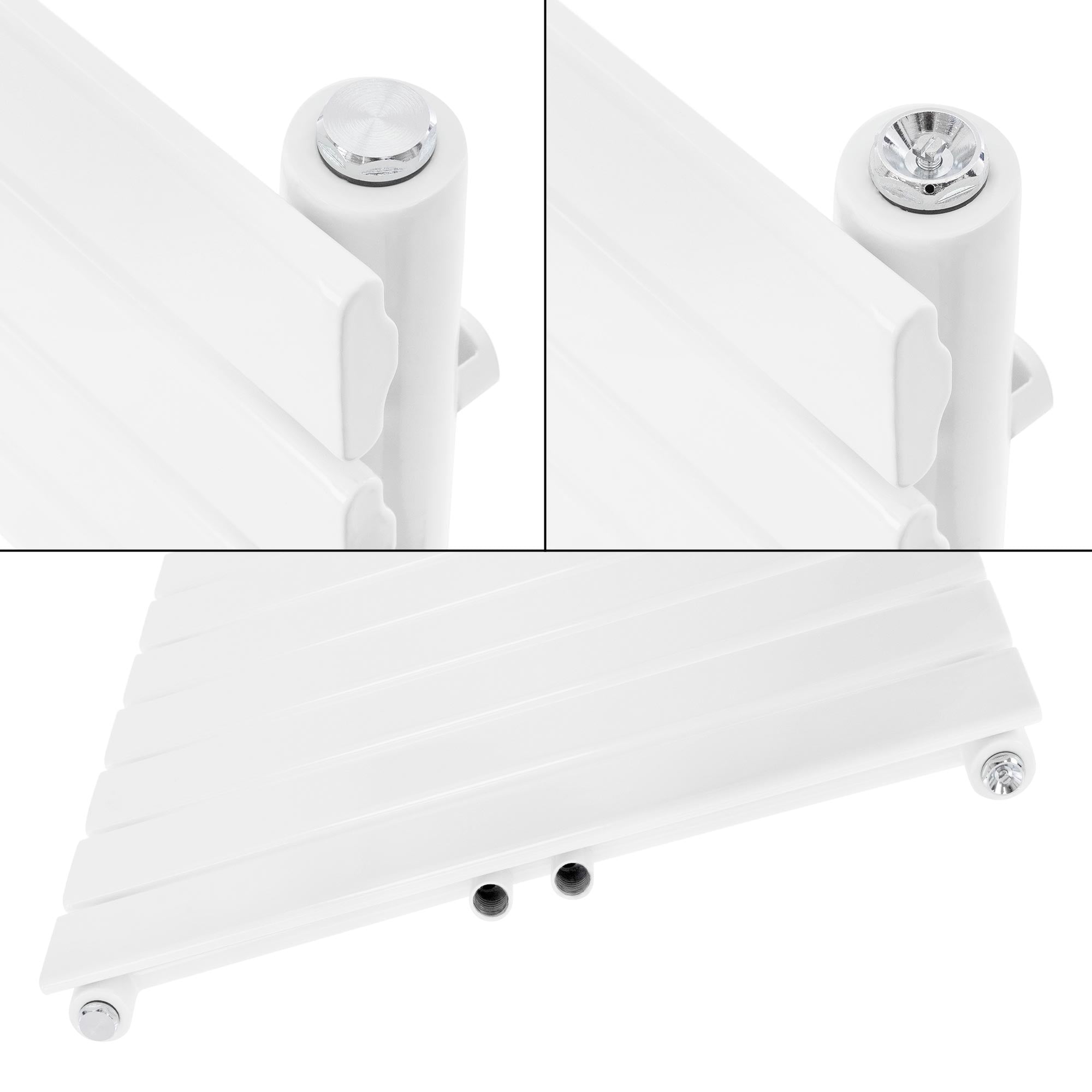

air bleed valve 1/2 inch
Blanking plug 1/2 inch
Allen wrench
square venting key

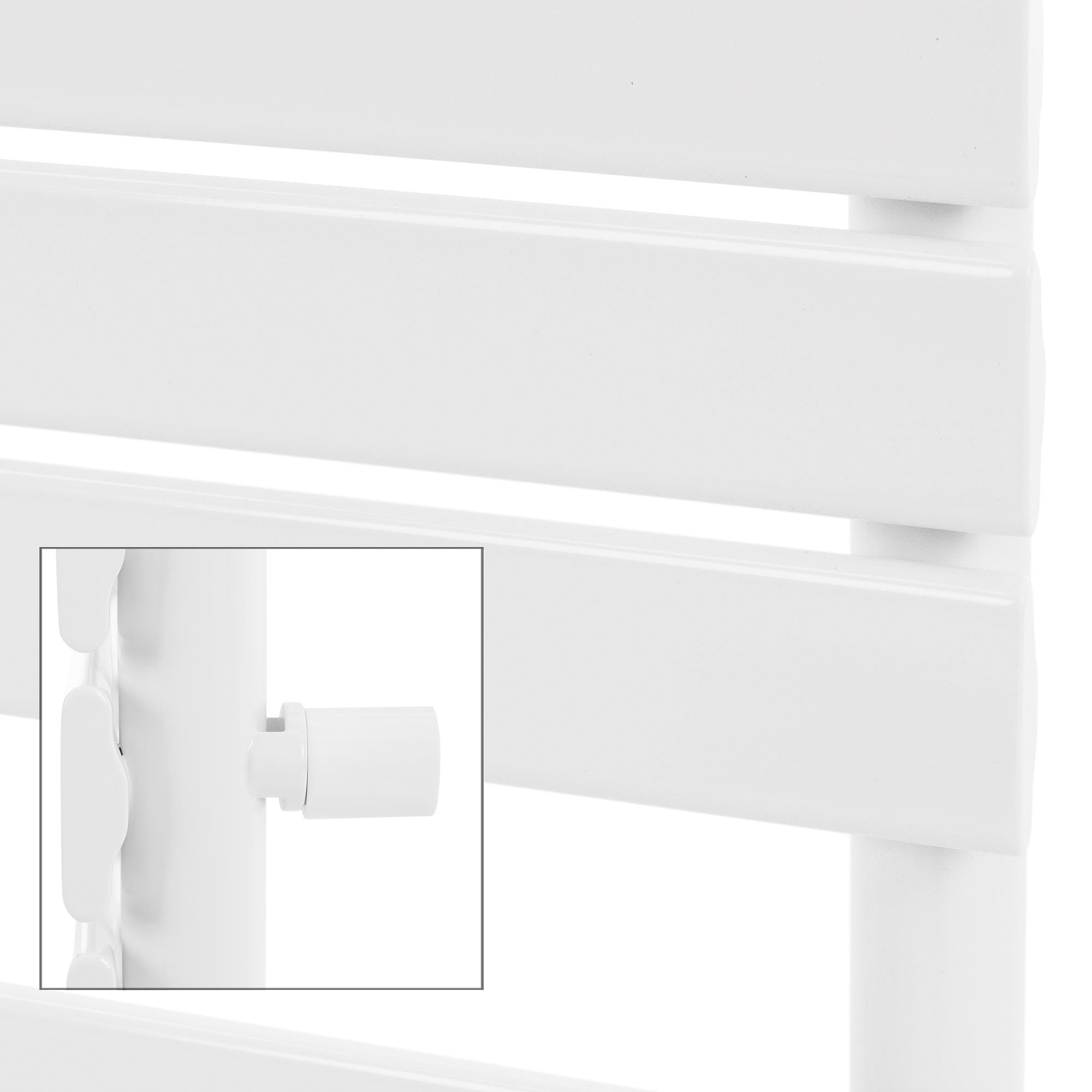

Wall mounting set:
4 x wall bracket
4 x screws and dowels
4 x holder screw
High quality design radiator
Modern design combined with pleasant warmth and comfort
Seamless integration without disturbing optics and less space requirement
In your bathroom, not only provide a pleasant, cosy warmth, but also dry your towels at the same time.
You are sure to find a radiator in our shop that meets your wishes and ideas for a new room or a redesign!
Properties:
Quality steel with high thermal conductivity
Design: Single layer
Maximum operating pressure: 5 bar
Vertical design profiles: 70 x 11 mm
Connection thread: G1/2''
Heat output according to EN442 Euronorm
Scope of delivery
Bathroom radiator 500 x 991 mm White
Valve fittings set Multiblock white corner form incl. thermostatic head
air bleed valve 1/2 inch
Blanking plug 1/2 inch
Allen wrench
square venting key
Wall mounting set:
4 x wall bracket
4 x screws and dowels
4 x holder screw

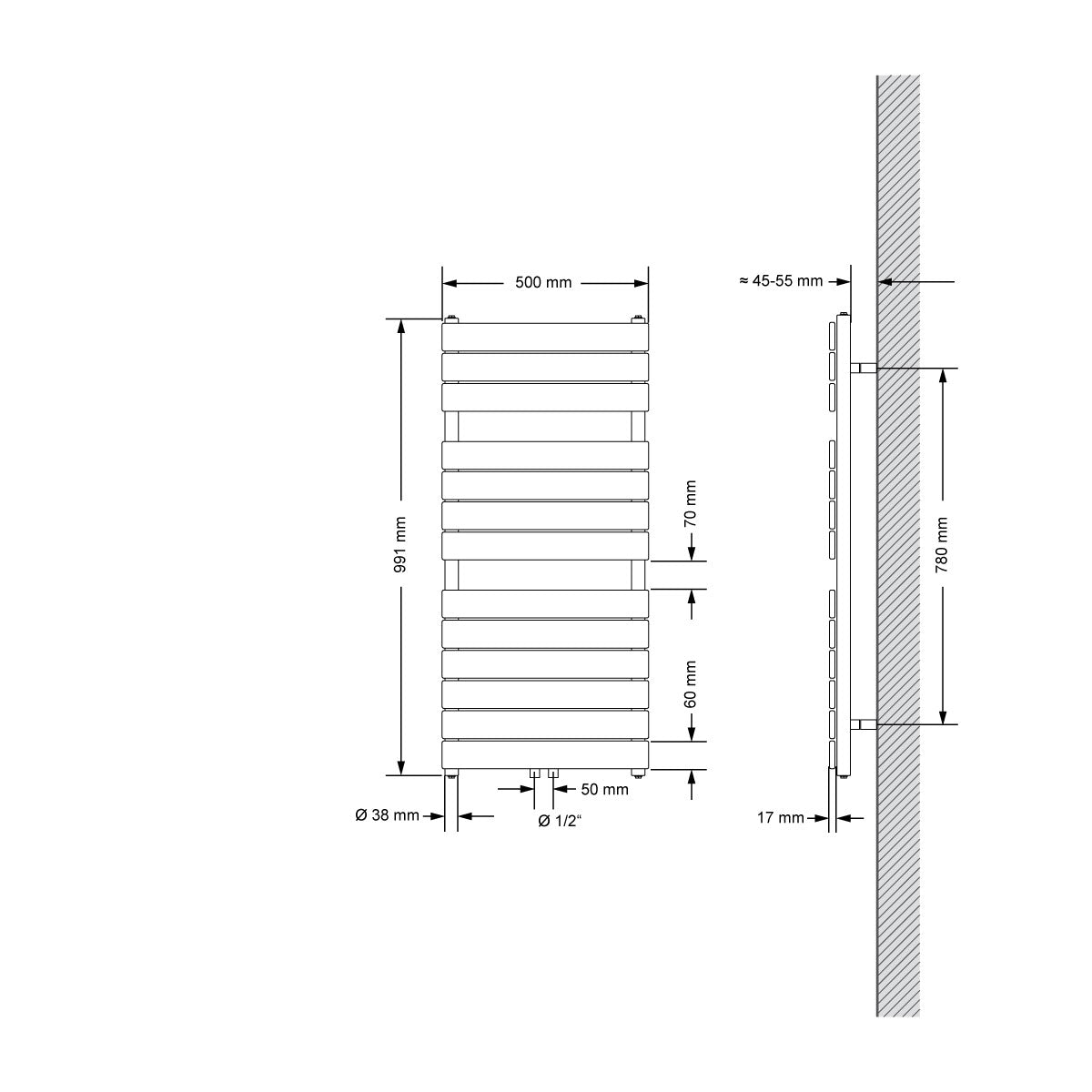

Technical information:
Bathroom radiators
Colour: White
width (mm): 500
height (mm): 991
Connections (mm): 50
Pipe diameter: Ø38
Profile(mm): 70*11*1,25 D
Tube configuration: 3+4+6
Tube quantity: 13
Heat output (watts at 85°/75°/20°C) DT50: 611

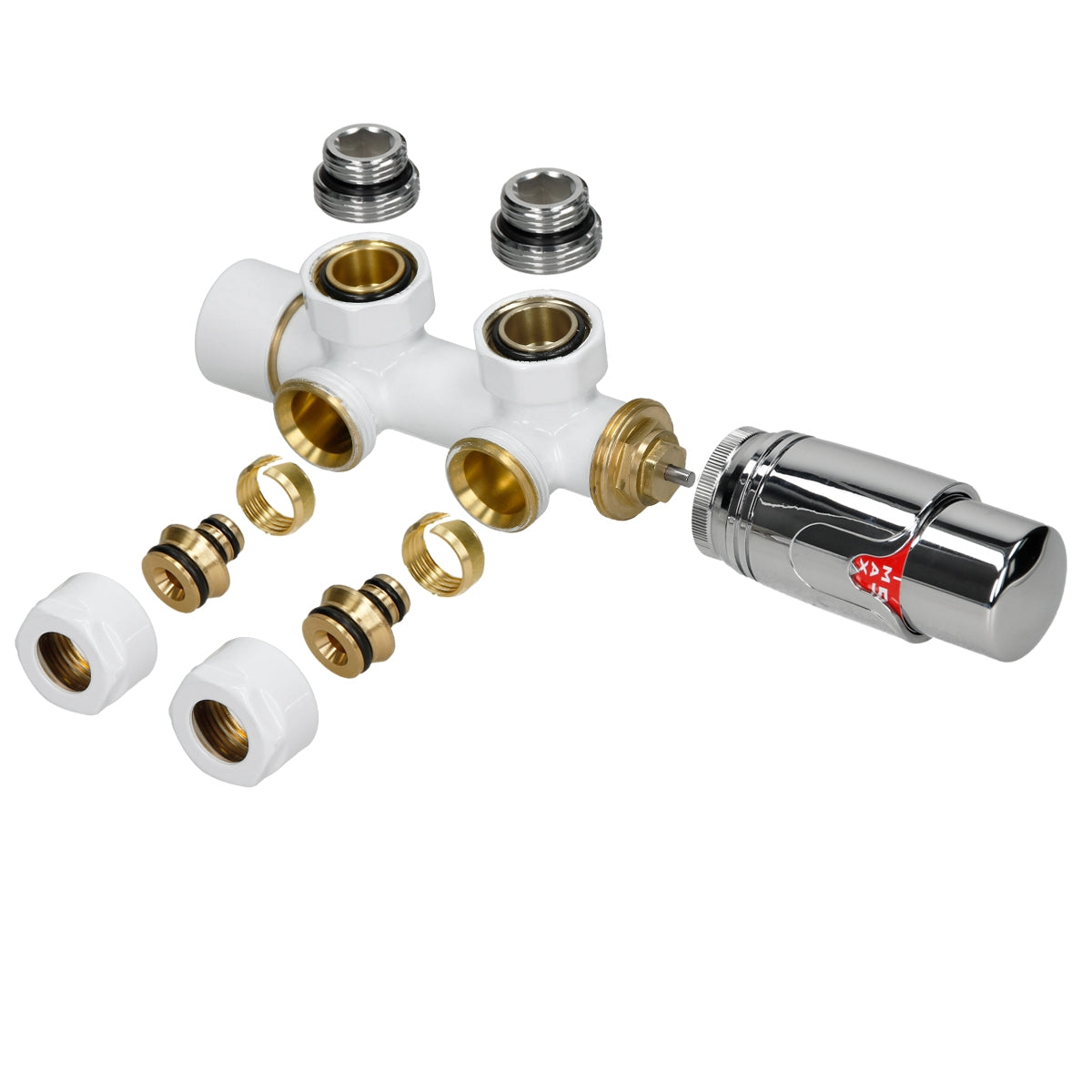

Connection set:
Colour: White
for pipe distance 50mm middle connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
pre-adjustable valve insert incl. key
5 levels adjustable
for two-pipe heating system
Connection thread for radiators 1/2" with freely rotating nut
Pipe connection with external thread G 3/4'' with cone for clamping set connection
adjustable for hydraulic adjustment
with liquid sensor (hydro sensor)

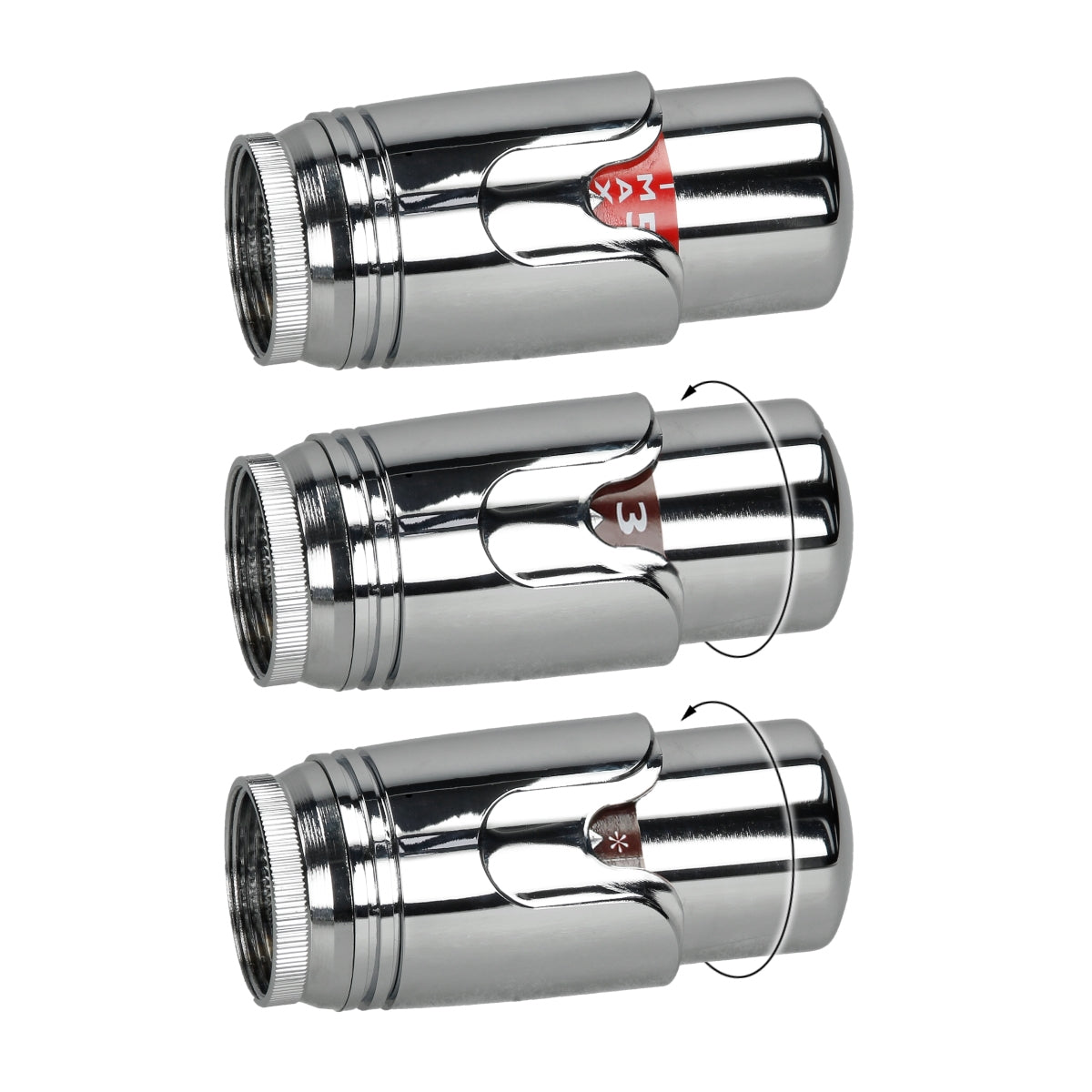

Set point range: 0-30 °C
with "0" position and frost protection
Frost protection adjustable at 6 °C
for radiators with flow and return
Bathroom radiators
Colour: White
width (mm): 500
height (mm): 991
Connections (mm): 50
Pipe diameter: Ø38
Profile(mm): 70*11*1,25 D
Tube configuration: 3+4+6
Tube quantity: 13
Heat output (watts at 85°/75°/20°C) DT50: 611
Connection set:
Colour: White
for pipe distance 50mm middle connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
pre-adjustable valve insert incl. key
5 levels adjustable
for two-pipe heating system
Connection thread for radiators 1/2" with freely rotating nut
Pipe connection with external thread G 3/4'' with cone for clamping set connection
adjustable for hydraulic adjustment
with liquid sensor (hydro sensor)
Set point range: 0-30 °C
with "0" position and frost protection
Frost protection adjustable at 6 °C
for radiators with flow and return
