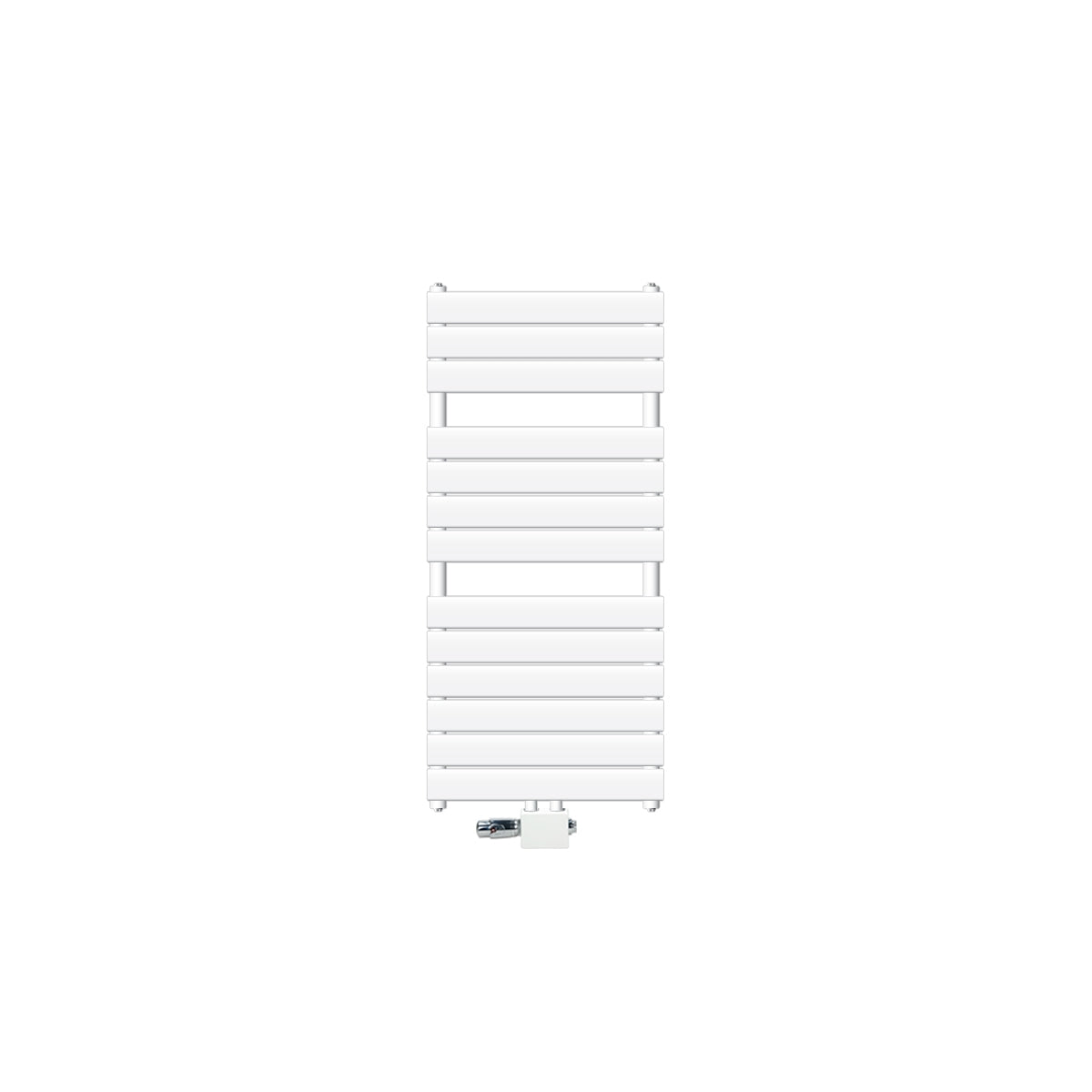

Radiator in white with several horizontal fins.

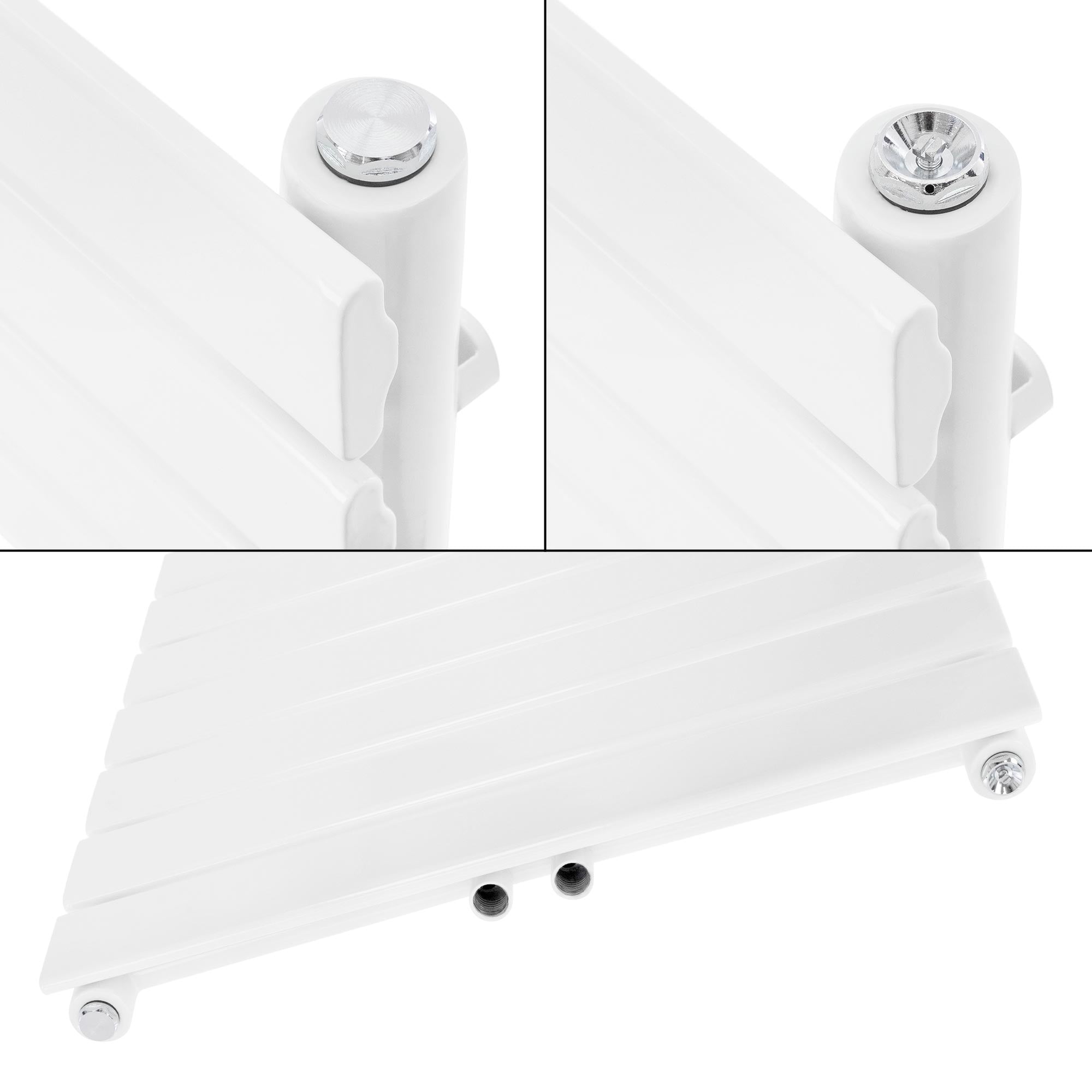

Detail view of white connections on a radiator.
Close-up of a white mounting bracket for a radiator.
Mounting material in white, consisting of various screws and dowels.

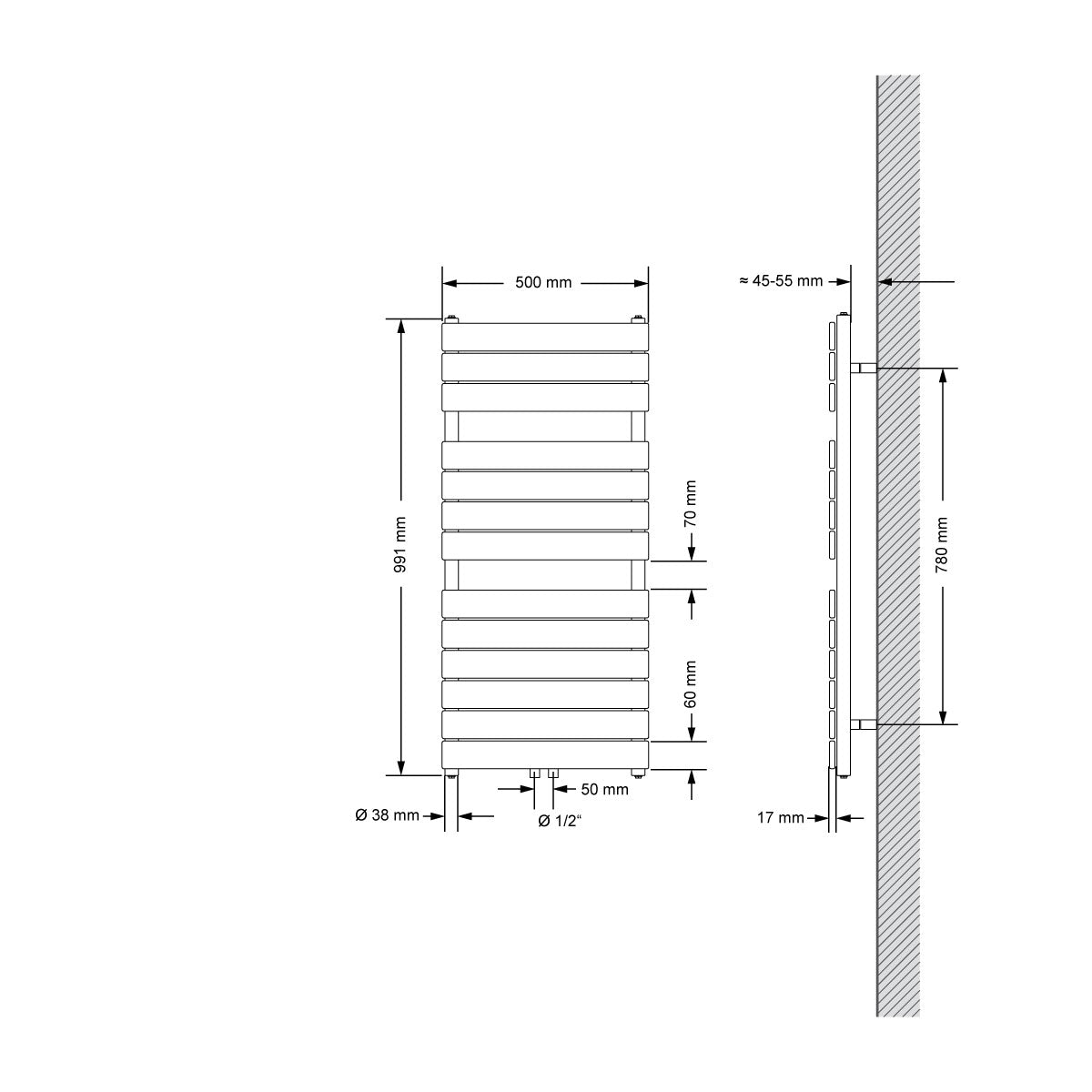

Technical drawing of a radiator in white and anthracite.

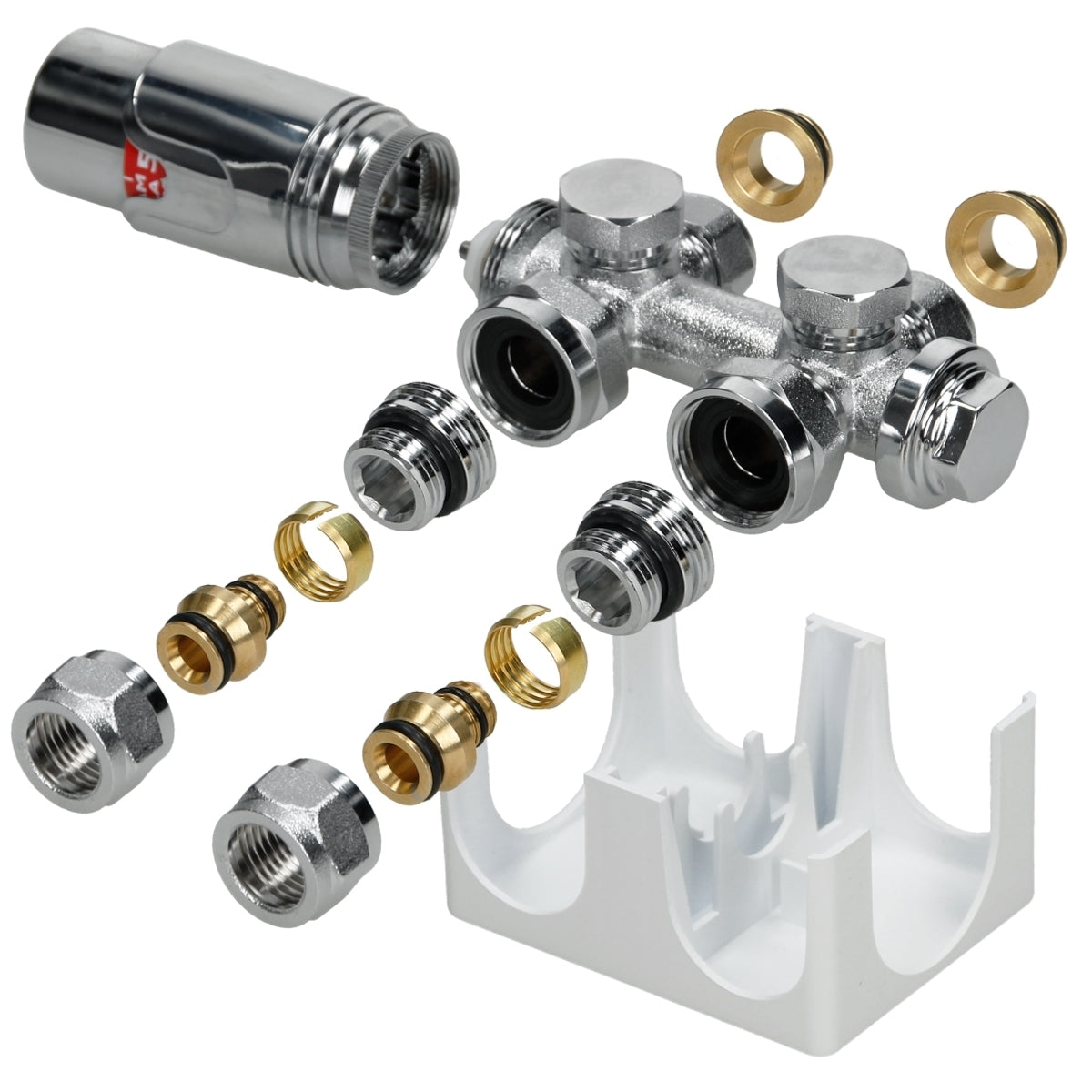

A chrome-plated valve along with various fittings on a white background.

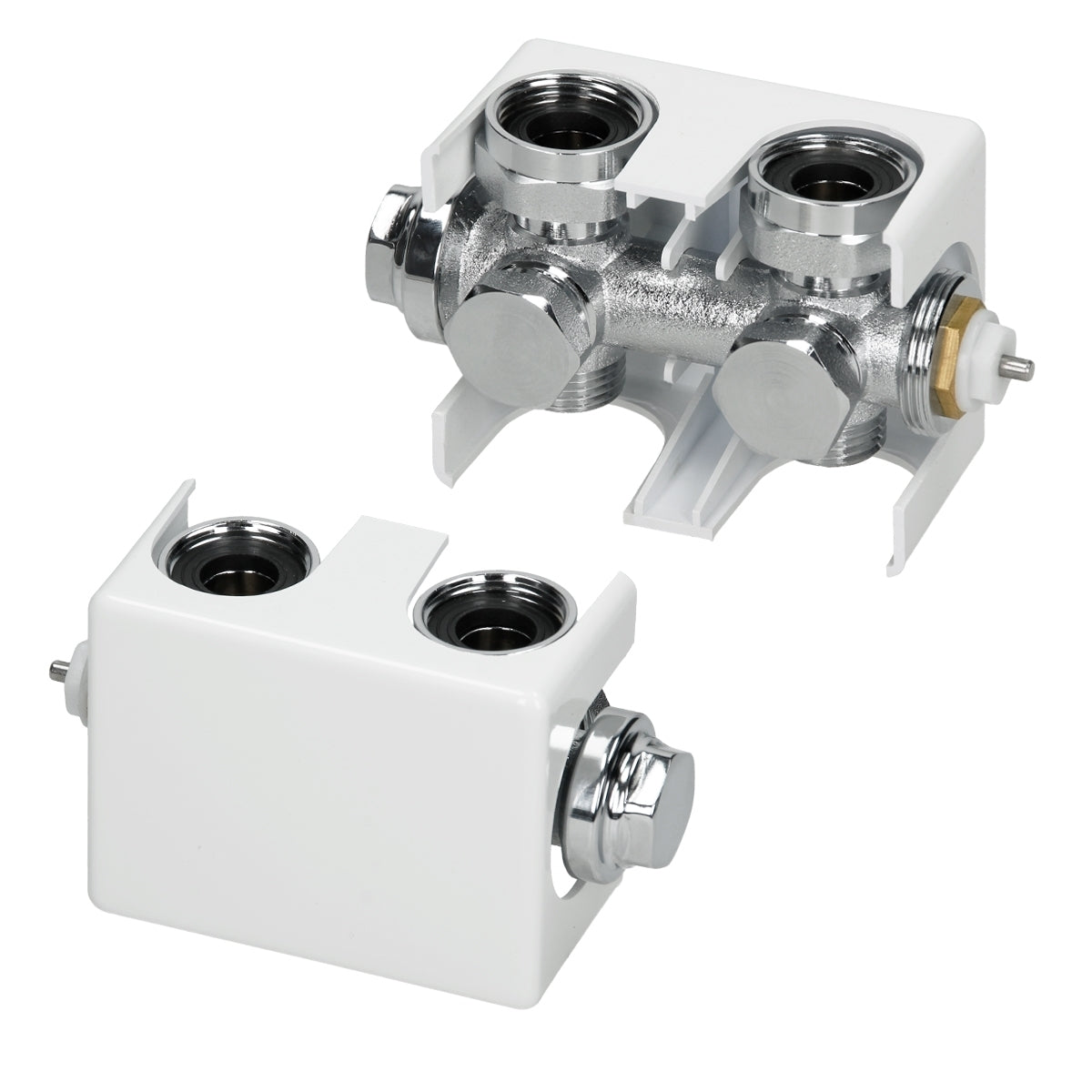

Two pipe connectors, one in white and one in chrome, on a white background.

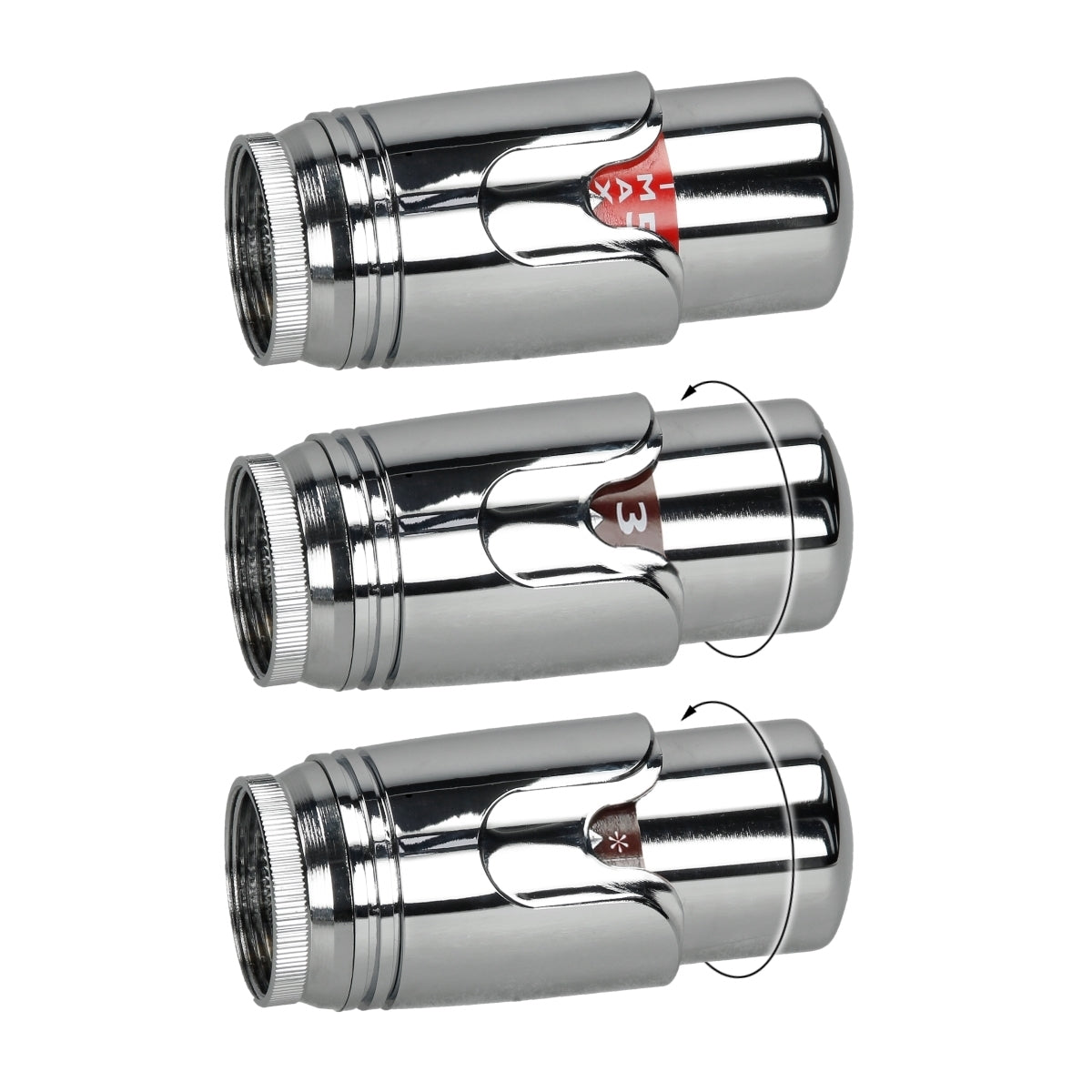

Three chrome-colored faucets with different markings.
Hover over the image to enlarge Click on image to zoom
Radiator in white with several horizontal fins.Detail view of white connections on a radiator.Close-up of a white mounting bracket for a radiator.Mounting material in white, consisting of various screws and dowels.Technical drawing of a radiator in white and anthracite.A chrome-plated valve along with various fittings on a white background.Two pipe connectors, one in white and one in chrome, on a white background.Three chrome-colored faucets with different markings.

Bathroom radiator Steam 500x991 mm white with central connection and universal connection set

Save 25%
Article number:390002465
Save 25%
123,99 € 165,32 €
Save 25%

incl. VAT

Sold out
American Express Apple Pay Bancontact EPS Google Pay iDEAL Wero Klarna Maestro Mastercard PayPal Shop Pay Union Pay Visa
  • High quality bathroom radiator
  • Quality from ECD Germany
  • High quality processing
  • Modern design
  • Power
  • 3 years warranty
Bathroom radiator Steam Design 500x991 mm, white, universal connection set a comprehensive description of the item is being created. If you have any questions, please use our contact form.
Technical information:

Bathroom radiators
Colour: White
width (mm): 500
height (mm): 991
Connections (mm): 50
Pipe diameter: Ø38
Profile(mm): 70*11*1,25 D
Tube configuration: 3+4+6
Tube quantity: 13
Heat output (watts at 85°/75°/20°C) DT50: 611

Connection set:
Colour: White
for pipe distance 50mm middle connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
pre-adjustable valve insert incl. key
5 levels adjustable
for two-pipe heating system
Connection thread for radiators 1/2" with freely rotating nut
Pipe connection with external thread G 3/4'' with cone for clamping set connection
adjustable for hydraulic adjustment
with liquid sensor (hydro sensor)
Set point range: 0-30 °C
with "0" position and frost protection
Frost protection adjustable at 6 °C
for radiators with flow and return
