- High-quality bathroom radiator
- Quality from ECD Germany
- High-quality workmanship
- Modern design
- Performance
00
h
:
00
m
:
00
s
Scope of delivery:

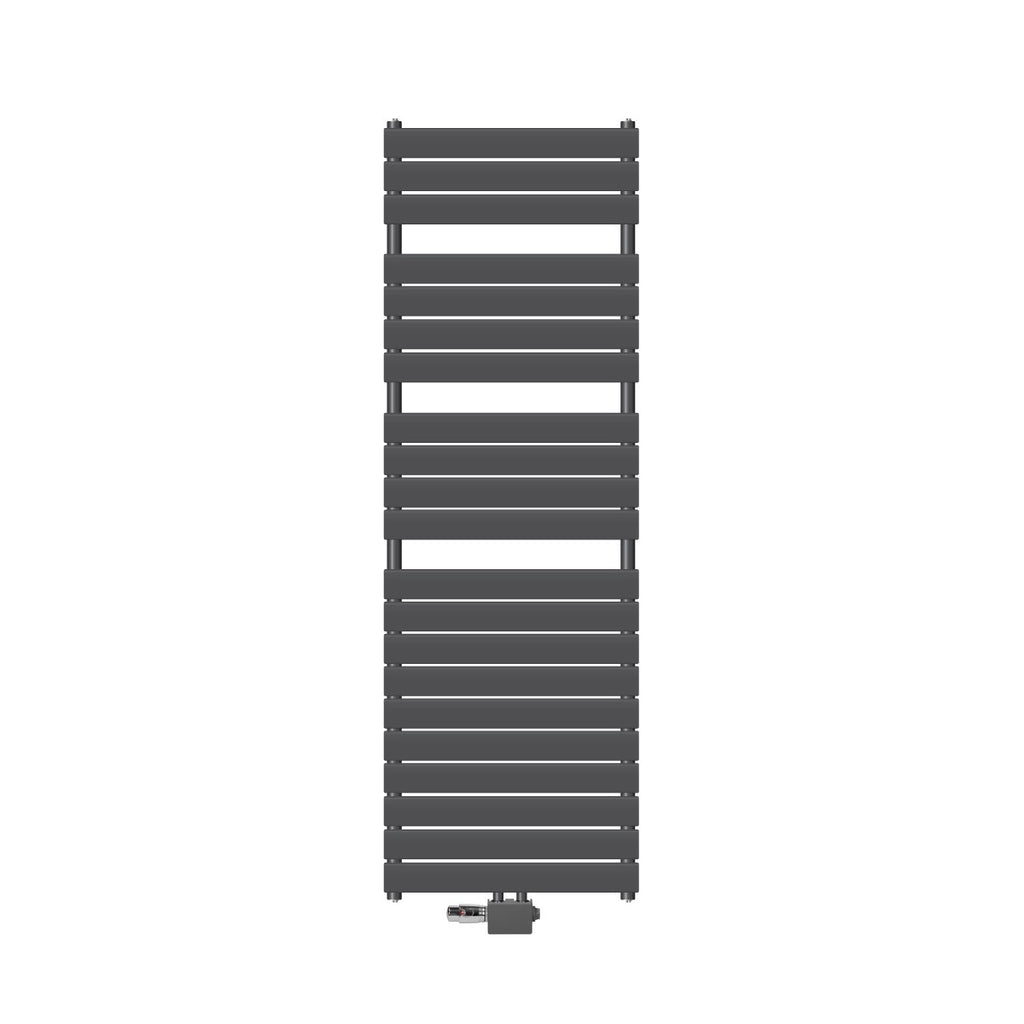

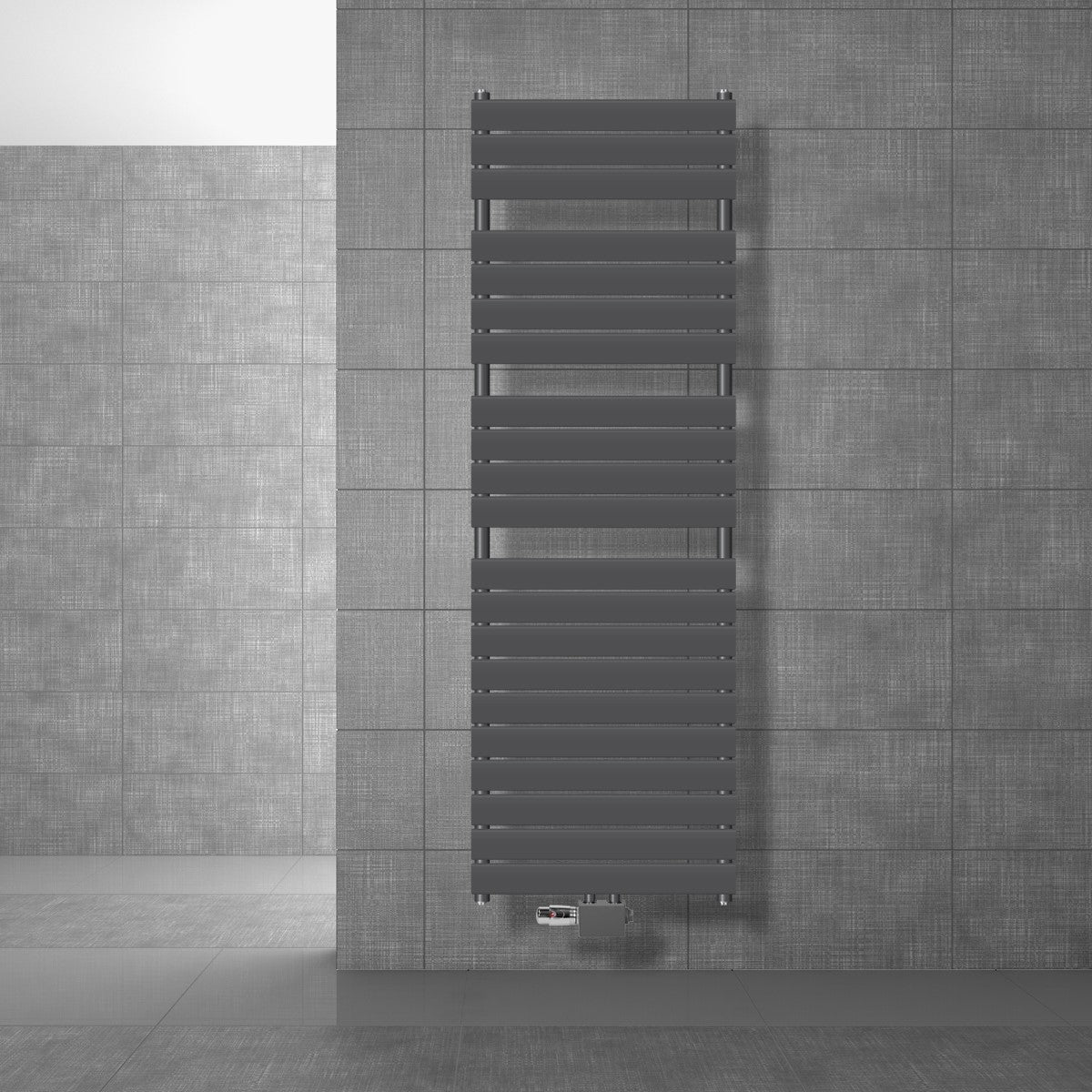

Bathroom radiator 600 x 1576 mm anthracite

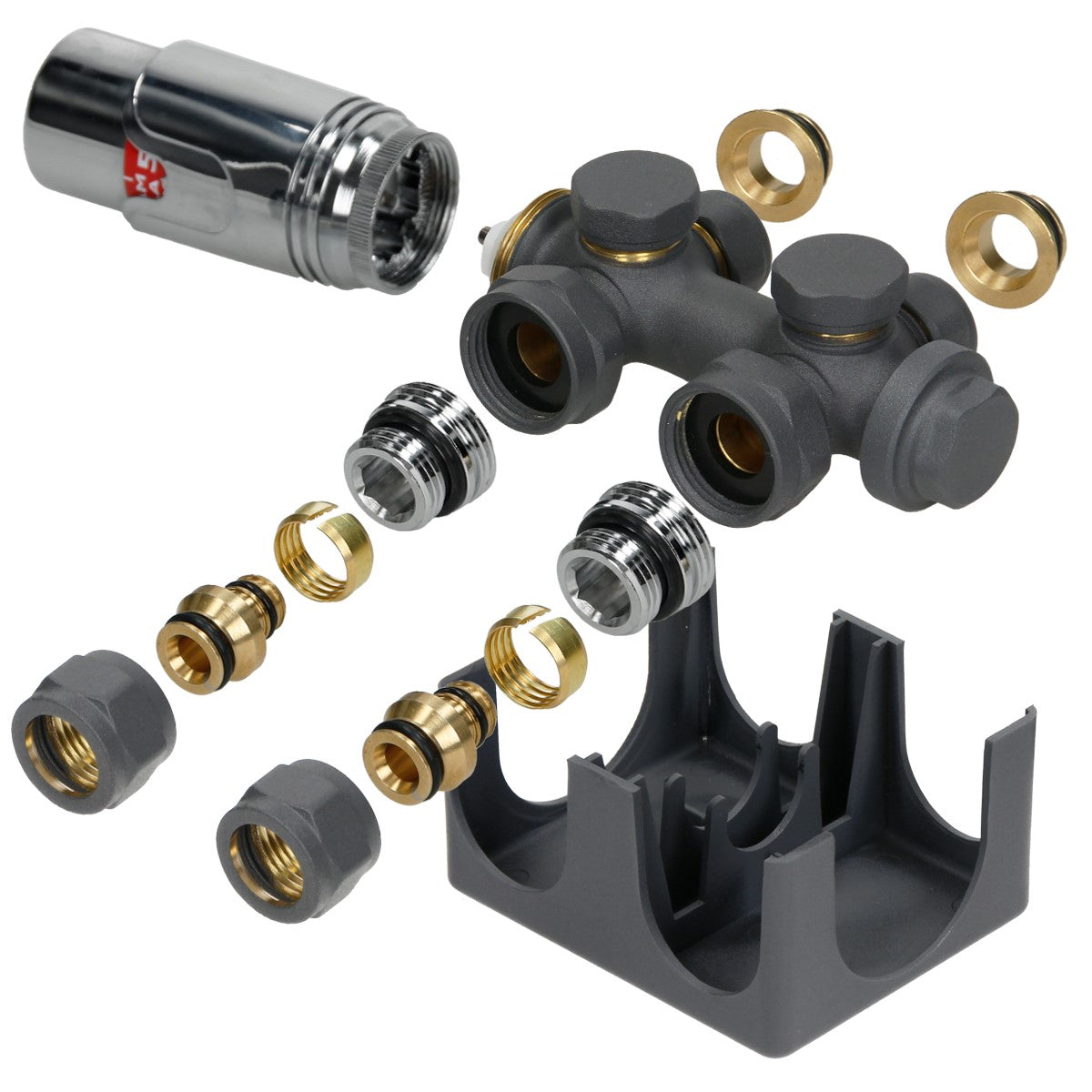

Multiblock valve fitting set, anthracite, universal angled and straight-through design, incl. thermostatic head

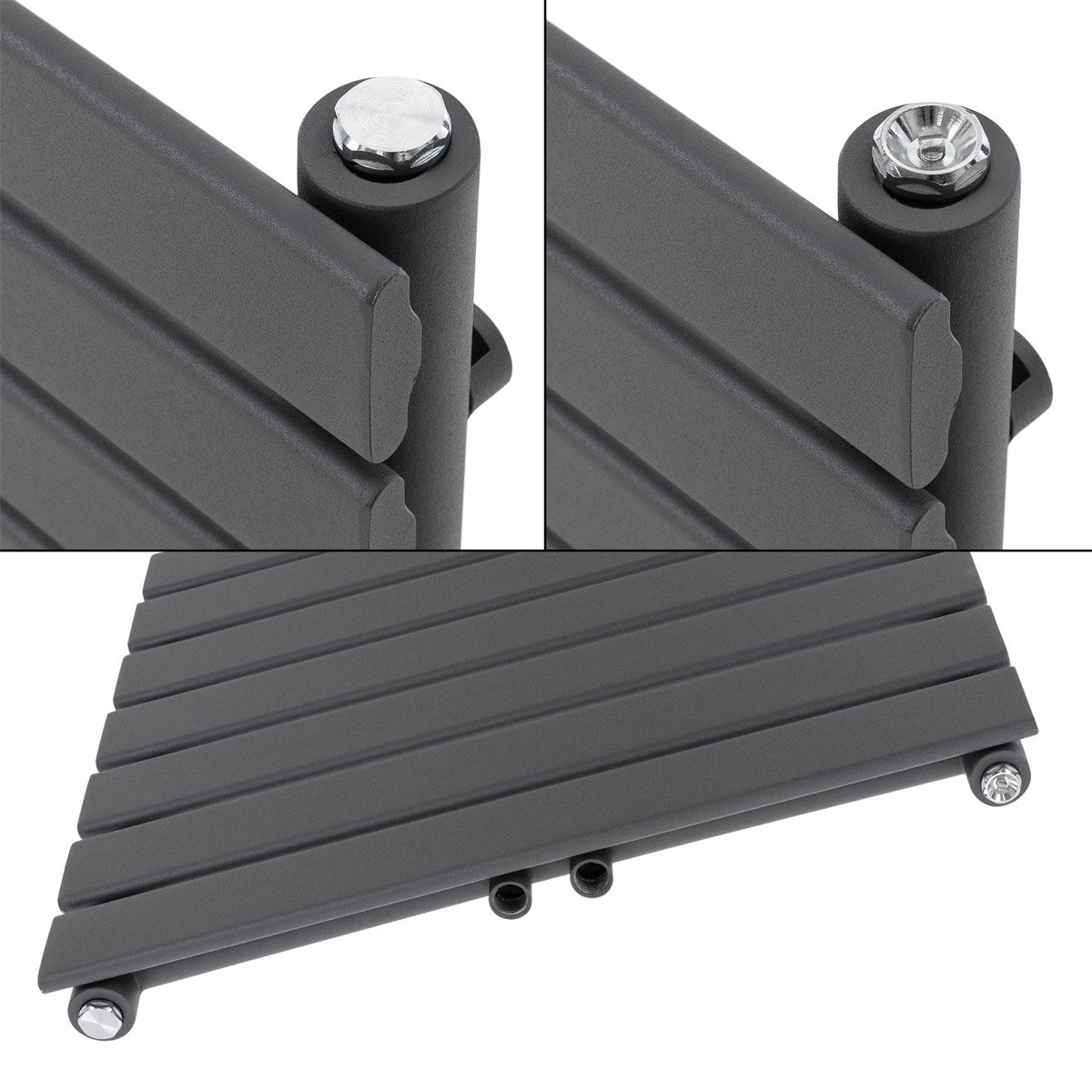

Air vent valve 1/2 inch
Blind plug 1/2 inch
Allen key
Square air vent key

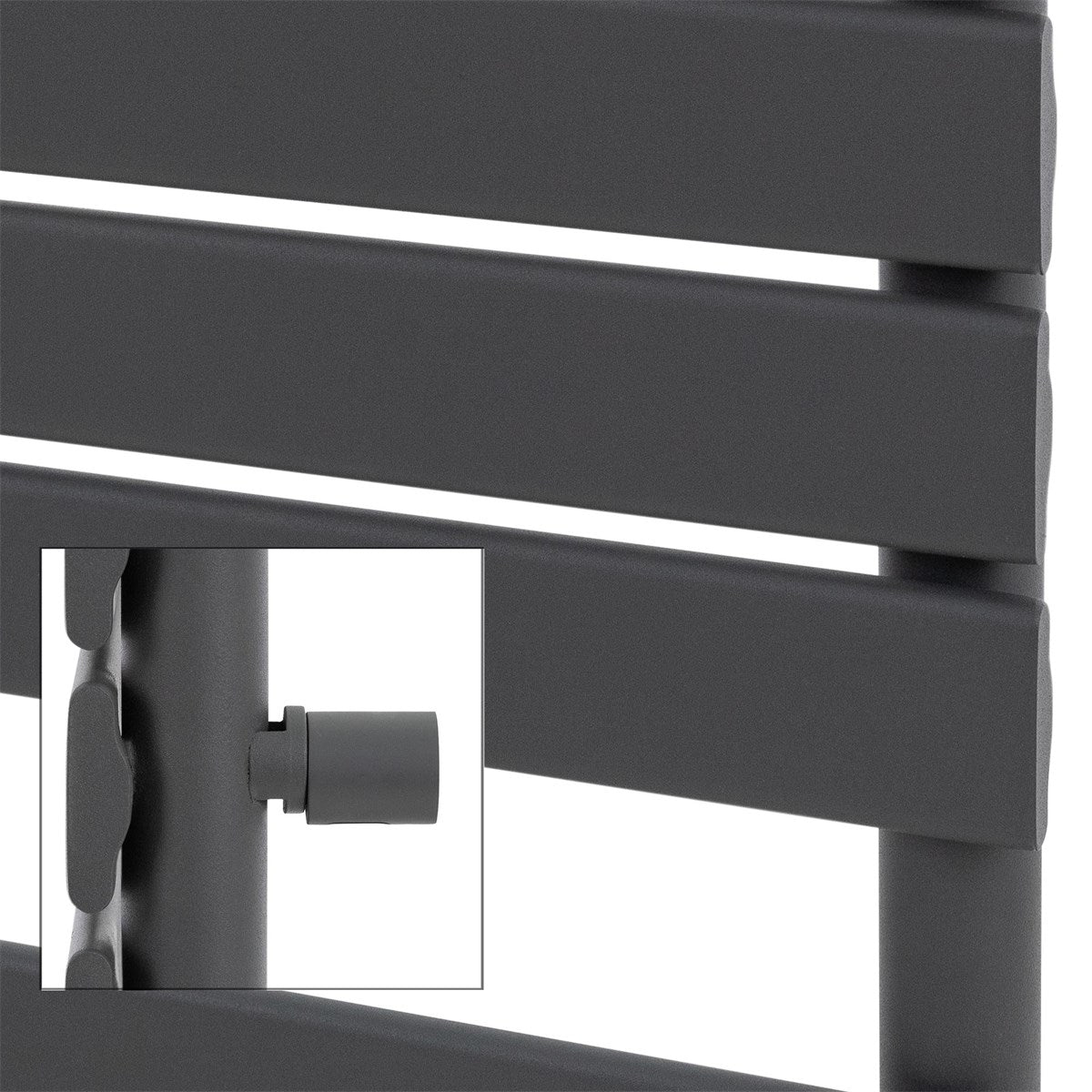

Wall mounting set:
4 x wall bracket
4 x screws and wall plugs
4 x bracket screw
Features:
Quality steel with high thermal conductivity
Design: Single-layer
Maximum operating pressure: 5 bar
Vertical design profiles: 70 x 11 mm
Connection thread: G1/2''
Heat output according to EN442 Euronorm
Bathroom radiator 600 x 1576 mm anthracite
Multiblock valve fitting set, anthracite, universal angled and straight-through design, incl. thermostatic head
Air vent valve 1/2 inch
Blind plug 1/2 inch
Allen key
Square air vent key
Wall mounting set:
4 x wall bracket
4 x screws and wall plugs
4 x bracket screw
Features:
Quality steel with high thermal conductivity
Design: Single-layer
Maximum operating pressure: 5 bar
Vertical design profiles: 70 x 11 mm
Connection thread: G1/2''
Heat output according to EN442 Euronorm

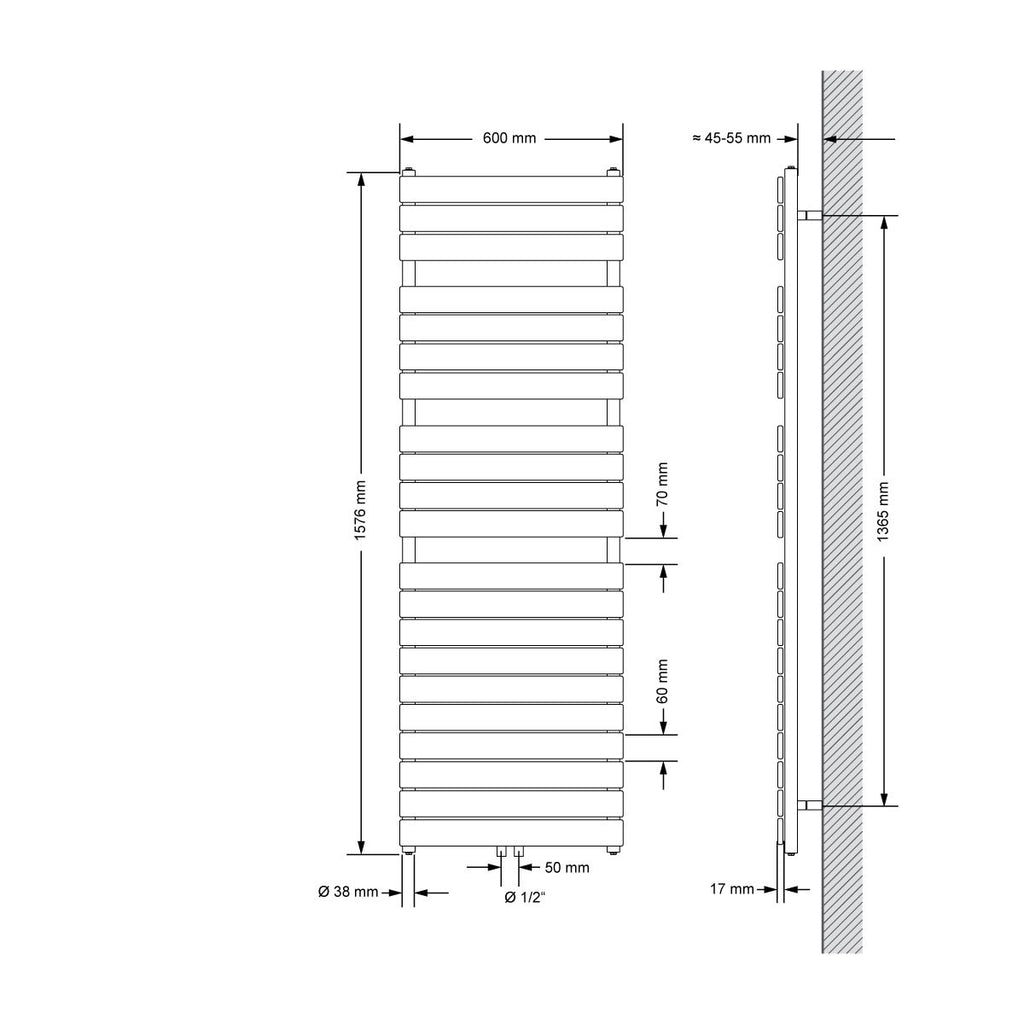

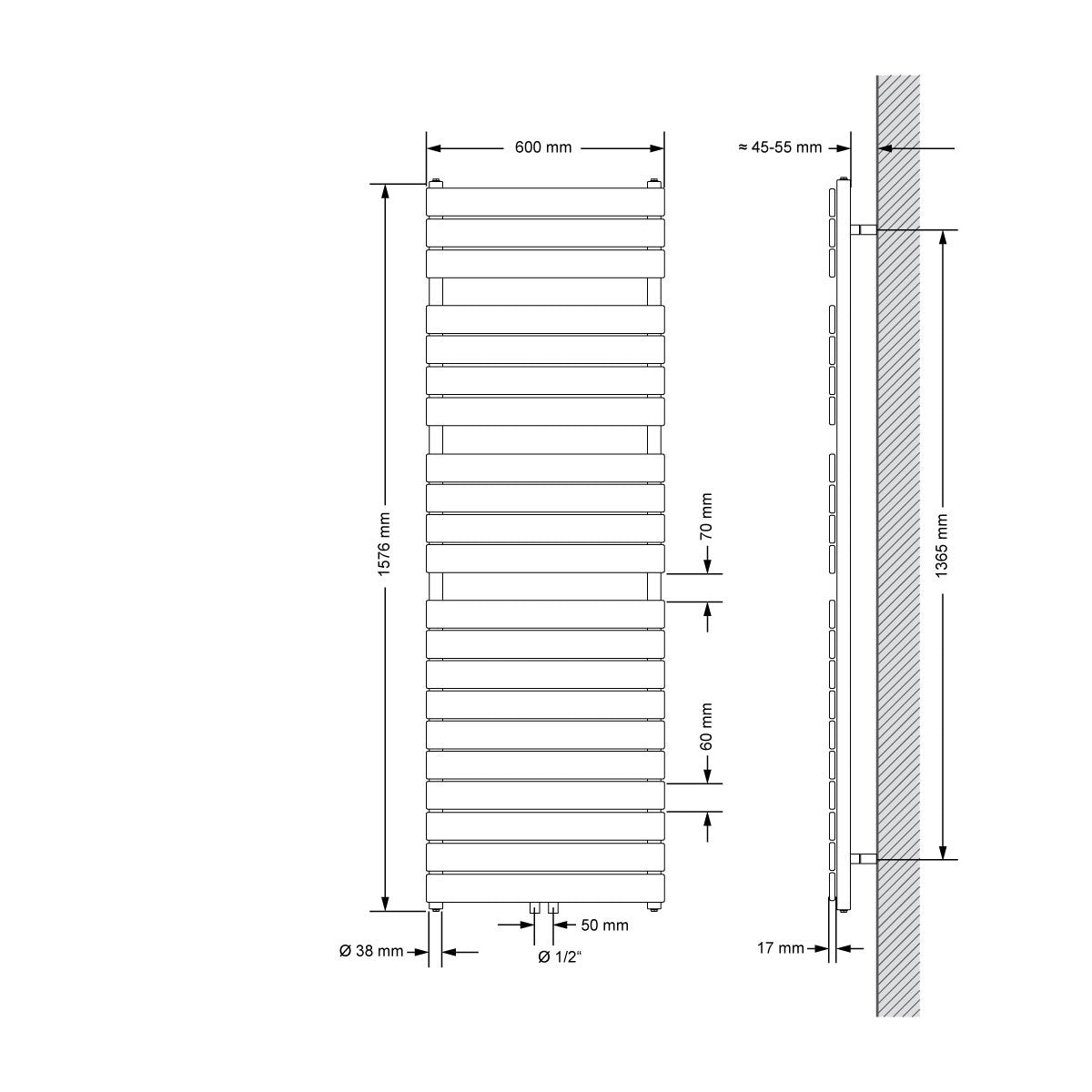

Technical information:
Bathroom radiator
Colour: Anthracite
Width (mm): 600
Height (mm): 1576
Connections (mm): 50
Tube diameter: Ø38
Profile (mm): 70*11*1.25 D
Tube configuration: 3+4+4+10
Number of tubes: 21
Heat output (watts at 85°/75°/20°C) DT50: 1143

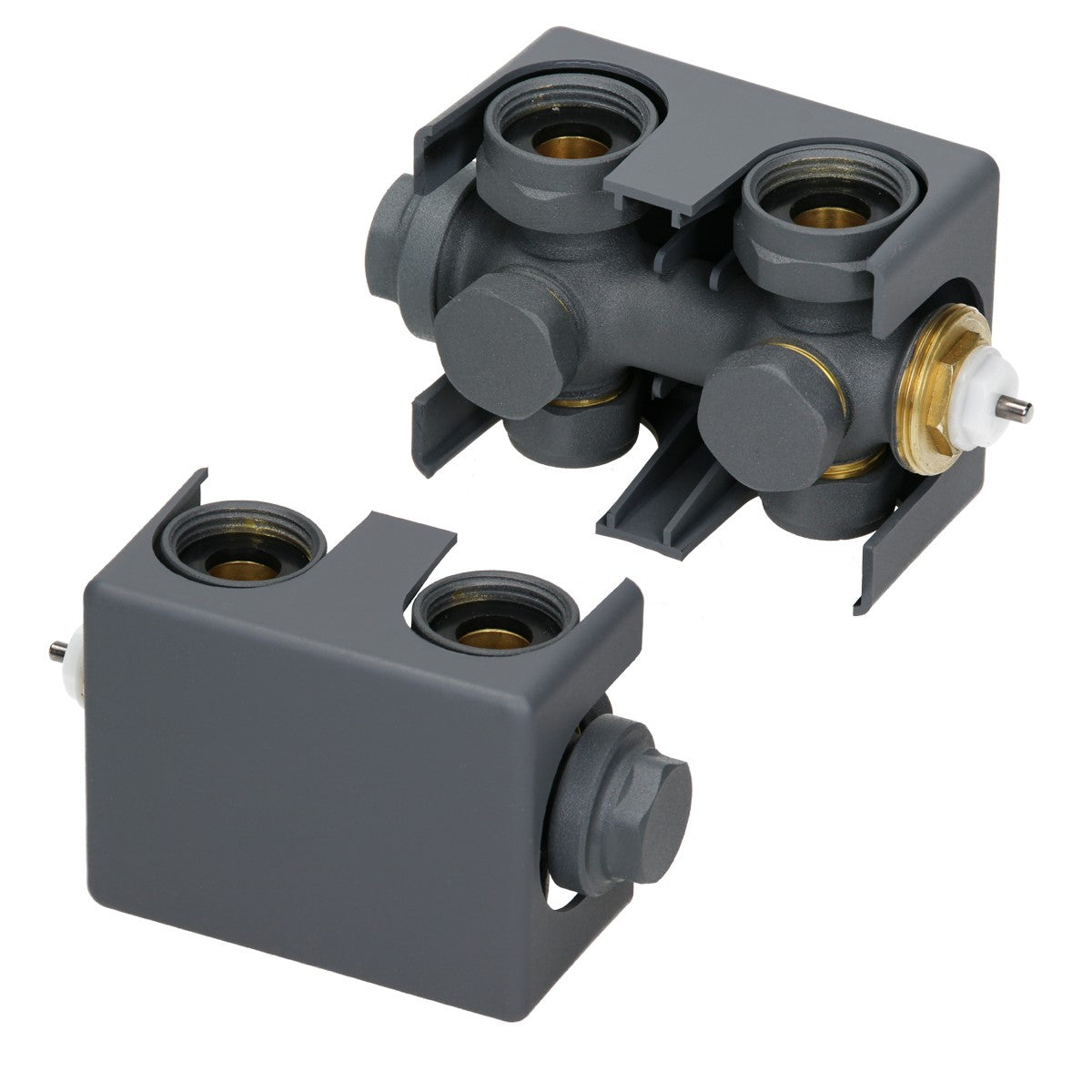

Connection set
Colour: Anthracite
for 50 mm pipe spacing, central connection
Multiblock two-pipe valve
max. operating pressure 10 bar
max. operating temperature 110°C
presettable valve insert incl. key
5 adjustable settings
for two-pipe heating systems
Connection thread for radiator 1/2" with freely rotating nut
Pipe connection with G 3/4'' male thread and cone for compression fitting connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)

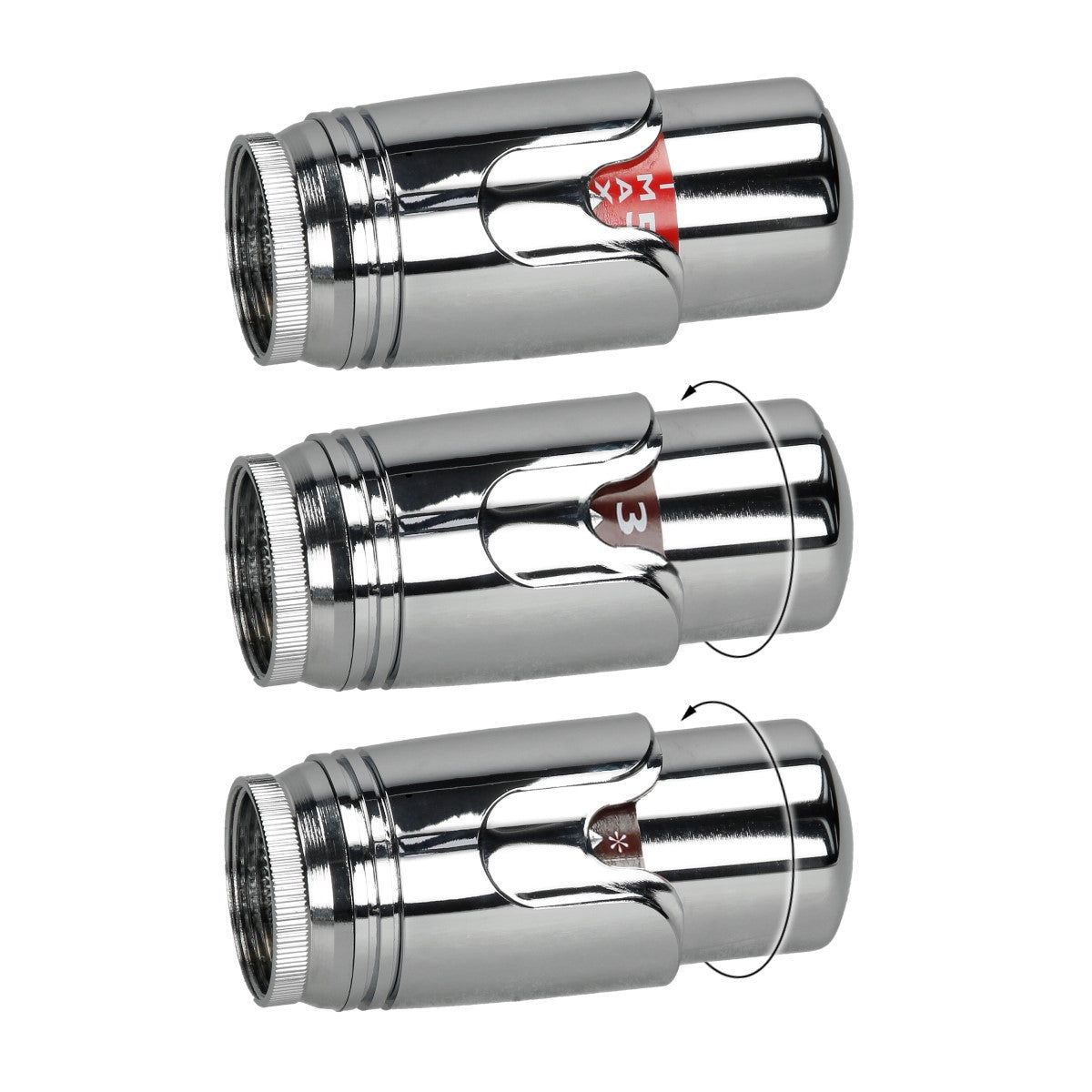

Setpoint range: 0-30°C
with "0" setting and frost protection
frost protection adjustable to 6°C
for radiators with flow and return connections
Bathroom radiator
Colour: Anthracite
Width (mm): 600
Height (mm): 1576
Connections (mm): 50
Tube diameter: Ø38
Profile (mm): 70*11*1.25 D
Tube configuration: 3+4+4+10
Number of tubes: 21
Heat output (watts at 85°/75°/20°C) DT50: 1143
Connection set
Colour: Anthracite
for 50 mm pipe spacing, central connection
Multiblock two-pipe valve
max. operating pressure 10 bar
max. operating temperature 110°C
presettable valve insert incl. key
5 adjustable settings
for two-pipe heating systems
Connection thread for radiator 1/2" with freely rotating nut
Pipe connection with G 3/4'' male thread and cone for compression fitting connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
Setpoint range: 0-30°C
with "0" setting and frost protection
frost protection adjustable to 6°C
for radiators with flow and return connections
