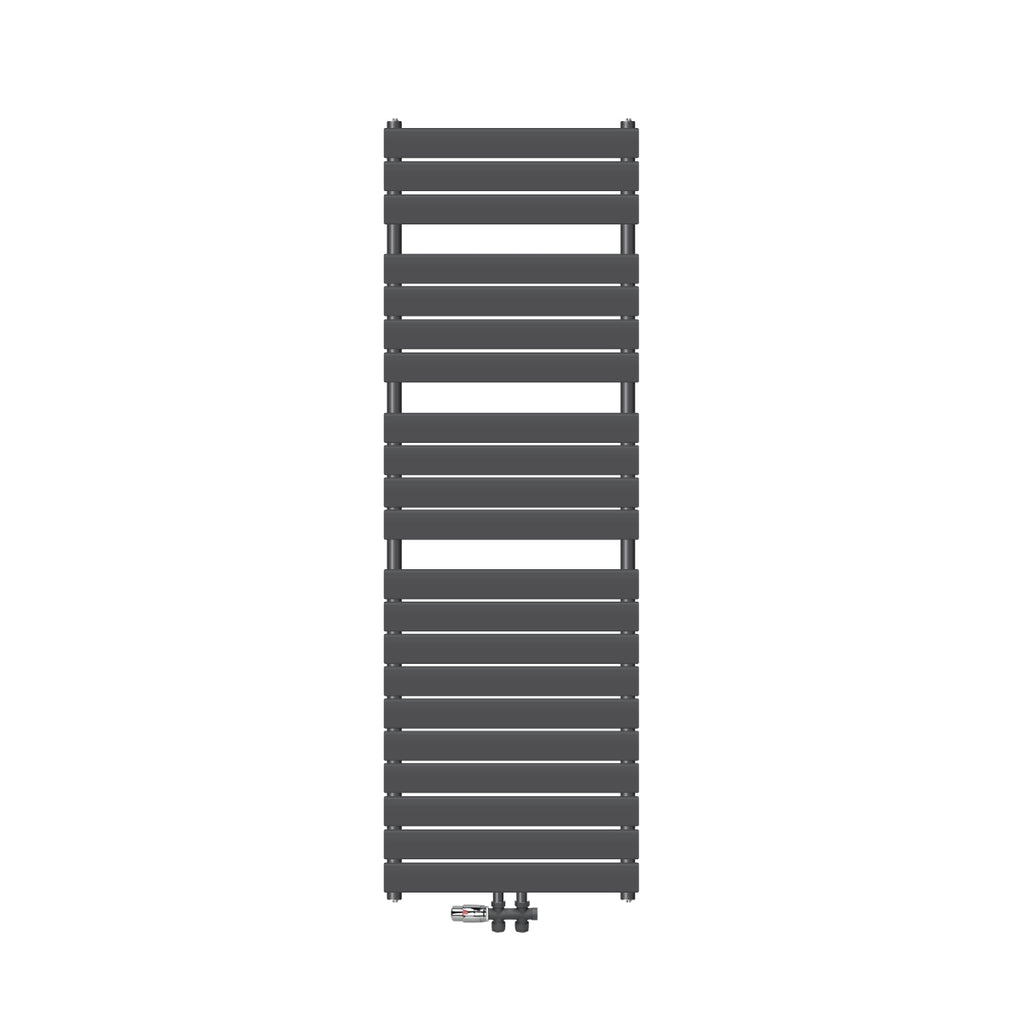

Bathroom radiator Steam Design 600x1576 mm, anthracite, floor connection set a comprehensive description of the item is being created. If you have any questions about this item, please use our contact form.

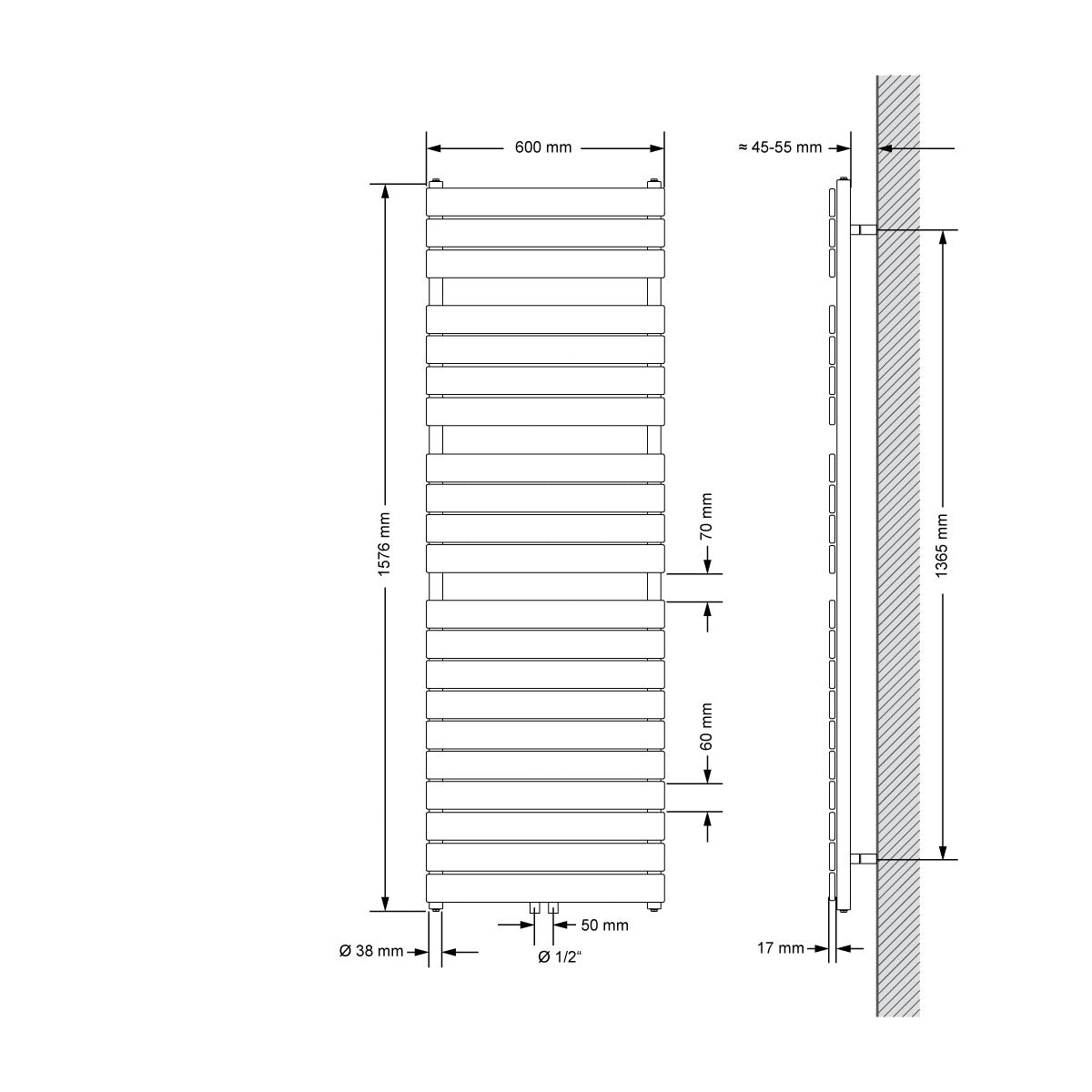

Technical information:
Bathroom radiator
Color: anthracite
Width (mm): 600
Height (mm): 1576
connections (mm): 50
Pipe diameter: Ø38
Profile(mm): 70*11*1,25 D
Tube configuration: 3+4+4+10
Tube quantity: 21
Heat output (watts at 85°/75°/20°C) DT50: 1143

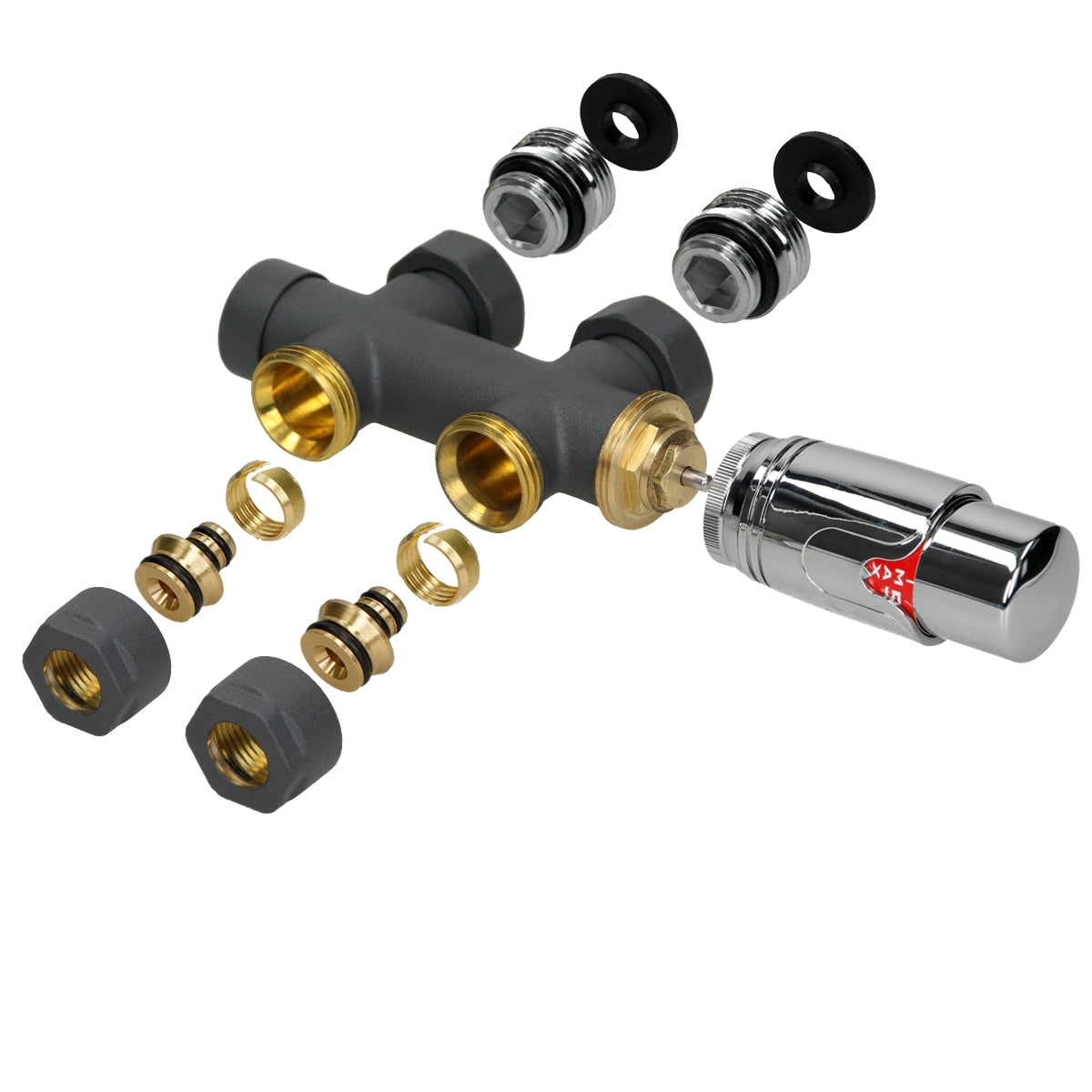

Connection kit
color: anthracite
for pipe spacing 50mm middle connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C

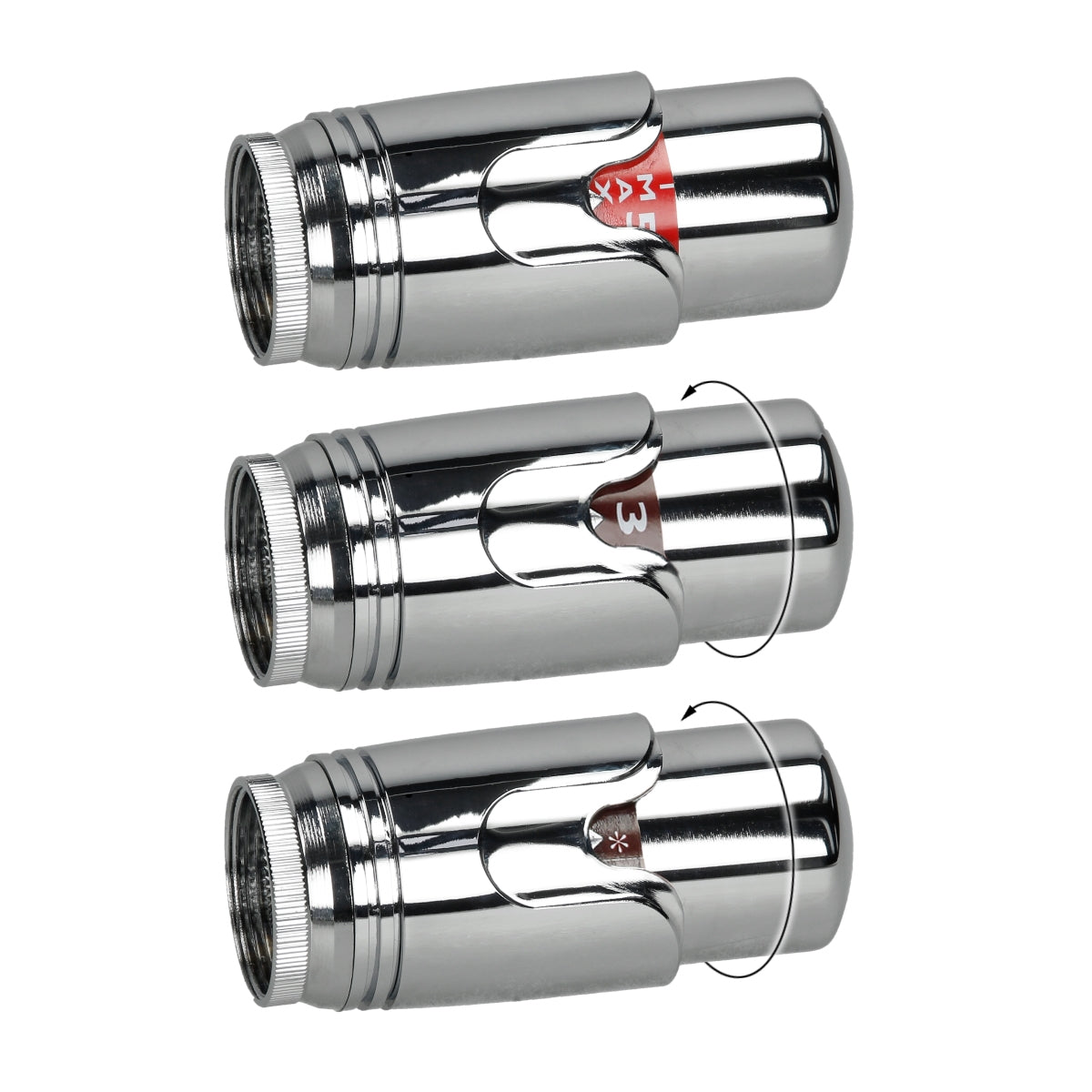

presettable valve insert incl. key
5 levels adjustable
for two-pipe heating system
connection thread for radiator 1/2" with free turning nut
pipe connection with external thread G 3/4'' with cone for clamp set connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
set point range: 0-30 °C
with "0" position and frost protection
frost protection adjustable at 6 °C
for radiators with flow and return
Bathroom radiator
Color: anthracite
Width (mm): 600
Height (mm): 1576
connections (mm): 50
Pipe diameter: Ø38
Profile(mm): 70*11*1,25 D
Tube configuration: 3+4+4+10
Tube quantity: 21
Heat output (watts at 85°/75°/20°C) DT50: 1143
Connection kit
color: anthracite
for pipe spacing 50mm middle connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
presettable valve insert incl. key
5 levels adjustable
for two-pipe heating system
connection thread for radiator 1/2" with free turning nut
pipe connection with external thread G 3/4'' with cone for clamp set connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
set point range: 0-30 °C
with "0" position and frost protection
frost protection adjustable at 6 °C
for radiators with flow and return
