- High-quality bathroom radiator
- Including fitting materials
- Quality from ECD Germany
- Classic design
- Excellent workmanship
- Versatile
00
h
:
00
m
:
00
s
Lieferumfang:

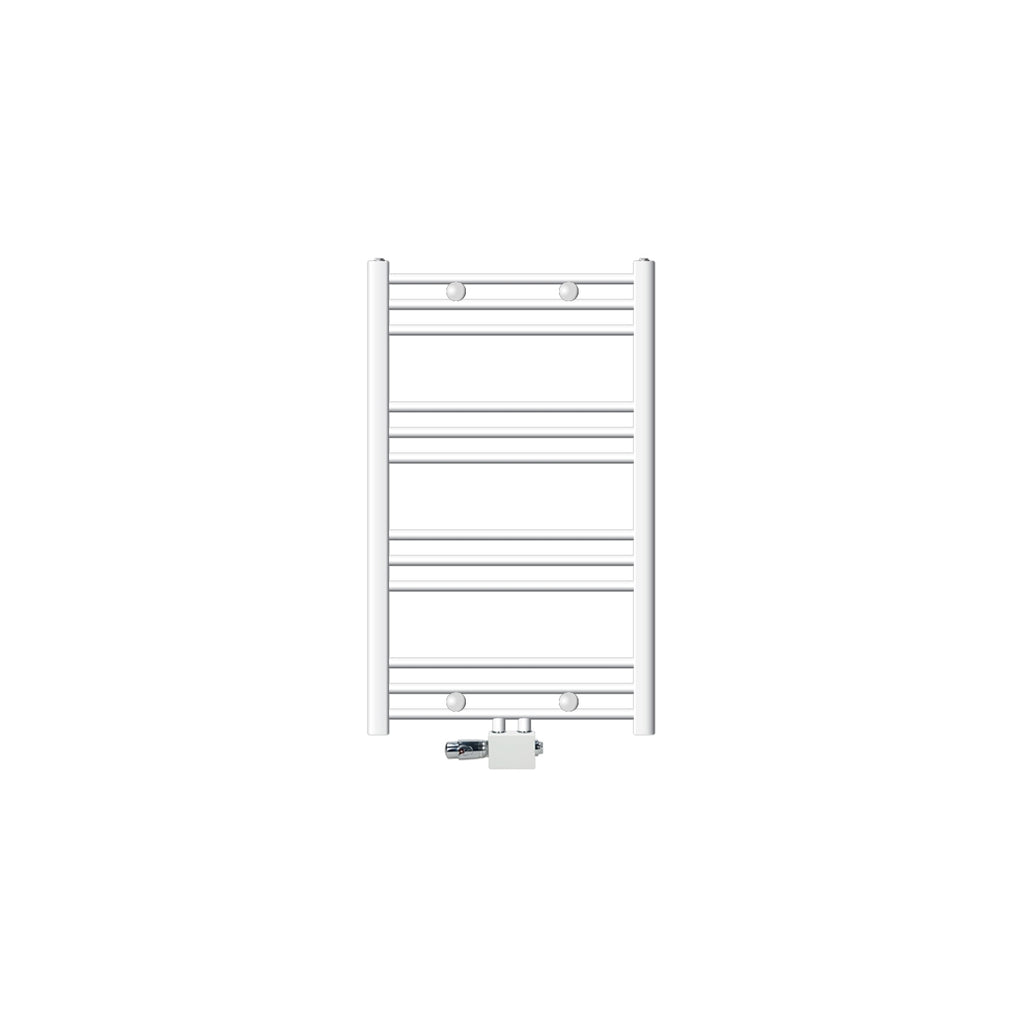

Badheizkörper
Thermostat mit Mittelanschlußgarnitur Universal - für Durchgangs - und Eckform nutzbar ( inkl. Abdeckung )

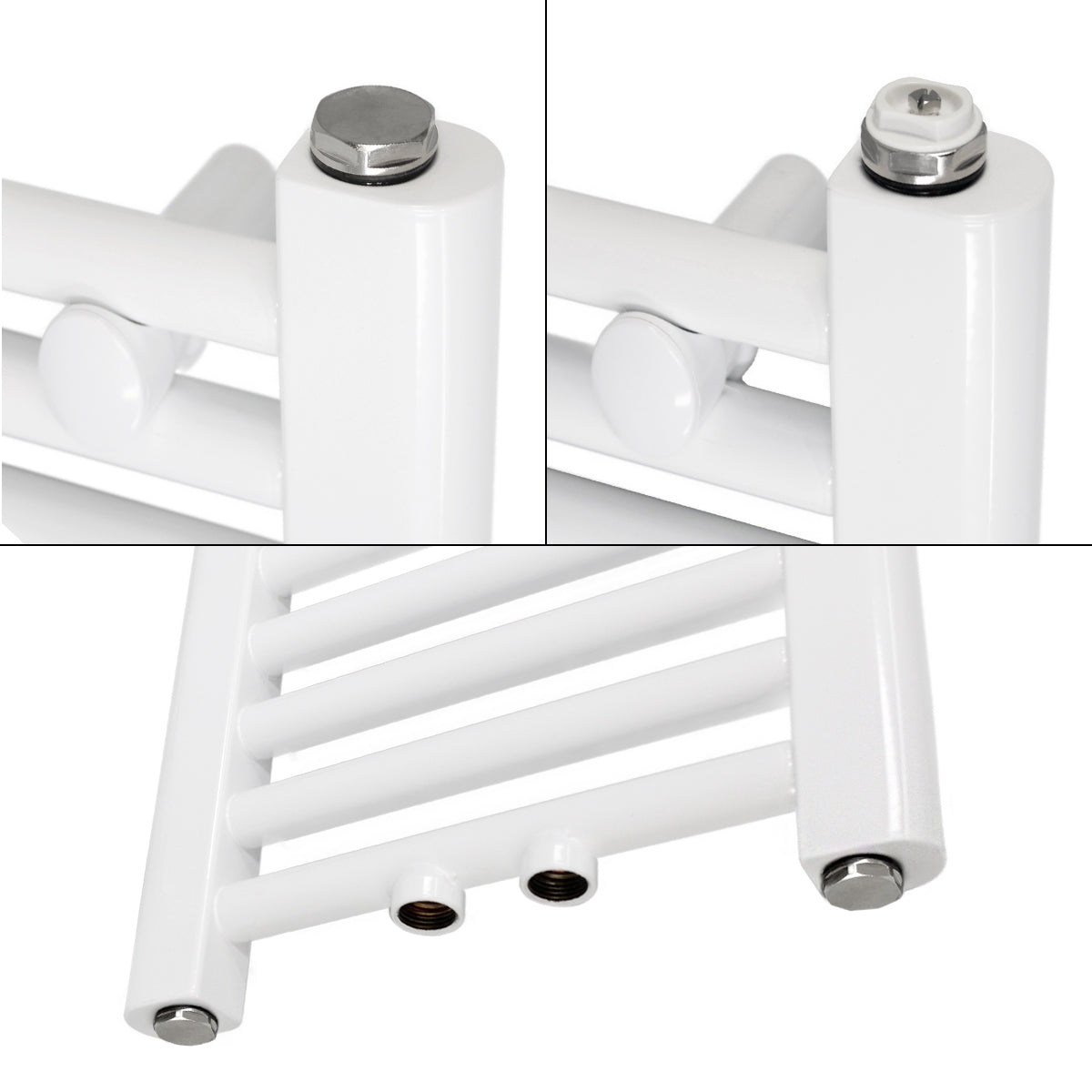

Entlüftungsventil 1/2 Zoll
Blindstopfen 1/2 Zoll
Montageanleitung
Wandmontage-Set:

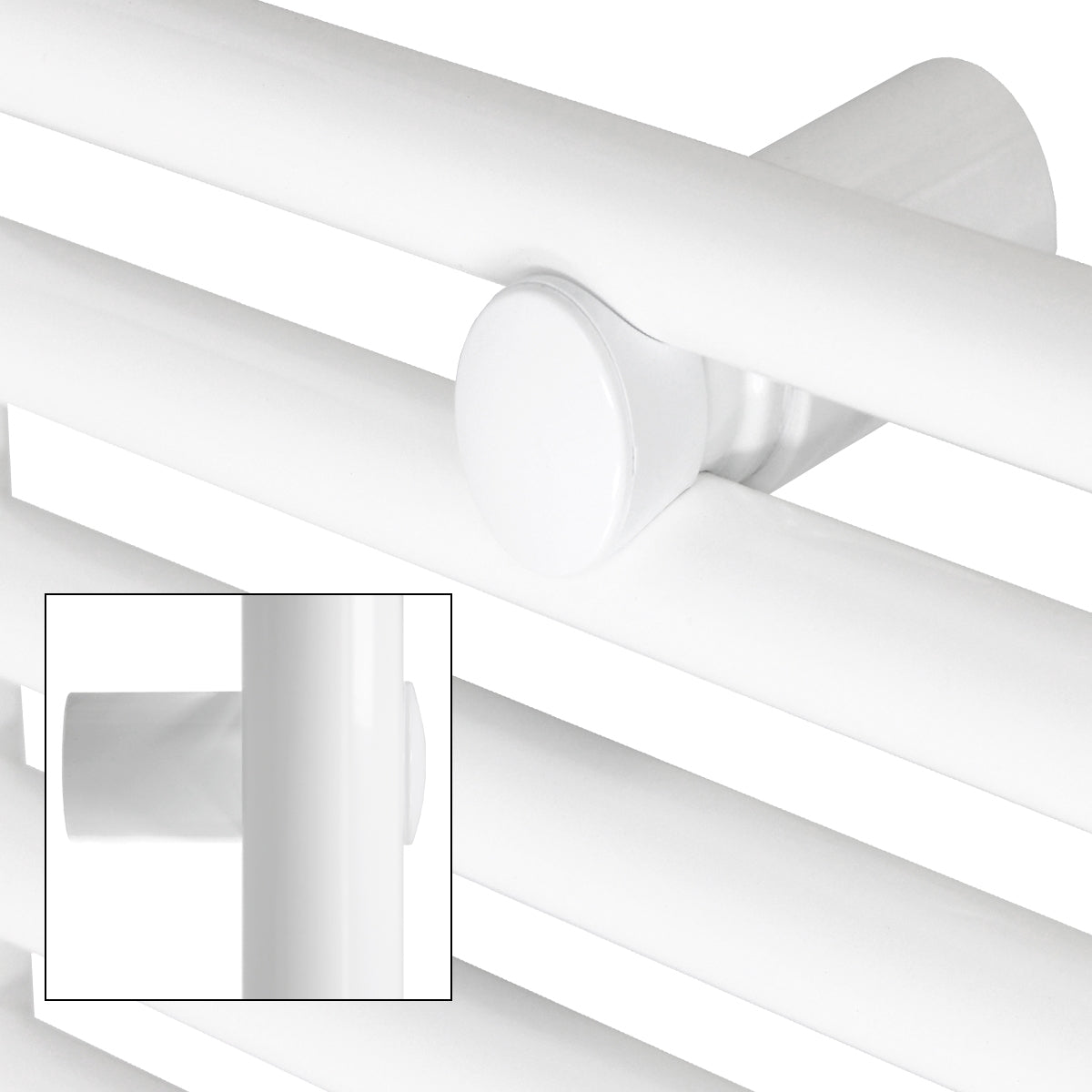

4 x Wandhalter
4 x Schrauben und Dübel
4 x Halterschraube
4 x Scheiben
Badheizkörper
Thermostat mit Mittelanschlußgarnitur Universal - für Durchgangs - und Eckform nutzbar ( inkl. Abdeckung )
Entlüftungsventil 1/2 Zoll
Blindstopfen 1/2 Zoll
Montageanleitung
Wandmontage-Set:
4 x Wandhalter
4 x Schrauben und Dübel
4 x Halterschraube
4 x Scheiben

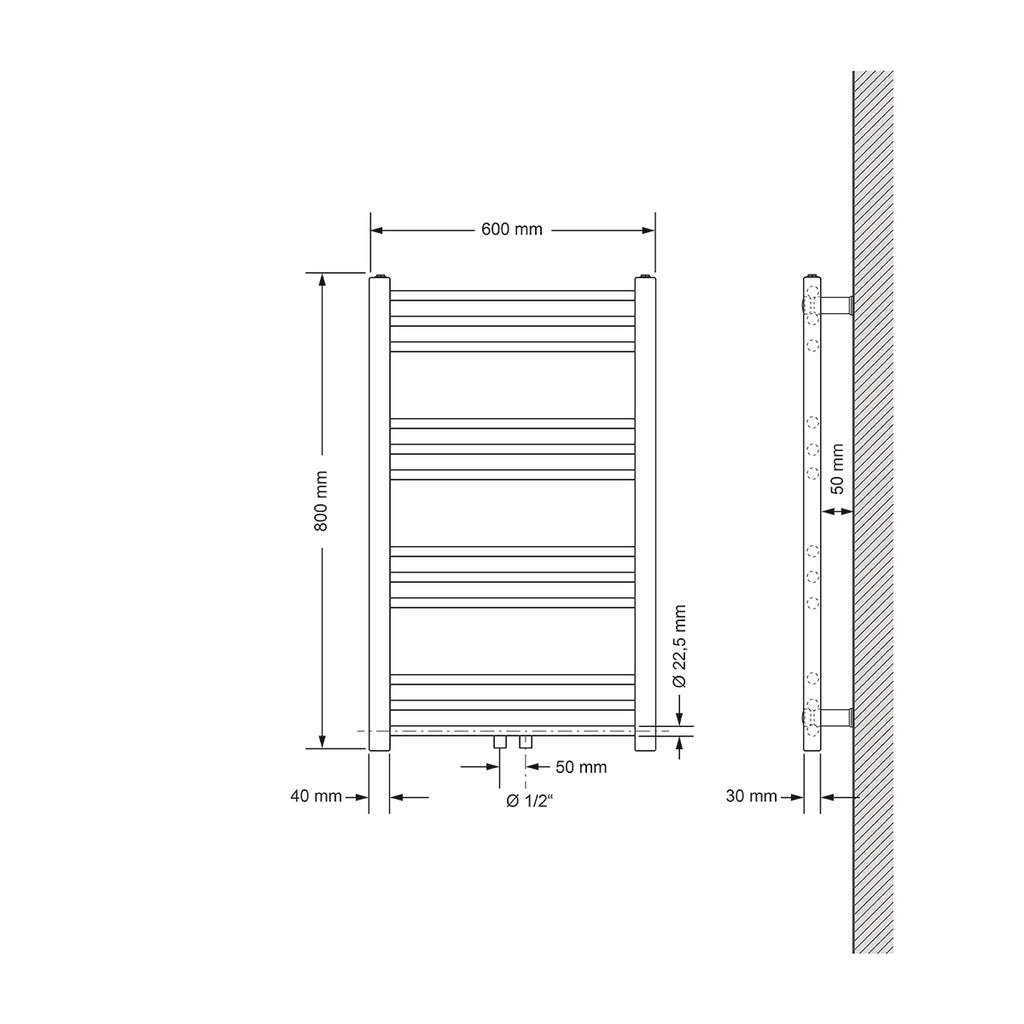

Technical information:
Bathroom radiator
Width (mm): 600
Height (mm): 800
Connections (mm): 555
Pipe diameter: Ø22
Profile: 30*40*1,5 D
Tube configuration: 3+3+3+3
Number of tubes: 12
Heat output (watts at 75/65/20°): 440
Water content (L): 4.97
Weight (kg): 6.02
Colour: white
for pipe diameters from 18 to 22 mm;
for pipe spacing from 18 to 22 mm;
Depth (wall to pipe centre): 75 to 100 mm;
maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1,2 MPa)
vertical D-profiles 30 x 40 x 1,5 mm
horizontal round tubes 22 x 1,2 mm
Distance from wall: approx. 6.5 cm

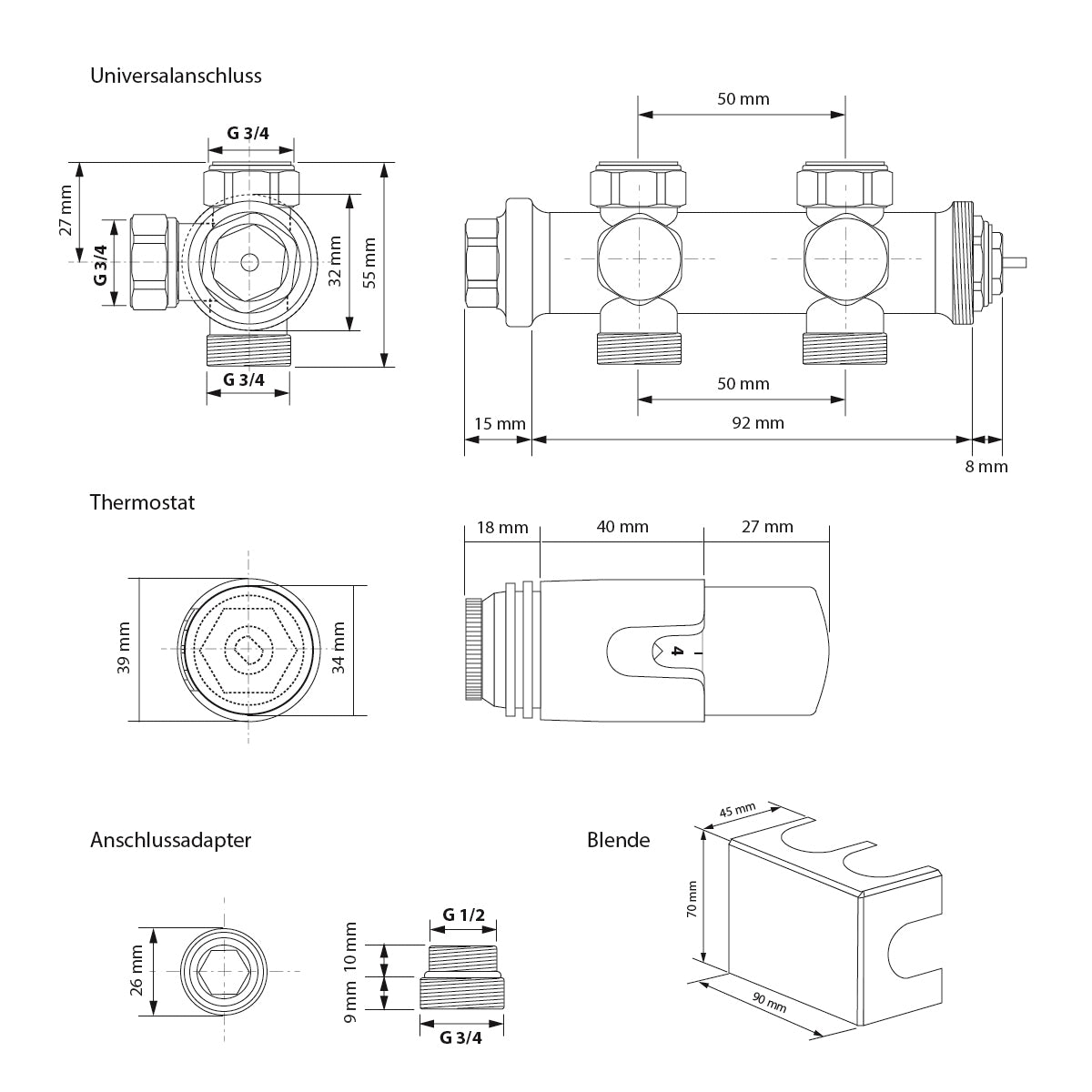

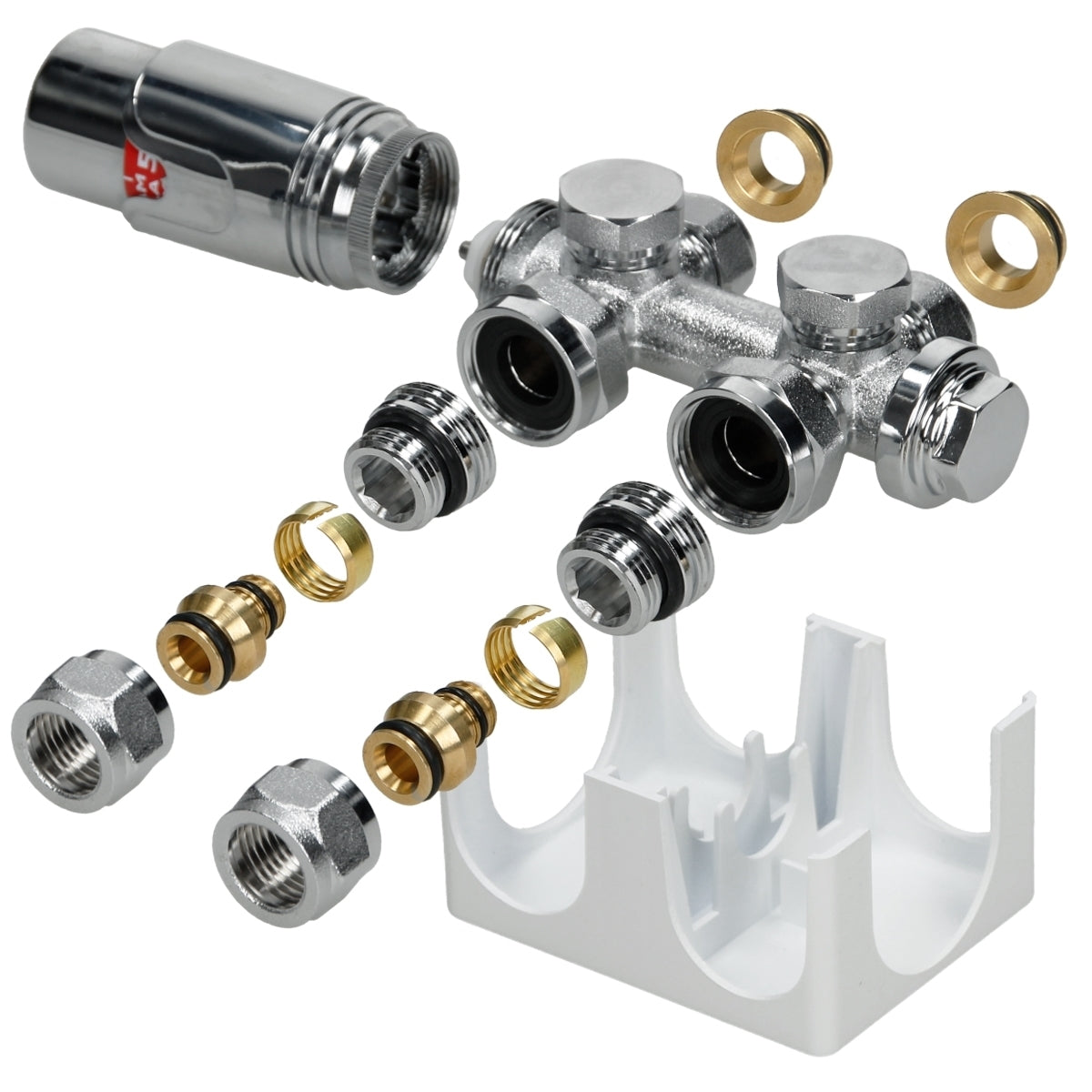

Connection fitting
for 50 mm pipe spacing, central connection
Multiblock twin-pipe valve
max. operating pressure 10 bar
max. operating temperature 110°C
suitable for straight and angled configurations
presettable valve insert incl. key
Color: white
with frost protection setting
5 adjustable settings
for two-pipe heating systems
Radiator connection thread 1/2" with freely rotating nut
Pipe connection with G 3/4'' male thread and cone for compression fitting connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
Setpoint range: 0–30 °C
with "0" setting and frost protection
frost protection adjustable to 6 °C
for radiators with flow and return connections
Bathroom radiator
Width (mm): 600
Height (mm): 800
Connections (mm): 555
Pipe diameter: Ø22
Profile: 30*40*1,5 D
Tube configuration: 3+3+3+3
Number of tubes: 12
Heat output (watts at 75/65/20°): 440
Water content (L): 4.97
Weight (kg): 6.02
Colour: white
for pipe diameters from 18 to 22 mm;
for pipe spacing from 18 to 22 mm;
Depth (wall to pipe centre): 75 to 100 mm;
maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1,2 MPa)
vertical D-profiles 30 x 40 x 1,5 mm
horizontal round tubes 22 x 1,2 mm
Distance from wall: approx. 6.5 cm
Connection fitting
for 50 mm pipe spacing, central connection
Multiblock twin-pipe valve
max. operating pressure 10 bar
max. operating temperature 110°C
suitable for straight and angled configurations
presettable valve insert incl. key
Color: white
with frost protection setting
5 adjustable settings
for two-pipe heating systems
Radiator connection thread 1/2" with freely rotating nut
Pipe connection with G 3/4'' male thread and cone for compression fitting connection
adjustable for hydraulic balancing
with liquid sensor (hydrosensor)
Setpoint range: 0–30 °C
with "0" setting and frost protection
frost protection adjustable to 6 °C
for radiators with flow and return connections
