- High quality bathroom radiator
- Mounting material included
- Quality from ECD Germany
- Classic design
- Top processing
- Versatile
- 3 years warranty
00
h
:
00
m
:
00
s
The demands on bathroom radiators are constantly increasing.
You as a customer expect high performance with low energy consumption. It is useful for heating rooms as well as for towel drying. Also important to you is functionality (e.g. as a practical towel holder) and last but not least a visual eye-catcher.
In your bathroom, not only ensure pleasantly cosy warmth, but also dry your towels at the same time.
You will certainly find a radiator in our shop that meets your wishes and ideas for a new or redesigned room!
Scope of delivery:
1 x bath radiator

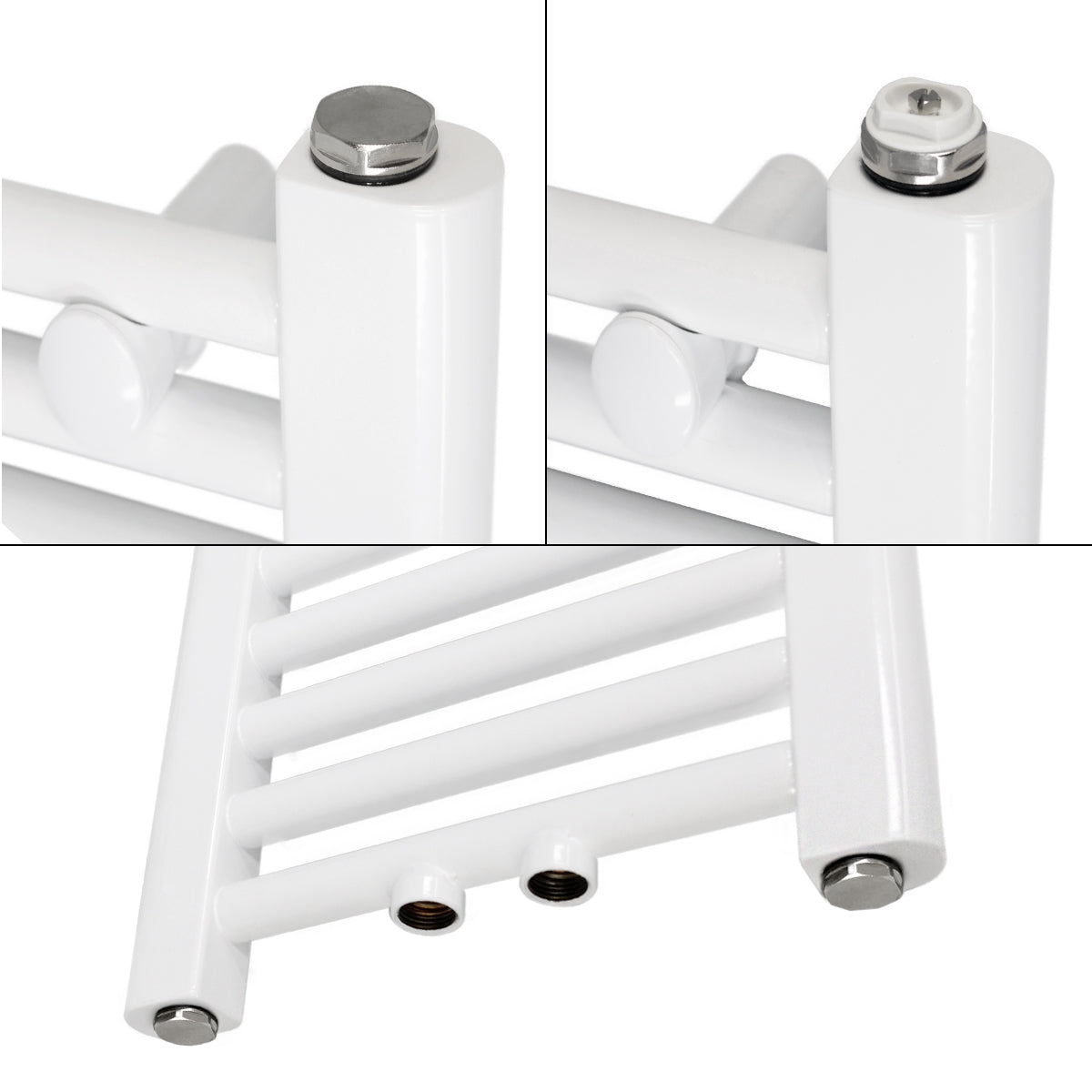

air bleed valve 1/2 inch
Blanking plug 1/2 inch
Assembly instructions
Wall mounting set:
- 4 x wall bracket
- 4 x screws and dowels
- 4 x holder screw
- 4 x discs
You as a customer expect high performance with low energy consumption. It is useful for heating rooms as well as for towel drying. Also important to you is functionality (e.g. as a practical towel holder) and last but not least a visual eye-catcher.
In your bathroom, not only ensure pleasantly cosy warmth, but also dry your towels at the same time.
You will certainly find a radiator in our shop that meets your wishes and ideas for a new or redesigned room!
Scope of delivery:
1 x bath radiator
air bleed valve 1/2 inch
Blanking plug 1/2 inch
Assembly instructions
Wall mounting set:
- 4 x wall bracket
- 4 x screws and dowels
- 4 x holder screw
- 4 x discs

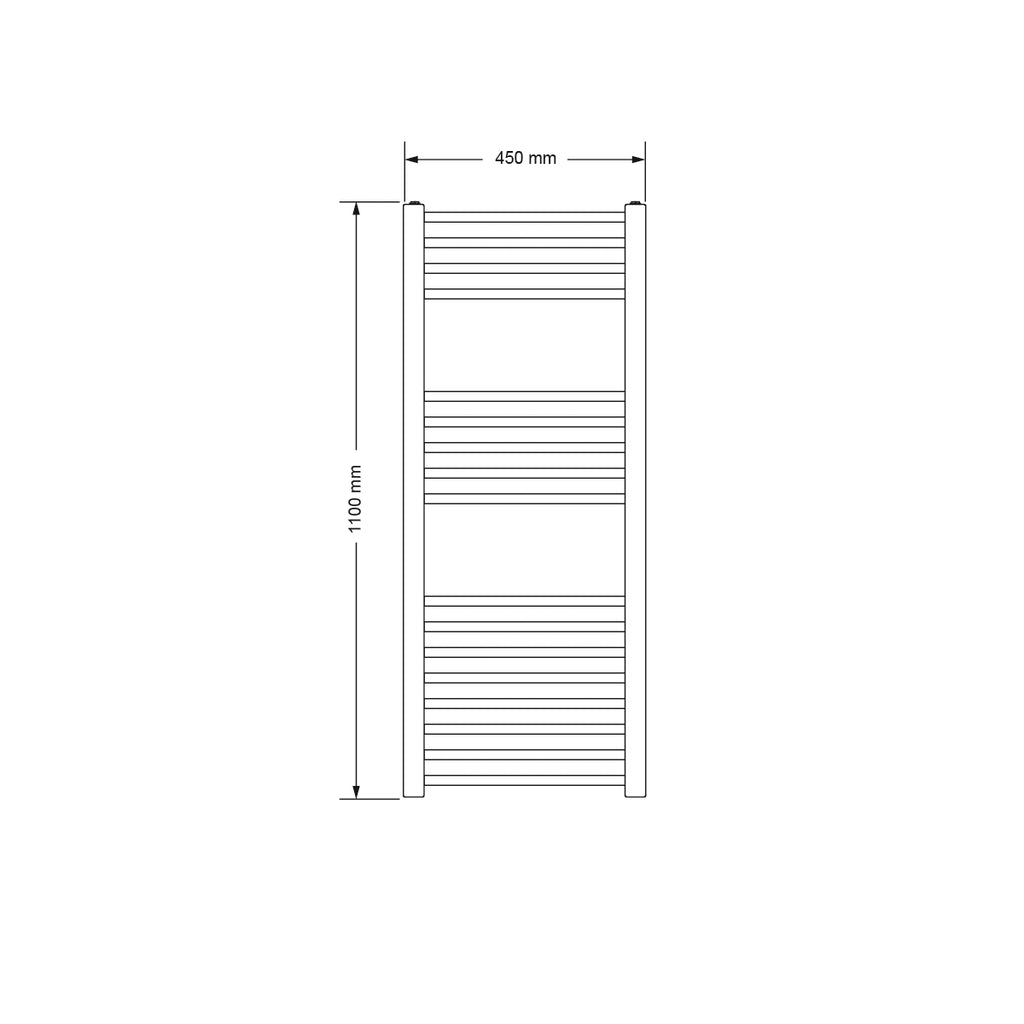

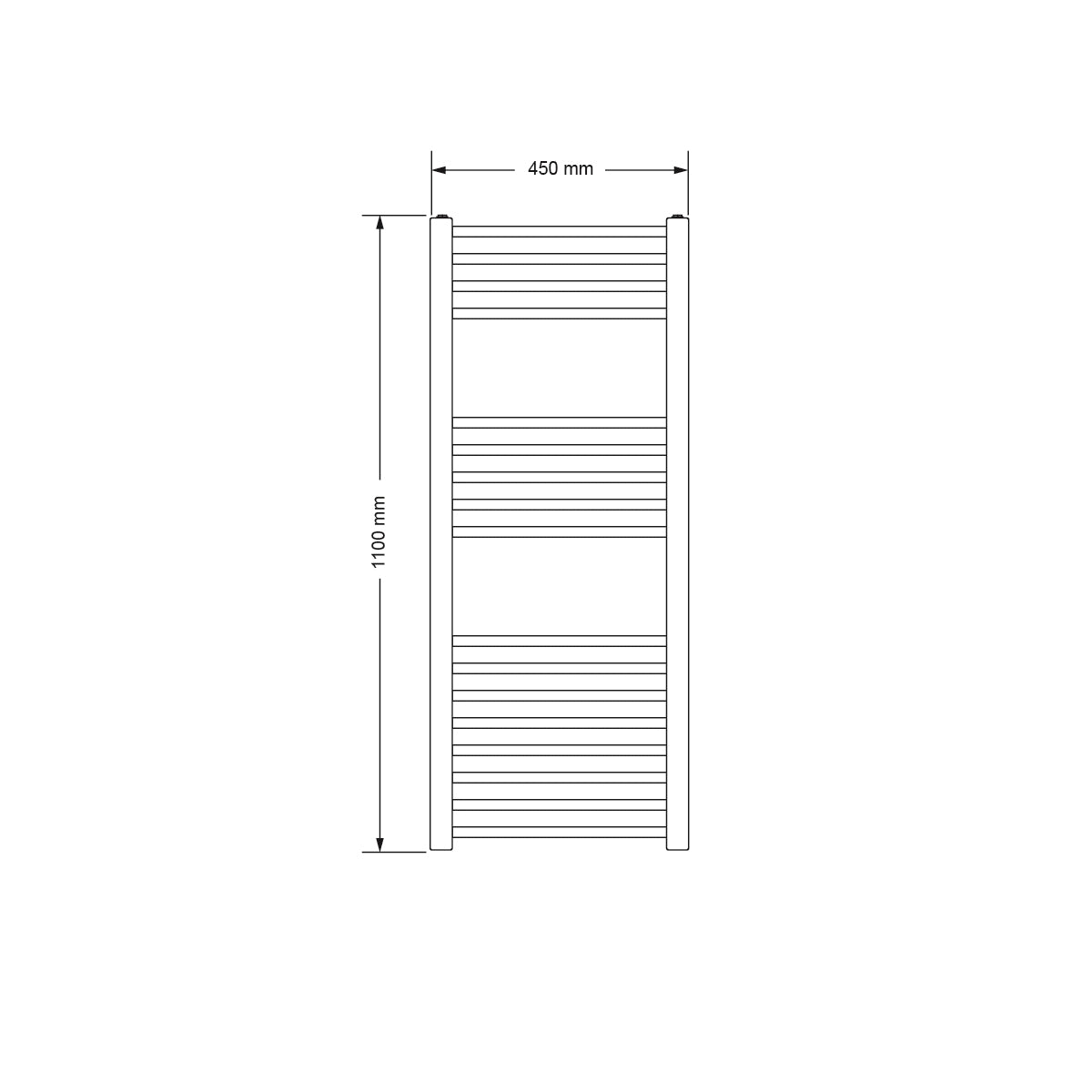

Technical information:
width (mm): 450
height (mm): 1100
Connections (mm): 405
Pipe diameter: Ø22
Profile: 30*40*1,5 D
Heat output (watts at 75/65/20°): 468
Water quantity (L): 4.39
Weight (Kg): 6.27
Colour: white
for pipe diameter 18 to 22 mm;
for pipe distance 18 to 22 mm;
Depth (wall to pipe centre): 75 to 100 mm;
Deep anchors are not suitable for installation in drywall.
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
vertical D-profiles 30 x 40 x 1.5 mm
horizontal round tubes 22 x 1.2 mm
distance to the wall: approx. 6,5cm
width (mm): 450
height (mm): 1100
Connections (mm): 405
Pipe diameter: Ø22
Profile: 30*40*1,5 D
Heat output (watts at 75/65/20°): 468
Water quantity (L): 4.39
Weight (Kg): 6.27
Colour: white
for pipe diameter 18 to 22 mm;
for pipe distance 18 to 22 mm;
Depth (wall to pipe centre): 75 to 100 mm;
Deep anchors are not suitable for installation in drywall.
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
vertical D-profiles 30 x 40 x 1.5 mm
horizontal round tubes 22 x 1.2 mm
distance to the wall: approx. 6,5cm
