- High-quality bathroom radiator
- Including fitting materials
- Quality from ECD Germany
- Classic design
- Excellent workmanship
- Versatile
- 3-year warranty
00
h
:
00
m
:
00
s
Technical information:

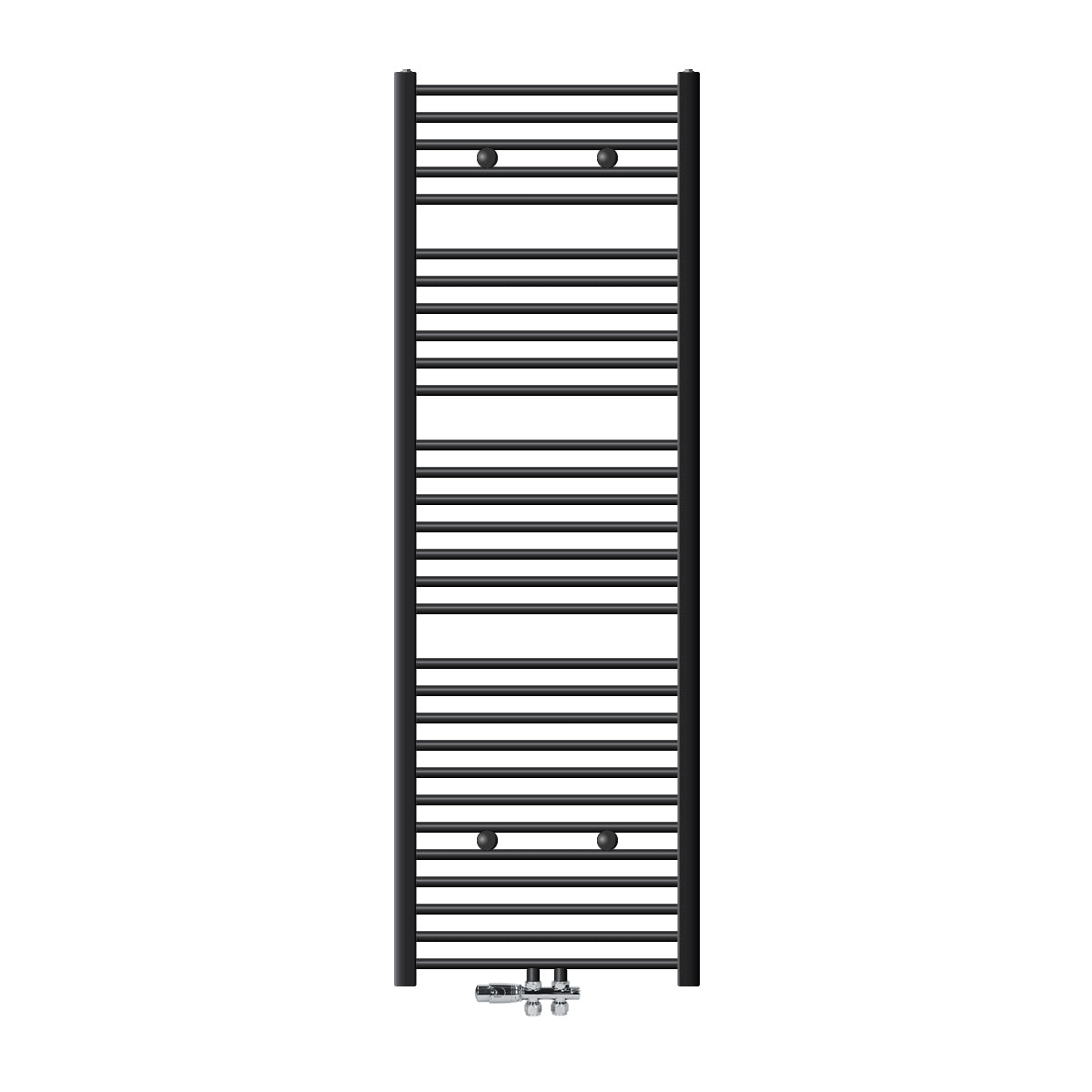

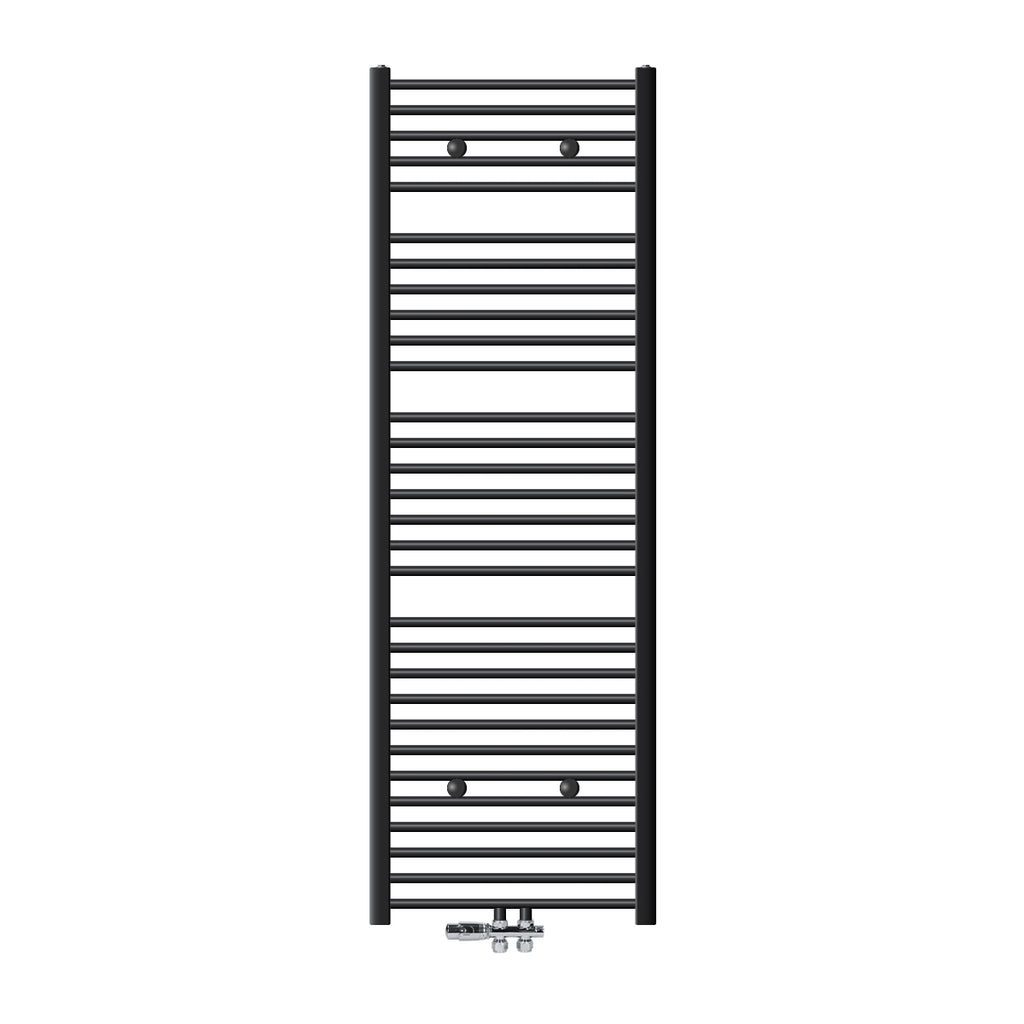

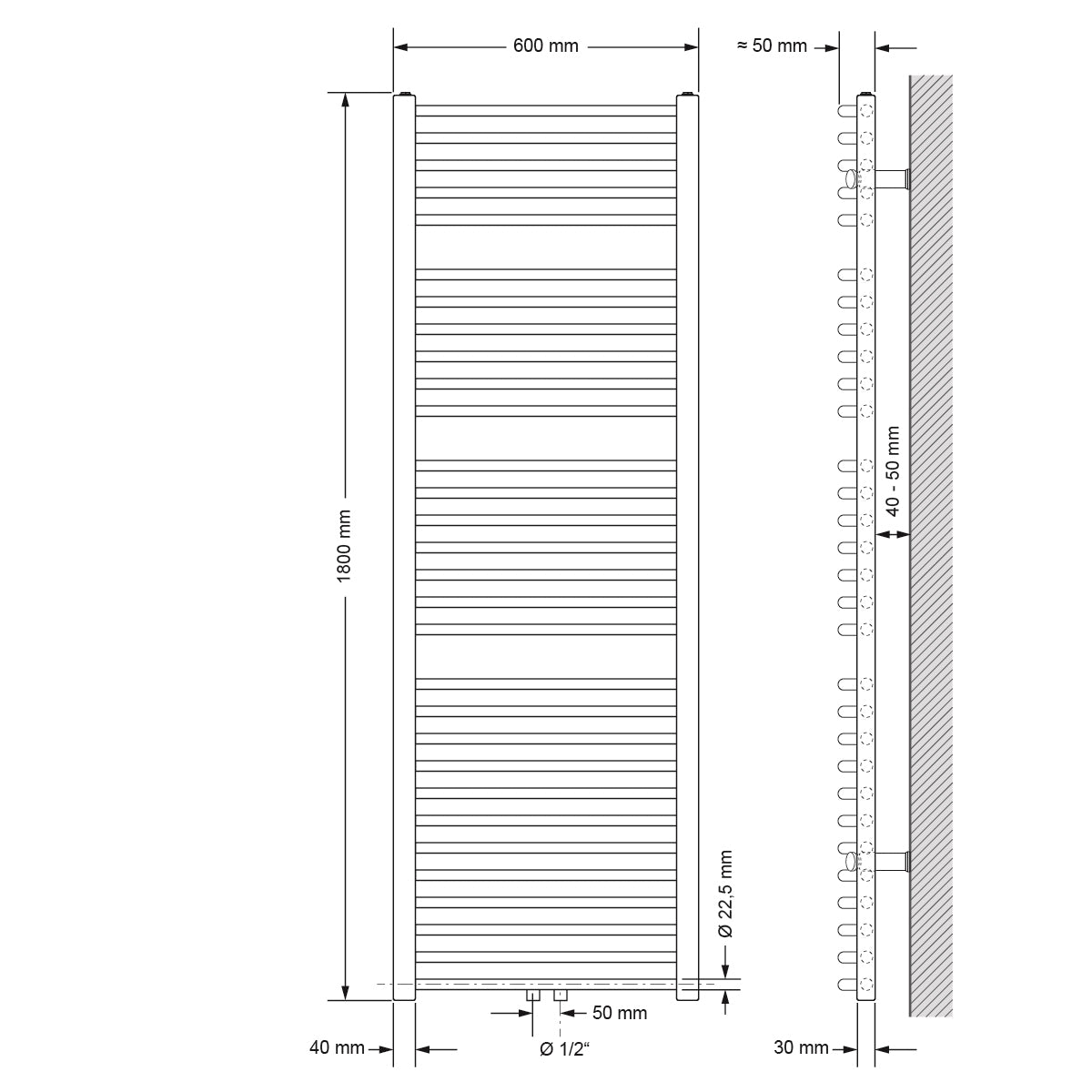

Bathroom radiator:
Width (mm): 600;
Height (mm): 1800;
Connections (mm): 555;
Pipe diameter: Ø22;
Profile: 30×40×1.5 D;
Pipe configuration: 5+6+7+12;
Number of pipes: 30;
Heat output (watts at 75/65/20°): 951;
Water volume (L): 8.64;
Weight (kg): 12.96;
Colour: Anthracite;
For pipe diameters 18 to 22 mm;
For pipe spacing 18 to 22 mm;
Depth (wall to centre of pipe): 75 to 100 mm;
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
vertical D-profiles 30 x 40 x 1.5 mm
horizontal round tubes 22 x 1.2 mm
Distance from the wall: approx. 6.5 cm

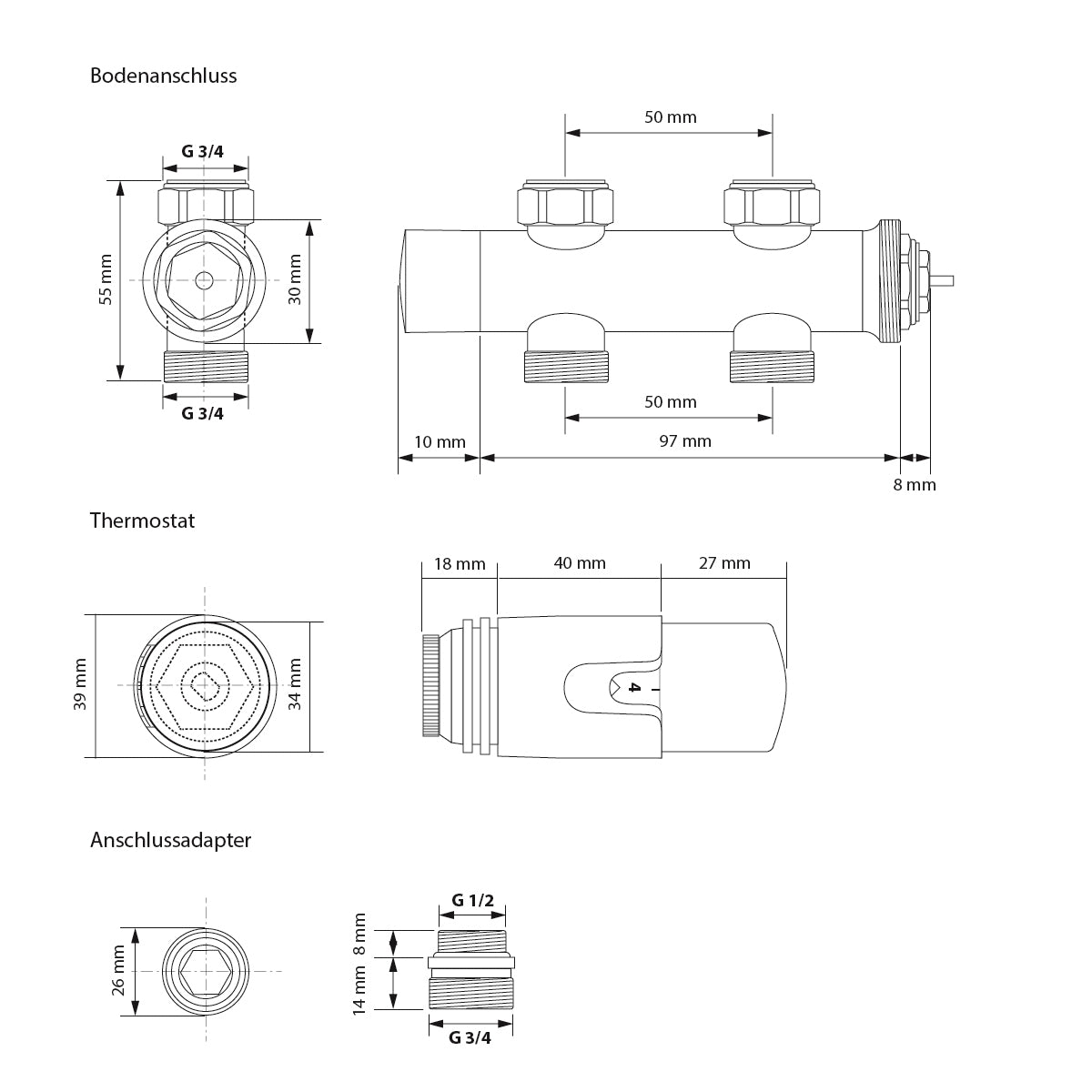

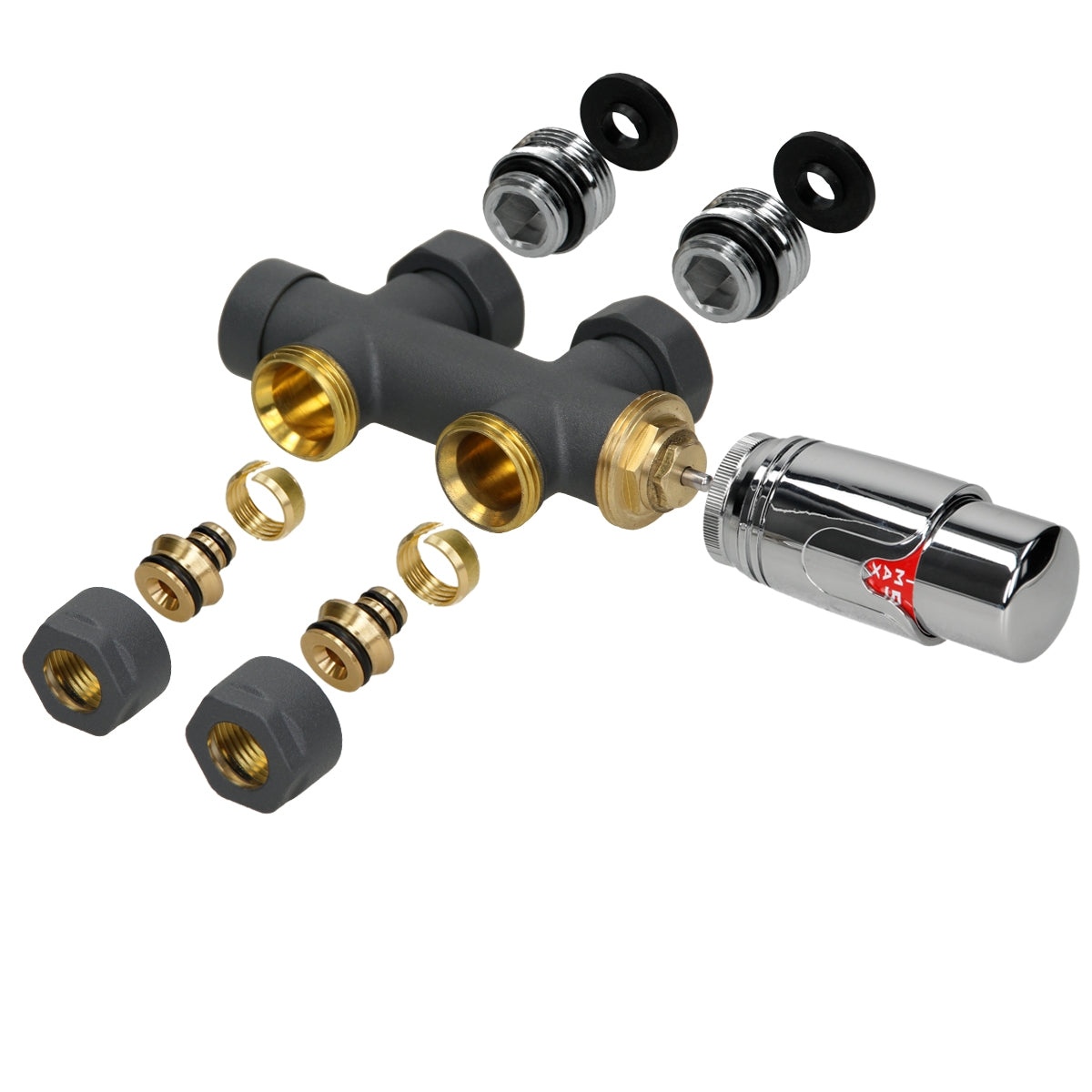

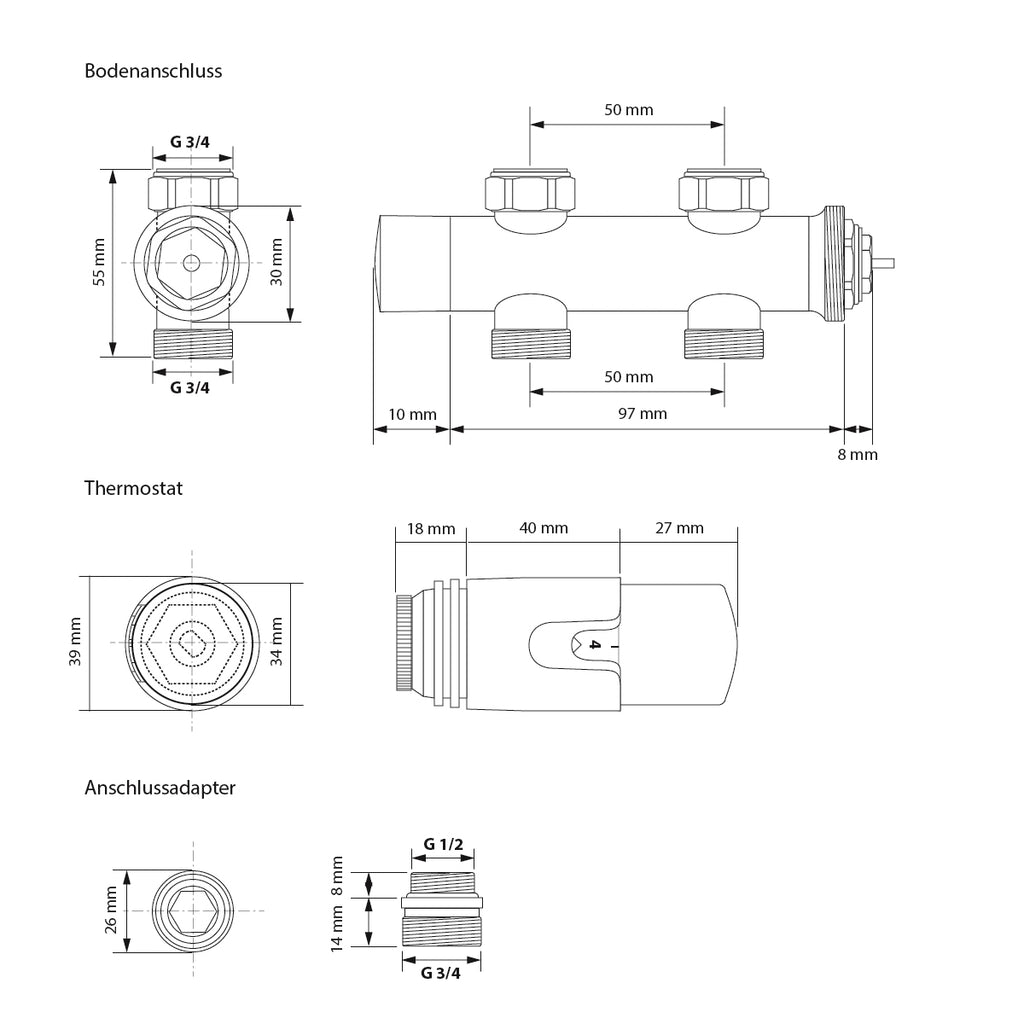

Connection kit:
for 50 mm pipe spacing, centre connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
Max. operating temperature 110°C
Suitable for straight-through configuration
Pre-adjustable valve insert including key
Colour: Anthracite
with frost protection setting
Adjustable in 5 stages
For two-pipe heating systems
Radiator connection thread 1/2" with free-turning nut
Pipe connection with G 3/4'' external thread and cone for clamp set connection
Adjustable for hydraulic balancing
with fluid sensor (hydrosensor)
Setpoint range: 0–30 °C
with ‘0’ position and frost protection
Frost protection adjustable at 6 °C
for radiators with flow and return
Bathroom radiator:
Width (mm): 600;
Height (mm): 1800;
Connections (mm): 555;
Pipe diameter: Ø22;
Profile: 30×40×1.5 D;
Pipe configuration: 5+6+7+12;
Number of pipes: 30;
Heat output (watts at 75/65/20°): 951;
Water volume (L): 8.64;
Weight (kg): 12.96;
Colour: Anthracite;
For pipe diameters 18 to 22 mm;
For pipe spacing 18 to 22 mm;
Depth (wall to centre of pipe): 75 to 100 mm;
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
vertical D-profiles 30 x 40 x 1.5 mm
horizontal round tubes 22 x 1.2 mm
Distance from the wall: approx. 6.5 cm
Connection kit:
for 50 mm pipe spacing, centre connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
Max. operating temperature 110°C
Suitable for straight-through configuration
Pre-adjustable valve insert including key
Colour: Anthracite
with frost protection setting
Adjustable in 5 stages
For two-pipe heating systems
Radiator connection thread 1/2" with free-turning nut
Pipe connection with G 3/4'' external thread and cone for clamp set connection
Adjustable for hydraulic balancing
with fluid sensor (hydrosensor)
Setpoint range: 0–30 °C
with ‘0’ position and frost protection
Frost protection adjustable at 6 °C
for radiators with flow and return
