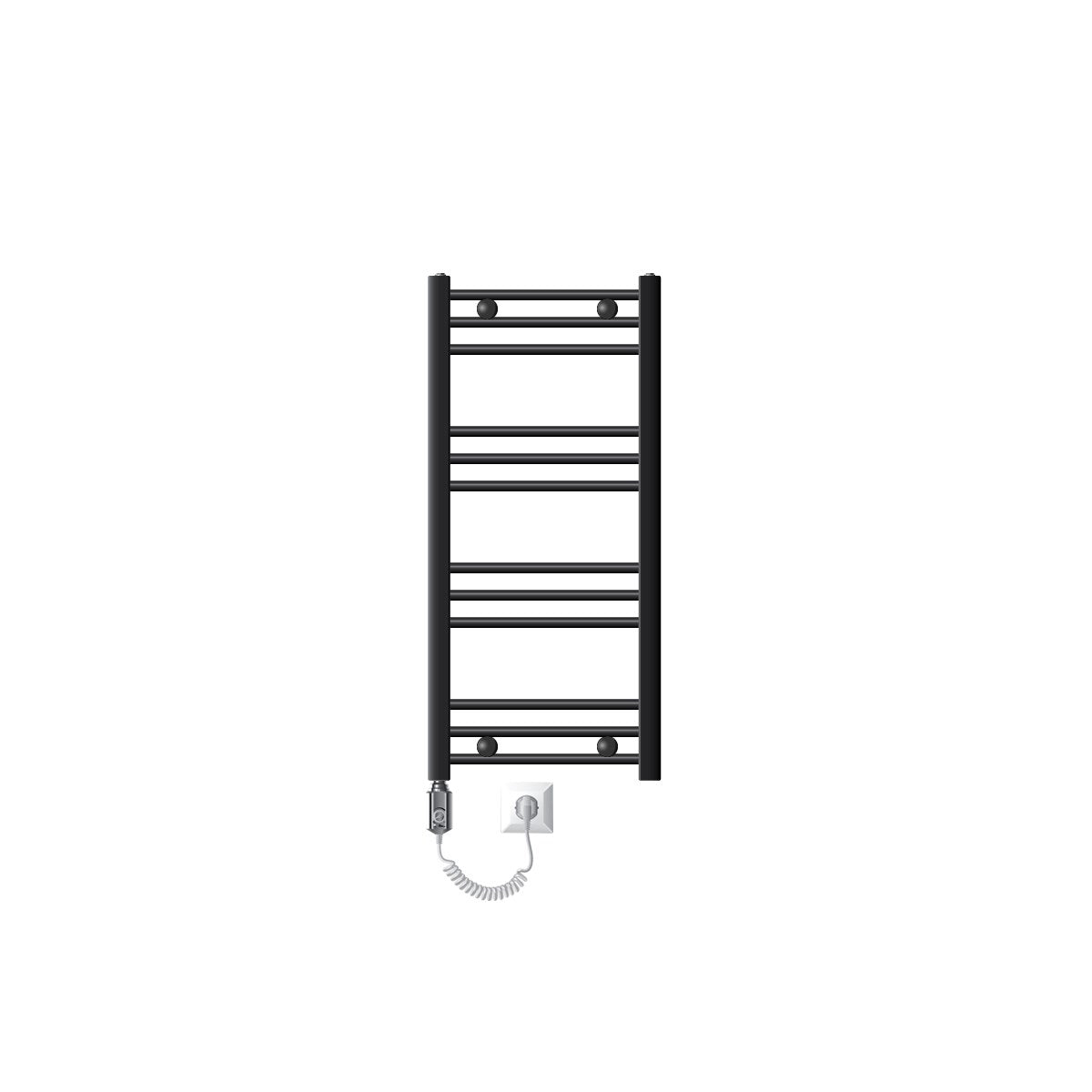

• LuxeBath electric bathroom heater
• Modern and timeless design

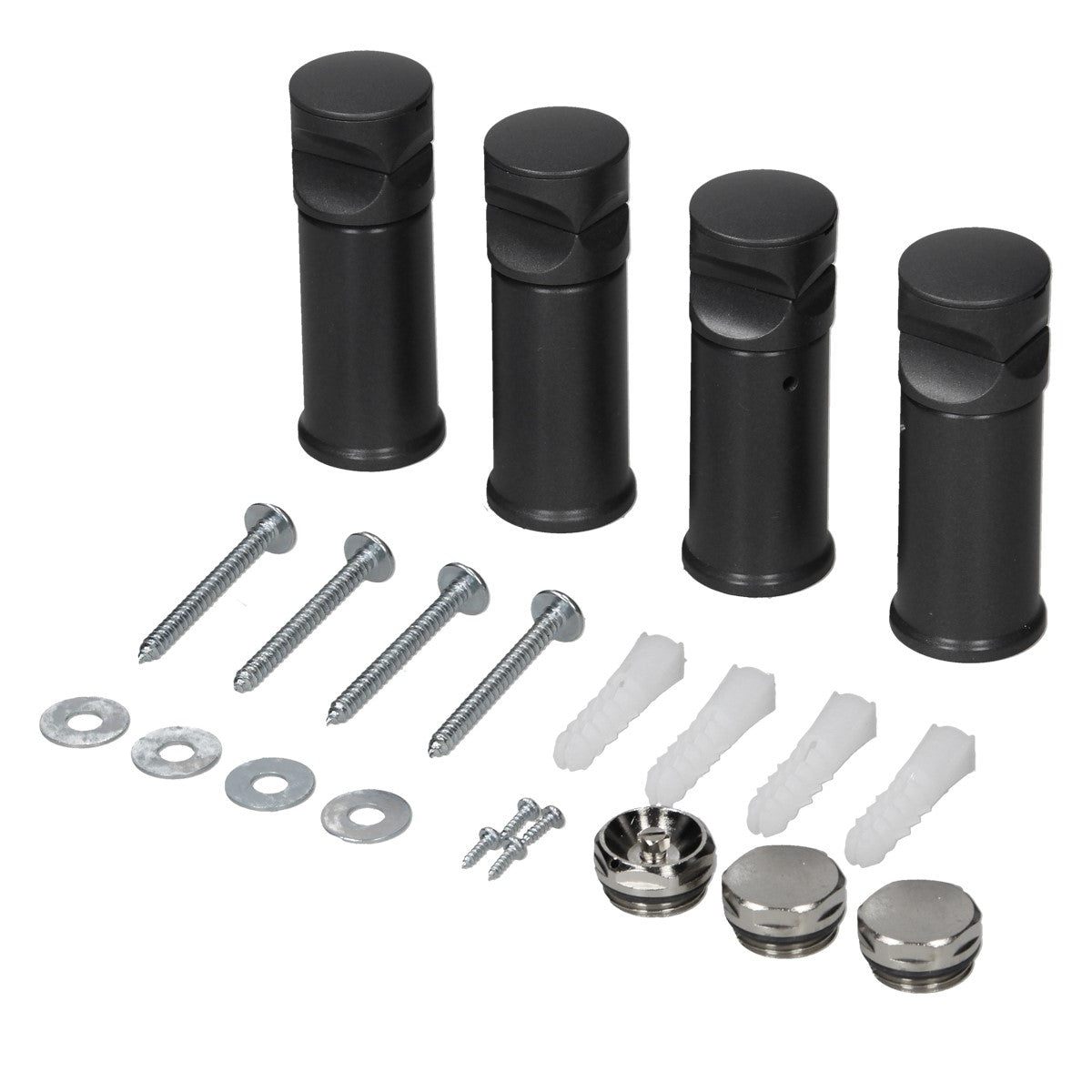

• Mounting material included
• High quality materials
• Simple installation
• Top processing
• 3 years warranty

Technical information:

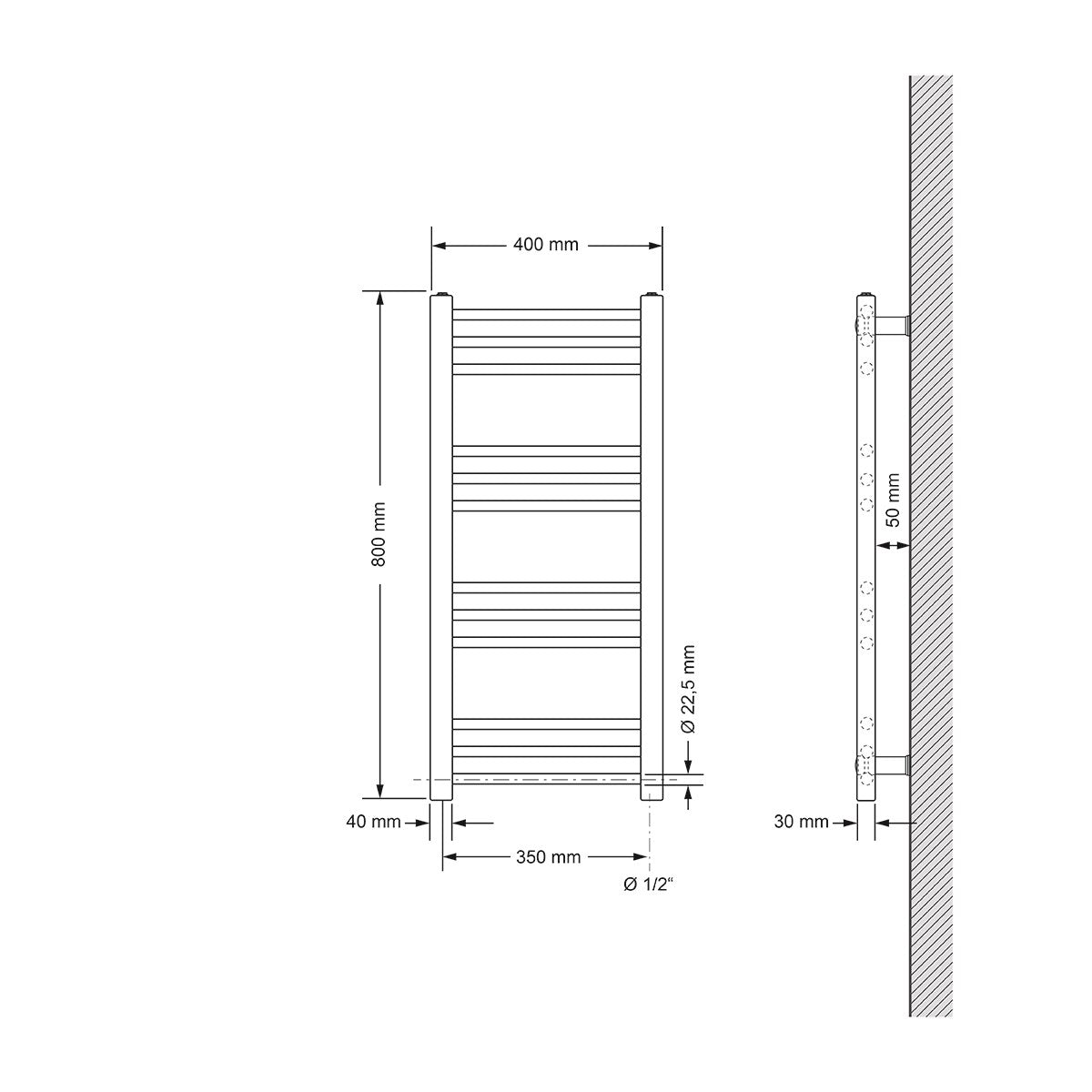

Bathroom radiator
Width (mm): 400;
Height (mm): 800;
Connections (mm): 355;
Pipe diameter: Ø22;
Profile: 30*40*1.5 D;
Tube configuration: 3+3+3+3;
Tube quantity: 12;
Heat output (watts at 75/65/20°): 317;
Water volume (L): 3.01;
Weight (kg): 4.62;
Color: Anthracite
for pipe diameter 18 to 22 mm;
for pipe spacing 18 to 22 mm;
Depth (wall to center of pipe): 75 to 100 mm;
Deep plugs are not suitable for installation in drywall;
Maximum operating pressure: 10 bar (1 MPa);
Test pressure: 12 bar (1.2 MPa);
Vertical D-profiles 30 x 40 x 1.5 mm;
horizontal round tubes 22 x 1.2 mm;
Distance to the wall: approx. 6.5 cm.

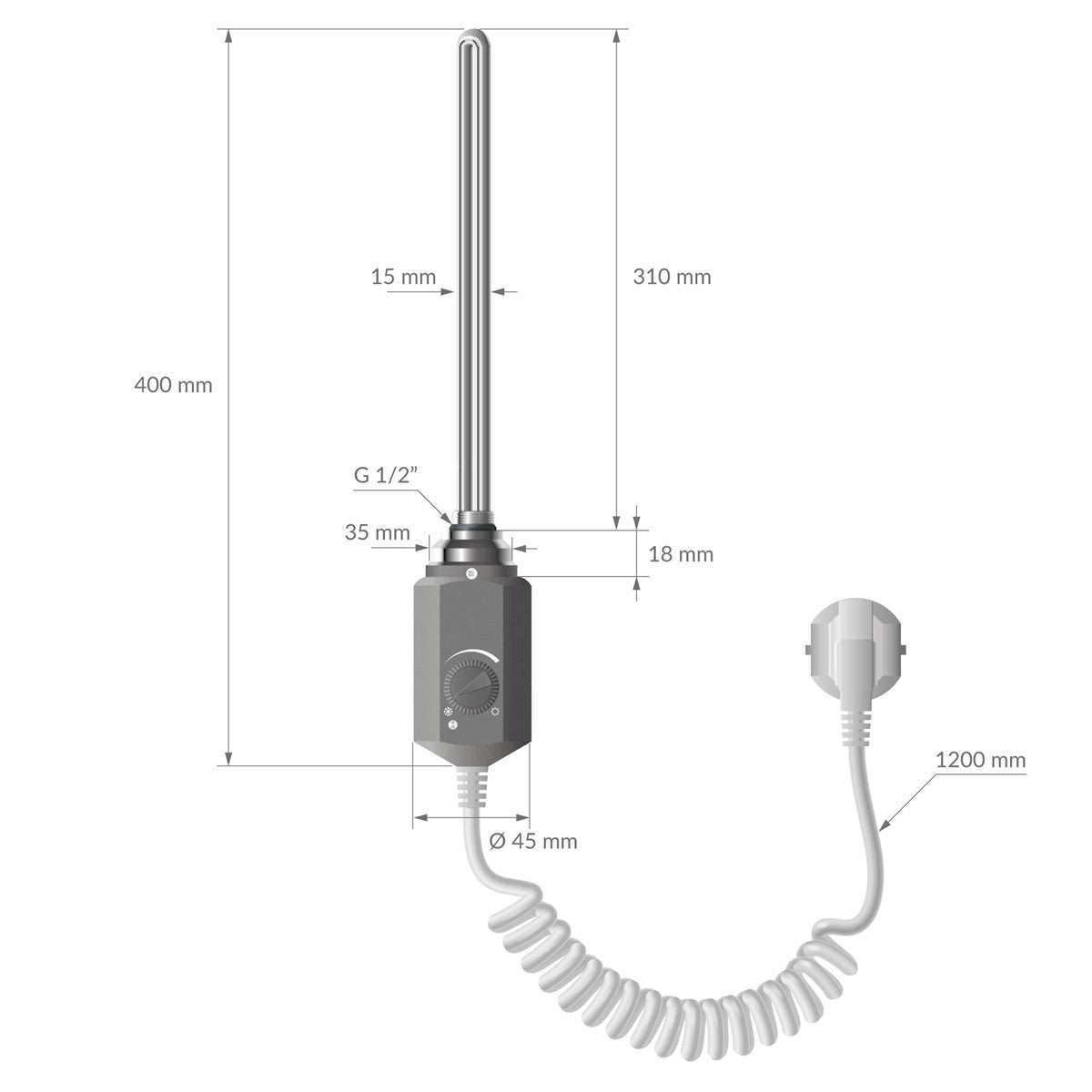

Heating element
Heating power: 600W 230 V / 50 Hz;
Temperature: 10 ° C - 65 ° C + / - 2 ° C;
Connection cable: 1.5 m / 3 x 0.75;
Color: chrome;
Connection size: 1/2 ";
Weight: 400 (g);
Total length: 420 (mm);
Heating element length L: 340 (mm);
Type: RD 10.
