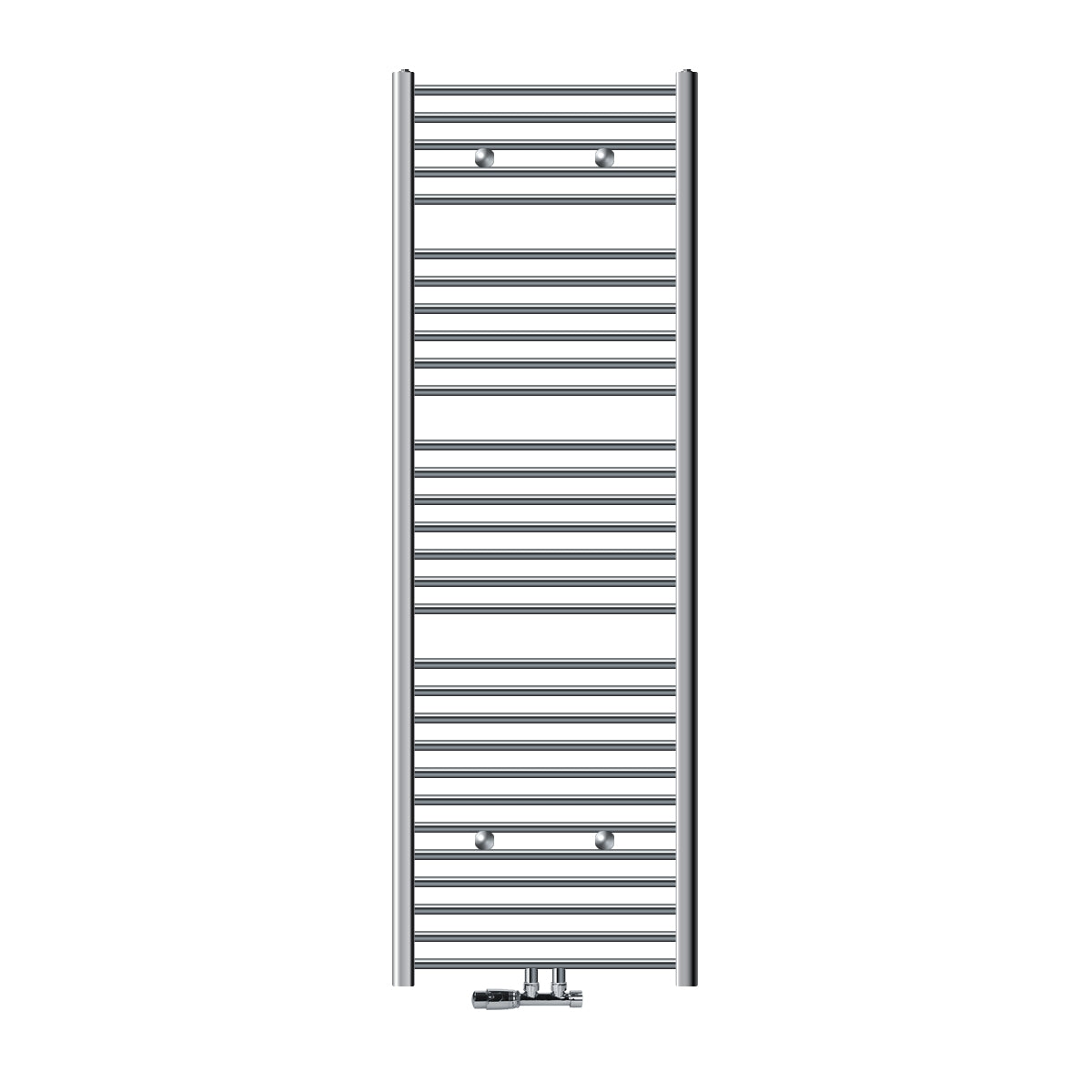

Ein großer, verchromter Heizkörper mit vielen horizontalen Lamellen.

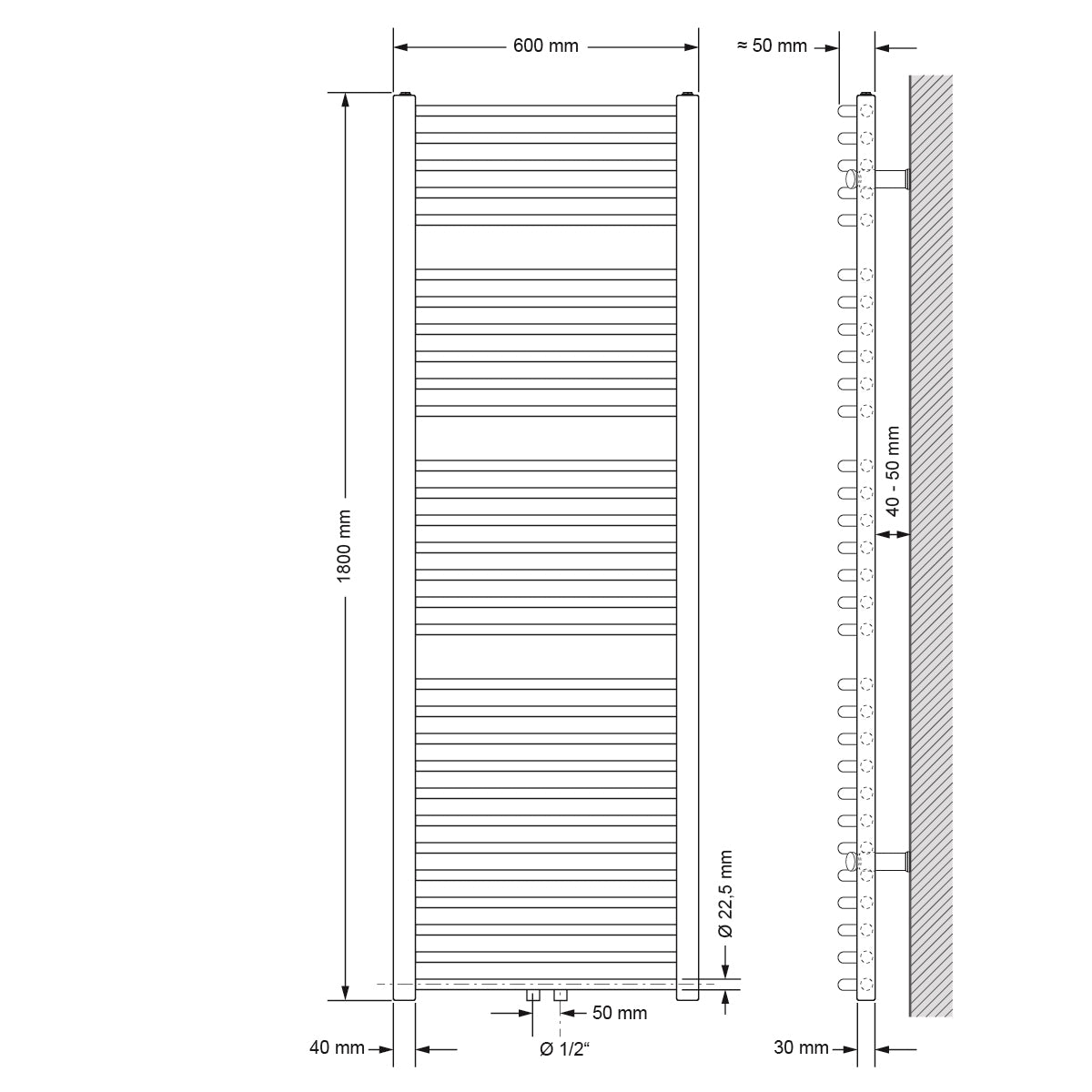

Technische Zeichnung eines gebogenen Heizkörpers, 600 mm breit und 1800 mm hoch.

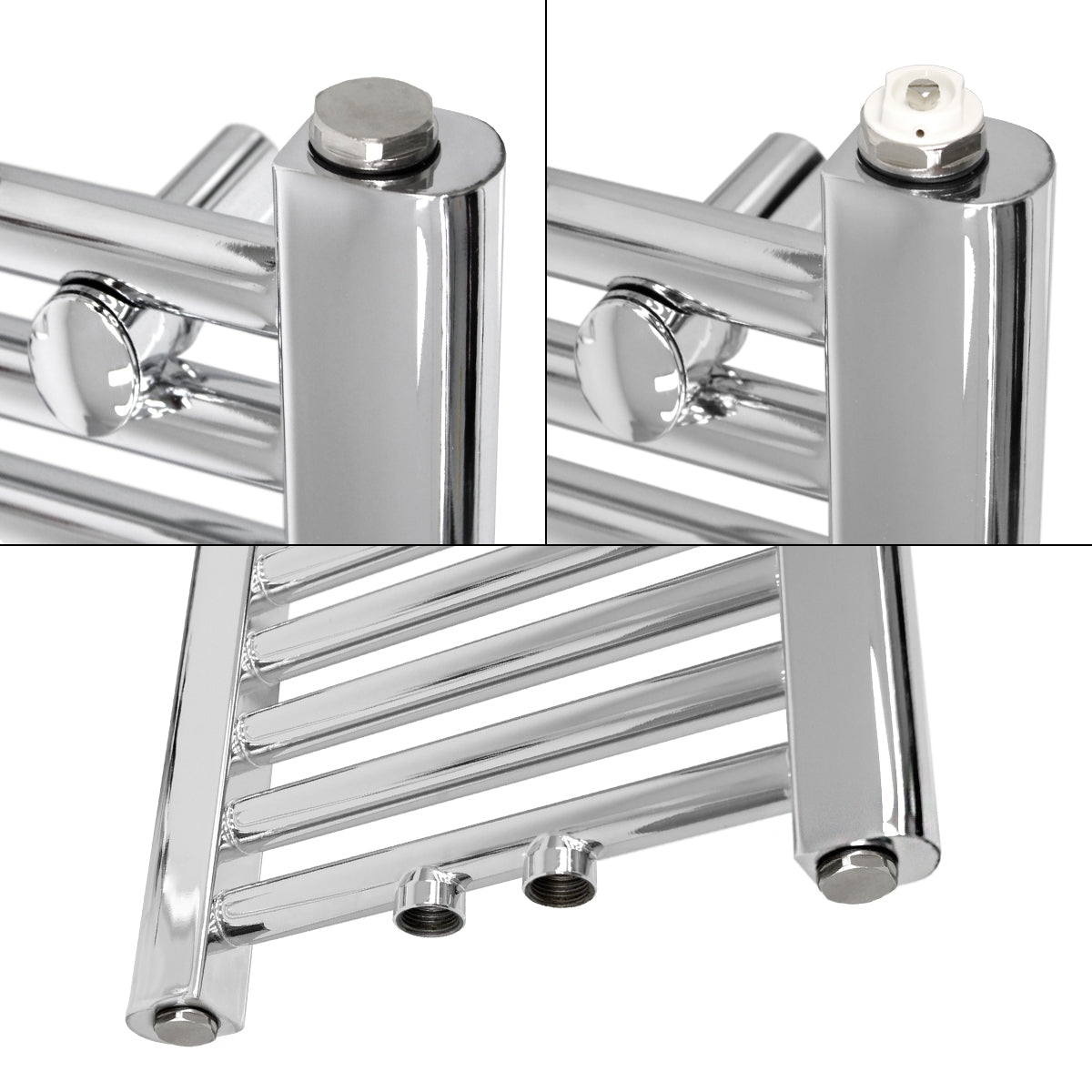

Drei Ansichten eines chromfarbenen Heizkörpers mit zwei Anschlüssen.
Detail eines verchromten Handtuchheizkörpers mit rundem Wandhalter; links unten ist der Halter vergrößert dargestellt.
Montageset in Chromfarbe mit Halterungen und Schrauben.

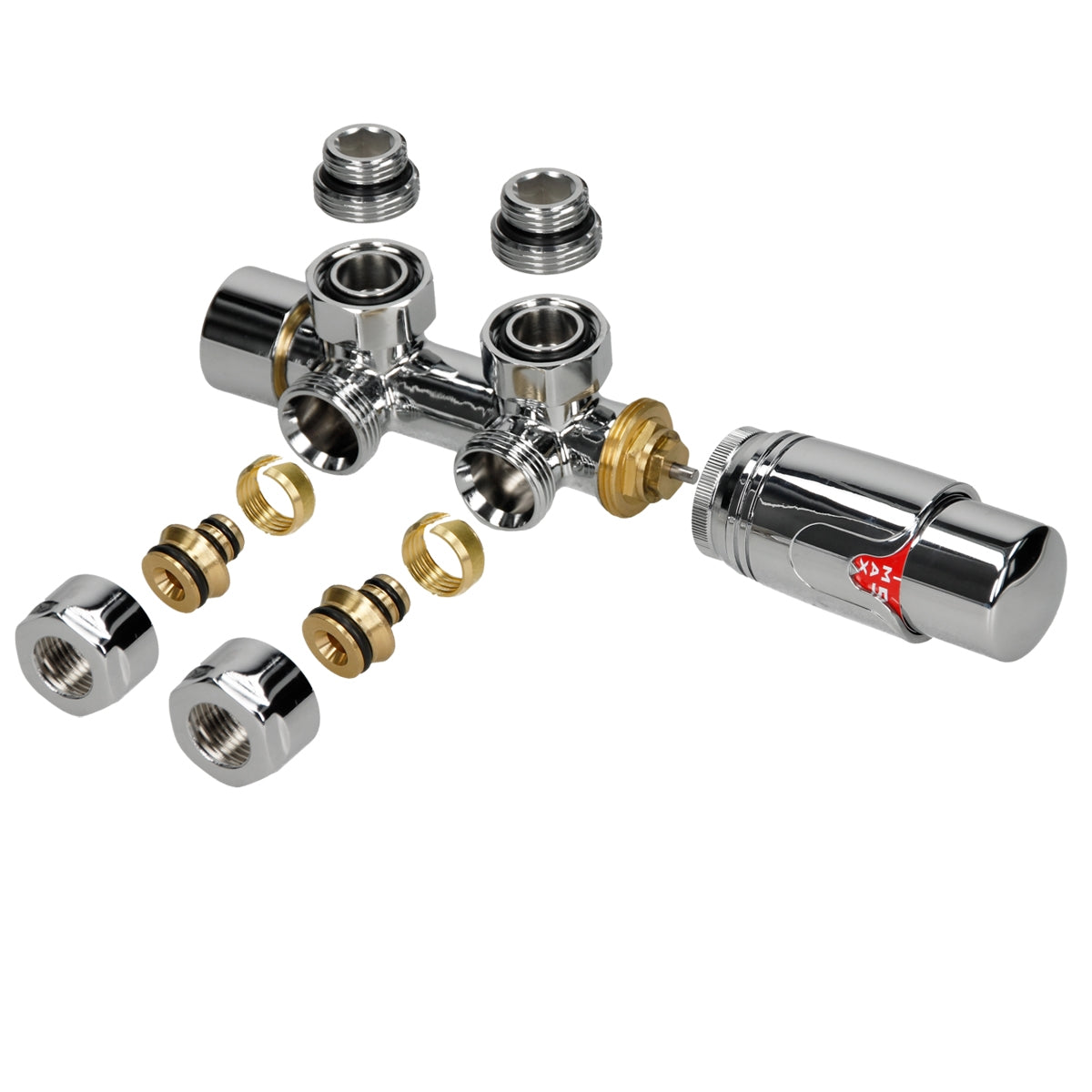

Verchromtes Thermostatventil mit zwei Gewindeanschlüssen vor weißem Hintergrund.

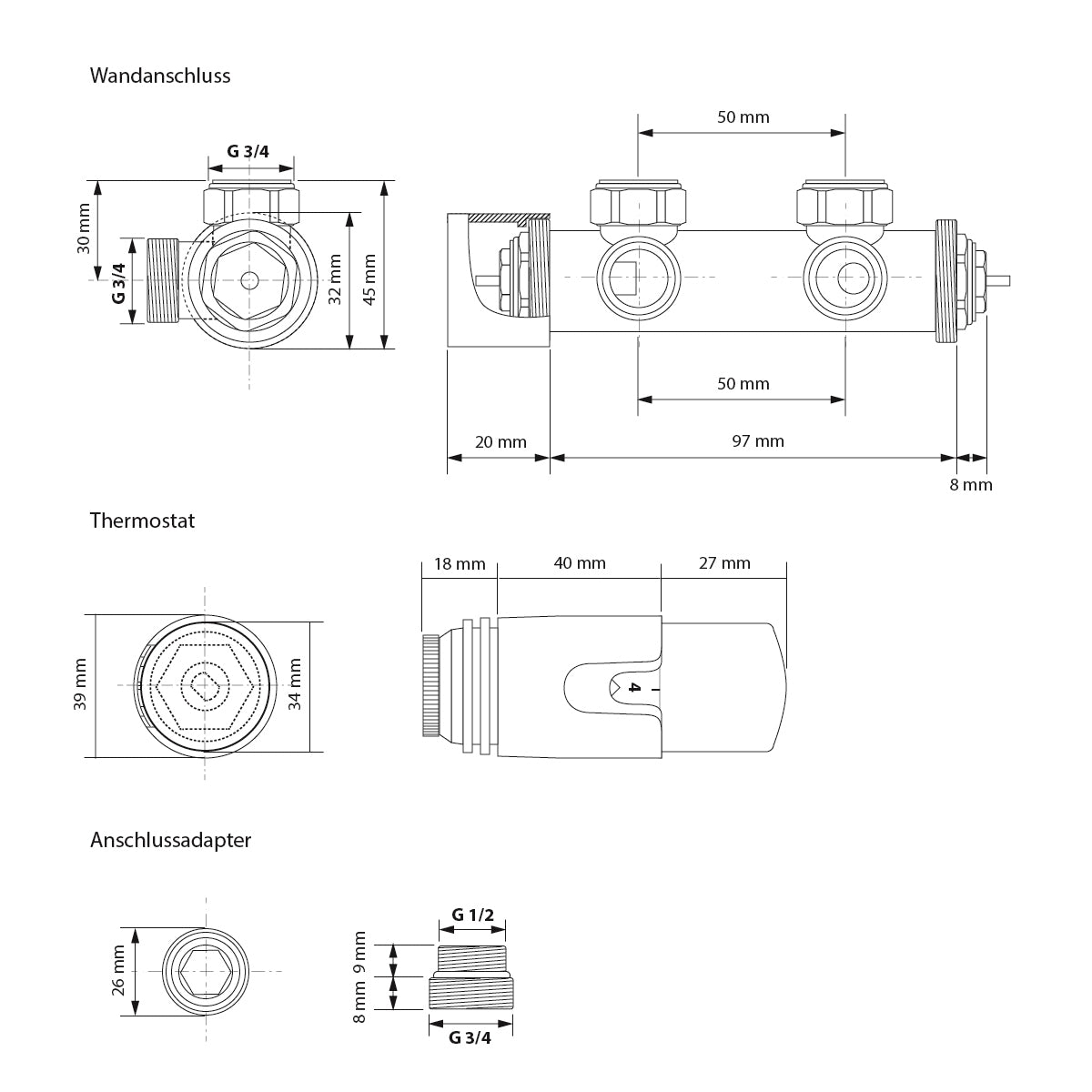

Technische Zeichnung eines Thermostats und Wandanschlusses.
Hover over the image to enlarge Click on image to zoom
Ein großer, verchromter Heizkörper mit vielen horizontalen Lamellen.Technische Zeichnung eines gebogenen Heizkörpers, 600 mm breit und 1800 mm hoch.Drei Ansichten eines chromfarbenen Heizkörpers mit zwei Anschlüssen.Detail eines verchromten Handtuchheizkörpers mit rundem Wandhalter; links unten ist der Halter vergrößert dargestellt.Montageset in Chromfarbe mit Halterungen und Schrauben.Verchromtes Thermostatventil mit zwei Gewindeanschlüssen vor weißem Hintergrund.Technische Zeichnung eines Thermostats und Wandanschlusses.

Luxe-289/BHK Sahara 600*1800 Chrome gebogen+Eck

Save 25%
Article number:322007838
Colour: Chrome
Size: 600x1800 mm
400x1200 mm
450x1100 mm
500x1800 mm
500x800 mm
600x1200 mm
600x1500 mm
600x1800 mm
750x1200 mm
750x1500 mm
750x1800 mm
Save 25%
227,35 € 303,13 €
Save 25%

incl. VAT

Sold out
American Express Apple Pay Bancontact EPS Google Pay iDEAL Wero Klarna Maestro Mastercard PayPal Shop Pay Union Pay Visa
  • Modern warmth in chrome: The bathroom radiator with high thermal conductivity provides pleasant warmth and gives every bathroom a stylish look.
  • Durable steel body: The chrome-plated radiator offers a heat-resistant surface, long-lasting quality and sturdy construction.
  • Dry towels quickly: Offset heating tubes make the towel radiator a practical towel dryer and functional towel rail.
  • Easy installation: Wall-mounted radiator with central connection, including wall brackets, screws, wall plugs, caps and air vent valve.
  • Ideal for wall connections: The thermostatic angled valve is suitable for pipes coming from the wall and allows convenient temperature control.
Lieferumfang:

Badheizkörper
Thermostat mit Mittelanschlußgarnitur Wandanschluss / Eckausführung - wenn die Röhren aus der Wand kommen
Entlüftungsventil 1/2 Zoll
Blindstopfen 1/2 Zoll
Montageanleitung
Wandmontage-Set:
4 x Wandhalter
4 x Schrauben und Dübel
4 x Halterschraube
4 x Scheiben
Technical information:

Connection type: Centre connection
Design: Curved
Colour: Chrome
Material: Steel
Width: 600 mm
Height: 1800 mm
Connections: 255 mm
Pipe diameter: Ø 22
Profile (mm): 30×40×1.5 D
Number of fins: 30
Heat output: 800 W
Heat capacity: 2697 BTU
Water capacity: 8.64 L
Weight: 14.66 kg
Maximum operating pressure: 10 bar (1 MPa)
Test pressure: 12 bar (1.2 MPa)
Vertical D-profiles: 30 x 40 x 1.5 mm
Horizontal round tubes: 22 x 1.2 mm
Distance from wall: approx. 5 cm

Connection kit

for 50 mm pipe spacing, centre connection
Multiblock two-pipe fitting
max. operating pressure 10 bar
max. operating temperature 110°C
Suitable for corner installation
Pre-adjustable valve insert including key
Colour: Chrome
With frost protection setting
Adjustable to 5 settings
For two-pipe heating systems
Radiator connection thread 1/2" with free-turning nut
Pipe connection with G 3/4'' external thread with cone for clamp set connection
Adjustable for hydraulic balancing
with fluid sensor (hydrosensor)
Setpoint range: 0–30 °C
with ‘0’ position and frost protection
Frost protection adjustable at 6 °C
for radiators with flow and return
